如何为原理图创建VHDL测试平台？

Question

我有一个简单的VHDL模块测试

entity test is
 port(
  clk: in std_logic;
  test_out: out std_logic
  );
end test;

architecture Behavioral of test is
begin
main: process(clk)
variable tmp_buffer : std_logic:='0';
begin
if (rising_edge(clk) and tmp_buffer='0') then
    test_out<='1';
    tmp_buffer:='1';
end if;
if (rising_edge(clk) and tmp_buffer='1') then
    test_out<='0';
    tmp_buffer:='0';
end if;
end process;
end Behavioral;

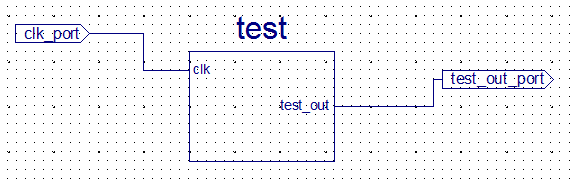

创建简单的原理图

​

以及用户约束文件(Spartan-3 XC3S200)：

NET "clk_port" LOC = "C5";
NET "test_out_port" LOC = "B5";

为示意图创建测试平台(！)

ENTITY main_main_sch_tb IS
END main_main_sch_tb;
ARCHITECTURE behavioral OF main_main_sch_tb IS

   COMPONENT main
   PORT( clk_port   :   IN  STD_LOGIC;
          test_out_port :   OUT STD_LOGIC);
   END COMPONENT;

   SIGNAL clk_port  :   STD_LOGIC;
   SIGNAL test_out_port :   STD_LOGIC;

BEGIN

   UUT: main PORT MAP(
        clk_port => clk_port,
        test_out_port => test_out_port
   );

    clk_port_proc : process
                 begin
                 clk_port <= '0';
                 wait for 10 ns;
                 clk_port <= '1';
                 wait for 10 ns;
             end process;

-- *** Test Bench - User Defined Section ***
   tb : PROCESS
   BEGIN
      WAIT; -- will wait forever
   END PROCESS;
-- *** End Test Bench - User Defined Section ***

END;

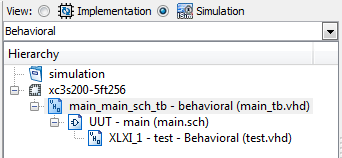

这是我的项目结构

​

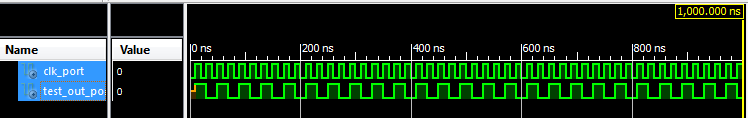

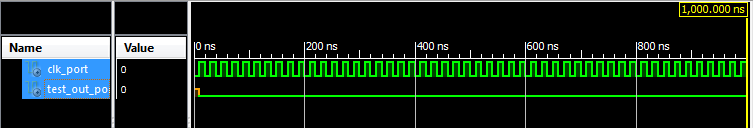

但我还是得到了错误的结果。test_out_port应随着时钟进程的变化而改变。

​

我找不到好的教程，所以可能太蠢了，但是给我点帮助吧

Answer 1

这是愚蠢的错误与‘如果’的陈述。

if (rising_edge(clk) and tmp_buffer='0') then
        test_out<='1';
        tmp_buffer:='1';

else if (rising_edge(clk) and tmp_buffer='1') then
test_out<='0';
tmp_buffer:='0';
end if;
end if;

​

​
