立方体渲染:纹理显示不正确

Question

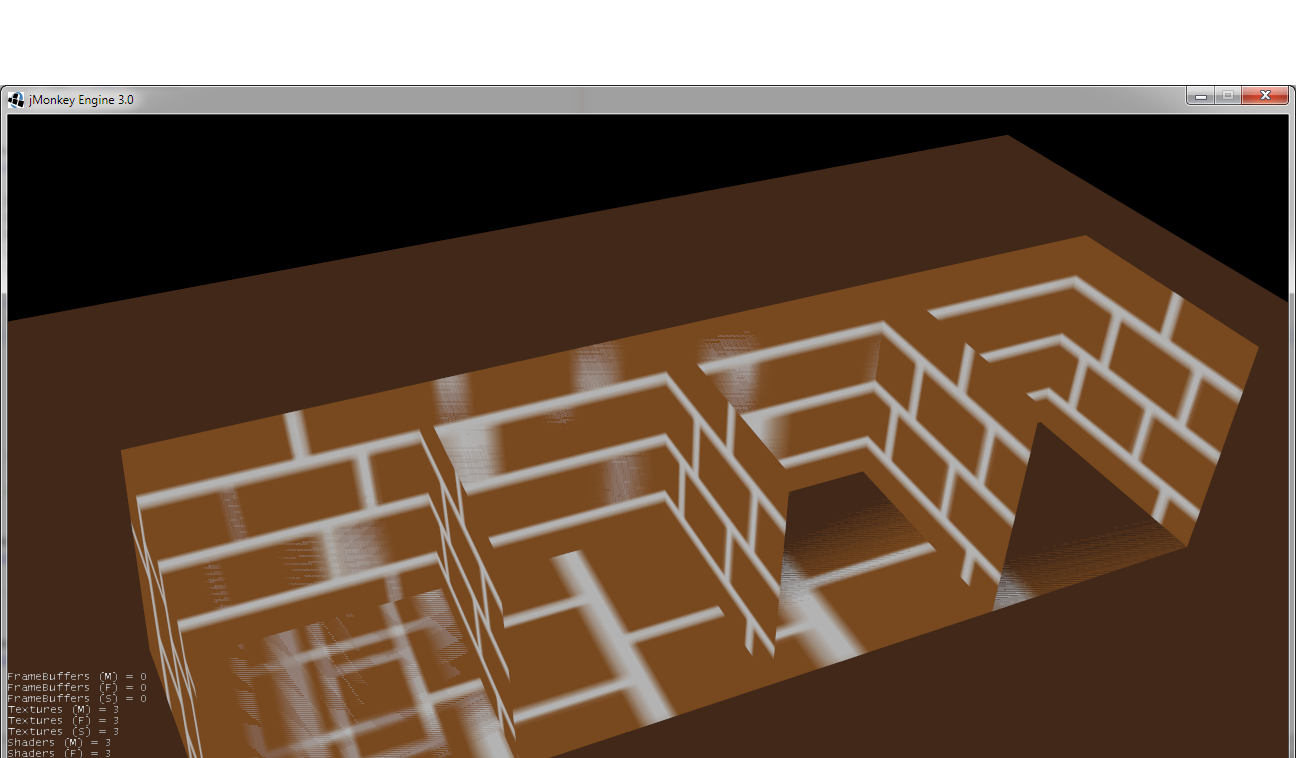

我试图通过创建4个相邻的立方体来渲染墙壁，问题出现在应用纹理时-- JME3确实呈现立方体并应用纹理，但我看到的是立方体的内部。这是某种我可以改变的“观点”吗？如果是这样的话，是怎么做的？

下面是我所指的代码和图像

​

    Box ground = new Box(new Vector3f(1.0f, -1.0f, 1.0f), 5, 0,-5);
    Geometry groundPlane = new Geometry("GroundPlane", ground);
    Material groundMat = new Material(assetManager, "Common/MatDefs/Misc/Unshaded.j3md");
    groundMat.setColor("Color", ColorRGBA.Brown);
    groundPlane.setMaterial(groundMat);

    for(int i = 1; i < 5; i++)
    {
        Box wall = new Box(new Vector3f(0.0f, -1.0f, 0.0f), new Vector3f((float)i, 0.0f, -1.0f));
        Geometry wallFace = new Geometry("WallMesh", wall);
        Material wallSkin = new Material(assetManager, "Common/MatDefs/Misc/Unshaded.j3md");
        Texture tex_ml = assetManager.loadTexture("Interface/Wall.png");
        wallSkin.setTexture("ColorMap", tex_ml);
        wallFace.setMaterial(wallSkin);
        rootNode.attachChild(wallFace);
    }

    rootNode.attachChild(groundPlane);

亲切的问候

艾登·斯特里敦

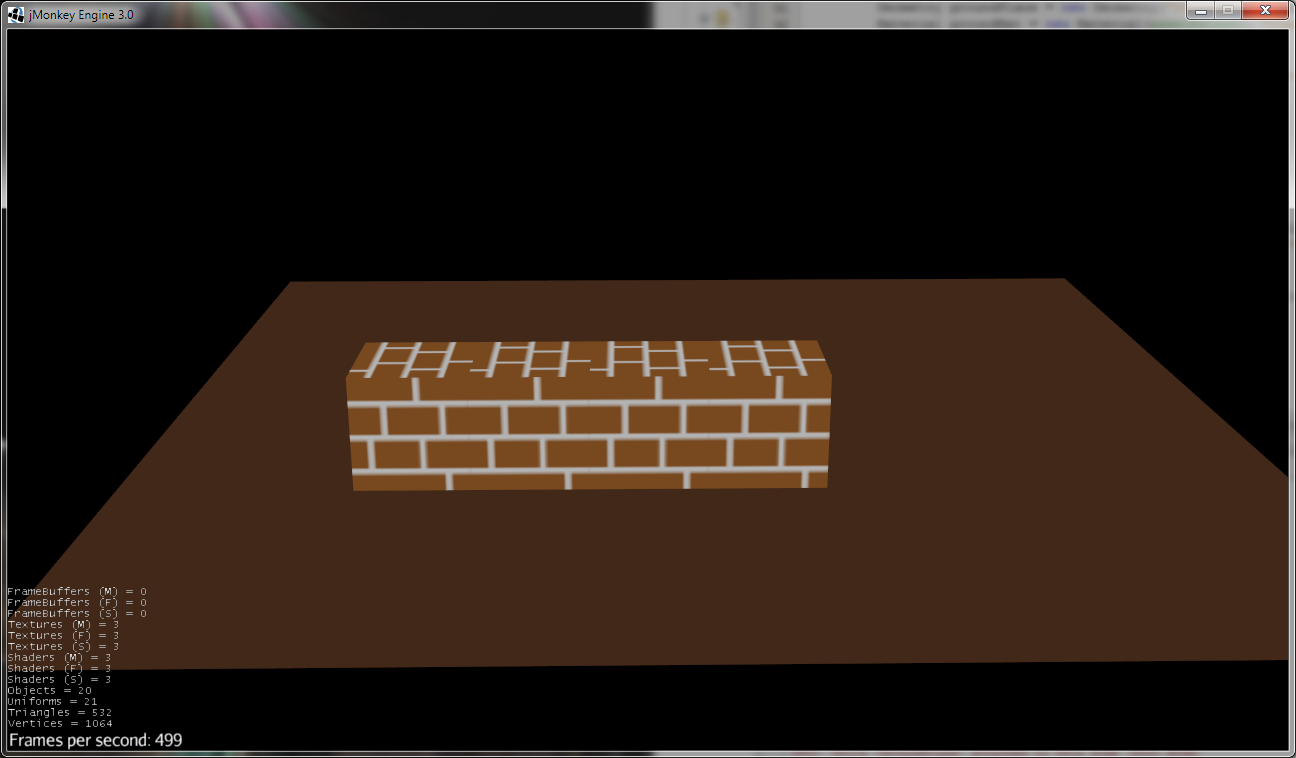

完成-最终代码

    Vector3f oldVec = Vector3f.ZERO;
    Vector3f newVec = Vector3f.ZERO;

    for(int i = 0; i < 5; i++)
    {
        newVec = new Vector3f((float)i, 0.0f, 0.0f);
        Box wall = new Box(oldVec, newVec);
        Geometry wallFace = new Geometry("WallMesh", wall);
        Material wallSkin = new Material(assetManager, "Common/MatDefs/Misc/Unshaded.j3md");
        wallSkin.setTexture("ColorMap", tex_ml);
        wallFace.setMaterial(wallSkin);
        //wallSkin.getAdditionalRenderState().setWireframe(true);
        oldVec = new Vector3f((float)i, -1.0f, -1.0f);
        rootNode.attachChild(wallFace);
    }

    rootNode.attachChild(groundPlane);

​

​

Answer 1

看起来你的法线指向相反的方向。要么检查您的呈现引擎，看看是否有反向法线函数，要么您需要以相反的顺序提供顶点。

或者尝试这种方法

Box wall = new Box(new Vector3f(i, 0.0f, 0.0f), 1.0f, 1.0f, 1.0f);

Answer 2

Box类是您自己的，还是由j猴子提供的？

如果是你自己的，你的三角卷绕顺序就会被翻转。
