为什么在定制的SCNGeometry中黑色的颜色比在SCNSphere中要轻

Question

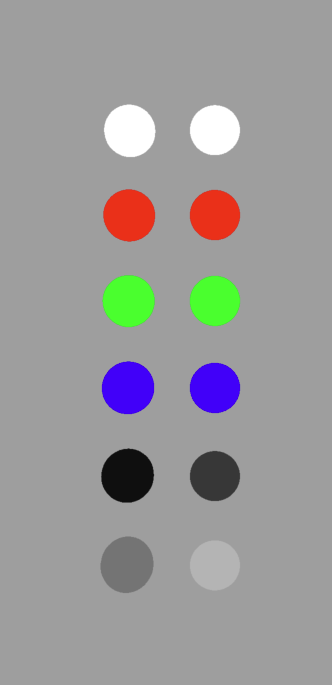

在这个场景中

左边的球面列是用SCNSphere()

• the创建的，右边的“圆圈”列是用SCNGeometry()创建的，使用的是.point，

• 只是一个环境光源，

• 所有的几何图形都使用.constant照明模型

• ，每个球体使用相同的RGB值来定义颜色。H 214f 215

为什么最后两对圆圈的黑色阴影比它们的等距球体要轻呢？

​

​

完整的操场代码来复制这些图像：

创造场景

import UIKit
import SceneKit
import PlaygroundSupport

// Constants I'm using for the darkest grey colour
let B_RED: CGFloat = 0.05
let B_GREEN: CGFloat = 0.05
let B_BLUE: CGFloat = 0.05
let B_ALPHA: CGFloat = 1.0

let BLACK_COLOUR = UIColor(red: B_RED, green: B_GREEN, blue: B_BLUE, alpha: B_ALPHA)

let scene: SCNScene = {
    let s = SCNScene()
    return s
}()

let sceneView: SCNView = {
    let v = SCNView(frame: CGRect(x: 0, y: 0, width: 600, height: 800))
    v.scene = scene
    v.backgroundColor = UIColor(white: 0.66, alpha: 1.0)
    v.allowsCameraControl = true
    v.debugOptions = [SCNDebugOptions.showLightInfluences]
    v.backgroundColor
    return v
}()

let ambientLigntNode: SCNNode = {
    let n = SCNNode()
    n.light = SCNLight()
    n.light!.type = SCNLight.LightType.ambient
    n.light!.color = UIColor(white: 1, alpha: 1.0)
    return n
}()

PlaygroundPage.current.liveView = sceneView

// a camera
var cameraNode = SCNNode()
cameraNode.camera = SCNCamera()
cameraNode.simdPosition = simd_float3(0,0,8)

scene.rootNode.addChildNode(cameraNode)
scene.rootNode.addChildNode(ambientLigntNode)

球柱

// ----------------------------------------------------
// White Sphere
let whiteSphere = SCNSphere(radius: 0.3)
let whiteMaterial = SCNMaterial()
whiteMaterial.diffuse.contents = simd_float3(1,1,1)

whiteMaterial.lightingModel = .constant
whiteSphere.materials = [whiteMaterial]

let whiteSphereNode = SCNNode(geometry: whiteSphere)
whiteSphereNode.simdPosition = simd_float3(-1,2,0)

scene.rootNode.addChildNode(whiteSphereNode)

// ----------------------------------------------------
// Black Sphere
let blackSphere = SCNSphere(radius: 0.3)
let blackMaterial = SCNMaterial()
blackMaterial.diffuse.contents = BLACK_COLOUR

blackMaterial.lightingModel = .constant
blackSphere.materials = [blackMaterial]

let blackSphereNode = SCNNode(geometry: blackSphere)
blackSphereNode.simdPosition = simd_float3(-1,-2,0)

scene.rootNode.addChildNode(blackSphereNode)

// ----------------------------------------------------
// Red Sphere
let redSphere = SCNSphere(radius: 0.3)
let redMaterial = SCNMaterial()
redMaterial.diffuse.contents = UIColor(
    red: 1.0,
    green: 0.0,
    blue: 0.0,
    alpha: 1.0
)

redMaterial.lightingModel = .constant
redSphere.materials = [redMaterial]

let redSphereNode = SCNNode(geometry: redSphere)
redSphereNode.simdPosition = simd_float3(-1, 1, 0)

scene.rootNode.addChildNode(redSphereNode)

// ----------------------------------------------------
// Green Sphere
let greenSphere = SCNSphere(radius: 0.3)
let greenMaterial = SCNMaterial()
greenMaterial.diffuse.contents = UIColor(
    red: 0.0,
    green: 1.0,
    blue: 0.0,
    alpha: 1.0
)

greenMaterial.lightingModel = .constant
greenSphere.materials = [greenMaterial]

let greenSphereNode = SCNNode(geometry: greenSphere)
greenSphereNode.simdPosition = simd_float3(-1, 0, 0)

scene.rootNode.addChildNode(greenSphereNode)

// ----------------------------------------------------
// Blue Sphere
let blueSphere = SCNSphere(radius: 0.3)
let blueMaterial = SCNMaterial()
blueMaterial.diffuse.contents = UIColor(
    red: 0.0,
    green: 0.0,
    blue: 1.0,
    alpha: 1.0
)

blueMaterial.lightingModel = .constant
blueSphere.materials = [blueMaterial]

let blueSphereNode = SCNNode(geometry: blueSphere)
blueSphereNode.simdPosition = simd_float3(-1, -1, 0)

scene.rootNode.addChildNode(blueSphereNode)

// ----------------------------------------------------
// Grey Sphere
let greySphere = SCNSphere(radius: 0.3)
let greyMaterial = SCNMaterial()
greyMaterial.diffuse.contents = UIColor(
    red: 0.5,
    green: 0.5,
    blue: 0.5,
    alpha: 1.0
)

greyMaterial.lightingModel = .constant
greySphere.materials = [greyMaterial]

let greySphereNode = SCNNode(geometry: greySphere)
greySphereNode.simdPosition = simd_float3(-1, -3, 0)

scene.rootNode.addChildNode(greySphereNode)

圆柱形

// ----------------------------------------------------
// Custom SCNGeometry using vertex data
struct Vertex {
    let x: Float
    let y: Float
    let z: Float
    let r: Float
    let g: Float
    let b: Float
    let a: Float
}

let vertices: [Vertex] = [
    Vertex(x: 0.0, y: 2.0, z: 0.0, r: 1.0, g: 1.0, b: 1.0, a: 1.0),  // white
    Vertex(x: 0.0, y: 1.0, z: 0.0, r: 1.0, g: 0.0, b: 0.0, a: 1.0),  // red
    Vertex(x: 0.0, y: 0.0, z: 0.0, r: 0.0, g: 1.0, b: 0.0, a: 1.0),  // green
    Vertex(x: 0.0, y: -1.0, z: 0.0, r: 0.0, g: 0.0, b: 1.0, a: 1.0), // blue
    Vertex(x: 0.0, y: -3.0, z: 0.0, r: 0.5, g: 0.5, b: 0.5, a: 1.0), // rgb
    Vertex(
        x: 0.0, y: -2.0, z: 0.0,
        r: Float(B_RED), g: Float(B_GREEN), b: Float(B_BLUE), a: Float(B_ALPHA)
    )
]

let vertexData = Data(
    bytes: vertices,
    count: MemoryLayout<Vertex>.size * vertices.count
)

let positionSource = SCNGeometrySource(
    data: vertexData,
    semantic: SCNGeometrySource.Semantic.vertex,
    vectorCount: vertices.count,
    usesFloatComponents: true,
    componentsPerVector: 3,
    bytesPerComponent: MemoryLayout<Float>.size,
    dataOffset: 0,
    dataStride: MemoryLayout<Vertex>.size
)
let colourSource = SCNGeometrySource(
    data: vertexData,
    semantic: SCNGeometrySource.Semantic.color,
    vectorCount: vertices.count,
    usesFloatComponents: true,
    componentsPerVector: 4,
    bytesPerComponent: MemoryLayout<Float>.size,
    dataOffset: MemoryLayout<Float>.size * 3,
    dataStride: MemoryLayout<Vertex>.size
)

let elements = SCNGeometryElement(
    data: nil,
    primitiveType: .point,
    primitiveCount: vertices.count,
    bytesPerIndex: MemoryLayout<Int>.size
)

elements.pointSize = 100
elements.minimumPointScreenSpaceRadius = 100
elements.maximumPointScreenSpaceRadius = 100

let spheres = SCNGeometry(
    sources: [positionSource, colourSource],
    elements: [elements]
)
let sphereNode = SCNNode(geometry: spheres)

let sphereMaterial = SCNMaterial()
sphereMaterial.lightingModel = .constant


spheres.materials = [sphereMaterial]

sphereNode.simdPosition = simd_float3(0,0,0)
scene.rootNode.addChildNode(sphereNode)

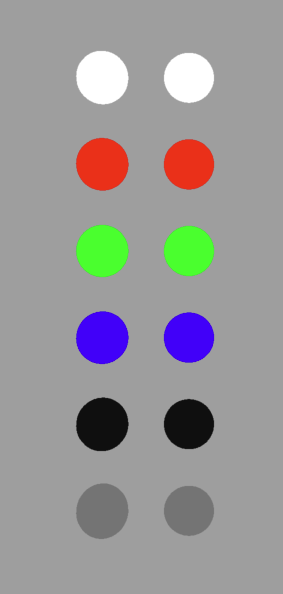

根据已接受的答案更新。从sRGB转换到LinearRGB的结果是相同的

func srgbToLinear(x: Float) -> Float {
    if x <= 0.04045 {
        return x / 12.92;
    }
    return powf((x + 0.055) / 1.055, 2.4)
}

let vertices: [Vertex] = [
    Vertex(x: 0.0, y: 2.0, z: 0.0, r: 1.0, g: 1.0, b: 1.0, a: 1.0),  // white
    Vertex(x: 0.0, y: 1.0, z: 0.0, r: 1.0, g: 0.0, b: 0.0, a: 1.0),  // red
    Vertex(x: 0.0, y: 0.0, z: 0.0, r: 0.0, g: 1.0, b: 0.0, a: 1.0),  // green
    Vertex(x: 0.0, y: -1.0, z: 0.0, r: 0.0, g: 0.0, b: 1.0, a: 1.0), // blue
    Vertex(x: 0.0, y: -3.0, z: 0.0, r: srgbToLinear(x: 0.5), g: srgbToLinear(x: 0.5), b: srgbToLinear(x: 0.5), a: 1.0), // rgb
    Vertex(
        x: 0.0, y: -2.0, z: 0.0,
        r: srgbToLinear(x: Float(B_RED)),
        g: srgbToLinear(x: Float(B_GREEN)),
        b: srgbToLinear(x: Float(B_GREEN)),
        a: 1.0
    )
]

​

​

Answer 1

如果在不同的颜色空间中生成两种类型的图形，就会出现这种情况。例如，如果球的灰色被解释为位于sRGB中的颜色空间，而圆圈被解释为通用的RGB空间，那么您将看到颜色值的不同。

考虑以下操场守则：

//: A UIKit based Playground for presenting user interface

import UIKit
import PlaygroundSupport
import CoreGraphics

class MyViewController : UIViewController {
    override func loadView() {
        let view = CustomView()
        view.backgroundColor = UIColor.darkGray

        self.view = view
    }
}

class CustomView : UIView {
    override func draw(_ rect: CGRect) {
        if let cgContext = UIGraphicsGetCurrentContext() {

            cgContext.saveGState()

            let gray : [CGFloat] = [0.5, 0.5, 0.5, 1.0]


            let srgbGray = CGColor(
                colorSpace: CGColorSpace(name: CGColorSpace.sRGB)!, components: gray)!

            cgContext.setFillColor(srgbGray)
            cgContext.fillEllipse(in: CGRect(x:10, y:20, width:72, height: 72))

            let genericGray = CGColor(colorSpace: CGColorSpace(name: CGColorSpace.genericRGBLinear)!, components: gray)!
            cgContext.setFillColor(genericGray)
            cgContext.fillEllipse(in: CGRect(x:110, y:20, width:72, height: 72))


            cgContext.restoreGState()

        }
    }
}
// Present the view controller in the Live View window
PlaygroundPage.current.liveView = MyViewController()

它所产生的效果几乎与你所看到的效果相同。我怀疑圆圈是在假定一个通用颜色空间的情况下绘制的，而球面则是假定为sRGB绘制的。
