光线浇铸渲染-墙的边缘交叉问题

Question

我正在使用光线投射方法(如Wolfenstein3D)实现一个假的3D渲染。我遵循永久的教程(https://permadi.com/1996/05/ray-casting-tutorial-table-of-contents/)

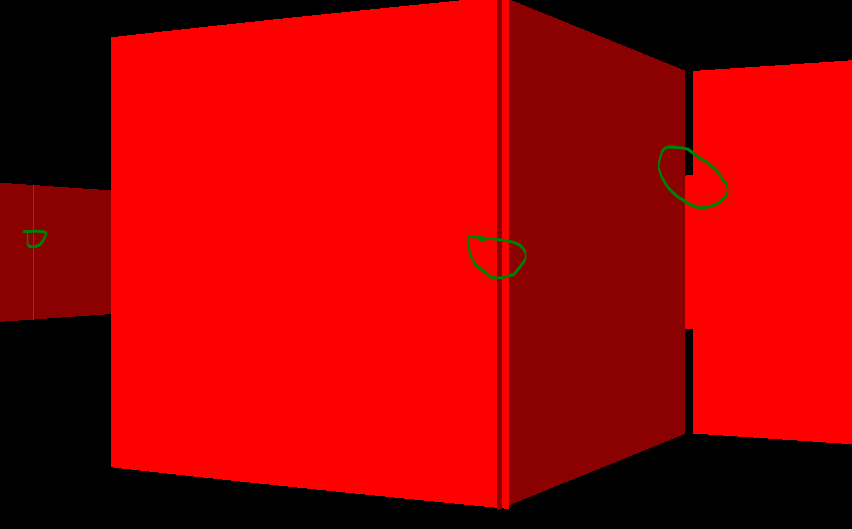

作为第一种观点，它似乎运作良好，但我正在努力解决一个问题，我不知道会发生什么。事实上，墙壁的边缘是互相交叉的，有时光线也没有探测到任何墙壁。

​

​

但情况并不总是如此。有时效果很好，这取决于球员的方向。

​

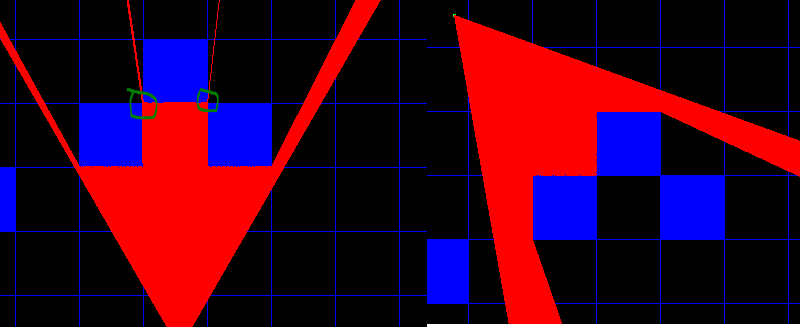

在用2D渲染场景之后，我可以看到光线确实没有探测到墙壁。但视方向而定，情况并不总是如此。

​

​

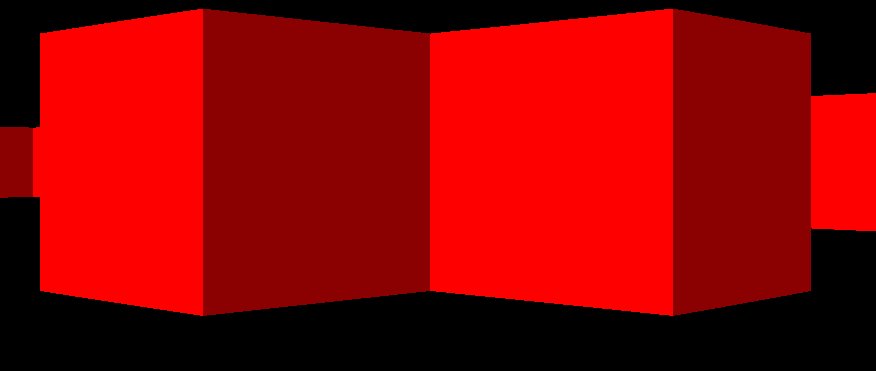

在上面的截图中，左边这个不工作，但是在右边这个是工作的。

这就是我如何检测墙壁，得到距离和Y轴

float getDistanceOnHorizontalGrid(float rayAngle, float playerPosX, float playerPosY)
{
    float pointInRayY = playerPosY + (100 * sin(DEGREE_TO_RADIAN(rayAngle))); // Arbitrary Point to evaluate whether ray is facing up or down
    float firstIntersectPointY;
    float ya;
    float xa;

    if (pointInRayY <= playerPosY) // ray is facing up
    {
        firstIntersectPointY = floorf(playerPosY / WALL_SIZE) * (WALL_SIZE)-1;
        ya = -WALL_SIZE;
        xa = WALL_SIZE / tan(DEGREE_TO_RADIAN(rayAngle)) * -1;
    }
    else // ray is facing down
    {
        firstIntersectPointY = floorf(playerPosY / WALL_SIZE) * (WALL_SIZE)+WALL_SIZE;
        ya = WALL_SIZE;
        xa = WALL_SIZE / tan(DEGREE_TO_RADIAN(rayAngle));
    }

    float firstIntersectPointX = playerPosX - (playerPosY - firstIntersectPointY) / tan(DEGREE_TO_RADIAN(rayAngle));

    float nextPointX = firstIntersectPointX;
    float nextPointY = firstIntersectPointY;

    for (int i = 0; i < MAP_HEIGHT; i++)
    {
        int toMapX = convertWorldToGridCoordinate(floor(nextPointX));
        int toMapY = convertWorldToGridCoordinate(floor(nextPointY));

        if (!(toMapX >= 0 && toMapX <= MAP_WIDTH - 1 && toMapY >= 0 && toMapY <= MAP_HEIGHT - 1))
        {
            return 0.0f;
        }

        if (map[toMapY][toMapX] == 1)
        {
            return abs(sqrt(((playerPosX - nextPointX) * (playerPosX - nextPointX)) + ((playerPosY - nextPointY) * (playerPosY - nextPointY))));
        }

        nextPointX += xa;
        nextPointY += ya;
    }

    return 0.0f;
}

X轴也是如此

float getDistanceOnverticalGrid(float rayAngle, float playerPosX, float playerPosY)
{
    float pointInRayX = playerPosX + (100 * cos(DEGREE_TO_RADIAN(rayAngle))); // Arbitrary Point to evaluate whether ray is facing left or right
    float firstIntersectX;
    float firstIntersectY;
    float xa;
    float ya;

    if (pointInRayX <= playerPosX) // ray facing left
    {
        firstIntersectX = floorf(playerPosX / WALL_SIZE) * (WALL_SIZE)-1;
        xa = -WALL_SIZE;
        ya = (WALL_SIZE * tan(DEGREE_TO_RADIAN(rayAngle))) * -1;
    }
    else
    {
        firstIntersectX = floorf(playerPosX / WALL_SIZE) * (WALL_SIZE)+WALL_SIZE;
        ya = WALL_SIZE * tan(DEGREE_TO_RADIAN(rayAngle));
        xa = WALL_SIZE;
    }

    firstIntersectY = playerPosY - (playerPosX - firstIntersectX) * tan(DEGREE_TO_RADIAN(rayAngle));

    float nextPointX = firstIntersectX;
    float nextPointY = firstIntersectY;


    for (int i = 0; i < MAP_WIDTH; i++)
    {
        int toMapX = convertWorldToGridCoordinate(floorf(nextPointX));
        int toMapY = convertWorldToGridCoordinate(floorf(nextPointY));

        if (!(toMapX >= 0 && toMapX <= (MAP_WIDTH - 1) && toMapY >= 0 && toMapY <= (MAP_HEIGHT - 1)))
        {
            return 0.0f;
        }

        if (map[toMapY][toMapX] == 1)
        {
            return abs(sqrt(((playerPosX - nextPointX) * (playerPosX - nextPointX)) + ((playerPosY - nextPointY) * (playerPosY - nextPointY))));
        }

        nextPointX += xa;
        nextPointY += ya;
    }

    return 0.0f;
}

我一定做错了什么，但我不知道在哪里。谢谢你的帮助

更新

尽管把数值从1降下来仍然是必要的，但在计算中，所提到的BCT是正确的。在使loog更接近permadi的实现之后，完成以下操作

horizontalGrid = Math.floor(this.fPlayerY/this.TILE_SIZE)*this.TILE_SIZE  + this.TILE_SIZE;

他做到了：

horizontalGrid--;

一开始我以为这和我所做的是一样的，但实际上没有。他后来降低了值的原因是因为这只是为了得到网格坐标。

为了解决我的问题，我从计算中删除了-1，并且只在寻找网格坐标时降低了值。

Answer 1

我看了你发送的链接。似乎其中一个if块的价值很差：

这是教程代码：

// Ray is facing down
        if (castArc > this.ANGLE0 && castArc < this.ANGLE180)
        {
            // truncuate then add to get the coordinate of the FIRST grid (horizontal
            // wall) that is in front of the player (this is in pixel unit)
            // ROUNDED DOWN
            horizontalGrid = Math.floor(this.fPlayerY/this.TILE_SIZE)*this.TILE_SIZE  + this.TILE_SIZE;

这是你的代码：

 if (pointInRayY <= playerPosY) // ray is facing up
 {
     firstIntersectPointY = floorf(playerPosY / WALL_SIZE) * (WALL_SIZE)-1;

请注意，您的末尾是-1，而不是this.TILE_SIZE，在您的示例中，应该是WALL_SIZE
