Tensorflow:如何提取用于绘图的attention_scores？

Question

如果您在Keras中有一个MultiHeadAttention层，那么它可以返回如下所示的注意力分数：

    x, attention_scores = MultiHeadAttention(1, 10, 10)(x, return_attention_scores=True)

如何从网络图中提取注意力分数？我想给他们画个图。

Answer 1

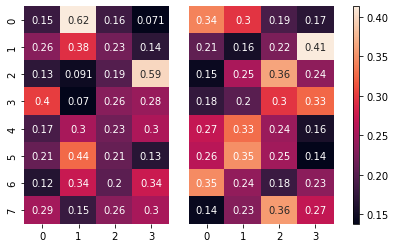

选项1:如果您想在培训期间绘制注意力分数，您可以创建一个Callback并将数据传递给它。它可以被触发，例如，在每一个时代之后。下面是一个例子，我使用了两个注意头，并在每一个时代之后绘制它们：

import tensorflow as tf
import seaborn as sb
import matplotlib.pyplot as plt

class CustomCallback(tf.keras.callbacks.Callback):
   def __init__(self, data):
      self.data = data
   def on_epoch_end(self, epoch, logs=None):
      test_targets, test_sources = self.data
      _, attention_scores = attention_layer(test_targets[:1], test_sources[:1], return_attention_scores=True) # take one sample

      fig, axs = plt.subplots(ncols=3, gridspec_kw=dict(width_ratios=[5,5,0.2]))
      sb.heatmap(attention_scores[0, 0, :, :], annot=True, cbar=False, ax=axs[0])
      sb.heatmap(attention_scores[0, 1, :, :], annot=True, yticklabels=False, cbar=False, ax=axs[1])
      fig.colorbar(axs[1].collections[0], cax=axs[2])
      plt.show()

layer = tf.keras.layers.MultiHeadAttention(num_heads=2, key_dim=2)
target = tf.keras.layers.Input(shape=[8, 16])
source = tf.keras.layers.Input(shape=[4, 16])
output_tensor, weights = layer(target, source,
                               return_attention_scores=True)
output = tf.keras.layers.Flatten()(output_tensor)
output = tf.keras.layers.Dense(1, activation='sigmoid')(output)

model = tf.keras.Model([target, source], output)
model.compile(optimizer = 'adam', loss = tf.keras.losses.BinaryCrossentropy())

attention_layer = model.layers[2]
samples = 5
train_targets = tf.random.normal((samples, 8, 16))
train_sources = tf.random.normal((samples, 4, 16))
test_targets = tf.random.normal((samples, 8, 16))
test_sources = tf.random.normal((samples, 4, 16))
y = tf.random.uniform((samples,), maxval=2, dtype=tf.int32)

model.fit([train_targets, train_sources], y, batch_size=2, epochs=2, callbacks=[CustomCallback([test_targets, test_sources])])

Epoch 1/2
1/3 [=========>....................] - ETA: 2s - loss: 0.7142

​

​

3/3 [==============================] - 3s 649ms/step - loss: 0.6992
Epoch 2/2
1/3 [=========>....................] - ETA: 0s - loss: 0.7265

​

​

3/3 [==============================] - 1s 650ms/step - loss: 0.6863
<keras.callbacks.History at 0x7fcc839dc590>

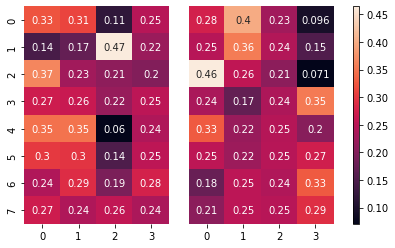

选项2:如果您只想在训练后绘制注意力分数，则只需将一些数据传递到模型的注意层并绘制分数：

import tensorflow as tf
import seaborn as sb
import matplotlib.pyplot as plt

layer = tf.keras.layers.MultiHeadAttention(num_heads=2, key_dim=2)
target = tf.keras.layers.Input(shape=[8, 16])
source = tf.keras.layers.Input(shape=[4, 16])
output_tensor, weights = layer(target, source,
                               return_attention_scores=True)
output = tf.keras.layers.Flatten()(output_tensor)
output = tf.keras.layers.Dense(1, activation='sigmoid')(output)

model = tf.keras.Model([target, source], output)
model.compile(optimizer = 'adam', loss = tf.keras.losses.BinaryCrossentropy())

samples = 5
train_targets = tf.random.normal((samples, 8, 16))
train_sources = tf.random.normal((samples, 4, 16))
test_targets = tf.random.normal((samples, 8, 16))
test_sources = tf.random.normal((samples, 4, 16))
y = tf.random.uniform((samples,), maxval=2, dtype=tf.int32)

model.fit([train_targets, train_sources], y, batch_size=2, epochs=2)

attention_layer = model.layers[2]

_, attention_scores = attention_layer(test_targets[:1], test_sources[:1], return_attention_scores=True) # take one sample
fig, axs = plt.subplots(ncols=3, gridspec_kw=dict(width_ratios=[5,5,0.2]))
sb.heatmap(attention_scores[0, 0, :, :], annot=True, cbar=False, ax=axs[0])
sb.heatmap(attention_scores[0, 1, :, :], annot=True, yticklabels=False, cbar=False, ax=axs[1])
fig.colorbar(axs[1].collections[0], cax=axs[2])
plt.show()

Epoch 1/2
3/3 [==============================] - 1s 7ms/step - loss: 0.6727
Epoch 2/2
3/3 [==============================] - 0s 6ms/step - loss: 0.6503

​

​
