数组中求最小值的问题

Question

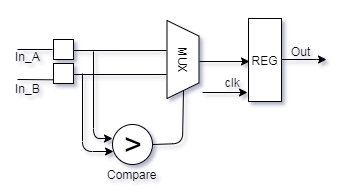

我试图找到一个包含19个VHDL值的“数组”的最小值。这19个值由J0表示为J18，并用作我的Find_min_v3模块的输入。下面的结构(在图中)用于比较两个输入，输出存储在REG中。大量结构的使用将导致通知。

“Netlist 29-101 Netlist‘模块’对于布局规划来说并不理想，因为单元视图‘模块’包含大量原语。如果你想做地板规划，请考虑在综合中启用层次结构。“

我有两个问题：

1.为什么它包含了许多原语，导致不太适合于城市规划。

2.如何优化连接的无数结构，以求数组的最小值？或者您有其他方法来找到最小值吗？

​

​

这是我的密码

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;
entity Find_min_v3 is
    Port ( i_clk : in STD_LOGIC;
           reset : in STD_LOGIC;
           EN_RUNNING  : in STD_LOGIC;
           J0 : in STD_LOGIC_VECTOR (11 downto 0);
           J1 : in STD_LOGIC_VECTOR (11 downto 0);
           J2 : in STD_LOGIC_VECTOR (11 downto 0);
           J3 : in STD_LOGIC_VECTOR (11 downto 0);
           J4 : in STD_LOGIC_VECTOR (11 downto 0);
           J5 : in STD_LOGIC_VECTOR (11 downto 0);
           J6 : in STD_LOGIC_VECTOR (11 downto 0);
           J7 : in STD_LOGIC_VECTOR (11 downto 0);
           J8 : in STD_LOGIC_VECTOR (11 downto 0);
           J9 : in STD_LOGIC_VECTOR (11 downto 0);
           J10 : in STD_LOGIC_VECTOR (11 downto 0);
           J11 : in STD_LOGIC_VECTOR (11 downto 0);
           J12 : in STD_LOGIC_VECTOR (11 downto 0);
           J13 : in STD_LOGIC_VECTOR (11 downto 0);
           J14 : in STD_LOGIC_VECTOR (11 downto 0);
           J15 : in STD_LOGIC_VECTOR (11 downto 0);
           J16 : in STD_LOGIC_VECTOR (11 downto 0);
           J17 : in STD_LOGIC_VECTOR (11 downto 0);
           J18 : in STD_LOGIC_VECTOR (11 downto 0);
           J_Min_out          : OUT STD_LOGIC_VECTOR (11 downto 0)
           );
end Find_min_v3;

architecture Behavioral of Find_min_v3 is
    TYPE    J_type        IS ARRAY (0 to 18) OF SIGNED(11 downto 0) ;
    SIGNAl  r_J           : J_type;
    SIGNAl  out_min_stage1_0    : SIGNED (11  downto 0);
    SIGNAl  out_min_stage1_1    : SIGNED (11  downto 0);
    SIGNAl  out_min_stage1_2    : SIGNED (11  downto 0);
    SIGNAl  out_min_stage1_3    : SIGNED (11  downto 0);
    SIGNAl  out_min_stage1_4    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage1_5    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage1_6    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage1_7    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage1_8    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage1_9    : SIGNED (11 downto 0);

    SIGNAl  out_min_stage2_0    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage2_1    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage2_2    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage2_3    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage2_4    : SIGNED (11 downto 0);

    SIGNAl  out_min_stage3_0    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage3_1    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage3_2    : SIGNED (11 downto 0);

    SIGNAl  out_min_stage4_0    : SIGNED (11 downto 0);
    SIGNAl  out_min_stage4_1    : SIGNED (11 downto 0);

    SIGNAl  out_min_stage5_0    : SIGNED (11 downto 0);


BEGIN
   r_J(0)   <= signed(J0) WHEN EN_RUNNING ='1';
   r_J(1)   <= signed(J1) WHEN EN_RUNNING ='1';
   r_J(2)   <=signed(J2)  WHEN EN_RUNNING ='1';
   r_J(3)   <=signed(J3)  WHEN EN_RUNNING ='1';
   r_J(4)   <=signed(J4)  WHEN EN_RUNNING ='1';
   r_J(5)   <=signed(J5)  WHEN EN_RUNNING ='1';
   r_J(6)   <=signed(J6)  WHEN EN_RUNNING ='1';
   r_J(7)   <=signed(J7)  WHEN EN_RUNNING ='1';
   r_J(8)   <=signed(J8)  WHEN EN_RUNNING ='1';
   r_J(9)   <=signed(J9)  WHEN EN_RUNNING ='1';
   r_J(10)  <=signed(J10) WHEN EN_RUNNING ='1';
   r_J(11)  <=signed(J11) WHEN EN_RUNNING ='1';
   r_J(12)  <=signed(J12) WHEN EN_RUNNING ='1';
   r_J(13)  <=signed(J13) WHEN EN_RUNNING ='1';
   r_J(14)  <=signed(J14) WHEN EN_RUNNING ='1';
   r_J(15)  <=signed(J15) WHEN EN_RUNNING ='1';
   r_J(16)  <=signed(J16) WHEN EN_RUNNING ='1';
   r_J(17)  <=signed(J17) WHEN EN_RUNNING ='1';
   r_J(18)  <=signed(J18) WHEN EN_RUNNING ='1';
-------stage1
   STAGGE1_0: PROCESS (i_clk,reset)
   BEGIN
        IF (RISING_EDGE(i_clk)) THEN
            IF  (reset ='0') THEN
                    --out_ind_stage1_0 <= (others => '0');
                    out_min_stage1_0 <= (others => '0');
                      out_min_stage1_0    <= (others => '0');
                      out_min_stage1_1   <= (others => '0');
                      out_min_stage1_2   <= (others => '0');
                      out_min_stage1_3    <= (others => '0');
                      out_min_stage1_4   <= (others => '0');
                      out_min_stage1_5   <= (others => '0');
                      out_min_stage1_6   <= (others => '0');
                      out_min_stage1_7   <= (others => '0');
                      out_min_stage1_8   <= (others => '0');
                      out_min_stage1_9   <= (others => '0');

                      out_min_stage2_0   <= (others => '0');
                      out_min_stage2_1   <= (others => '0');
                      out_min_stage2_2   <= (others => '0');
                      out_min_stage2_3   <= (others => '0');
                      out_min_stage2_4   <= (others => '0');

                      out_min_stage3_0   <= (others => '0');
                      out_min_stage3_1   <= (others => '0');
                      out_min_stage3_2   <= (others => '0');

                      out_min_stage4_0   <= (others => '0');
                      out_min_stage4_1   <= (others => '0');

                      out_min_stage5_0   <= (others => '0');
            ELSE

                    IF (r_J(1)>r_J(0)) THEN
                        out_min_stage1_0 <= r_J(0);
                    ELSE
                        out_min_stage1_0 <= r_J(1);
                    END IF;

                    IF (r_J(3)>r_J(2)) THEN
                           out_min_stage1_1 <= r_J(2);
                    ELSE
                           out_min_stage1_1 <= r_J(3);
                    END IF;

                    IF (r_J(5)>r_J(4)) THEN
                        out_min_stage1_2 <= r_J(4);
                    ELSE
                        out_min_stage1_2 <= r_J(5);
                    END IF;

                    IF (r_J(7)>r_J(6)) THEN
                        out_min_stage1_3 <= r_J(6);
                    ELSE
                        out_min_stage1_3 <= r_J(7);
                    END IF;

                    IF (r_J(9)>r_J(8)) THEN
                        out_min_stage1_4 <= r_J(8);
                    ELSE
                        out_min_stage1_4 <= r_J(9);
                    END IF;

                    IF (r_J(11)>r_J(10)) THEN
                        out_min_stage1_5 <= r_J(10);
                    ELSE
                        out_min_stage1_5 <= r_J(11);
                    END IF;

                    IF (r_J(13)>r_J(12)) THEN
                        out_min_stage1_6 <= r_J(12);
                    ELSE
                        out_min_stage1_6 <= r_J(13);
                    END IF;

                    IF (r_J(15)>r_J(14)) THEN
                        out_min_stage1_7 <= r_J(14);
                    ELSE
                        out_min_stage1_7 <= (r_J(15));
                    END IF;

                    IF (r_J(17)>r_J(16)) THEN
                        out_min_stage1_8 <= r_J(16);
                    ELSE
                        out_min_stage1_8 <= r_J(17);
                    END IF;

                    out_min_stage1_9 <= r_J(18);

                    ---------
                    IF (out_min_stage1_0)> out_min_stage1_1 THEN
                        out_min_stage2_0 <= out_min_stage1_1;
                    ELSE
                        out_min_stage2_0 <= out_min_stage1_0;
                    END IF;

                    IF (out_min_stage1_2)>(out_min_stage1_3) THEN
                        out_min_stage2_1 <= (out_min_stage1_3);
                    ELSE
                        out_min_stage2_1 <= (out_min_stage1_2);
                    END IF;

                    IF (out_min_stage1_4)>out_min_stage1_5 THEN
                        out_min_stage2_2 <= (out_min_stage1_5);
                    ELSE
                        out_min_stage2_2 <= (out_min_stage1_4);
                    END IF;

                    IF (out_min_stage1_6)>(out_min_stage1_7) THEN
                        out_min_stage2_3 <= (out_min_stage1_7);
                    ELSE
                        out_min_stage2_3 <= (out_min_stage1_6);
                    END IF;

                    IF (out_min_stage1_8)>out_min_stage1_9 THEN
                        out_min_stage2_4 <= (out_min_stage1_9);
                    ELSE
                        out_min_stage2_4 <= (out_min_stage1_8);
                    END IF;

                    ---------STAGE3
                    IF (out_min_stage2_0)>out_min_stage2_1 THEN
                        out_min_stage3_0 <= (out_min_stage2_1);
                    ELSE
                        out_min_stage3_0 <= (out_min_stage2_0);
                    END IF;

                    IF (out_min_stage2_2)>(out_min_stage2_3) THEN
                        out_min_stage3_1 <= (out_min_stage2_3);
                    ELSE
                        out_min_stage3_1 <= (out_min_stage2_2);
                    END IF;

                    out_min_stage3_2 <= (out_min_stage2_4);
                    -------------STAGE4

                    IF (out_min_stage3_1)>out_min_stage3_0 THEN
                        out_min_stage4_0 <= (out_min_stage3_0);
                    ELSE
                        out_min_stage4_0 <= (out_min_stage3_1);
                    END IF;

                    out_min_stage4_1 <= (out_min_stage3_2);

                    -------------STAGE5
                    IF (out_min_stage4_0)>(out_min_stage4_1)THEN
                        out_min_stage5_0 <= (out_min_stage4_1);
                    ELSE
                        out_min_stage5_0 <= (out_min_stage4_0);
                    END IF;

                    J_Min_out         <= STD_LOGIC_VECTOR(out_min_stage5_0);

                END IF;
            END IF;

   END PROCESS;

end Behavioral;

这是使用报告

​

Answer 1

听起来你正在通过综合，但击中这个问题的位置和路线？这可能是因为您正在使用的设备中的IOs数量。(243人只需要100人)。

还有几件事情在看代码。

您不需要在进程敏感列表中重置。

我不知道你为什么需要有条件的类型转换。为什么不直接进行类型转换而不查看运行信号？

这个实现需要几个时钟周期来计算结果。希望延迟在应用程序中是可以接受的。
