SSAO &阴影映射\阴影不适用于SSAO

Question

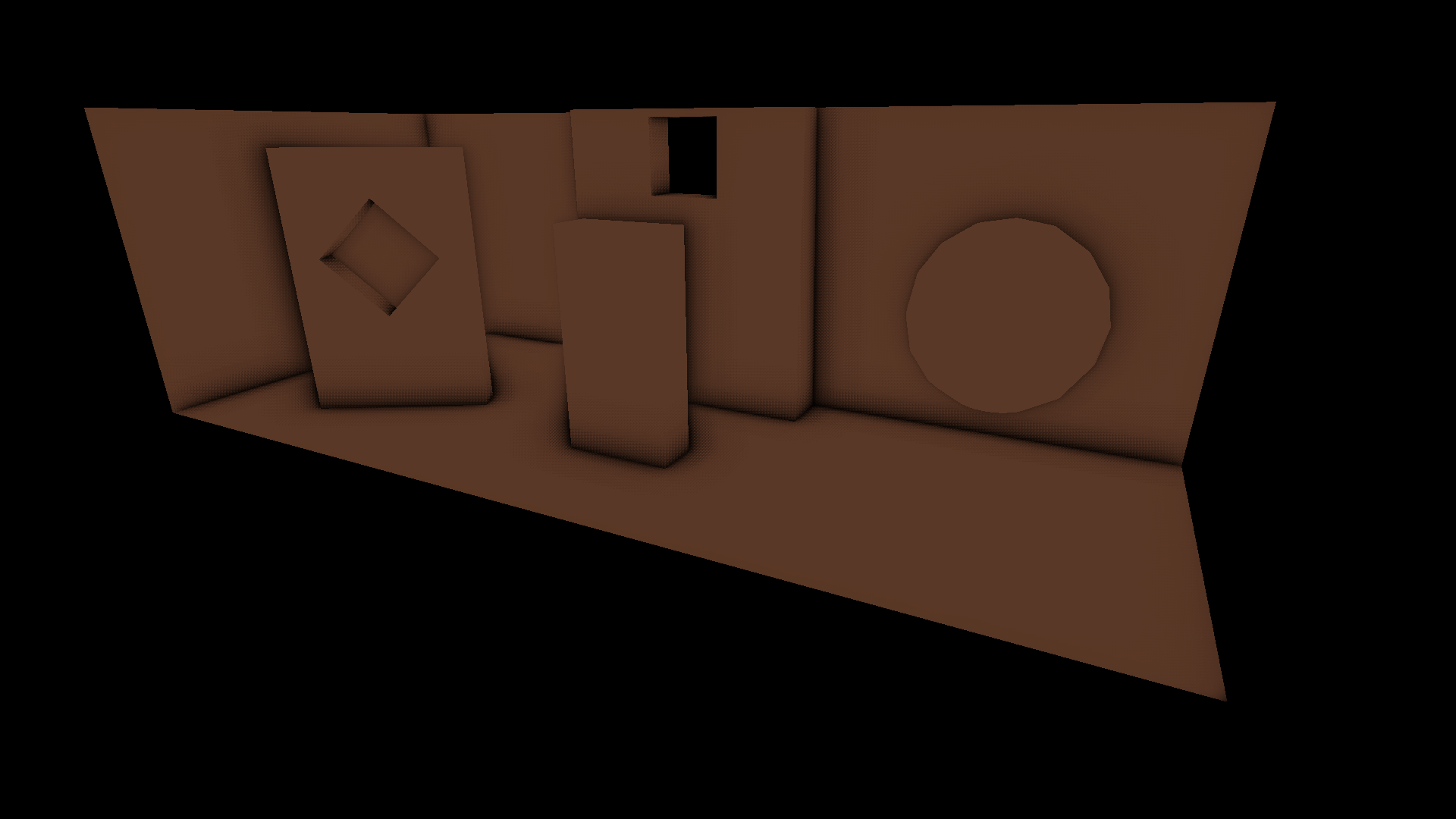

我们引擎中的SSAO似乎正在工作，但是我不能让SSAO处理影子映射。这是一个屏幕截图的错误，我目前有当阴影被应用.

加上阴影

​

但是，根据摄像机的角度和位置，随机阴影有时会出现.

随机阴影取决于摄像机的视图和位置

​

这是gbuffer顶点着色器。

#version 330 core

layout (location = 0) in vec3 positions;
layout (location = 1) in vec2 texCoords;
layout (location = 2) in vec3 normals;

out vec3 FragPos;
out vec3 ShadowFragPos;
out vec2 TexCoords;
out vec3 Normal;

uniform mat4 model;
uniform mat4 view;
uniform mat4 proj;

void main()
{
    vec4 viewPos = view * model * vec4(positions, 1.0);
    FragPos = viewPos.xyz;
    TexCoords = texCoords;

    mat3 normalMatrix = transpose(inverse(mat3(view * model)));
    Normal = normalMatrix * normals;

    gl_Position = proj * viewPos;
}

这是灯光着色器。

#version 330 core

out vec4 FragColor;

in vec2 TexCoords;

uniform sampler2D gPosition;
uniform sampler2D gNormal;
uniform sampler2D gAlbedoSpec;
uniform sampler2D gShadowmap;
uniform sampler2D gSsao;

uniform vec3 cameraPos;

uniform mat4 lightSpaceMatrix;

vec3 Normal;
vec3 FragPos;

uniform vec3 lightPos;

float calculate_shadows(vec4 light_space_pos)
{
    // perform perspective divide
    vec3 projCoords = light_space_pos.xyz / light_space_pos.w;

    // transform to [0,1] range
    projCoords = projCoords * 0.5 + 0.5;

    // get closest depth value from light's perspective (using [0,1] range fragPosLight as coords)
    float closestDepth = texture(gShadowmap, projCoords.xy).r;

    // get depth of current fragment from light's perspective
    float currentDepth = projCoords.z;

    // check whether current frag pos is in shadow
    vec3 lightDir = normalize(vec3(2.0f, 4.0f, 1.0f) - FragPos);
    float bias = max(0.05 * (1.0 - dot(Normal, lightDir)), 0.005);
    float shadow = 0.0;

    vec2 texelSize = 1.0 / textureSize(gShadowmap, 0);

    // 8x8 kernel PCF
    float x;
    float y;

    for (y = -3.5; y <= 3.5 ; y += 1.0)
    {
        for (x = -3.5; x <= 3.5 ; x += 1.0)
        {
            float pcfDepth = texture(gShadowmap, projCoords.xy + vec2(x, y) * texelSize).r;
            shadow += currentDepth - bias > pcfDepth ? 1.0 : 0.0;
        }
    }

    shadow /= 64.0;

    return shadow;
}

void main(void)
{
    FragPos = texture(gPosition, TexCoords).rgb;
    Normal = texture(gNormal, TexCoords).rgb;
    vec3 Diffuse = texture(gAlbedoSpec, TexCoords).rgb;
    float Specular = texture(gAlbedoSpec, TexCoords).a;
    float AmbientOcclusion = texture(gSsao, TexCoords).r;

    vec3 lighting = vec3(0.3 * Diffuse * AmbientOcclusion);
    vec3 viewDir = normalize(-FragPos);
    vec3 lightDir = normalize(lightPos - FragPos);
    vec3 diffuse = max(dot(Normal, lightDir), 0.0) * Diffuse * vec3(1.0f, 0.5f, 0.3f);

    vec3 halfwayDir = normalize(lightDir + viewDir);
    float spec = pow(max(dot(Normal, halfwayDir), 0.0), 8.0);
    vec3 specular = vec3(1.0f, 0.5f, 0.3f) * spec * Specular;

    float shadow = calculate_shadows(lightSpaceMatrix * vec4(FragPos, 1.0));

    lighting += ((1.0 - shadow) * (diffuse + specular));

    FragColor = vec4(lighting, 1.0f);
}

纹理在光通道中绑定如下所示。

// bind the positions texture and store in the first texture slot/unit
        glActiveTexture(GL_TEXTURE0); // texture unit 0
        glBindTexture(GL_TEXTURE_2D, gbuffer.gPositions); // geometry positions

        // bind the normals texture and store in the second texture slot/unit
        glActiveTexture(GL_TEXTURE1); // texture unit 1
        glBindTexture(GL_TEXTURE_2D, gbuffer.gNormals); // geometry normals

        // bind the albedo & specular texture and store in the third texture slot/unit
        glActiveTexture(GL_TEXTURE2); // texture unit 2
        glBindTexture(GL_TEXTURE_2D, gbuffer.gAlbedoSpec); // geometry albedospec
                                                           // bind the albedo & specular texture and store in the third texture slot/unit

        glActiveTexture(GL_TEXTURE3); // texture                         unit 3
        glBindTexture(GL_TEXTURE_2D, gbuffer.gShadowmap); // geometry albedospec

        glActiveTexture(GL_TEXTURE4); // texture unit 2
        glBindTexture(GL_TEXTURE_2D, gbuffer.ssaoColorBuffer); // geometry albedospec

最后，这里是lightSpaceMatrix的计算。

light_projection = glm::ortho(-10.0f, 10.0f, -10.0f, 10.0f, 1.0f, 7.5f);
        light_view = glm::lookAt(glm::vec3(0.0f, 4.0f, 5.0f), glm::vec3(0.0f, 0.0f, 0.0f), glm::vec3(0.0f, 1.0f, 0.0f));
        light_space_matrix = light_projection * light_view;

知道为什么会发生这种事吗？如何让阴影与SSAO一起工作？

任何帮助都是非常感谢的。

Answer 1

FragPos是摄像机视图的空间位置。

light_space_pos，calculate_shadows的输入参数必须是剪辑空间坐标，从光源中可以看到。

这意味着当你做的时候

float shadow = calculate_shadows(lightSpaceMatrix * vec4(FragPos, 1.0));

lightSpaceMatrix必须是从摄像机视图空间到光源的剪辑空间的转换。

要做到这一点，您必须执行3个转换：

1. 摄像机将空间视界到世界空间。这可以由逆view矩阵来完成。
2. 世界空间向光空间，这是light_view的转型。
3. 光视图空间到光剪辑空间，是由light_projection转换而来的。

所以light_space_matrix = light_projection * light_view;的设置是不够的，它必须是

light_space_matrix = light_projection * light_view * glm::inverse(view);
