从16位1位ALU创建16位ALU(结构代码)

Question

我创建了一个1位ALU的结构和行为代码，以及一个控制电路.The控制电路决定了两个变量之间的操作: a，b。

下面是代码的行为部分：

 library ieee;
use ieee.std_logic_1164.all;
package erotima2 is

-- AND2 declaration
 component myAND2
        port (outnotA,outnotB: in std_logic; outAND: out std_logic);
 end component;


-- OR2 declaration
  component myOR2
       port (outnotA,outnotB: in std_logic; outOR: out std_logic);
 end component;

-- XOR2 declaration
  component myXOR2
       port (outnotA,outnotB: in std_logic; outXOR: out std_logic);
 end component;

--fulladder declaration
  component fulladder
            port(CarryIn,outnotA,outnotB: in std_logic; sum,CarryOut: out std_logic);
  end component;

--Ainvert declaration
  component notA
            port(a: in std_logic; signala: std_logic_vector(0 downto 0); outnotA: out std_logic);
  end component;

--Binvert declaration
  component notB
           port(b: in std_logic; signalb: std_logic_vector(0 downto 0); outnotB: out std_logic);
  end component;

    --ControlCircuit declaration--
component ControlCircuit
    port (
            opcode : in std_logic_vector (2 downto 0);
            signala,signalb : out std_logic_vector(0 downto 0);
            operation : out std_logic_vector (1 downto 0);
            CarryIn: out std_logic);

end component;

--mux4to1 declaration
    component mux4to1
            port(outAND, outOR, sum, outXOR: in std_logic; operation: in std_logic_vector(1 downto 0); Result: out std_logic);
    end component;

end package erotima2;


--2 input AND gate
library ieee;
use ieee.std_logic_1164.all;
 entity myAND2 is
     port (outnotA,outnotB: in std_logic; outAND: out std_logic);
 end myAND2;
 architecture model_conc of myAND2 is
 begin
    outAND<= outnotA and outnotB;
 end model_conc;


 -- 2 input OR gate
library ieee;
use ieee.std_logic_1164.all;
  entity myOR2 is
        port (outnotA,outnotB: in std_logic; outOR: out std_logic);
 end myOR2;
 architecture model_conc2 of myOR2 is
  begin
        outOR <= outnotA or outnotB;
 end model_conc2;


--2 input XOR gate
library ieee;
use ieee.std_logic_1164.all;
    entity myXOR2 is
        port(outnotA,outnotB: in std_logic; outXOR: out std_logic);
    end myXOR2;
    architecture model_conc3 of myXOR2 is
    begin
    outXOR <= outnotA xor outnotB;
    end model_conc3;

--3 input full adder
library ieee;
use ieee.std_logic_1164.all;
    entity fulladder is
        port(CarryIn,outnotA,outnotB: in std_logic; sum,CarryOut: out std_logic);
    end fulladder;
    architecture model_conc4 of fulladder is
    begin
    CarryOut <= (outnotB and CarryIn) or (outnotA and CarryIn) or (outnotA and outnotB);
    sum <= (outnotA and not outnotB and not CarryIn) or (not outnotA and outnotB and not CarryIn) or (not outnotA and not outnotB and CarryIn) or (outnotA and outnotB and CarryIn);
    end model_conc4;

--1 input notA
library ieee;
use ieee.std_logic_1164.all;
    entity notA is
        port(a: in std_logic; signala:std_logic_vector(0 downto 0); outnotA: out std_logic);
    end notA;
    architecture model_conc6 of notA is
    begin
    with signala select
    outnotA <=  a when "0",
                        not a when others;
    end model_conc6;

--1 input notB
library ieee;
use ieee.std_logic_1164.all;
    entity notB is
        port(b: in std_logic; signalb: std_logic_vector(0 downto 0); outnotB: out std_logic);
    end notB;
    architecture model_conc5 of notB is
    begin
    with signalb select
    outnotB <=  b when "0",
                        not b when others;
    end model_conc5;


--4 input MUX
library ieee;
use ieee.std_logic_1164.all;
    entity mux4to1 is
        port(outAND, outOR, sum, outXOR: in std_logic; operation: in std_logic_vector(1 downto 0); Result: out std_logic);
    end mux4to1;
    architecture model_conc7 of mux4to1 is
    begin
    with operation select
        Result<= outAND when "00",
                 outOR  when "01",
              sum    when "10",
                   outXOR when OTHERS;
    end model_conc7 ;

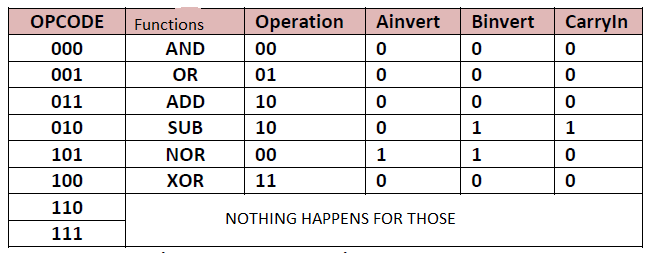

行为部分定义了AND，OR，XOR的逻辑门，这是一个用于数字加法和减法的全加器。它还包含一个4到1的复用器，该复用器根据“操作”变量的值选择alu将执行的操作。最后，有一个函数可以反转变量，以便更有效地使用逻辑门(使用DeMorgan定理，这样我们就不必创建NOR门)。控制单元根据变量“操作码”初始化变量输入以及全加器的carryIn变量。有各种可能的组合的板下一步是控制电路部分的代码，它实现了上一个板。

`
 library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;


entity ControlCircuit is
    port (
            opcode      :in std_logic_vector (2 downto 0);
            signala, signalb : out  std_logic_vector(0 downto 0);
            operation : out std_logic_vector(1 downto 0);
            CarryIn : out std_logic);
end ControlCircuit;

architecture model_conc9 of ControlCircuit is
--signal outAND,outOR,outXOR,sum,outnotA,outnotB : std_logic;
--signal operation : out std_logic_vector(1 downto 0);
begin
 process(opcode)
 begin

case opcode is

    --AND--
    when "000"=>
        operation <= "00";
        signala   <= "0";
        signalb      <= "0";
        CarryIn  <= '0';

    --OR--
    when "001" =>
        operation <= "01";
        signala   <= "0";
        signalb      <= "0";
        CarryIn  <= '0';

    --ADD--
    when "011" =>
        operation <= "10";
        signala   <= "0";
        signalb      <= "0";
        CarryIn  <= '0';

    --SUB--
    when "010" =>
        operation <= "10";
        signala   <= "0";
        signalb      <="1";
        CarryIn  <= '1';

    --NOR--
    when "101"=>
        operation <= "00";
        signala   <= "1";
        signalb      <= "1";
        CarryIn  <= '0';

    --xor
    when "100" =>
        operation <= "11";
        signala   <= "0";
        signalb      <= "0";
        CarryIn  <= '0';

    --Adiafores times--
when others =>
        operation <= "00";
        signala   <= "0";
        signalb      <= "0";
        CarryIn  <= '0';
    end case;
    end process;
end model_conc9;

        `

最后，下面是使用前面所有部分和以及显示代码结果的RTL图的代码

  library IEEE;
use ieee.std_logic_1164.all;
use work.erotima2.all;

entity structural is
    port (a,b: in std_logic;
            opcode : in std_logic_vector ( 2 downto 0);
            Result,CarryOut : out std_logic);
end structural;

architecture alu of structural is
    signal outAND,outOR,outXOR,sum,outnotA,outnotB,CarryIn : std_logic;
    signal signala,signalb : std_logic_vector (0 downto 0);
    signal operation : std_logic_vector (1 downto 0);
begin

u0 : myAND2 port map (outnotA,outnotB,outAND);
u1 : myOR2 port map (outnotA,outnotB,outOR);
u2 : myXOR2 port map (outnotA,outnotB,outXOR);
u3 : fulladder port map (CarryIn,outnotA,outnotB,sum,CarryOut);
u4 : notA port map (a,signala,outnotA);
u5 : notB port map (b,signalb,outnotB);
u6 : mux4to1 port map (outAND, outOR,sum, outXOR, operation, Result );
u8 : ControlCircuit port map(opcode,signala,signalb,operation,CarryIn);
end alu;

现在，对于困难的部分，我需要使用1位ALU 16次作为一个组件，以创建一个16位ALU。重要的是保持控制电路独立于其他代码。我尝试过使用std_logic_vector ( 15降到0)，但它没有工作，我想使用前面的代码段作为组件。有人能给出任何帮助连接16位1位ALU到完整16位ALU的提示或想法吗？提前感谢那些阅读这堵巨大的文字墙的人。

Answer 1

你最近的评论

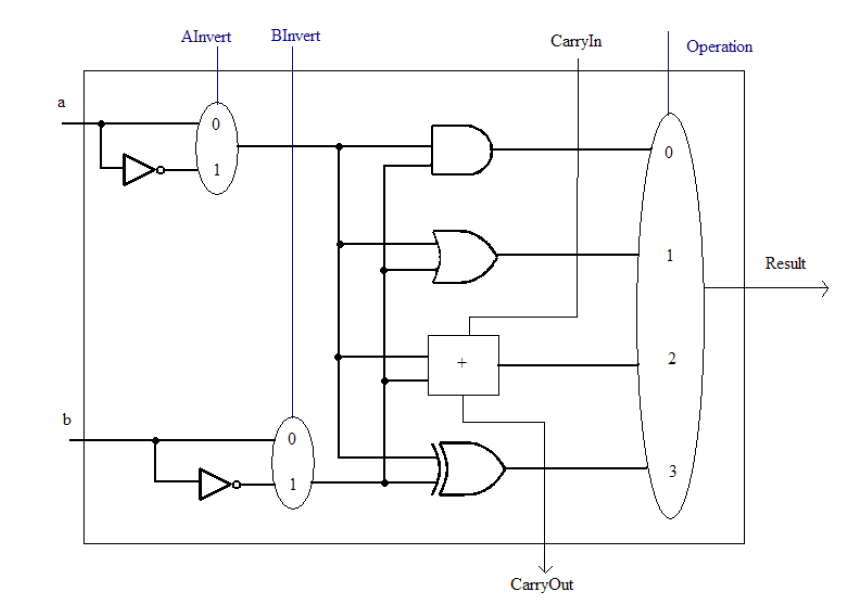

是的，我知道我的代码很奇怪，但是根据这张图的说法，我们被要求倒置输入。至于重复的帖子，我在发布之前检查过，它们只是在结构上实现的，而在我的例子中，我也需要编写行为部分。

​

​

解释这个问题，把拼写错误放在一边。您将注意到实体结构的体系结构与上述1位alu图上的信号不匹配，该图不包含实例化的ControlCircuit。

如果要提供与上述图匹配的设计单元，则可以将1位alu进位链连接起来，同时从控制块中导出lsb的进位，该控制块提供+1和倒置以进行减法：

library ieee;
use ieee.std_logic_1164.all;

entity alu_16_bit is
    port (
        a:          in  std_logic_vector (15 downto 0);
        b:          in  std_logic_vector (15 downto 0);
        opcode:     in  std_logic_vector (2 downto 0);
        result:     out std_logic_vector (15 downto 0);
        carryout:   out std_logic
    );
end entity;

architecture foo of alu_16_bit is
    component alu_1_bit is
        port (
            a:          in  std_logic;
            b:          in  std_logic;
            ainvert:    in  std_logic;
            binvert:    in  std_logic;
            carryin:    in  std_logic;
            operation:  in  std_logic_vector (1 downto 0);
            result:     out std_logic;
            carryout:   out std_logic
        );
    end component;
    component controlcircuit is
        port (
            opcode:     in  std_logic_vector(2 downto 0);
            ainvert:    out std_logic;
            binvert:    out std_logic;
            operation:  out std_logic_vector(1 downto 0);
            carryin:    out std_logic  -- invert a or b, add + 1 for subtract
        );
    end component;

    signal ainvert:     std_logic;
    signal binvert:     std_logic;
    signal operation:   std_logic_vector (1 downto 0);
    signal carry:       std_logic_vector (16 downto 0);
begin

CONTROL_CIRCUIT:
    controlcircuit
        port map (
            opcode => opcode,
            ainvert => ainvert,
            binvert => binvert,
            operation => operation,
            carryin => carry(0)   -- for + 1 durring subtract
        );

GEN_ALU:
    for i in 0 to 15 generate
ALU:
        alu_1_bit
            port map (
                a => a(i),
                b => b(i),
                ainvert => ainvert,
                binvert => binvert,
                carryin => carry(i),
                operation => operation,
                result => result(i),
                carryout => carry(i + 1)
            );
    end generate;

    carryout <= carry(16) when operation = "10" else '0';

end architecture;

这表示将ControlCircuit从结构中移出--只需要一个副本，就可以重命名结构alu_1_bit并使端口匹配。

这里有一个新的顶级alu_16_bit，它包含一个ControlCircuit实例，以及从generate语句中阐述的16个alu_1_bit实例，使用generate参数i对连接的数组值进行索引。

此设计是使用您提供的链接到以下的Opcode表独立实现的：

​

​

以及在alu_1_bit中使用的独立的满梯，并显示出功能。

这意味着您的设计单元还没有经过验证。
