ARKit - ARAnchor到二维空间的投影

Question

我试图将一个ARAnchor投射到2D空间，但我面临一个方向问题.

在我的功能下面，将左上角、右上角、左下角、右下角位置投影到2D空间：

/// Returns the projection of an `ARImageAnchor` from the 3D world space
/// detected by ARKit into the 2D space of a view rendering the scene.
///
/// - Parameter from: An Anchor instance for projecting.
/// - Returns: An optional `CGRect` corresponding on `ARImageAnchor` projection.
internal func projection(from anchor: ARImageAnchor,
                         alignment: ARPlaneAnchor.Alignment,
                         debug: Bool = false) -> CGRect? {
    guard let camera = session.currentFrame?.camera else {
        return nil
    }

    let refImg = anchor.referenceImage
    let anchor3DPoint = anchor.transform.columns.3

    let size = view.bounds.size
    let width = Float(refImg.physicalSize.width / 2)
    let height = Float(refImg.physicalSize.height / 2)

    /// Upper left corner point
    let projection = ProjectionHelper.projection(from: anchor3DPoint,
                                              width: width,
                                              height: height,
                                              focusAlignment: alignment)
    let topLeft = projection.0
    let topLeftProjected = camera.projectPoint(topLeft,
                                      orientation: .portrait,
                                      viewportSize: size)

    let topRight:simd_float3 = projection.1
    let topRightProjected = camera.projectPoint(topRight,
                                       orientation: .portrait,
                                       viewportSize: size)

    let bottomLeft = projection.2
    let bottomLeftProjected = camera.projectPoint(bottomLeft,
                                         orientation: .portrait,
                                         viewportSize: size)

    let bottomRight = projection.3
    let bottomRightProjected = camera.projectPoint(bottomRight,
                                          orientation: .portrait,
                                          viewportSize: size)

    let result = CGRect(origin: topLeftProjected,
                        size: CGSize(width: topRightProjected.distance(point: topLeftProjected),
                                     height: bottomRightProjected.distance(point: bottomLeftProjected)))

    return result
}

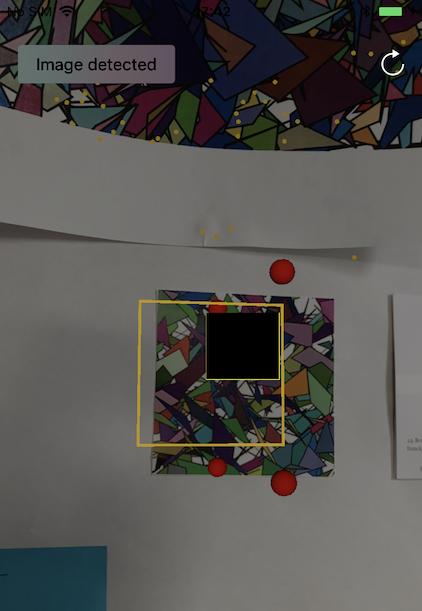

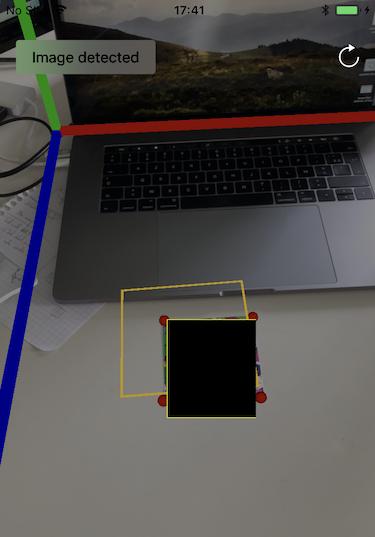

当我站在世界原点的时候，这个函数工作得很好。但是，如果我向左或向右移动，则角点的计算将不起作用。

​

​

​

​

Answer 1

我找到了一种解决方案，可以根据ARImageAnchor的anchor.transform获取角三维点，并将它们投影到2D空间：

    extension simd_float4 {
        var vector_float3: vector_float3 { return simd_float3([x, y, z]) }
    }

    /// Returns the projection of an `ARImageAnchor` from the 3D world space
    /// detected by ARKit into the 2D space of a view rendering the scene.
    ///
    /// - Parameter from: An Anchor instance for projecting.
    /// - Returns: An optional `CGRect` corresponding on `ARImageAnchor` projection.
    internal func projection(from anchor: ARImageAnchor) -> CGRect? {
        guard let camera = session.currentFrame?.camera else {
            return nil
        }

        let refImg = anchor.referenceImage
        let transform = anchor.transform.transpose


        let size = view.bounds.size
        let width = Float(refImg.physicalSize.width / 2)
        let height = Float(refImg.physicalSize.height / 2)

        // Get corner 3D points
        let pointsWorldSpace = [
            matrix_multiply(simd_float4([width, 0, -height, 1]), transform).vector_float3, // top right
            matrix_multiply(simd_float4([width, 0, height, 1]), transform).vector_float3, // bottom right
            matrix_multiply(simd_float4([-width, 0, -height, 1]), transform).vector_float3, // bottom left
            matrix_multiply(simd_float4([-width, 0, height, 1]), transform).vector_float3 // top left
        ]

        // Project 3D point to 2D space
        let pointsViewportSpace = pointsWorldSpace.map { (point) -> CGPoint in
            return camera.projectPoint(
                point,
                orientation: .portrait,
                viewportSize: size
            )
        }

        // Create a rectangle shape of the projection
        // to calculate the Intersection Over Union of other `ARImageAnchor`
        let result = CGRect(
           origin: pointsViewportSpace[3],
           size: CGSize(
               width: pointsViewportSpace[0].distance(point: pointsViewportSpace[3]),
               height: pointsViewportSpace[1].distance(point: pointsViewportSpace[2])
           )
        )


        return result
    }
