virtex 6 FPGA中Dsp片的复位

Question

下面是VHDL代码，我使用了DSP作为MACC单元(乘累加)，使用了语言模板中可用的原语。在每第七个时钟周期，我重置Preg，当我这样做，该周期的乘积输出是lost.How，我是否重置Preg而不丢失任何数据？

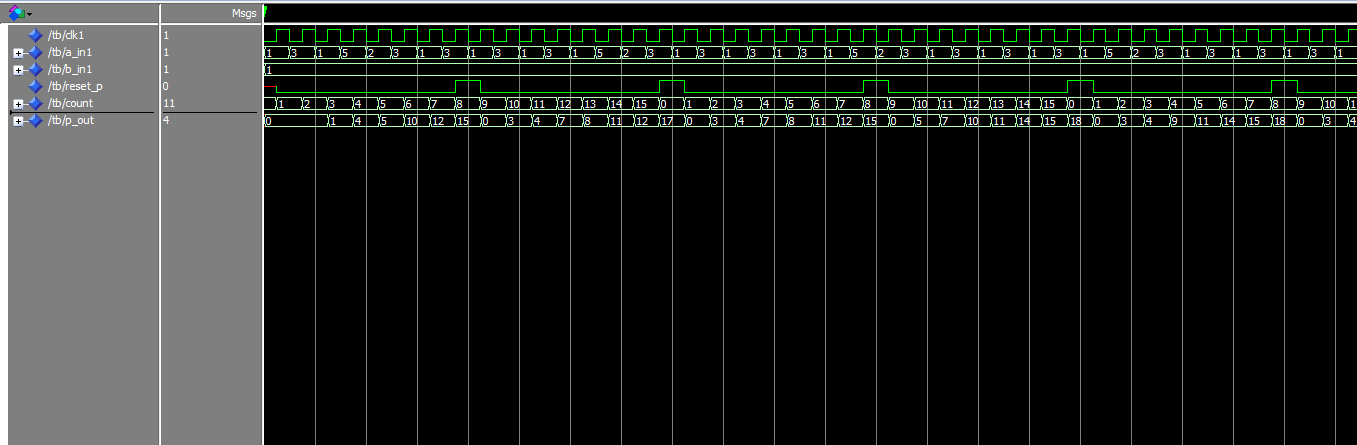

我附上了输出波形的截图。

​

​

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;


library UNISIM;
use UNISIM.VComponents.all;

use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;


entity dsp12 is
    Port ( clk1 : in  STD_LOGIC;
           a_in1 : in  STD_LOGIC_vector(29 downto 0);
           b_in1 : in  STD_LOGIC_vector(17 downto 0);
           p_out : out  STD_LOGIC_vector(47 downto 0);
              reset_p: inout  std_logic;
              count :inout std_logic_vector(3 downto 0):="0000"
);
end dsp12;

architecture Behavioral of dsp12 is
signal reset: std_logic:='0';

begin
dsp1: DSP48E1

generic map(

-- Feature Control Attributes: Data Path Selection
A_INPUT => "DIRECT",
B_INPUT => "DIRECT",
USE_DPORT => FALSE,
USE_MULT => "MULTIPLY",


AUTORESET_PATDET => "NO_RESET",
MASK => X"ffffffffffff" ,
PATTERN => X"000000000000",
SEL_MASK => "MASK",
SEL_PATTERN => "PATTERN",
USE_PATTERN_DETECT => "NO_PATDET",


ACASCREG => 1,
ADREG => 0,
ALUMODEREG => 1,
AREG => 1,
BCASCREG => 1,
BREG => 1,
CARRYINREG => 1,
CARRYINSELREG => 1,
CREG =>0,
DREG => 0,
INMODEREG => 1,
MREG => 1,
OPMODEREG => 1,
PREG => 1,
USE_SIMD => "ONE48"
)


port map (


ACOUT =>open ,--ACOUT(i) ,
BCOUT =>open,--1,--BCOUT(i) ,
CARRYCASCOUT => open,
MULTSIGNOUT => open,
PCOUT => open ,


OVERFLOW => open,
PATTERNBDETECT => open,
PATTERNDETECT => open,
UNDERFLOW => open,

-- Data: 4-bit (each) Data Ports
CARRYOUT => open,
P => P_out,--P(i) ,

-- Cascade: 30-bit (each) Cascade Ports
ACIN =>"000000000000000000000000000000",
BCIN =>"000000000000000000",
CARRYCASCIN => '0',
MULTSIGNIN => '0',
PCIN => X"000000000000" ,

-- Control: 4-bit (each) Control Inputs/Status Bits
ALUMODE => "0000",
CARRYINSEL => "000",
CEINMODE => '0',
CLK => clk1,
INMODE => "00000",
OPMODE => "0100101",
RSTINMODE => '0',

-- Data: 30-bit (each) Data Ports
A => A_in1,
B => B_in1,
C => X"000000000000",
CARRYIN => '0',
D => "0000000000000000000000000",

-- Reset/Clock Enable: 1-bit (each) Reset/Clock Enable Inputs
CEA1 => '1',
CEA2 => '1',
CEAD =>'0',
CEALUMODE => '1',
CEB1 => '1',
CEB2 => '1',
CEC => '0',
CECARRYIN => '1',
CECTRL => '1',
CED =>'0' ,
CEM => '1',
CEP => '1',
RSTA => Reset,
RSTALLCARRYIN => Reset,
RSTALUMODE => Reset,
RSTB => Reset,
RSTC => Reset,
RSTCTRL => Reset,
RSTD =>Reset,
RSTM =>Reset,
RSTP =>Reset_p
);


process(clk1)
begin

if clk1' event and clk1='1' then
count<=count+"0001";


if count(2 downto 0)="111" then
reset_p<='1';
else reset_p<='0';
end if;
end if;
end process;

end Behavioral;

Answer 1

让我们把我的评论写成一个答案。

从您的描述来看，您似乎不想重新注册P。相反，您似乎希望每8个值累积一次。

如果您重置寄存器，您将始终得到您看到的效果。相反，您希望动态地将DSP的操作模式更改为：

• 乘法模P_out = A*B (+0)的一个循环
• MAC模式P_out = A*B+P_in的7个周期

如Xilinx DSP48E1用户指南所示，您现在使用的OPMODE是"0100101"，其中第6-4位对您的目的非常重要(表2-9)。"010"表示寄存器P的输出是后加法器的输入.要将其设置为"000"，则将输入设置为“零”(0)。

因此，一个简单的解决方案是修改代码：

OPMODE => "0100101",
RSTP =>Reset_p

至：

OPMODE => "0"&not(Reset_p)&"00101",
RSTP =>Reset

但你也许可以把它清理干净。

不同溶液

与其将DSP实例化为组件，不如进行RTL描述。合成工具将理解这一点，并产生你的MAC。这是一个VHDL-2008的描述。它会合成。

library ieee;
use ieee.std_logic_1164.all;

entity Accumulate8 is
    port(
        clk : in std_logic;
        rst : in std_logic;
        A : in std_logic_vector(29 downto 0);
        B : in std_logic_vector(17 downto 0);
        P : out std_logic_vector(47 downto 0)
    );
end entity;

architecture rtl of Accumulate8 is
    signal count : integer range 0 to 7 := 7;
    use ieee.numeric_std.all;
begin
    mac: process(clk)
    begin
        if rising_edge(clk) then
            if count = 0 then
                count <= 7;
                P <= std_logic_vector(unsigned(A)*unsigned(B));
            else
                count <= count - 1;
                P <= std_logic_vector(unsigned(A)*unsigned(B)+unsigned(P));
            end if;
            if rst = '1' then
                count <= 7;
                P <= (others => '0');
            end if;
        end if;
    end process;
end architecture;

试验台

entity Accumulate8_tb is end entity;

library ieee;

architecture rtl of Accumulate8_tb is
    use ieee.std_logic_1164.all;
    use ieee.numeric_std.all;
    signal clk : std_logic;
    signal rst : std_logic;
    signal A : unsigned(29 downto 0) := (others => '0');
    signal B : unsigned(17 downto 0) := (others => '0');
    signal P : std_logic_vector(47 downto 0);
begin

    clk_proc: process begin
        clk <= '0', '1' after 1 ns;
        wait for 2 ns;
    end process;

    rst_proc: process begin
        rst <= '1';
        wait for 4 ns;
        rst <= '0';
        wait;
    end process;

    cnt_proc : process(clk) begin
        if rising_edge(clk) then
            A <= A + 3;
            B <= B + 7;
        end if;
    end process;

    DUT: entity work.Accumulate8
        port map(
            clk => clk,
            rst => rst,
            A => std_logic_vector(A),
            B => std_logic_vector(B),
            P => P
        );
end architecture;
