如何在锈菌的gtk-rs绑定中添加ListStore？

Question

我想用TreeView创建程序，其中包含使用gtk-rs绑定的ComboBoxes。

为了获得GtkCellRendererCombo的数据，我需要一个GtkTreeModel *，但是我不知道如何在ListStore中添加一个ListStore。

目前，我只有一个简单的TreeView。我希望在1列中有一个ComboBox (标题"f64")：

extern crate gtk;

use gtk::prelude::*;
use gtk::{ComboBox, ListStore, Orientation, TreeView, TreeViewColumn, Window, WindowType};

fn main() {
    gtk::init().expect("Failed to initialize GTK");
    let window = Window::new(WindowType::Toplevel);
    window.set_position(gtk::WindowPosition::Center);
    window.set_title("Rust&GTK+3");
    window.set_position(gtk::WindowPosition::Center);
    window.connect_delete_event(|wind, _| {
        let (szerokosc, wysokosc) = wind.get_size();
        println!("Width {} Height {}", szerokosc, wysokosc);
        // Stop the main loop.
        gtk::main_quit();
        // Let the default handler destroy the window.
        Inhibit(false)
    });
    let main_box = gtk::Box::new(Orientation::Vertical, 0);
    let view_list = TreeView::new();
    {
        let types_inside_columns = &[gtk::Type::U32, gtk::Type::F64];
        let model_list_of_data = ListStore::new(types_inside_columns);
        for liczba in 0..10 {
            let array_of_data = [&(liczba.to_value()) as &ToValue,
                                 &((liczba as f64 * 1.5).to_value()) as &ToValue];
            model_list_of_data.insert_with_values(None, &[0, 1], &array_of_data);
        }
        view_list.set_model(Some(&model_list_of_data));
        let object_to_render_cells: gtk::CellRendererText = gtk::CellRendererText::new();
        object_to_render_cells.set_visible(true);
        let view_column = TreeViewColumn::new();
        view_column.set_expand(true);
        view_column.set_visible(true);
        view_column.set_title("u32");
        view_column.pack_start(&object_to_render_cells, true);
        view_column.add_attribute(&object_to_render_cells, "text", 0);
        view_list.append_column(&view_column);
        // second column
        let object_to_render_cells_2: gtk::CellRendererText = gtk::CellRendererText::new();
        object_to_render_cells_2.set_visible(true);
        let view_column_2 = TreeViewColumn::new();
        view_column_2.set_expand(true);
        view_column_2.set_visible(true);
        view_column_2.set_title("f64");
        view_column_2.pack_start(&object_to_render_cells, true);
        view_column_2.add_attribute(&object_to_render_cells, "text", 1);
        view_list.append_column(&view_column_2);
    }
    view_list.expand_all();
    main_box.add(&view_list);
    window.add(&main_box);
    window.show_all();
    gtk::main();
}

我尝试过将gtk::Type:BaseBoxed添加到types_inside_columns中，然后向array_of_data添加装箱ListStore，但是方法to_value()无法成功地将Box转换为ToValue类型。

添加:这个程序在运行时很恐慌：

extern crate gtk;
use gtk::prelude::*;
use gtk::{ComboBox, ListStore, Orientation, TreeView, TreeViewColumn, Window, WindowType};


fn main()
{
    gtk::init().expect("Failed to initialize GTK");
    let window = Window::new(WindowType::Toplevel);
    window.set_position(gtk::WindowPosition::Center);
    window.set_title("Rust&GTK+3");
    window.set_position(gtk::WindowPosition::Center);
    window.connect_delete_event(|wind, _| {
        let (szerokosc,wysokosc) =  wind.get_size();
        println!("Width {} Height {}",szerokosc,wysokosc);
        // Stop the main loop.
        gtk::main_quit();
        // Let the default handler destroy the window.
        Inhibit(false)
    });
    let main_box = gtk::Box::new(Orientation::Vertical,0);
    let view_list = TreeView::new();
    {
        let types_inside_columns = &[gtk::Type::U32,gtk::Type::F64,gtk::Type::Pointer];
        let model_list_of_data = ListStore::new(types_inside_columns);
        for liczba in 0..10 {
            let model_for_combo = ListStore::new(types_inside_columns);
            let array_of_data = [&(liczba.to_value()) as &ToValue,
            &((liczba as f64 * 1.5).to_value()) as &ToValue,
            ];
            let typ_iter = model_list_of_data.insert_with_values(None,&[0,1],&array_of_data);
            model_list_of_data.set_value(&typ_iter,2, &model_for_combo.to_value() as &gtk::Value);
        }
        view_list.set_model(Some(&model_list_of_data));
        let object_to_render_cells : gtk::CellRendererText = gtk::CellRendererText::new();
        object_to_render_cells.set_visible(true);
        let view_column= TreeViewColumn::new();
        view_column.set_expand(true);
        view_column.set_visible(true);
        view_column.set_title("u32");
        view_column.pack_start(&object_to_render_cells,true);
        view_column.add_attribute(&object_to_render_cells,"text",0);
        view_list.append_column(&view_column);
        //second column
        let object_to_render_cells_2 : gtk::CellRendererCombo = gtk::CellRendererCombo::new();
        let view_column_2 = TreeViewColumn::new();
        view_column_2.set_expand(true);
        view_column_2.set_visible(true);
        view_column_2.set_title("f64");
        view_column_2.pack_start(&object_to_render_cells_2,true);
        view_column_2.add_attribute(&object_to_render_cells_2,"text",1);
        view_list.append_column(&view_column_2);
    }
    view_list.expand_all();
    main_box.add(&view_list);
    window.add(&main_box);
    window.show_all();
    gtk::main();
}

Answer 1

类型问题

如果要将gtk::ListStore存储在另一个gtk::ListStore中，则不指定gtk::Type::Pointer，则需要使用最后一个变体gtk::Type::Other(usize)。您可以在运行时使用gtk::ListStore获得ToValue::to_value_type的类型。遗憾的是，当类型编号发生变化时，我无法找到在编译时执行此操作的方法。

let model = ListStore::new(&[Type::U8]);
println!("{:?}", model.to_value_type()); // Other(139977306752544)
println!("{:?}", model.to_value()); // Value(((GtkListStore*) 0x7f4f01b9a060))
// get type at runtime
let liststore_type = model.to_value_type();
let model = ListStore::new(&[Type::U32, Type::F64, liststore_type]);

现在，您可以插入您的子模型，正如您想要做的ToValue::to_value。

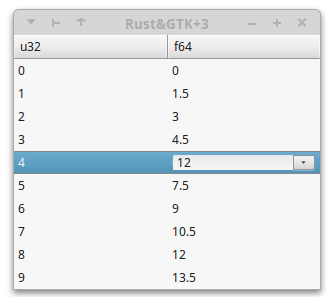

使用gtk::CellRendererCombo

但是，您写到要在一行中使用组合框，可能用于编辑数字。为此，您不需要嵌套gtk::ListStore。您需要一个gtk::TreeView模型和另一个选项模型。

let model_list_of_data = ListStore::new(&[gtk::Type::U32, gtk::Type::String]);
let model_for_combo = ListStore::new(&[gtk::Type::String]);


for liczba in 0..10 {
    let integer = liczba.to_value();
    let float = format!("{}", liczba as f64 * 1.5).to_value();

    model_list_of_data.insert_with_values(None, &[0, 1], &[&integer, &float]);
    model_for_combo.insert_with_values(None, &[0], &[&float]);
}

// code for first column not changed

let object_to_render_cells_2: gtk::CellRendererCombo = gtk::CellRendererCombo::new();
object_to_render_cells_2.set_visible(true);
object_to_render_cells_2.set_property_editable(true);
// use the combo model for the options
object_to_render_cells_2.set_property_model(Some(&model_for_combo.upcast()));
// display the options of the first column in the combo model
object_to_render_cells_2.set_property_text_column(0);
let view_column_2 = TreeViewColumn::new();
view_column_2.set_expand(true);
view_column_2.set_visible(true);
view_column_2.set_title("f64");
view_column_2.pack_start(&object_to_render_cells_2, false);
// the data for each row is in the second column in the tree model
view_column_2.add_attribute(&object_to_render_cells_2, "text", 1);
view_list.append_column(&view_column_2);

您可能已经注意到，我使用字符串而不是普通的浮点数。这有两个原因：

1. 使用format!，输出中不包含不必要的零。
2. 使用普通浮动，gtk将显示组合体，但如果单击其中一个，则会崩溃。

​

​
