Weibull累积分布函数，从"fitdistr“命令开始

Question

我使用了来自R质量包的fitdistr函数来调整Weibull 2参数的概率密度函数。

这是我的密码：

require(MASS)

h = c(31.194, 31.424, 31.253, 25.349, 24.535, 25.562, 29.486, 25.680, 26.079, 30.556,      30.552, 30.412, 29.344, 26.072, 28.777, 30.204, 29.677, 29.853, 29.718, 27.860, 28.919, 30.226, 25.937, 30.594, 30.614, 29.106, 15.208, 30.993, 32.075, 31.097, 32.073, 29.600, 29.031, 31.033, 30.412, 30.839, 31.121, 24.802, 29.181, 30.136, 25.464, 28.302, 26.018, 26.263, 25.603, 30.857, 25.693, 31.504, 30.378, 31.403, 28.684, 30.655,  5.933, 31.099, 29.417, 29.444, 19.785, 29.416, 5.682, 28.707, 28.450, 28.961, 26.694, 26.625, 30.568, 28.910, 25.170, 25.816, 25.820)

weib = fitdistr(na.omit(h),densfun=dweibull,start=list(scale=1,shape=5))

hist(h, prob=TRUE, main = "", xlab = "x", ylab = "y", xlim = c(0,40), breaks = seq(0,40,5))
curve(dweibull(x, scale=weib$estimate[1], shape=weib$estimate[2]),from=0, to=40, add=TRUE)

现在，我想创建Weibull累积分布函数，并将其绘制成一个图：

​

，其中x> 0，b=刻度，a=形状

我试图使用上面的公式为h应用缩放和形状参数，但情况并非如此。

Answer 1

这里是一个累积密度函数的尝试。您只需记住包括对取样点间距的调整(注意:它适用于均匀间距小于或等于1的取样点)：

cdweibull <- function(x, shape, scale, log = FALSE){
  dd <- dweibull(x, shape= shape, scale = scale, log = log)
  dd <- cumsum(dd) * c(0, diff(x))
  return(dd)
}

尽管上面对比例差异的讨论，您仍可以将其绘制在与dweibull相同的图形上。

require(MASS)

h = c(31.194, 31.424, 31.253, 25.349, 24.535, 25.562, 29.486, 25.680,
      26.079, 30.556, 30.552, 30.412, 29.344, 26.072, 28.777, 30.204,
      29.677, 29.853, 29.718, 27.860, 28.919, 30.226, 25.937, 30.594,
      30.614, 29.106, 15.208, 30.993, 32.075, 31.097, 32.073, 29.600,
      29.031, 31.033, 30.412, 30.839, 31.121, 24.802, 29.181, 30.136,
      25.464, 28.302, 26.018, 26.263, 25.603, 30.857, 25.693, 31.504,
      30.378, 31.403, 28.684, 30.655,  5.933, 31.099, 29.417, 29.444,
      19.785, 29.416, 5.682, 28.707, 28.450,  28.961, 26.694, 26.625,
      30.568, 28.910, 25.170, 25.816, 25.820)

weib = fitdistr(na.omit(h),densfun=dweibull,start=list(scale=1,shape=5))

hist(h, prob=TRUE, main = "", xlab = "x",
     ylab = "y", xlim = c(0,40), breaks = seq(0,40,5), ylim = c(0,1))

curve(cdweibull(x, scale=weib$estimate[1], shape=weib$estimate[2]),
  from=0, to=40, add=TRUE)

​

​

Answer 2

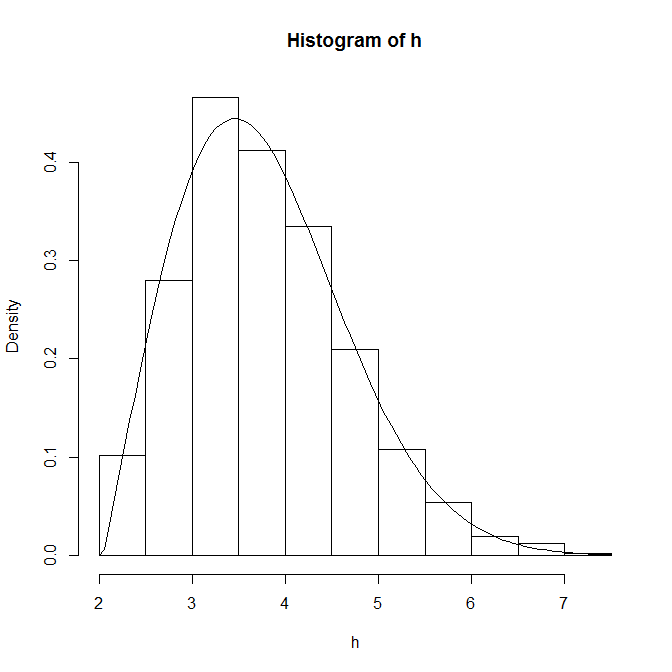

这适用于我的数据，但你的可能不一样。它使用来自rweibull3包的FAdist函数。

>h=rweibull3(1000,2,2,2)

>#this gives some warnings...that I ignore.
>weib = fitdistr(h,densfun=dweibull3,start=list(scale=1,shape=5,thres=0.5))

There were 19 warnings (use warnings() to see them)

需要注意的是，起始值会影响匹配的进行方式。因此，如果开始值接近真值，则会收到较少的警告。

>curve(dweibull3(   x,
            scale=weib$estimate[1],
            shape=weib$estimate[2],
            thres=weib$estimate[3]),
            add=TRUE)

​

​
