瓷砖地块的整形表

Question

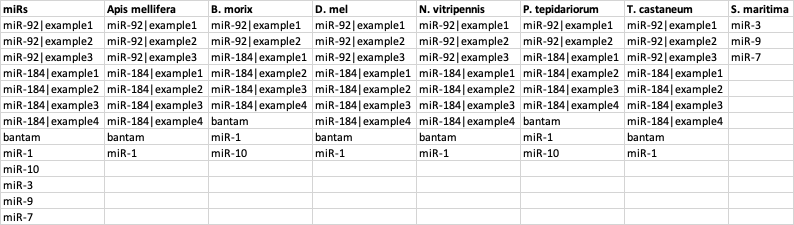

我有一个像这样的数据框架(我简化了它，它在现实中很长)。

​

​

data <- structure(list(miRs = structure(c(10L, 11L, 12L, 3L, 4L, 5L,
6L, 1L, 2L, 7L, 9L, 8L), .Label = c("bantam", "miR-1", "miR-184|example1",
"miR-184|example2", "miR-184|example3", "miR-184|example4", "miR-3",
"miR-7", "miR-9", "miR-92|example1", "miR-92|example2", "miR-92|example3"
), class = "factor"), Apis.mellifera = structure(c(8L, 9L, 10L,
4L, 5L, 6L, 7L, 2L, 3L, 1L, 1L, 1L), .Label = c("", "bantam",
"miR-1", "miR-184|example1", "miR-184|example2", "miR-184|example3",
"miR-184|example4", "miR-92|example1", "miR-92|example2", "miR-92|example3"
), class = "factor"), B..morix = structure(c(9L, 10L, 5L, 6L,
7L, 8L, 2L, 3L, 4L, 1L, 1L, 1L), .Label = c("", "bantam", "miR-1",
"miR-10", "miR-184|example1", "miR-184|example2", "miR-184|example3",
"miR-184|example4", "miR-92|example1", "miR-92|example2"), class = "factor"),
    D..mel = structure(c(8L, 9L, 10L, 4L, 5L, 6L, 7L, 2L, 3L,
    1L, 1L, 1L), .Label = c("", "bantam", "miR-1", "miR-184|example1",
    "miR-184|example2", "miR-184|example3", "miR-184|example4",
    "miR-92|example1", "miR-92|example2", "miR-92|example3"), class = "factor"),
    N..vitripennis = structure(c(8L, 9L, 10L, 4L, 5L, 6L, 7L,
    2L, 3L, 1L, 1L, 1L), .Label = c("", "bantam", "miR-1", "miR-184|example1",
    "miR-184|example2", "miR-184|example3", "miR-184|example4",
    "miR-92|example1", "miR-92|example2", "miR-92|example3"), class = "factor"),
    P..tepidariorum = structure(c(9L, 10L, 5L, 6L, 7L, 8L, 2L,
    3L, 4L, 1L, 1L, 1L), .Label = c("", "bantam", "miR-1", "miR-10",
    "miR-184|example1", "miR-184|example2", "miR-184|example3",
    "miR-184|example4", "miR-92|example1", "miR-92|example2"), class = "factor"),
    T..castaneum = structure(c(8L, 9L, 10L, 6L, 7L, 4L, 5L, 2L,
    3L, 1L, 1L, 1L), .Label = c("", "bantam|LQNS02278082.1_33125",
    "miR-1", "miR-184|LQNS02000211.1_1795", "miR-184|LQNS02000211.1_1950",
    "miR-184|LQNS02000211.1_1952", "miR-184|LQNS02000211.1_1954",
    "miR-92|example1", "miR-92|example2", "miR-92|example3"), class = "factor"),
    S..maritima = structure(c(2L, 4L, 3L, 1L, 1L, 1L, 1L, 1L,
    1L, 1L, 1L, 1L), .Label = c("", "miR-3", "miR-7", "miR-9"
    ), class = "factor")), class = "data.frame", row.names = c(NA,
-12L))

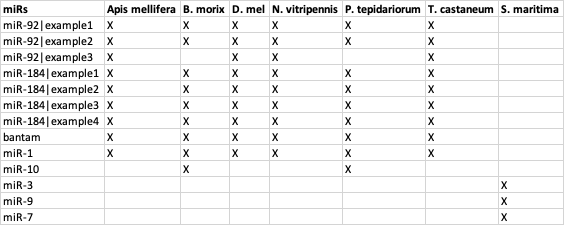

理想情况下，我希望绘制一个平铺图，其中只显示每个miR的缺位/存在。然而，我有很多旅行，以重塑这张表的R，甚至是规划它。预期的产出将是：

​

我想把它画出来。对此问题的任何帮助都将不胜感激。谢谢

Answer 1

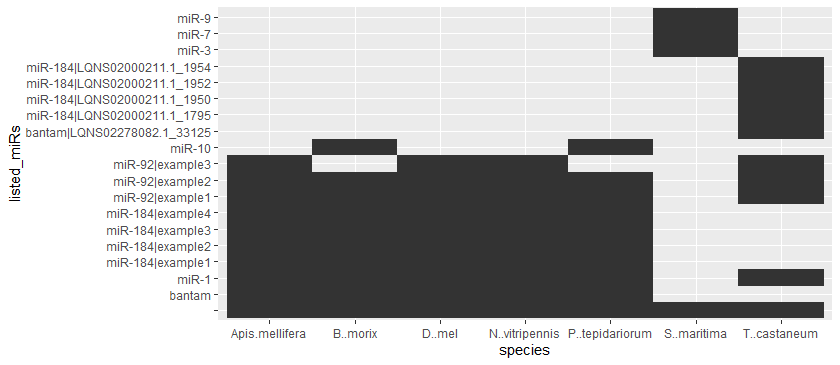

下面是一种使用tidyr::pivot_longer和tidyverse中的ggplot的方法。

library(tidyverse)
data %>%
  pivot_longer(cols = -miRs, names_to = "species", values_to = "listed_miRs") %>%
  ggplot(aes(species, listed_miRs)) +
  geom_tile()

​

​

Answer 2

我们可以用pivot_longer将其重塑为“long”格式，然后做一个count并将其重塑为“wide”

library(dplyr)
library(tidyr)
data %>%
  type.convert(as.is = TRUE) %>%
  pivot_longer(cols = -miRs) %>%
  filter(value != "") %>%
  count(name, value) %>%
  pivot_wider(names_from = name, values_from = n, values_fill = list(n = 0))

或者使用来自base R的base R

+(table(unlist(data), rep(names(data), each = nrow(data))) != 0)
