如何使用PyBullet将PyBullet模拟坐标投影到渲染的帧像素坐标？

Question

如何将PyBullet中的对象位置转换为像素坐标，并使用PyBullet和OpenCV在帧上画一条线？

我们希望这样做，因为PyBullet本机addUserDebugLine()函数在直接模式下不可用。

import pybullet as p
import numpy as np
import time
import pybullet_data
import cv2


VIDEO_RESOLUTION = (1280, 720)
MY_COLORS = [(255,0,0), (0,255,0), (0,0,255)]
def capture_frame(base_pos=[0,0,0], _cam_dist=3, _cam_yaw=45, _cam_pitch=-45):
        _render_width, _render_height = VIDEO_RESOLUTION
        view_matrix = p.computeViewMatrixFromYawPitchRoll(
            cameraTargetPosition=base_pos,
            distance=_cam_dist,
            yaw=_cam_yaw,
            pitch=_cam_pitch,
            roll=0,
            upAxisIndex=2)
        proj_matrix = p.computeProjectionMatrixFOV(
            fov=90, aspect=float(_render_width) / _render_height,
            nearVal=0.01, farVal=100.0)
        (_, _, px, _, _) = p.getCameraImage(
            width=_render_width, height=_render_height, viewMatrix=view_matrix,
            projectionMatrix=proj_matrix, renderer=p.ER_TINY_RENDERER)  # ER_BULLET_HARDWARE_OPENGL)
        rgb_array = np.array(px, dtype=np.uint8)
        rgb_array = np.reshape(rgb_array, (_render_height, _render_width, 4))
        rgb_array = rgb_array[:, :, :3]
        return rgb_array, view_matrix, proj_matrix
def render():
    frame, vmat, pmat = capture_frame()
    p1, cubeOrn = p.getBasePositionAndOrientation(1)
    p2, cubeOrn = p.getBasePositionAndOrientation(2)
    frame, view_matrix,  proj_matrix = capture_frame()
    frame = cv2.resize(frame, VIDEO_RESOLUTION)
    points = {}

    # reshape matrices
    my_order = 'C'
    pmat = np.array(proj_matrix).reshape((4,4), order=my_order)
    vmat = np.array(view_matrix).reshape((4,4), order=my_order)
    fmat = vmat.T @ pmat.T

    # compute origin from origin point in simulation
    origin = np.array([0,0,0,1])
    frame_origin = (fmat @ origin)[:3]*np.array([1280, 640, 0]) + np.array([640, 360, 0])

    # define unit vectors
    unit_vectors = [ np.array([1,0,0,1]),
                     np.array([0,1,0,1]),
                     np.array([0,0,1,1]) ]

    for col_id, unit_vector in enumerate(unit_vectors):
        cur_point = (fmat @ unit_vector)[:3]*np.array([1280, 640, 0]) + np.array([640, 360, 0])
        cv2.line(frame, (640,360), (int(cur_point[0]),int(cur_point[1])), color=MY_COLORS[col_id], thickness=2)
    cv2.imwrite("my_rendering.jpg", frame)
    print(p1,p2)
if __name__ == '__main__':
    physicsClient = p.connect(p.DIRECT)#or p.DIRECT for non-graphical version
    p.setAdditionalSearchPath(pybullet_data.getDataPath()) #optionally
    p.setGravity(0,0,-10)
    planeId = p.loadURDF("plane.urdf")
    startPos = [1,0,0.2]
    startOrientation = p.getQuaternionFromEuler([0,0,0])
    boxId = p.loadURDF("r2d2.urdf",startPos, startOrientation)
    startPos = [0,2,0.2]
    boxId = p.loadURDF("r2d2.urdf",startPos, startOrientation)
    #set the center of mass frame (loadURDF sets base link frame) startPos/Ornp.resetBasePositionAndOrientation(boxId, startPos, startOrientation)
    for i in range (2400):
        if i == 2399:
            render()
        p.stepSimulation()


    p.disconnect()

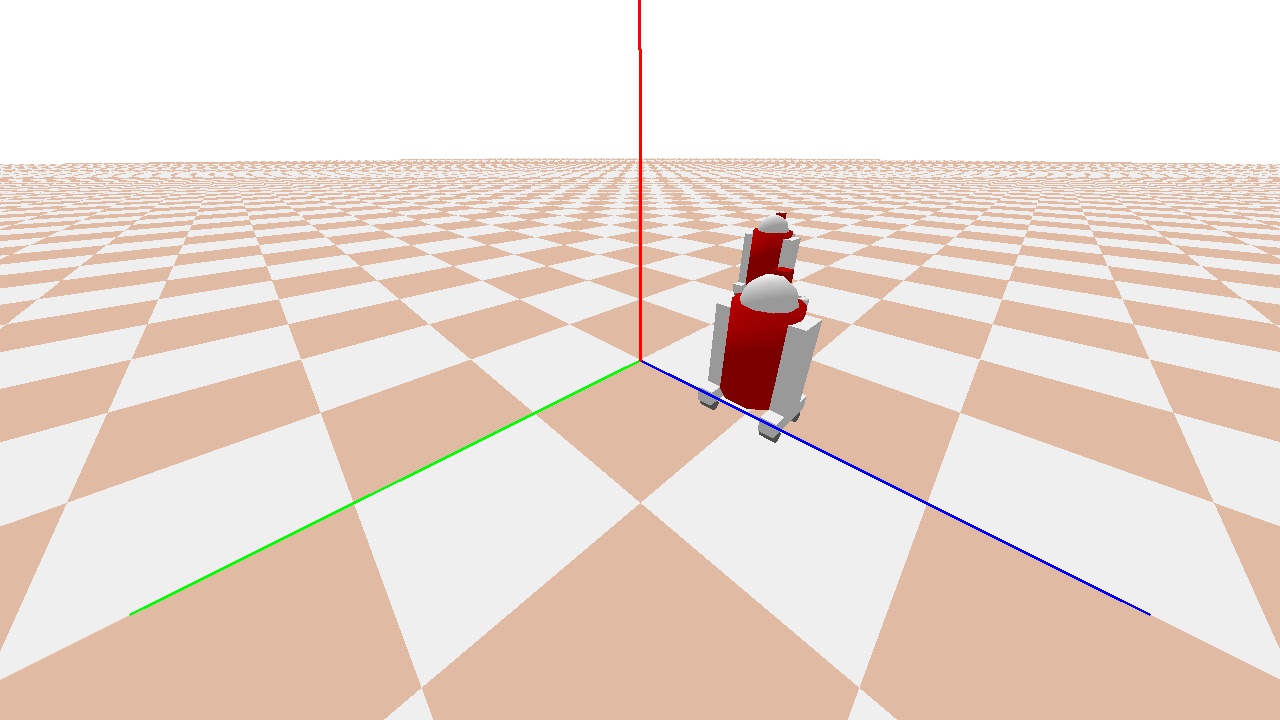

预期的输出将是以下帧，但原点坐标帧绘制正确。例如X、Y和Z轴分别是红色、蓝色和绿色。

由于这两个R2D2机器人分别位于1,0,0和0,1,0，0，我们可以看到坐标帧是关闭的。(见下图)

​

我们尝试了以下几点：

matrices

• changing的
• 变换矩阵的
• ，而不是按计算fmat的顺序，例如pmat @ vmat，而不是vmat @ pmat等，

。

任何帮助都是非常感谢的。

Answer 1

经过大量的摆弄，我想出了一个解决办法。玩了一会儿，我到了一个点，它看起来几乎没有问题，除了轴的旋转给偏航角。因此，我对computeViewMatrixFromYawPitchRoll进行了第二次调用，但是使用了相反的偏航，以便计算轴的转换。不幸的是，我不知道为什么这样做.但很管用！注意: base_pos、_cam_dist、_cam_yaw和_cam_pitch已被替换为render()注意:向上的方向也被颠倒了(不要问为什么.(-)一个相当混乱的解释，我必须承认.

import pybullet as p
import numpy as np
import time
import pybullet_data
import cv2
import os

VIDEO_RESOLUTION = (1280, 720)
MY_COLORS = [(255,0,0), (0,255,0), (0,0,255)]
K=np.array([[1280,0,0],[0,720,0],[0,0,1]])

def capture_frame(base_pos, _cam_dist, _cam_yaw, _cam_pitch):
        _render_width, _render_height = VIDEO_RESOLUTION
        view_matrix = p.computeViewMatrixFromYawPitchRoll(
            cameraTargetPosition=base_pos,
            distance=_cam_dist,
            yaw=_cam_yaw,
            pitch=_cam_pitch,
            roll=0,
            upAxisIndex=2)
        proj_matrix = p.computeProjectionMatrixFOV(
            fov=90, aspect=float(_render_width) / _render_height,
            nearVal=0.01, farVal=100.0)
        (_, _, px, _, _) = p.getCameraImage(
            width=_render_width, height=_render_height, viewMatrix=view_matrix,
            projectionMatrix=proj_matrix, renderer=p.ER_TINY_RENDERER)  # ER_BULLET_HARDWARE_OPENGL)
        rgb_array = np.array(px, dtype=np.uint8)
        rgb_array = np.reshape(rgb_array, (_render_height, _render_width, 4))
        rgb_array = rgb_array[:, :, :3]
        return rgb_array, view_matrix, proj_matrix
def render():
    p1, cubeOrn = p.getBasePositionAndOrientation(1)
    p2, cubeOrn = p.getBasePositionAndOrientation(2)
    base_pos=[0,0,0]
    _cam_dist=3
    _cam_yaw=45
    _cam_pitch=-30
    frame, view_matrix,  proj_matrix = capture_frame(base_pos, _cam_dist, _cam_yaw, _cam_pitch)
    frame = cv2.resize(frame, VIDEO_RESOLUTION)
    points = {}

    # inverse transform
    view_matrix = p.computeViewMatrixFromYawPitchRoll(
        cameraTargetPosition=base_pos,
        distance=_cam_dist,
        yaw=-_cam_yaw,
        pitch=_cam_pitch,
        roll=0,
        upAxisIndex=2)


    my_order = 'C'
    pmat = np.array(proj_matrix).reshape((4,4), order=my_order)
    vmat = np.array(view_matrix).reshape((4,4), order=my_order)

    fmat = pmat @ vmat.T

    # compute origin from origin point in simulation
    origin = np.array([0,0,0,1])
    frame_origin = (fmat @ origin)[:3]*np.array([1280, 720, 0]) + np.array([640, 360, 0])

    # define unit vectors
    unit_vectors = [ np.array([1,0,0,1]),
                     np.array([0,1,0,1]),
                     np.array([0,0,-1,1]) ]

    for col_id, unit_vector in enumerate(unit_vectors):
        cur_point = (fmat @ unit_vector)[:3]*np.array([1280, 720, 0]) + np.array([640, 360, 0])
        cv2.line(frame, (640,360), (int(cur_point[0]),int(cur_point[1])), color=MY_COLORS[col_id], thickness=2)
    cv2.imwrite("my_rendering.jpg", frame)
    print(p1,p2)
if __name__ == '__main__':

    physicsClient = p.connect(p.DIRECT)#or p.DIRECT for non-graphical version
    #physicsClient = p.connect(p.GUI)#or p.DIRECT for non-graphical version
    p.setAdditionalSearchPath(pybullet_data.getDataPath()) #optionally
    p.setGravity(0,0,-10)
    planeId = p.loadURDF("plane.urdf")
    #arrows = p.loadURDF("arrows.urdf")

    startPos = [1,0,0.2]
    startOrientation = p.getQuaternionFromEuler([0,0,0])
    boxId = p.loadURDF("r2d2.urdf",startPos, startOrientation)
    startPos = [0,2,0.2]
    boxId = p.loadURDF("r2d2.urdf",startPos, startOrientation)
    #set the center of mass frame (loadURDF sets base link frame) startPos/Ornp.resetBasePositionAndOrientation(boxId, startPos, startOrientation)
    for i in range (2400):
        if i == 2399:
            render()
        p.stepSimulation()

    p.disconnect()

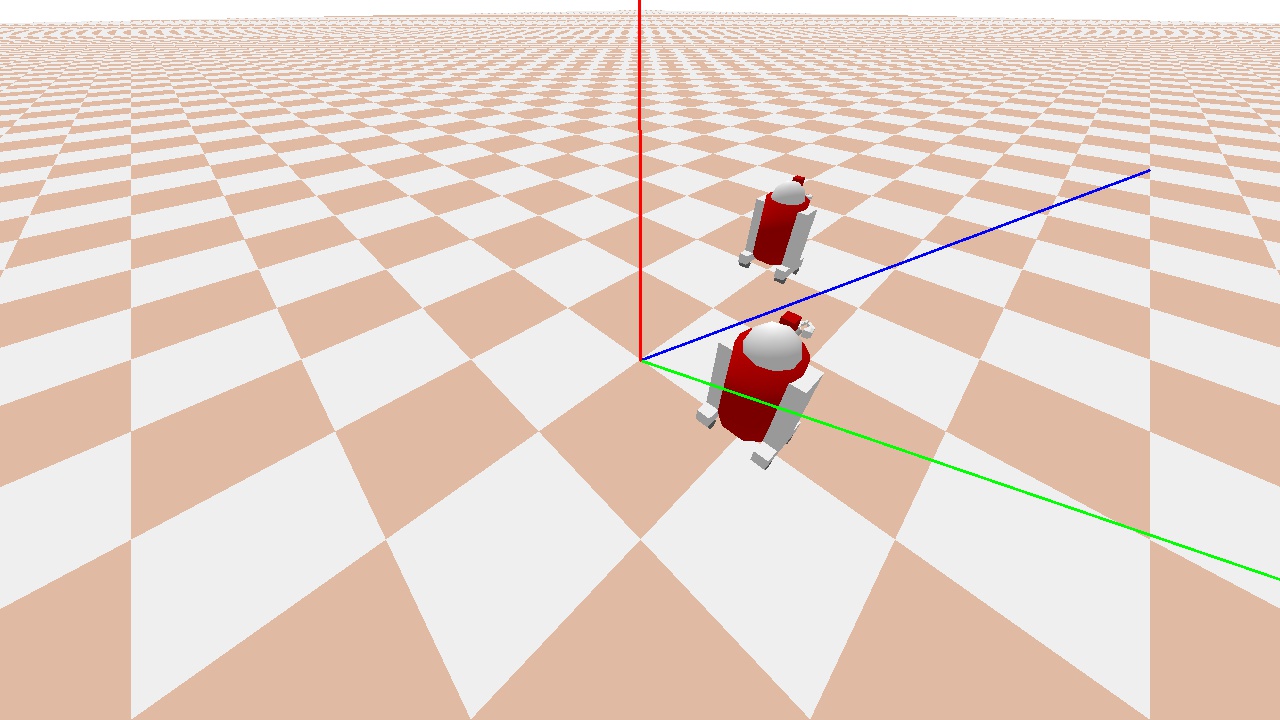

结果是:致以最良好的问候。

​
