在R图中跨滑块步骤添加静态元素

Question

我正在给一个关于MLE的教程，并试图弄清楚如何添加一个静态分组点到一个巧妙的图表。很明显，当我滑动正态分布时，你可以看到这些点对应于一个较低或更高的相似点。但是，我只能在第一帧上得到点。

x <- seq(0, 10, length.out = 1000)

aval <- list()
for (step in 1:6) {
  aval[[step]] <- list(
    visible = FALSE,
    name = paste0('v = ', step),
    x = x,
    y = dnorm(x, step+1)
  )

}

aval[3][[1]]$visible = TRUE

steps <- list()
fig <- plot_ly()

for (i in 1:6) {
  fig <-
    add_lines(
      fig,
      x = aval[i][[1]]$x,
      y = aval[i][[1]]$y,
      visible = aval[i][[1]]$visible,

      name = aval[i][[1]]$name,
      type = 'scatter',
      mode = 'lines',
      hoverinfo = 'name',

      line = list(color = '00CED1'),
      showlegend = FALSE
    )

step <- list(args = list('visible', rep(FALSE, length(aval))),method = 'restyle')
  step$args[[2]][i] = TRUE
  steps[[i]] = step

}


fig <- fig %>% add_markers(x = c(4.5,5,5.5), y = c(0,0,0))
# add slider control to plot

fig <- fig %>%
  layout(sliders = list(list(
    active = 0,
    currentvalue = list(prefix = "Frequency: "),
    steps = steps
  )))


fig

Answer 1

你为什么不用花哨的动画功能

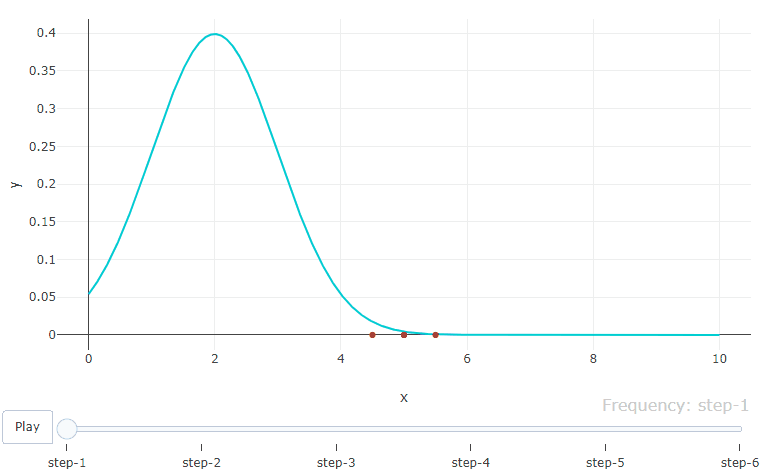

但是，无论您是定义自定义步骤还是使用frame参数，都必须为每个步骤提供“静态”点：

library(plotly)
library(data.table)

f <- 1:6
x <- seq(0, 10, length.out = 1000)
y <- unlist(lapply(f+1, dnorm, x = x))

DT <- CJ(f, x) # like expand.grid()
DT[, y := y]
DT[, step := paste0("step-", f)]

staticDT <- CJ(f, x = c(4.5,5,5.5), y = 0)
staticDT[, step := paste0("step-", f)]

fig <- plot_ly(
  data = DT,
  x = ~x,
  y = ~y,
  frame = ~step,
  type = 'scatter',
  mode = 'lines',
  showlegend = FALSE,
  color = I('#00CED1')
)

fig <- add_trace(
  fig,
  data = staticDT,
  x = ~x,
  y = ~y,
  frame = ~step,
  type = 'scatter',
  mode = 'markers',
  showlegend = FALSE,
  color = I('red'),
  inherit = FALSE
)

fig <- animation_opts(
  fig, transition = 0, redraw = FALSE
)

fig <- animation_slider(
  fig, currentvalue = list(prefix = "Frequency: ")
)

fig

​

​
