( dx12)着色常量出错

Question

​

​

​

​

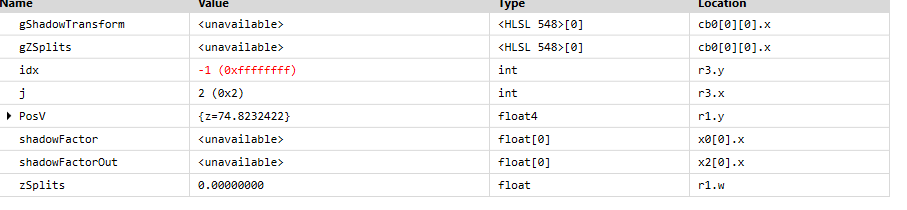

正如您可以看到的，在PIX中，管道说GPU上有正确的值，但是当我调试Pixels时，它使用错误的值而不使用gZSplits。

然后我像这样将值上传到GPU，mZSplits是std::vector：

for (int i = 1; i < mMapCount + 1; ++i)
{
    cmdList->SetGraphicsRoot32BitConstants(7, 1, &mZSplits[i], i - 1);
}

这是我的暗号。

cbuffer ShadowCB : register(b5)
{
    float gZSplits[3] : packoffset(c0);
}

float4 PS(DsOut din) : SV_Target
{
    float4 result = 0.0f;

    if(gKeyInput)
    {
        if (din.Tessellation.w <= 5.0f)
            result = float4(1.0f, 0.0f, 0.0f, 1.0f);
        else if (din.Tessellation.w <= 10.0f)
            result = float4(0.0f, 1.0f, 0.0f, 1.0f);
        else if (din.Tessellation.w <= 20.0f)
            result = float4(0.0f, 0.0f, 1.0f, 1.0f);
        else if (din.Tessellation.w <= 30.0f)
            result = float4(1.0f, 1.0f, 0.0f, 1.0f);
        else if (din.Tessellation.w <= 40.0f)
            result = float4(1.0f, 0.0f, 1.0f, 1.0f);
        else if (din.Tessellation.w <= 50.0f)
            result = float4(0.0f, 1.0f, 1.0f, 1.0f);
        else if (din.Tessellation.w <= 60.0f)
            result = float4(1.0f, 1.0f, 1.0f, 1.0f);
        else
            result = float4(1.0f, 0.5f, 0.5f, 1.0f);
    }
    else
    {
        int idx = -1;
        float4 PosV = mul(float4(din.PosW, 1.0f), gView);

        for (int j = 2; j >= 0; j--)
        {
            float zSplits = gZSplits[j];
            if (PosV.z < zSplits)
            {
                idx = j;
            }
        }
        float4 PosS = mul(float4(din.PosW, 1.0f), gShadowTransform[idx]);

        float4 diffuse = 0.0f;

        float4 baseTexDiffuse = gBaseTexture.Sample(gAnisotropicWrap, din.TexCoord0) * gMat.Diffuse;
        float4 detailedTexDiffuse = gDetailedTexture.Sample(gAnisotropicWrap, din.TexCoord1) * gMat.Diffuse;
        float4 roadTexDiffuse = gRoadTexture.Sample(gAnisotropicWrap, din.TexCoord0) * gMat.Diffuse;

        if (roadTexDiffuse.a < 0.4f)
        {
            diffuse = saturate(baseTexDiffuse * 0.6f + detailedTexDiffuse * 0.4f);
        }
        else
        {
            diffuse = roadTexDiffuse;
        }

        float3 view = normalize(gCameraPos - din.PosW);
        float4 ambient = gAmbient * float4(gMat.Ambient, 1.0f) * diffuse;

        float shadowFactor[3] = { 1.0f, 1.0f, 1.0f };
        for (int i = 0; i < 3; i++)
            shadowFactor[i] = CalcShadowFactor(PosS, idx);

        float4 directLight;
        float shadowFactorOut[3] = { 1.0f, 1.0f, 1.0f };
        if (PosS.x < 0.0f || PosS.x > 1.0f || PosS.z < 0.0f || PosS.z > 1.0f || PosS.y < 0.0f || PosS.y > 1.0f)
            directLight = ComputeLighting(gLights, gMat, normalize(din.NormalW), view, shadowFactorOut);
        else
        {
            directLight = ComputeLighting(gLights, gMat, normalize(din.NormalW), view, shadowFactor);
        }

        result = ambient + directLight;
        result.a = gMat.Diffuse.a;

        float4 debugColor = { 1.0f, 1.0f, 1.0f, 1.0f };
        //for (int k = 2; k >= 0; --k)
        //{
        //    float4 pos = mul(float4(din.PosW, 1.0f), gShadowViewProj[k]);
        //    if (pos.x > 0.0f && pos.x < 1.0f && pos.z > 0.0f && pos.z < 1.0f && pos.y > 0.0f && pos.y < 1.0f)
        //    {
        //        if (k == 2)
        //        {
        //            debugColor = float4(1.0f, 0.0f, 0.0f, 1.0f);
        //        }
        //        if (k == 1)
        //        {
        //            debugColor = float4(0.0f, 1.0f, 0.0f, 1.0f);
        //        }
        //        if (k == 0)
        //        {
        //            debugColor = float4(0.0f, 0.0f, 1.0f, 1.0f);
        //        }
        //    }
        //}
        //result *= debugColor;

        if (idx == 2)
        {
            debugColor = float4(1.0f, 0.0f, 0.0f, 1.0f);
        }
        else if (idx == 1)
        {
            debugColor = float4(0.0f, 1.0f, 0.0f, 1.0f);
        }
        else if (idx == 0)
        {
            debugColor = float4(0.0f, 0.0f, 1.0f, 1.0f);
        }
        result *= debugColor;
    }

    return result;
}

我检查过根签名或其他选项，但什么都找不到。也许着色器偏移是关键？

Answer 1

根据常数缓冲区中数组的包装规则：

cbuffer ShadowCB : register(b5)
{
    float gZSplits[3] : packoffset(c0);
}

不是3个浮点数(大小为12字节)，因此表示形式不是。

cbuffer ShadowCB : register(b5)
{
    float gZSplits0;
    float gZSplits1;
    float gZSplits2;
};

它实际上已扩大到：

cbuffer ShadowCB : register(b5)
{
    float gZSplits0;
    float3 pad0;
    float gZSplits1;
    float3 pad0;
    float gZSplits2;
};

因此，您需要确保您的cpu端缓冲区实际上是匹配的布局。

通过检查反汇编，您可以再次检查ShadowCB大小是否确实是36个字节。
