imshow的大小与ROI.shape不同

Question

晚上好！

我的问题如下：

1. roi的形状仅为200,200。这里显示的是313,313，我不知道为什么。

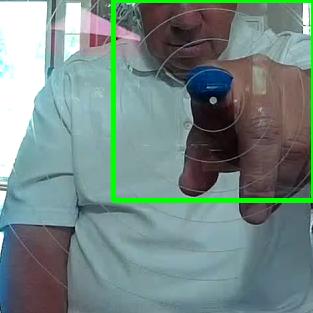

2.当我将frame for roi切换为imshow()参数时，结果也不是roi的正确大小。我得到的是这个输出：

​

​

from imutils.video import VideoStream
import argparse
import cv2
import numpy as np
import imutils
import time

ap = argparse.ArgumentParser(description="Pass the .mp4 file and optional buffer size as arguments.")
ap.add_argument("-video", type=str, help="Path to the video file") .
ap.add_argument("-buffer", type=int, default=64, help="Optional max buffer size")
args = vars(ap.parse_args())
video = cv2.VideoCapture(args["video"])
time.sleep(2.0)
offsetx = 38
offsety = 5

while (video.isOpened()):
    ret, frame = video.read()
    frame = imutils.resize(frame, width=1280)
    (screenheight, screenwidth) = frame.shape[:2]
    mid_y = screenheight/2
    mid_x = screenwidth /2
    roi_x = (mid_x + offsetx) - 100
    roi_y = (mid_y + offsety) - 100
    roi = frame[int(roi_y):int(roi_x),int(roi_y)+200:int(roi_x)+200]
    cv2.rectangle(frame,(int(roi_x),int(roi_y)),(int(roi_x)+200,int(roi_y)+200),(0,255,0),3)
    print(int(roi_x),int(roi_y),int(roi_x)+200,int(roi_y)+200)
    print(roi.shape)

    cv2.imshow('frame',roi)
        if cv2.waitKey(1) & 0xFF == ord('q'):
        break

video.release()
cv2.destroyAllWindows()

该文件的输出是：

(313, 313, 3) 578 265 778 465 ...

Answer 1

你的roi规格是不正确的。应该是y1:y2，x1:x2，而不是y1:x1，y2:x2

在这里，我测试一个静态图像：

​

​

import cv2

img = cv2.imread('lena.jpg')
height = img.shape[0]
width = img.shape[1]

mid_y = height/2
mid_x = width/2

offset_y = -50
offset_x = -25
y1 = int(mid_y + offset_y)
x1 = int(mid_x + offset_x)
rows = 100
cols = 50
y2 = y1+rows
x2 = x1+cols
print(y1, y2, x1, x2)

roi = img[y1:y2, x1:x2]
cv2.rectangle(img, (x1,y1), (x2,y2), (0,255,0), 3)
print(roi.shape)

cv2.imshow("ROI", roi)
cv2.waitKey(0)
cv2.destroyAllWindows()

cv2.imwrite("lena_roi.jpg", roi)

 Prints:

78 178 103 153
(100, 50, 3)

结果：

​

​
