如何在树状图上添加%信息？

Question

我正在绘制一个树状图，并想知道如何绘制一个树类的相对百分比，即

A组=100

B群=30

地块C =50

地块D =20

然后，在情节中添加：

A组“50%”

B组为“15%”

等在它的“X组”标签旁边。考虑到这段代码，我该怎么做？

!pip install squarify
import squarify
df = pd.DataFrame({'customers':[8,3,4,2], 'cluster':["group A", "group B", "group C", "group D"] })

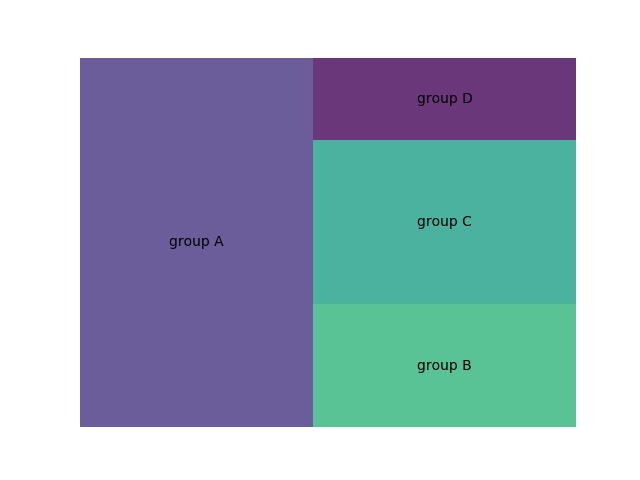

squarify.plot(sizes=df['customers'], label=df['cluster'], alpha=.8 )
plt.axis('off')
plt.show();

​

​

Answer 1

假设所有值之和为100%，则可以更改标签，然后从dataframe绘制新创建的标签或附加于描述符的标记。

只打印百分比值：

lbl = [str('{:5.2f}'.format(i/df['customers'].sum()*100)) + "%" for i in df['customers']]
squarify.plot(sizes=df['customers'], label=lbl, alpha=.8 )

组合描述和百分比值

perc = [str('{:5.2f}'.format(i/df['customers'].sum()*100)) + "%" for i in df['customers']]
lbl = [el[0] + " = " + el[1] for el in zip(df['cluster'], perc)]
squarify.plot(sizes=df['customers'], label=lbl, alpha=.8 )

更新2021-02-01

从pythonV3.6开始，格式化字符串文字的首选方法是f-strings。大多数情况下，f-strings更紧凑，更易于阅读。使用f-strings进行描述和百分比信息组合的示例如下所示

perc = [f'{i/df["customers"].sum()*100:5.2f}%' for i in df['customers']]
lbl = [f'{el[0]} = {el[1]}' for el in zip(df['cluster'], perc)]
squarify.plot(sizes=df['customers'], label=lbl, alpha=.8 )

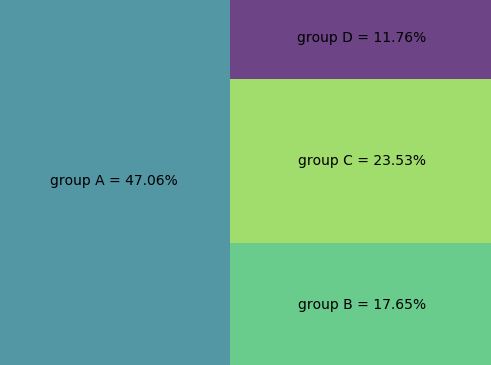

无论哪种方式，最终结果都将类似于以下内容：

​

​
