QtQuick2:创建和添加共享库

Question

SITUATION

我试图为我的项目创建一个dll，但我做错了什么？

1步骤:创建共享的Lib

我去了create new project -> library -> c++ library -> added some test method that returns a const int -> built Realse and Debug versions

2步骤:向我的项目添加lib

我所做的是：right click on my 'real' project -> clicked on add Library -> clicked on 'external library' option -> in 'library path' section browsed to my .so file -> Qt added auto-generated code to my .pro file

问题

我无法访问我的库中的标题。

这是我的main.cpp

#include <QGuiApplication>
#include <QQmlApplicationEngine>

#include "StickyNotesCore.h" // <- says error: file not found

int main(int argc, char *argv[])
{
    QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);
    QGuiApplication app(argc, argv);
    QQmlApplicationEngine engine;

    const QUrl url(QStringLiteral("qrc:/main.qml"));
    QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,
                     &app, [url](QObject *obj, const QUrl &objUrl) {
        if (!obj && url == objUrl)
            QCoreApplication::exit(-1);
    }, Qt::QueuedConnection);
    engine.load(url);

    return app.exec();
}

我的stickynotescore.h

#ifndef STICKYNOTESCORE_H
#define STICKYNOTESCORE_H

#include "stickynotescore_global.h"
class STICKYNOTESCORESHARED_EXPORT StickyNotesCore
{

public:
    StickyNotesCore();
    int Test();
};

#endif // STICKYNOTESCORE_H

我的StickyNotes.pro

QT += quick
CONFIG += c++11

# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Refer to the documentation for the
# deprecated API to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS

# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0

SOURCES += \
        main.cpp

RESOURCES += qml.qrc

# Additional import path used to resolve QML modules in Qt Creator's code model
QML_IMPORT_PATH =

# Additional import path used to resolve QML modules just for Qt Quick Designer
QML_DESIGNER_IMPORT_PATH =

QT_QUICK_CONTROLS_STYLE=material ./app

# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target

win32:CONFIG(release, debug|release): LIBS += -L$$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug/release/ -lStickyNotesCore
else:win32:CONFIG(debug, debug|release): LIBS += -L$$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug/debug/ -lStickyNotesCore
else:unix: LIBS += -L$$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug/ -lStickyNotesCore

INCLUDEPATH += $$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug
DEPENDPATH += $$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug

编辑

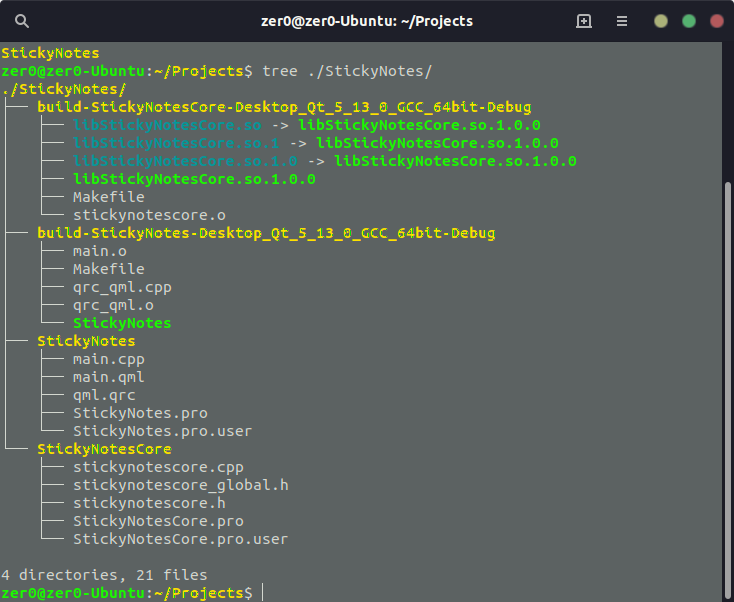

文件夹树

​

​

Answer 1

对于.pro文件，将INCLUDEPATH和DEPENDEPATH替换为库的.h文件所在的路径。

确保在进行更改后运行qmake。

INCLUDEPATH += $$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug
DEPENDPATH += $$PWD/../build-StickyNotesCore-Desktop_Qt_5_13_0_GCC_64bit-Debug

下面是我在我的.pro文件上的一个例子。

   win32:CONFIG(release, debug|release): LIBS += -L$$PWD/../../../../../mylibrary/lib/vc140/x64/ -lMYLIBRARY
else:win32:CONFIG(debug, debug|release): LIBS += -L$$PWD/../../../../../mylibrary/lib/vc140/x64/ -lMYLIBRARYd
else:unix: LIBS += -L$$PWD/../../../../../mylibrary/lib/vc140/Win32/ -lMYLIBRARY

INCLUDEPATH += $$PWD/../../../../../mylibrary/include
DEPENDPATH += $$PWD/../../../../../mylibrary/include
