无法在webview中滚动图像

Question

我为安卓和iOS开发了一个webview应用程序。我注意到我不能在android应用程序中滚动特定的html元素，而它在iOS上工作。

这是网站。

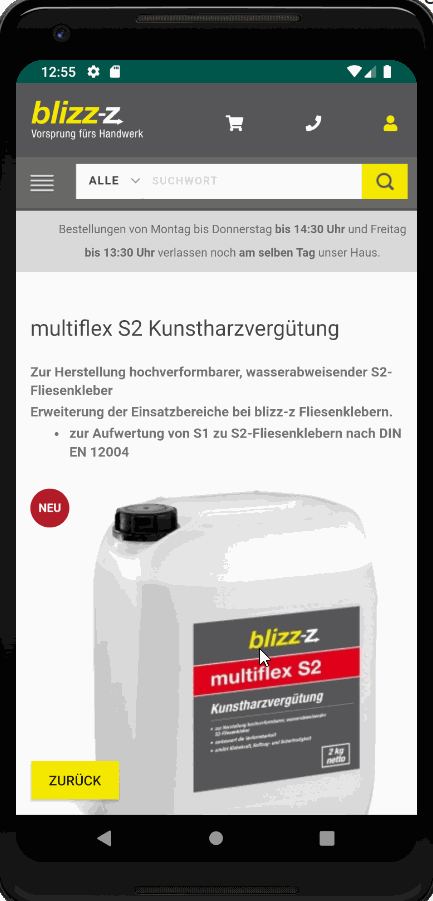

问题是在产品图像上，但只有在产品详细信息页面上，您可以购买该产品并将其放入您的购物车中。

​

​

HTML

<div class="magic-slide mt-active" data-magic-slide="zoom">
    <a id="MagicZoomPlusImage286" class="MagicZoom" href="https://www.blizz-z.de/media/catalog/product/cache/2/image/0dc2d03fe217f8c83829496872af24a0/f/l/fliesenkleber-proflex-fix-1303_1.jpg" data-options="selectorTrigger:hover;textHoverZoomHint:Hovern zum Zoomen;textClickZoomHint:Berühren zum Zoomen;textExpandHint:Vergrößern;"
        data-mobile-options="textHoverZoomHint:Berühren zum Zoomen;textClickZoomHint:Doppeltippe zum Zoomen;textExpandHint:Vergrößern;">
        <figure class="mz-figure mz-hover-zoom mz-ready"><img itemprop="image" src="https://www.blizz-z.de/media/catalog/product/cache/2/image/450x450/0dc2d03fe217f8c83829496872af24a0/f/l/fliesenkleber-proflex-fix-1303_1.jpg" alt="Fliesenkleber proflex fix Schnell-Fliesenkleber - nach 3 Stunden begehbar"
                style="max-width: 450px; max-height: 450px;">
            <div class="mz-lens" style="top: 0px; transform: translate(-10000px, -10000px); width: 122px; height: 122px;"><img src="https://www.blizz-z.de/media/catalog/product/cache/2/image/450x450/0dc2d03fe217f8c83829496872af24a0/f/l/fliesenkleber-proflex-fix-1303_1.jpg" style="position: absolute; top: 0px; left: 0px; width: 349px; height: 349px; transform: translate(-1px, -132px);"></div>
            <div
                class="mz-loading"></div>
<div class="mz-hint mz-hint-hidden"><span class="mz-hint-message">Vergrößern</span></div>
</figure>
</a>
</div>

如果我从智能手机的chrome浏览器访问这个网站，那么它可以工作，所以它一定是webview中的一个bug？

图像是一个滑块，我可以左右滑动，但是如果我在图像上滚动，我不能向下滚动页面。

FullscreenActivity.java:

package de.blizz_z.onlineshop;

import android.annotation.SuppressLint;
import android.content.Intent;
import android.graphics.Bitmap;
import android.webkit.URLUtil;
import android.net.Uri;
import android.support.v7.app.ActionBar;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.os.Build;
import android.os.Handler;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.view.View;
import android.webkit.WebResourceRequest;
import android.webkit.WebResourceResponse;
import android.webkit.WebSettings;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.webkit.WebChromeClient;
import android.widget.Button;
import android.util.Log;
import android.webkit.HttpAuthHandler;
import android.webkit.ValueCallback;

/**
 * An example full-screen activity that shows and hides the system UI (i.e.
 * status bar and navigation/system bar) with user interaction.
 */
public class FullscreenActivity extends AppCompatActivity
{
    private WebView blizzView;
    private Button backButton;
    private String website;

    /**
     * Whether or not the system UI should be auto-hidden after
     * {@link #AUTO_HIDE_DELAY_MILLIS} milliseconds.
     */
    private static final boolean AUTO_HIDE = true;

    /**
     * If {@link #AUTO_HIDE} is set, the number of milliseconds to wait after
     * user interaction before hiding the system UI.
     */
    private static final int AUTO_HIDE_DELAY_MILLIS = 3000;

    /**
     * Some older devices needs a small delay between UI widget updates
     * and a change of the status and navigation bar.
     */
    private static final int UI_ANIMATION_DELAY = 300;
    private final Handler mHideHandler = new Handler();
    private final Runnable mHidePart2Runnable = new Runnable()
    {
        @SuppressLint("InlinedApi")
        @Override
        public void run() {

        }
    };

    private final Runnable mShowPart2Runnable = new Runnable()
    {
        @Override
        public void run() {
            // Delayed display of UI elements
            ActionBar actionBar = getSupportActionBar();
            if (actionBar != null) {
                actionBar.show();
            }
        }
    };
    private boolean mVisible;
    private final Runnable mHideRunnable = new Runnable() {
        @Override
        public void run() {
            hide();
        }
    };

    /**
     * Touch listener to use for in-layout UI controls to delay hiding the
     * system UI. This is to prevent the jarring behavior of controls going away
     * while interacting with activity UI.
     */
    private final View.OnTouchListener mDelayHideTouchListener = new View.OnTouchListener()
    {
        @Override
        public boolean onTouch(View view, MotionEvent event)
        {

            Log.i("debug_log", "touch");

            if (AUTO_HIDE) {
                delayedHide(AUTO_HIDE_DELAY_MILLIS);
            }

            int x = (int) event.getX();
            int y = (int) event.getY();

            Log.i("debug_log", "moving: (" + x + ", " + y + ")");

            switch (event.getAction()) {
                case MotionEvent.ACTION_DOWN:
                    Log.i("debug_log", "touched down");
                    break;
                case MotionEvent.ACTION_MOVE:
                    Log.i("debug_log", "moving: (" + x + ", " + y + ")");
                    break;
                case MotionEvent.ACTION_UP:
                    Log.i("debug_log", "touched up");
                    break;
            }

            return true;
        }

    };

    @SuppressLint("ClickableViewAccessibility")
    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_fullscreen);

        mVisible = true;
        website = "https://www.blizz-z.de";
        blizzView = findViewById(R.id.blizzView);

        WebSettings settings = blizzView.getSettings();
        settings.setJavaScriptEnabled(true);

        // https://developer.android.com/reference/android/webkit/WebViewClient
        blizzView.setWebViewClient(new WebViewClient() {

            @Override
            public void onReceivedHttpError(WebView view, WebResourceRequest request, WebResourceResponse errorResponse) {
                super.onReceivedHttpError(view, request, errorResponse);

                Log.i("debug_log", errorResponse.getReasonPhrase());
            }

            @Override
            public void onReceivedHttpAuthRequest(WebView view, HttpAuthHandler handler, String host, String realm)
            {
                super.onReceivedHttpAuthRequest(view, handler, host, realm);

                view.setHttpAuthUsernamePassword(host, realm, "macs", "20macs14");
            }

            @Override
            public void onPageStarted(WebView view, String url, Bitmap favicon)
            {
                // check here the url
                if (url.endsWith(".pdf")) {
                    Intent browserIntent = new Intent(Intent.ACTION_VIEW, Uri.parse(url));
                    startActivity(browserIntent);
                } else {
                    super.onPageStarted(view, url, favicon);
                }
            }

            @Override
            // Notify the host application that a page has finished loading.
            public void onPageFinished(WebView view, String url)
            {
                super.onPageFinished(view, url);

                 // Hide/Show back button
                backButton = findViewById(R.id.backButton);
                backButton.setEnabled(blizzView.canGoBack());

                if (blizzView.canGoBack()) {
                    backButton.setVisibility(View.VISIBLE);
                } else {
                    backButton.setVisibility(View.INVISIBLE);
                }

                js(blizzView, "jQuery(document).ready(function() {"

                                        + "setInterval(function() {"
                                            + "jQuery('#myInput').css('background', '#'+(Math.random()*0xFFFFFF<<0).toString(16));"

                                            + "jQuery('a').each(function() {"
                                                + "jQuery(this).removeAttr('download');"
                                            + "});"
                                        + "}, 1000);"
                                    + "});");

            }

            // Give the host application a chance to take control when a URL is about to be loaded in the current WebView.
            @Override
            public boolean shouldOverrideUrlLoading(WebView view, String url)
            {
                Log.i("debug_log", "shouldOverrideUrlLoading");

                //view.loadDataWithBaseURL("https://www.blizz-z.de", );

            // Allow download of .pdf files
                if (url.endsWith(".pdf")) {
                    startActivity(new Intent(Intent.ACTION_VIEW, Uri.parse(url)));
                    // if want to download pdf manually create AsyncTask here
                    // and download file
                    return true;
                }

            // Also allow urls not starting with http or https (e.g. tel, mailto, ...)
                if( URLUtil.isNetworkUrl(url) ) {
                    return false;
                } else {
                    startActivity(new Intent(Intent.ACTION_VIEW, Uri.parse(url)));
                }

                return true;
            }

        });

        blizzView.setOnTouchListener(new View.OnTouchListener() {
            @Override
            public boolean onTouch(View v, MotionEvent event) {

                int x = (int) event.getX();
                int y = (int) event.getY();

                //WebView.HitTestResult hr = blizzView.getHitTestResult();
                //Log.i("debug_log", "getExtra = "+ hr.getExtra() + " Type= " + hr.getType());

                switch (event.getAction()) {
                    case MotionEvent.ACTION_DOWN:
                        Log.i("debug_log", "touched down");
                        break;
                    case MotionEvent.ACTION_MOVE:
                        Log.i("debug_log", "moving: (" + x + ", " + y + ")");
                        break;
                    case MotionEvent.ACTION_UP:
                        Log.i("debug_log", "touched up");
                        break;
                }

                return false;
            }

        });

        // URL laden:
        blizzView.loadUrl(website);
    }

    @Override
    protected void onPostCreate(Bundle savedInstanceState)
    {
        Log.i("debug_log", "onPostCreate");
        super.onPostCreate(savedInstanceState);

        // Trigger the initial hide() shortly after the activity has been
        // created, to briefly hint to the user that UI controls
        // are available.
        delayedHide(100);
    }

    private void toggle()
    {
        if (mVisible) {
            hide();
        } else {
            show();
        }
    }

    private void hide()
    {
        // Hide UI first
        ActionBar actionBar = getSupportActionBar();
        if (actionBar != null) {
            actionBar.hide();
        }
        mVisible = false;

        // Schedule a runnable to remove the status and navigation bar after a delay
        mHideHandler.removeCallbacks(mShowPart2Runnable);
        mHideHandler.postDelayed(mHidePart2Runnable, UI_ANIMATION_DELAY);
    }

    @SuppressLint("InlinedApi")

    private void show()
    {
        // Show the system bar
        mVisible = true;

        // Schedule a runnable to display UI elements after a delay
        mHideHandler.removeCallbacks(mHidePart2Runnable);
        mHideHandler.postDelayed(mShowPart2Runnable, UI_ANIMATION_DELAY);
    }

    /**
     * Schedules a call to hide() in delay milliseconds, canceling any
     * previously scheduled calls.
     */
    private void delayedHide(int delayMillis)
    {
        mHideHandler.removeCallbacks(mHideRunnable);
        mHideHandler.postDelayed(mHideRunnable, delayMillis);
    }

    public void js(WebView view, String code)
    {
        String javascriptCode = "javascript:" + code;
        if (Build.VERSION.SDK_INT >= 19) {
            view.evaluateJavascript(javascriptCode, new ValueCallback<String>() {

                @Override
                public void onReceiveValue(String response) {
                    Log.i("debug_log", response);
                }
            });
        } else {
            view.loadUrl(javascriptCode);
        }
    }

    // Event Listener ------------------------------------------------------------------------------

            public void goBack(android.view.View view)
            {
                blizzView.goBack();
            }

        // If back button of smartphone is pressed, then go back in browser history
            @Override
            public boolean onKeyDown(int keyCode, KeyEvent event)
            {
                Log.i("debug_log", "KeyDown");
                if (event.getAction() == KeyEvent.ACTION_DOWN) {
                    switch (keyCode) {
                        case KeyEvent.KEYCODE_BACK:
                            if (blizzView.canGoBack())
                                blizzView.goBack();
                            else
                                finish();
                            return true;
                    }
                }

                return super.onKeyDown(keyCode, event);
            }

}

activity_fullscreen.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/relativeLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:visibility="visible"
    tools:context="de.blizz_z.onlineshop.FullscreenActivity">

    <WebView
        android:id="@+id/blizzView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:keepScreenOn="true"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

    </WebView>

    <Button
        android:id="@+id/backButton"
        android:layout_width="90dp"
        android:layout_height="39dp"
        android:layout_marginStart="16dp"
        android:layout_marginLeft="16dp"
        android:layout_marginBottom="16dp"
        android:background="#F5EA01"
        android:enabled="false"
        android:onClick="goBack"
        android:text="Zurück"
        android:visibility="invisible"
        app:layout_constraintBottom_toBottomOf="@+id/blizzView"
        app:layout_constraintStart_toStartOf="@+id/blizzView" />

</android.support.constraint.ConstraintLayout>

Answer 1

你试过把这个设置成你的webView吗？

 webview.setVerticalScrollBarEnabled(true);
 webview.setHorizontalScrollBarEnabled(true);

Answer 2

一开始删除整个部分，

@Override
        public void onPageFinished(WebView view, String url)
        {
            super.onPageFinished(view, url);

            //blizzView.Settings.setSupportZoom(true);

            blizzView.setScrollBarStyle(View.SCROLLBARS_OUTSIDE_OVERLAY);

            blizzView.getSettings().setSupportZoom(true);
            blizzView.getSettings().setCacheMode(WebSettings.LOAD_DEFAULT);

            blizzView.loadUrl(
                    "javascript:(function() {"


                            //+ "jQuery('.logo').remove();" //Einige Funktionen wie z.B. alert() sind scheinbar aus Sicherheits-/Missbrauchsgründen nicht verfügbar; jQuery kann man natürlich nur nutzen wenn es eingebunden ist. Möglicherweise kann man es auch selbst einbinden.
                    + "})()"
            );

            // Hide/Show back button
            backButton = findViewById(R.id.backButton);
            backButton.setEnabled(blizzView.canGoBack());

            if (blizzView.canGoBack()) {
                backButton.setVisibility(View.VISIBLE);
            } else {
                backButton.setVisibility(View.INVISIBLE);
            }

            blizzView.setVerticalScrollBarEnabled(true);
            blizzView.setHorizontalScrollBarEnabled(true);

        }

因为不能依赖onPageFinished，所以应该实现shouldOverrideUrlLoading。我会把我的完整代码张贴在这里。

public class TempWebActivity extends AppCompatActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_temp_web);

    WebView webView = findViewById(R.id.wv_scroller);
    webView.getSettings().setJavaScriptEnabled(true);

    webView.loadUrl("https://www.blizz-z.de");

    webView.setWebViewClient(new WebViewClient() {
        @Override
        public boolean shouldOverrideUrlLoading(WebView view, String url) {
            view.loadUrl(url);
            return true;
        }
    });
    }
}

这是活动的布局

<?xml version="1.0" encoding="utf-8"?>
<ScrollView
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".TempWebActivity">

<WebView
android:id="@+id/wv_scroller"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>

</ScrollView>

要实现这一点，关键是使用ScrollView包装器和WebView，如果某些Javascript可以拦截一些触摸事件。还要确保将WebView的高度保持为wrap_content。快乐编码兄弟！:)

Answer 3

尝试在此示例中添加webview。

  <NestedScrollViewHome
            android:id="@+id/scroll_nested_journey"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_below="@id/toolbar">

            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:descendantFocusability="blocksDescendants"
                android:orientation="vertical">

    //  add Webview here

     </LinearLayout>

        </NestedScrollViewHome>

NestedScrollViewHome.java

public class NestedScrollViewHome  extends NestedScrollView {
    @SuppressWarnings("unused")
    private int slop;
    @SuppressWarnings("unused")
    private float mInitialMotionX;
    @SuppressWarnings("unused")
    private float mInitialMotionY;
    public NestedScrollViewHome(Context context) {
        super(context);
        init(context);
    }

    private boolean enableScrolling = true;

    public boolean isEnableScrolling() {
        return enableScrolling;
    }

    public void setEnableScrolling(boolean enableScrolling) {
        this.enableScrolling = enableScrolling;
    }


    private void init(Context context) {
        ViewConfiguration config = ViewConfiguration.get(context);
        slop = config.getScaledEdgeSlop();
    }
    public NestedScrollViewHome(Context context, AttributeSet attrs) {
        super(context, attrs);
        init(context);
    }
    public NestedScrollViewHome(Context context, AttributeSet attrs,
                              int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init(context);
    }
    private float xDistance, yDistance, lastX, lastY;
    @SuppressWarnings("unused")
    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev) {
      if (isEnableScrolling())
      {
          final float x = ev.getX();
          final float y = ev.getY();
          switch (ev.getAction()) {
              case MotionEvent.ACTION_DOWN:
                  xDistance = yDistance = 0f;
                  lastX = ev.getX();
                  lastY = ev.getY();
                  // This is very important line that fixes
                  computeScroll();
                  break;
              case MotionEvent.ACTION_MOVE:
                  final float curX = ev.getX();
                  final float curY = ev.getY();
                  xDistance += Math.abs(curX - lastX);
                  yDistance += Math.abs(curY - lastY);
                  lastX = curX;
                  lastY = curY;
                  if (xDistance > yDistance) {
                      return false;
                  }
          }
          return super.onInterceptTouchEvent(ev);
      }else
          return false;
    }
    public interface OnScrollChangedListener {
        void onScrollChanged(NestedScrollView who, int l, int t, int oldl,
                             int oldt);
    }
    private OnScrollChangedListener mOnScrollChangedListener;
    public void setOnScrollChangedListener(OnScrollChangedListener listener) {
        mOnScrollChangedListener = listener;
    }

    @Override
    public boolean onTouchEvent(MotionEvent ev) {
        if (isEnableScrolling()) {
            return super.onTouchEvent(ev);
        } else {
            return false;
        }
    }

    @Override
    protected void onScrollChanged(int l, int t, int oldl, int oldt) {
        super.onScrollChanged(l, t, oldl, oldt);
        if (mOnScrollChangedListener != null) {
            mOnScrollChangedListener.onScrollChanged(this, l, t, oldl, oldt);
        }
    }
}
