DebugDiag分析超时问题

Question

摘要：

• 为了发现32位进程中的内存泄漏源，收集了一系列内存转储。
• 使用“调试诊断”分析转储的尝试在两个小时后失败，报告超时异常。
• 在指定超时时间为4小时的DebugDiag.Analysis.exe.config中提供“DebugDiag.Analysis.exe.config”参数确实成功地阻止了超时异常的报告。相反，在2个小时后，我看到一个完全空的报告生成。

看来，我解决超时问题的努力只取得了部分成功。我的问题是就如何使分析成功地生成分析报告征求意见。

详细信息：

根据请求，客户为32位COM+服务器应用程序提供了一系列内存转储。其思想是使用LeakTrack动态链接库来帮助跟踪在此过程中观察到的一些内存泄漏的来源。

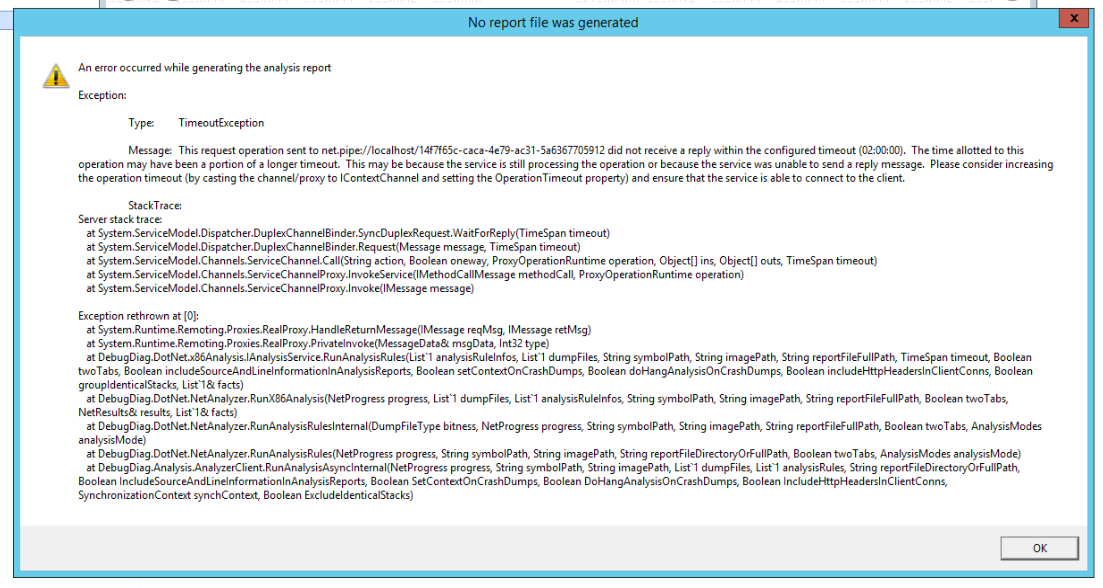

启动调试诊断分析工具，并添加转储文件。选中“MemoryAnalysis”复选框后，将启动分析。两个小时后，分析工具将显示一个报告问题的消息框：

No report file was generated
---------------------------
An error occurred while generating the analysis report

Exception:
    Type:   TimeoutException

    Message:    This request operation sent to net.pipe://localhost/15466de6-db7d-477f-aac4-42980eb2f27f did not receive a reply within the configured timeout (02:00:00).  The time allotted to this operation may have been a portion of a longer timeout.  This may be because the service is still processing the operation or because the service was unable to send a reply message.  Please consider increasing the operation timeout (by casting the channel/proxy to IContextChannel and setting the OperationTimeout property) and ensure that the service is able to connect to the client.

    StackTrace:

Server stack trace:
   at System.ServiceModel.Dispatcher.DuplexChannelBinder.SyncDuplexRequest.WaitForReply(TimeSpan timeout)
   at System.ServiceModel.Dispatcher.DuplexChannelBinder.Request(Message message, TimeSpan timeout)
   at System.ServiceModel.Channels.ServiceChannel.Call(String action, Boolean oneway, ProxyOperationRuntime operation, Object[] ins, Object[] outs, TimeSpan timeout)
   at System.ServiceModel.Channels.ServiceChannelProxy.InvokeService(IMethodCallMessage methodCall, ProxyOperationRuntime operation)
   at System.ServiceModel.Channels.ServiceChannelProxy.Invoke(IMessage message)


Exception rethrown at [0]:
   at System.Runtime.Remoting.Proxies.RealProxy.HandleReturnMessage(IMessage reqMsg, IMessage retMsg)
   at System.Runtime.Remoting.Proxies.RealProxy.PrivateInvoke(MessageData& msgData, Int32 type)
   at DebugDiag.DotNet.x86Analysis.IAnalysisService.RunAnalysisRules(List`1 analysisRuleInfos, List`1 dumpFiles, String symbolPath, String imagePath, String reportFileFullPath, TimeSpan timeout, Boolean twoTabs, Boolean includeSourceAndLineInformationInAnalysisReports, Boolean setContextOnCrashDumps, Boolean doHangAnalysisOnCrashDumps, Boolean includeHttpHeadersInClientConns, Boolean groupIdenticalStacks, Boolean includeInstructionPointerInAnalysisReports, List`1& facts)
   at DebugDiag.DotNet.NetAnalyzer.RunX86Analysis(NetProgress progress, List`1 dumpFiles, List`1 analysisRuleInfos, String symbolPath, String imagePath, String reportFileFullPath, Boolean twoTabs, NetResults& results, List`1& facts)
   at DebugDiag.DotNet.NetAnalyzer.RunAnalysisRulesInternal(DumpFileType bitness, NetProgress progress, String symbolPath, String imagePath, String reportFileFullPath, Boolean twoTabs, AnalysisModes analysisMode)
   at DebugDiag.DotNet.NetAnalyzer.RunAnalysisRules(NetProgress progress, String symbolPath, String imagePath, String reportFileDirectoryOrFullPath, Boolean twoTabs, AnalysisModes analysisMode)
   at DebugDiag.Analysis.AnalyzerClient.RunAnalysisAsyncInternal(NetProgress progress, String symbolPath, String imagePath, List`1 dumpFiles, List`1 analysisRules, String reportFileDirectoryOrFullPath, Boolean IncludeSourceAndLineInformationInAnalysisReports, Boolean SetContextOnCrashDumps, Boolean DoHangAnalysisOnCrashDumps, Boolean IncludeHttpHeadersInClientConns, SynchronizationContext synchContext, Boolean ExcludeIdenticalStacks, Boolean IncludeInstructionPointerInAnalysisReports)

在使用DebugDiag dotPeek浏览了JetBrains分析工具程序集之后，我对DebugDiag.Analysis.exe.config做了一个更改，试图将超时设置更改为4小时：

<?xml version="1.0"?>
<configuration>
  <configSections>
    <sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089">
      <section name="DebugDiag.DotNet.Properties.Settings" type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />
    </sectionGroup>
  </configSections>
  <applicationSettings>
    <DebugDiag.DotNet.Properties.Settings>
      <setting name="AnalysisCompletedTimeout" serializeAs="String">
        <value>04:00:00</value>
      </setting>
    </DebugDiag.DotNet.Properties.Settings>
  </applicationSettings>
  <startup>
      <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5"/>
  </startup>
  <system.net>
    <defaultProxy useDefaultCredentials="true">
    </defaultProxy>
  </system.net>
</configuration>

重新尝试分析后，该工具再次工作约2个小时。完成后，Internet将启动其报告，结果显示为完全空白。对DebugDiag reports文件夹的检查显示，.mht报表文件的大小为0字节。不过，这次没有显示“超时异常”消息框。

所以我要问的问题是:为什么没有生成报告？是否需要添加/修改其他配置设置，以便在调试diag分析主机进程或调用(UI)进程中完成报表？

为了努力了解可能发生的其他问题，我在进行分析时就将windbg附加到了DebugDiag.x86AnalysisHost.exe过程中。我的希望是，我可以看到其他例外情况的证据，这些证据可以为正在发生的事情提供线索。然而，这一过程似乎以一种有控制的方式退出，没有任何例外情况。

关于下一次欢迎去哪里的建议。

Answer 1

我还将补充说，我收到了这个问题的超时。

遗憾的是，试图找到关于.config应该如何配置的任何信息有点问题，因为它似乎不存在。

​

我会更新这篇文章，如果我解决了，但我希望包括错误信息将有所帮助。

Answer 2

它可以在\AnalysisRules\DebugDiag.AnalysisRules.dll.config中配置
