码头工人: runc:[2:INIT]是什么意思？

Question

最近，我们将web服务器的Linux内核从3.12.57-60.35升级到3.12.62-60.62.1。

升级后，所有码头集装箱都不能正常启动。

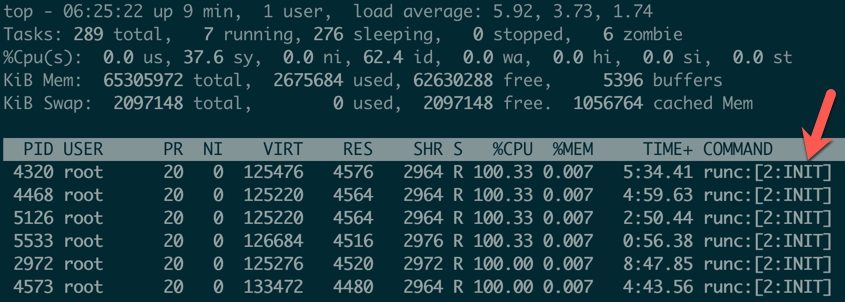

每次我尝试启动容器时，都会创建一个全新的runc:[2:INIT]进程并挂在那里，这将占用100%的cpu负载。

同时，容器未能启动。

1. 2:INIT是什么意思？
2. 怎么修呢？

​

​

一些背景资料

> docker -v
Docker version 17.04.0-ce, build 78d1802

> uname -r
3.12.74-60.64.96-default

> containerd -v
containerd version 0.2.3

> docker-runc -v
runc version spec: 1.0.0-rc2-dev

码头信息

docker info
Containers: 1
 Running: 0
 Paused: 0
 Stopped: 1
Images: 28
Server Version: 17.04.0-ce
Storage Driver: overlay
 Backing Filesystem: xfs
 Supports d_type: true
Logging Driver: json-file
Cgroup Driver: cgroupfs
Plugins:
 Volume: local
 Network: bridge host macvlan null overlay
Swarm: inactive
Runtimes: oci runc
Default Runtime: runc
Init Binary:
containerd version:  (expected: 422e31ce907fd9c3833a38d7b8fdd023e5a76e73)
runc version: N/A (expected: 9c2d8d184e5da67c95d601382adf14862e4f2228)
init version: N/A (expected: 949e6facb77383876aeff8a6944dde66b3089574)
Security Options:
 apparmor
 seccomp
  Profile: default
Kernel Version: 3.12.74-60.64.96-default
Operating System: SUSE Linux Enterprise Server 12 SP1
OSType: linux
Architecture: x86_64
CPUs: 8
Total Memory: 15.19GiB
Name: pc23jamdevops01
ID: 5V4L:E4FT:6FYQ:JCNJ:GPKC:UZBW:O33D:PMKF:Y5X5:7T2X:GFG6
Docker Root Dir: /docker
Debug Mode (client): false
Debug Mode (server): false
Registry: https://index.docker.io/v1/
Experimental: false
Insecure Registries:
  xxxxxxx(it's masked by me.)
Live Restore Enabled: false
WARNING: No swap limit support
WARNING: No kernel memory limit support

跟踪

1. 启用了停靠器的调试模式
2. 杀死-SIGUSR1 $(pidof dockerd)

痕迹显示

goroutine 795 [select, 29 minutes]:
github.com/docker/docker/vendor/google.golang.org/grpc/transport.(*Stream).waitOnHeader(0xc420774ff0, 0x10, 0xc4209caa80)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/transport/transport.go:222 +0x101
github.com/docker/docker/vendor/google.golang.org/grpc/transport.(*Stream).RecvCompress(0xc420774ff0, 0x7f24a3df3ab0, 0xc4209cab40)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/transport/transport.go:233 +0x2d
github.com/docker/docker/vendor/google.golang.org/grpc.(*csAttempt).recvMsg(0xc421c98dd0, 0x7f24a3c5e920, 0xc420b80840, 0x0, 0x0)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/stream.go:515 +0x63b
github.com/docker/docker/vendor/google.golang.org/grpc.(*clientStream).RecvMsg(0xc421954280, 0x7f24a3c5e920, 0xc420b80840, 0x0, 0x0)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/stream.go:395 +0x45
github.com/docker/docker/vendor/google.golang.org/grpc.invoke(0x7f24a3e29980, 0xc421534090, 0x7f24a33f206d, 0x2a, 0x7f24a3c63380, 0xc42090e0e0, 0x7f24a3c5e920, 0xc420b80840, 0xc4209a0000, 0xc420978420, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/call.go:83 +0x185
github.com/docker/docker/vendor/github.com/containerd/containerd.namespaceInterceptor.unary(0x7f24a339c737, 0x4, 0x7f24a3e29900, 0xc42003e028, 0x7f24a33f206d, 0x2a, 0x7f24a3c63380, 0xc42090e0e0, 0x7f24a3c5e920, 0xc420b80840, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/github.com/containerd/containerd/grpc.go:35 +0xf6
github.com/docker/docker/vendor/github.com/containerd/containerd.(namespaceInterceptor).(github.com/docker/docker/vendor/github.com/containerd/containerd.unary)-fm(0x7f24a3e29900, 0xc42003e028, 0x7f24a33f206d, 0x2a, 0x7f24a3c63380, 0xc42090e0e0, 0x7f24a3c5e920, 0xc420b80840, 0xc4209a0000, 0x7f24a3df3b20, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/github.com/containerd/containerd/grpc.go:51 +0xf6
github.com/docker/docker/vendor/google.golang.org/grpc.(*ClientConn).Invoke(0xc4209a0000, 0x7f24a3e29900, 0xc42003e028, 0x7f24a33f206d, 0x2a, 0x7f24a3c63380, 0xc42090e0e0, 0x7f24a3c5e920, 0xc420b80840, 0x0, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/call.go:35 +0x10b
github.com/docker/docker/vendor/google.golang.org/grpc.Invoke(0x7f24a3e29900, 0xc42003e028, 0x7f24a33f206d, 0x2a, 0x7f24a3c63380, 0xc42090e0e0, 0x7f24a3c5e920, 0xc420b80840, 0xc4209a0000, 0x0, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/google.golang.org/grpc/call.go:60 +0xc3
github.com/docker/docker/vendor/github.com/containerd/containerd/api/services/tasks/v1.(*tasksClient).Create(0xc420a5c5b0, 0x7f24a3e29900, 0xc42003e028, 0xc42090e0e0, 0x0, 0x0, 0x0, 0x0, 0xc420ec4a40, 0x1e)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/github.com/containerd/containerd/api/services/tasks/v1/tasks.pb.go:412 +0xd4
github.com/docker/docker/vendor/github.com/containerd/containerd.(*container).NewTask(0xc42124f7e0, 0x7f24a3e29900, 0xc42003e028, 0xc4223f5360, 0xc42000e9c8, 0x1, 0x1, 0x0, 0x0, 0x0, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/github.com/containerd/containerd/container.go:250 +0x70a
github.com/docker/docker/libcontainerd.(*client).Start(0xc420a125b0, 0x7f24a3e29900, 0xc42003e028, 0xc4215fce40, 0x40, 0x0, 0x0, 0xc4210bd000, 0xc4207fd6f0, 0x0, ...)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/libcontainerd/client_daemon.go:289 +0x446
github.com/docker/docker/daemon.(*Daemon).containerStart(0xc420948000, 0xc421a458c0, 0x0, 0x0, 0x0, 0x0, 0x1, 0x0, 0x0)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/daemon/start.go:185 +0x55f
github.com/docker/docker/daemon.(*Daemon).ContainerStart(0xc420948000, 0xc420731517, 0x40, 0x0, 0x0, 0x0, 0x0, 0x0, 0x7f24a3a00640, 0xc421dd7601)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/daemon/start.go:95 +0x1c4
github.com/docker/docker/api/server/router/container.(*containerRouter).postContainersStart(0xc420ea83c0, 0x7f24a3e29980, 0xc4211cf290, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x7f24a339d6d5, 0x5)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/router/container/container_routes.go:203 +0x26a
github.com/docker/docker/api/server/router/container.(*containerRouter).(github.com/docker/docker/api/server/router/container.postContainersStart)-fm(0x7f24a3e29980, 0xc4211cf290, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x7f24a1ee64cc, 0x7f24a3c663a0)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/router/container/container.go:52 +0x6b
github.com/docker/docker/api/server/middleware.ExperimentalMiddleware.WrapHandler.func1(0x7f24a3e29980, 0xc4211cf290, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x7f24a3e29980, 0xc4211cf290)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/middleware/experimental.go:26 +0xda
github.com/docker/docker/api/server/middleware.VersionMiddleware.WrapHandler.func1(0x7f24a3e29980, 0xc4211cf230, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x18, 0xc421dd78f8)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/middleware/version.go:62 +0x401
github.com/docker/docker/pkg/authorization.(*Middleware).WrapHandler.func1(0x7f24a3e29980, 0xc4211cf230, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x7f24a1daefd7, 0x7f24a3571380)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/pkg/authorization/middleware.go:59 +0x7ab
github.com/docker/docker/api/server/middleware.DebugRequestMiddleware.func1(0x7f24a3e29980, 0xc4211cf230, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400, 0xc4211cf1d0, 0x7f24a3e29980, 0xc4211cf230)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/middleware/debug.go:25 +0x8db
github.com/docker/docker/api/server.(*Server).makeHTTPHandler.func1(0x7f24a3e27d80, 0xc420854fc0, 0xc420690400)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/server.go:141 +0x19a
net/http.HandlerFunc.ServeHTTP(0xc4214f36a0, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400)
  /usr/lib64/go/1.10/src/net/http/server.go:1947 +0x46
github.com/docker/docker/vendor/github.com/gorilla/mux.(*Router).ServeHTTP(0xc421ceba40, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/vendor/github.com/gorilla/mux/mux.go:103 +0x228
github.com/docker/docker/api/server.(*routerSwapper).ServeHTTP(0xc421a77360, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400)
  /home/abuild/rpmbuild/BUILD/docker-18.09.0_ce/components/engine/.gopath/src/github.com/docker/docker/api/server/router_swapper.go:29 +0x72
net/http.serverHandler.ServeHTTP(0xc42020c4e0, 0x7f24a3e27d80, 0xc420854fc0, 0xc420690400)
  /usr/lib64/go/1.10/src/net/http/server.go:2697 +0xbe
net/http.(*conn).serve(0xc420fe2320, 0x7f24a3e298c0, 0xc421196800)
  /usr/lib64/go/1.10/src/net/http/server.go:1830 +0x653
created by net/http.(*Server).Serve
  /usr/lib64/go/1.10/src/net/http/server.go:2798 +0x27d

Answer 1

这是两岁的时候，在这一点上没有答案。看来这次行动没有跟进。作为未来读者的兴趣点.

虽然我不知道是什么具体导致了与码头的问题，标题中的问题确实有一个具体的答案。在Linux中，ps命令将显示启动进程的命令和参数。如果它不能这样做，它将显示其他有用的信息。在本例中，它显示的是命令runc，后面是进程和父进程的运行级别：

command:[run-level:parent-process]

因此，init是父进程，进程处于运行级2。

详细信息可以在this unix.stackexchange question和它的答案上找到。

Answer 2

runc init用于初始化容器运行时。容器启动流程如下：

码头客户->码头->集装箱->集装箱

您的runc和containerd版本已经相当老了，因此可能有几个原因可以让它停留在那里。尝试升级到runc版本1.0.1和容器版本1.4.9，以查看错误是否仍然存在。如果是这样，那么我想您可以在strace进程上运行runc来进一步调试它。陷入僵局的runc进程的一个原因可能是这个死锁错误：https://github.com/opencontainers/runc/pull/2871，它在runcv1.0.0-rc94中得到了修复。
