如何修复同时使用私有IP创建多个Google实例时发生的“未知错误”？

Question

我们的云后端设置包含用于Postgres实例的5个cloud。我们使用Terraform管理我们的基础设施。我们使用公共IP和云SQL容器从GKE连接它们。

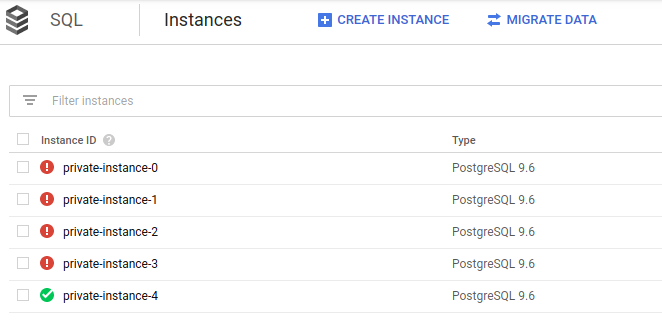

为了简化我们的设置，我们希望通过转移到私有IP来摆脱代理容器。我试着跟踪地形指南。虽然创建单个实例很好，但是尝试创建5个实例同时以4个失败的实例和一个成功的实例结束：

​

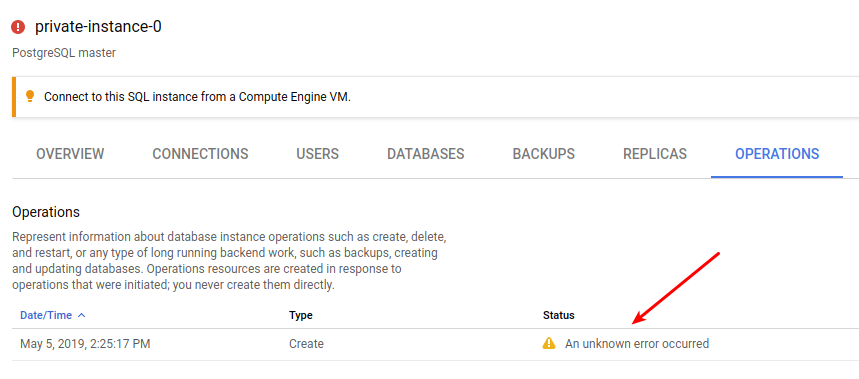

出现在失败实例上的Google控制台中的错误是“发生了未知错误”：

​

下面是复制它的代码。请注意count = 5线路：

resource "google_compute_network" "private_network" {
  provider = "google-beta"

  name = "private-network"
}

resource "google_compute_global_address" "private_ip_address" {
  provider = "google-beta"

  name = "private-ip-address"
  purpose = "VPC_PEERING"
  address_type = "INTERNAL"
  prefix_length = 16
  network = "${google_compute_network.private_network.self_link}"
}

resource "google_service_networking_connection" "private_vpc_connection" {
  provider = "google-beta"

  network = "${google_compute_network.private_network.self_link}"
  service = "servicenetworking.googleapis.com"
  reserved_peering_ranges = ["${google_compute_global_address.private_ip_address.name}"]
}

resource "google_sql_database_instance" "instance" {
  provider = "google-beta"
  count = 5

  name = "private-instance-${count.index}"
  database_version = "POSTGRES_9_6"

  depends_on = [
    "google_service_networking_connection.private_vpc_connection"
  ]

  settings {
    tier = "db-custom-1-3840"
    availability_type = "REGIONAL"
    ip_configuration {
      ipv4_enabled = "false"
      private_network = "${google_compute_network.private_network.self_link}"
    }
  }
}

provider "google-beta" {
  version = "~> 2.5"
  credentials = "credentials.json"
  project = "PROJECT_ID"
  region = "us-central1"
  zone = "us-central1-a"
}

我尝试了几种选择：

• 在创建google_service_networking_connection之后等待一分钟，然后同时创建所有实例，但我得到了相同的错误。
• 每个实例创建一个地址范围和一个google_service_networking_connection，但我得到了一个错误，即不能同时创建google_service_networking_connection。
• 为每个实例创建一个地址范围和一个链接到所有实例的单个google_service_networking_connection，但我得到了相同的错误。

Answer 1

找到了一个丑陋而有效的解决方案。虽然不能完成，但是GCP中的一个bug。并不阻止同时创建实例。既没有关于它的文档，也没有有意义的错误消息。它也出现在Terraform Google提供商发布跟踪器中。

另一种选择是增加实例之间的依赖。这使得他们的创造能够成功地完成。但是，每个实例都需要几分钟才能创建。这累积了很多时间。如果在创建实例之间添加60秒的人为延迟，则可以避免失败。备注：

• 延迟所需的秒数取决于实例层。例如，对于db-f1-micro，30秒就足够了。它们对db-custom-1-3840来说是不够的。
• 我不知道db-custom-1-3840所需的秒数是多少。30秒不够，60秒就够了。

下面是解决此问题的代码示例。它只显示两个实例，因为由于depends_on的限制，我无法使用count特性，并且显示5个实例的完整代码将非常长。它对5种情况也是一样的：

resource "google_compute_network" "private_network" {
  provider = "google-beta"

  name = "private-network"
}

resource "google_compute_global_address" "private_ip_address" {
  provider = "google-beta"

  name = "private-ip-address"
  purpose = "VPC_PEERING"
  address_type = "INTERNAL"
  prefix_length = 16
  network = "${google_compute_network.private_network.self_link}"
}

resource "google_service_networking_connection" "private_vpc_connection" {
  provider = "google-beta"

  network = "${google_compute_network.private_network.self_link}"
  service = "servicenetworking.googleapis.com"
  reserved_peering_ranges = ["${google_compute_global_address.private_ip_address.name}"]
}

locals {
  db_instance_creation_delay_factor_seconds = 60
}

resource "null_resource" "delayer_1" {
  depends_on = ["google_service_networking_connection.private_vpc_connection"]

  provisioner "local-exec" {
    command = "echo Gradual DB instance creation && sleep ${local.db_instance_creation_delay_factor_seconds * 0}"
  }
}

resource "google_sql_database_instance" "instance_1" {
  provider = "google-beta"

  name = "private-instance-delayed-1"
  database_version = "POSTGRES_9_6"

  depends_on = [
    "google_service_networking_connection.private_vpc_connection",
    "null_resource.delayer_1"
  ]

  settings {
    tier = "db-custom-1-3840"
    availability_type = "REGIONAL"
    ip_configuration {
      ipv4_enabled = "false"
      private_network = "${google_compute_network.private_network.self_link}"
    }
  }
}

resource "null_resource" "delayer_2" {
  depends_on = ["google_service_networking_connection.private_vpc_connection"]

  provisioner "local-exec" {
    command = "echo Gradual DB instance creation && sleep ${local.db_instance_creation_delay_factor_seconds * 1}"
  }
}

resource "google_sql_database_instance" "instance_2" {
  provider = "google-beta"

  name = "private-instance-delayed-2"
  database_version = "POSTGRES_9_6"

  depends_on = [
    "google_service_networking_connection.private_vpc_connection",
    "null_resource.delayer_2"
  ]

  settings {
    tier = "db-custom-1-3840"
    availability_type = "REGIONAL"
    ip_configuration {
      ipv4_enabled = "false"
      private_network = "${google_compute_network.private_network.self_link}"
    }
  }
}

provider "google-beta" {
  version = "~> 2.5"
  credentials = "credentials.json"
  project = "PROJECT_ID"
  region = "us-central1"
  zone = "us-central1-a"
}

provider "null" {
  version = "~> 1.0"
}

Answer 2

如果有人在这里遇到了稍微不同的情况(在专用网络中创建google_sql_database_instance会导致“未知错误”)：

1. 手动启动一个Cloud实例(这将为项目启用servicenetworking.googleapis.com和其他一些API)
2. 运行你的舱单
3. 终止步骤1中创建的实例。

在那之后为我工作

¯_(ツ)_/

Answer 3

我在这里使用了一个稍微不同的情况，类似于@Grigorash (在专用网络中创建google_sql_database_instance会导致“未知错误”)。

我使用UI在私有VPC上部署一个SQL实例，原因是我也遇到了一个“未知错误”。我最终使用了gcloud命令来解决问题(为什么这是可行的，而不是UI呢？IDK，也许UI没有执行与命令相同的操作)

gcloud --project=[PROJECT_ID] beta sql instances create [INSTANCE_ID]
       --network=[VPC_NETWORK_NAME]
       --no-assign-ip

以下是更多的细节。
