在ConstraintLayout中可以链接多少个视图(添加关系)

Question

Android中的约束布局支持视图链接(https://developer.android.com/reference/android/support/constraint/ConstraintLayout#chain-style)

我检查了几个例子，到处只展示了3个视图来演示这个概念。

是3的极限？

我试着添加第四个元素，但它没有按照概念进行链接。

​

三元素链

​

​

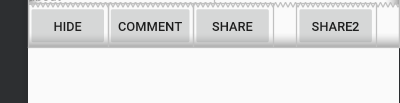

四元素链

代码- https://gist.github.com/vamsigp/784be59f8ae1e2137ece1349c726d1f8

Answer 1

布局中有一个错误：

app:layout_constraintRight_toRightOf="share2"

应：

app:layout_constraintRight_toLeftOf="@+id/share2"

Answer 2

3不是限制，你可以有4个或更多的视图被链接在一起。

这里是一个4视图链的例子：

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:app="http://schemas.android.com/apk/res-auto"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent">

<Button
    android:id="@+id/button9"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toStartOf="@+id/button10"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button12"
    app:layout_constraintTop_toTopOf="parent" />

<Button
    android:id="@+id/button10"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button11"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button9"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button11"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button10"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button12"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button9"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="@+id/button9" />
</android.support.constraint.ConstraintLayout>

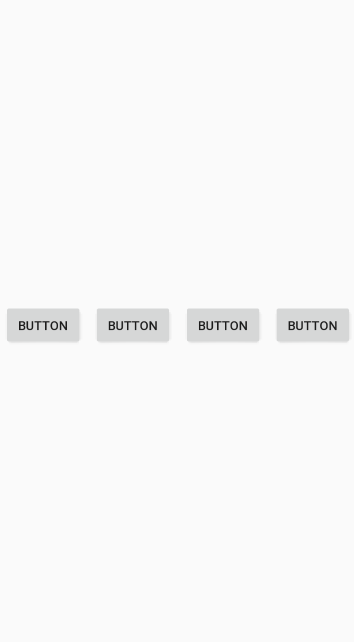

和它工作得很好:

​

​

因此，链非常灵活，例如，这里有一个9视图链：

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
  xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:app="http://schemas.android.com/apk/res-auto"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent">

<Button
    android:id="@+id/button9"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toStartOf="@+id/button13"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

<Button
    android:id="@+id/button13"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button14"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button9"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button14"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button15"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button13"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button15"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button16"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button14"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button16"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button17"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button15"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button17"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button18"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button16"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button18"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button19"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button17"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button19"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toStartOf="@+id/button20"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button18"
    app:layout_constraintTop_toTopOf="@+id/button9" />

<Button
    android:id="@+id/button20"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button"
    app:layout_constraintBottom_toBottomOf="@+id/button9"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintHorizontal_bias="0.5"
    app:layout_constraintStart_toEndOf="@+id/button19"
    app:layout_constraintTop_toTopOf="@+id/button9" />

</android.support.constraint.ConstraintLayout>

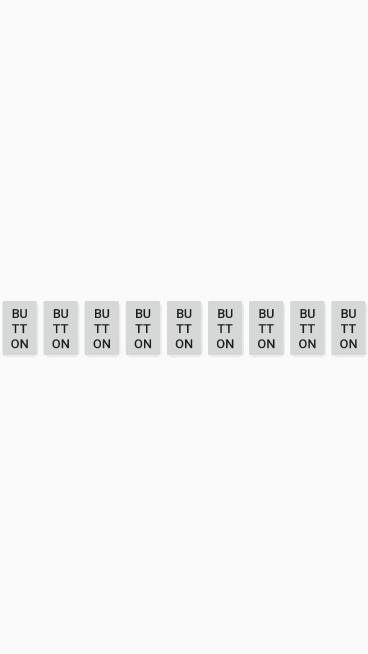

和以前一样看起来很好:

​

​

--你可以玩这个，甚至当你有太多的视图时，它看起来就像条纹(我不会为这一个分享XML，因为你明白了) :

​

​
