CommandBar AppBarButton图标大小
CommandBar AppBarButton图标大小
提问于 2019-03-30 15:38:45
我试图重新设计我的CommandBar AppBarButton图标，使之看起来像日历、邮件等微软应用程序。

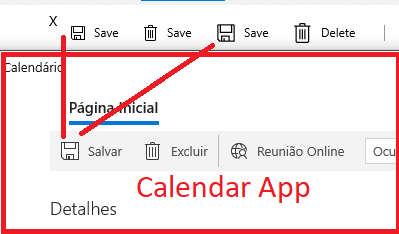

正如你在下面看到的，微软的应用程序图标比我的更光滑，更薄，也有生动的白色。
我试着应用资源，以及其他配置，如字体大小、高度、宽度和没有任何工作，我不知道如何做。
这是我的源代码：
<Page.Resources>
link to resouse file:
https://msdn.microsoft.com/pt-br/library/windows/apps/mt299105.aspx
</Page.Resources>
<CommandBar Height="40" OverflowButtonVisibility="Collapsed" Background="Transparent" IsOpen="True" DefaultLabelPosition="Right">
<CommandBar.Content>
<TextBlock Text="X" FontFamily="SEGOE" Padding="10,0,0,0"/>
</CommandBar.Content>
<AppBarButton Icon="Save" Label="Save"/>
<AppBarButton Icon="Delete" Label="Save"/>
<AppBarButton Style="{StaticResource AppBarButtonStyle1}" Icon="Save" Label="Save"/>
<AppBarButton Style="{StaticResource AppBarButtonStyle1}" Icon="Delete" Label="Delete"/>
</CommandBar>
回答 1
Stack Overflow用户
回答已采纳
发布于 2019-04-02 08:49:12
您在上述评论中提到的AppBarButton风格并不是最新的。
您可以通过以下步骤获得最新的样式：
转到“Document ->右侧单击您的AppBarButton ->编辑模板->编辑一个副本”。
然后，您会发现<ContentPresenter x:Name="Content" Content="{TemplateBinding Icon}" Foreground="{TemplateBinding Foreground}"/>被包装在一个ViewBox中。这个ViewBox有一个固定的高度(16)。您可以更改所需的高度值。
<Style x:Key="AppBarButtonStyle" TargetType="AppBarButton">
<Setter Property="Background" Value="{ThemeResource AppBarButtonBackground}" />
<Setter Property="Foreground" Value="{ThemeResource AppBarButtonForeground}" />
<Setter Property="BorderBrush" Value="{ThemeResource AppBarButtonBorderBrush}" />
<Setter Property="HorizontalAlignment" Value="Left" />
<Setter Property="VerticalAlignment" Value="Top" />
<Setter Property="FontFamily" Value="{ThemeResource ContentControlThemeFontFamily}" />
<Setter Property="FontWeight" Value="Normal" />
<Setter Property="Width" Value="68" />
<Setter Property="UseSystemFocusVisuals" Value="{StaticResource UseSystemFocusVisuals}" />
<Setter Property="AllowFocusOnInteraction" Value="False" />
<Setter Property="KeyboardAcceleratorPlacementMode" Value="Hidden" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="AppBarButton">
<Grid x:Name="Root" Background="{TemplateBinding Background}" BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" CornerRadius="{TemplateBinding CornerRadius}" MinWidth="{TemplateBinding MinWidth}" MaxWidth="{TemplateBinding MaxWidth}">
<VisualStateManager.VisualStateGroups>
<VisualStateGroup x:Name="ApplicationViewStates">
<VisualState x:Name="FullSize" />
<VisualState x:Name="Compact">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="Visibility">
<DiscreteObjectKeyFrame KeyTime="0" Value="Collapsed" />
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
<VisualState x:Name="LabelOnRight">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="ContentViewbox" Storyboard.TargetProperty="Margin">
<DiscreteObjectKeyFrame KeyTime="0" Value="{ThemeResource AppBarButtonContentViewboxMargin}" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="ContentRoot" Storyboard.TargetProperty="MinHeight">
<DiscreteObjectKeyFrame KeyTime="0" Value="{ThemeResource AppBarThemeCompactHeight}" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="(Grid.Row)">
<DiscreteObjectKeyFrame KeyTime="0" Value="0" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="(Grid.Column)">
<DiscreteObjectKeyFrame KeyTime="0" Value="1" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="TextAlignment">
<DiscreteObjectKeyFrame KeyTime="0" Value="Left" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="Margin">
<DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource AppBarButtonTextLabelOnRightMargin}" />
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
<VisualState x:Name="LabelCollapsed">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="ContentRoot" Storyboard.TargetProperty="MinHeight">
<DiscreteObjectKeyFrame KeyTime="0" Value="{ThemeResource AppBarThemeCompactHeight}" />
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="TextLabel" Storyboard.TargetProperty="Visibility">
<DiscreteObjectKeyFrame KeyTime="0" Value="Collapsed" />
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
<VisualState x:Name="Overflow">
<VisualState.Setters>
<Setter Target="ContentRoot.MinHeight" Value="0" />
<Setter Target="ContentViewbox.Visibility" Value="Collapsed" />
<Setter Target="TextLabel.Visibility" Value="Collapsed" />
<Setter Target="OverflowTextLabel.Visibility" Value="Visible" />
</VisualState.Setters>
</VisualState>
<VisualState x:Name="OverflowWithToggleButtons">
<VisualState.Setters>
<Setter Target="ContentRoot.MinHeight" Value="0" />
<Setter Target="ContentViewbox.Visibility" Value="Collapsed" />
<Setter Target="TextLabel.Visibility" Value="Collapsed" />
<Setter Target="OverflowTextLabel.Visibility" Value="Visible" />
<Setter Target="OverflowTextLabel.Margin" Value="38,0,12,0" />
</VisualState.Setters>
</VisualState>
<VisualState x:Name="OverflowWithMenuIcons">
<VisualState.Setters>
<Setter Target="ContentRoot.MinHeight" Value="0" />
<Setter Target="ContentViewbox.HorizontalAlignment" Value="Left" />
<Setter Target="ContentViewbox.VerticalAlignment" Value="Center" />
<Setter Target="ContentViewbox.Width" Value="16" />
<Setter Target="ContentViewbox.Height" Value="16" />
<Setter Target="ContentViewbox.Margin" Value="12,0,12,0" />
<Setter Target="TextLabel.Visibility" Value="Collapsed" />
<Setter Target="OverflowTextLabel.Visibility" Value="Visible" />
<Setter Target="OverflowTextLabel.Margin" Value="38,0,12,0" />
</VisualState.Setters>
</VisualState>
<VisualState x:Name="OverflowWithToggleButtonsAndMenuIcons">
<VisualState.Setters>
<Setter Target="ContentRoot.MinHeight" Value="0" />
<Setter Target="ContentViewbox.HorizontalAlignment" Value="Left" />
<Setter Target="ContentViewbox.VerticalAlignment" Value="Center" />
<Setter Target="ContentViewbox.Width" Value="16" />
<Setter Target="ContentViewbox.Height" Value="16" />
<Setter Target="ContentViewbox.Margin" Value="38,0,12,0" />
<Setter Target="TextLabel.Visibility" Value="Collapsed" />
<Setter Target="OverflowTextLabel.Visibility" Value="Visible" />
<Setter Target="OverflowTextLabel.Margin" Value="76,0,12,0" />
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="CommonStates">
<VisualState x:Name="Normal">
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="OverflowTextLabel" />
</Storyboard>
</VisualState>
<VisualState x:Name="PointerOver">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundPointerOver}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushPointerOver}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundPointerOver}" />
</VisualState.Setters>
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="OverflowTextLabel" />
</Storyboard>
</VisualState>
<VisualState x:Name="Pressed">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundPressed}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushPressed}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundPressed}" />
</VisualState.Setters>
<Storyboard>
<PointerDownThemeAnimation Storyboard.TargetName="OverflowTextLabel" />
</Storyboard>
</VisualState>
<VisualState x:Name="Disabled">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundDisabled}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushDisabled}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundDisabled}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundDisabled}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundDisabled}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundDisabled}" />
</VisualState.Setters>
</VisualState>
<VisualState x:Name="OverflowNormal">
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="ContentRoot" />
</Storyboard>
</VisualState>
<VisualState x:Name="OverflowPointerOver">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundPointerOver}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushPointerOver}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPointerOver}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundPointerOver}" />
<Setter Target="SubItemChevron.Foreground" Value="{ThemeResource AppBarButtonSubItemChevronForegroundPointerOver}" />
</VisualState.Setters>
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="ContentRoot" />
</Storyboard>
</VisualState>
<VisualState x:Name="OverflowPressed">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundPressed}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushPressed}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundPressed}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundPressed}" />
<Setter Target="SubItemChevron.Foreground" Value="{ThemeResource AppBarButtonSubItemChevronForegroundPressed}" />
</VisualState.Setters>
<Storyboard>
<PointerDownThemeAnimation Storyboard.TargetName="ContentRoot" />
</Storyboard>
</VisualState>
<VisualState x:Name="OverflowSubMenuOpened">
<VisualState.Setters>
<Setter Target="Root.Background" Value="{ThemeResource AppBarButtonBackgroundSubMenuOpened}" />
<Setter Target="Root.BorderBrush" Value="{ThemeResource AppBarButtonBorderBrushSubMenuOpened}" />
<Setter Target="Content.Foreground" Value="{ThemeResource AppBarButtonForegroundSubMenuOpened}" />
<Setter Target="TextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundSubMenuOpened}" />
<Setter Target="OverflowTextLabel.Foreground" Value="{ThemeResource AppBarButtonForegroundSubMenuOpened}" />
<Setter Target="KeyboardAcceleratorTextLabel.Foreground" Value="{ThemeResource AppBarButtonKeyboardAcceleratorTextForegroundSubMenuOpened}" />
<Setter Target="SubItemChevron.Foreground" Value="{ThemeResource AppBarButtonSubItemChevronForegroundSubMenuOpened}" />
</VisualState.Setters>
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="ContentRoot" />
</Storyboard>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="InputModeStates">
<VisualState x:Name="InputModeDefault" />
<VisualState x:Name="TouchInputMode">
<VisualState.Setters>
<Setter Target="OverflowTextLabel.Padding" Value="{StaticResource AppBarButtonOverflowTextTouchMargin}" />
</VisualState.Setters>
</VisualState>
<VisualState x:Name="GameControllerInputMode">
<VisualState.Setters>
<Setter Target="OverflowTextLabel.Padding" Value="{StaticResource AppBarButtonOverflowTextTouchMargin}" />
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="KeyboardAcceleratorTextVisibility">
<VisualState x:Name="KeyboardAcceleratorTextCollapsed" />
<VisualState x:Name="KeyboardAcceleratorTextVisible">
<VisualState.Setters>
<Setter Target="KeyboardAcceleratorTextLabel.Visibility" Value="Visible" />
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="FlyoutStates">
<VisualState x:Name="NoFlyout" />
<VisualState x:Name="HasFlyout">
<VisualState.Setters>
<Setter Target="SubItemChevron.Visibility" Value="Visible" />
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateManager.VisualStateGroups>
<Grid x:Name="ContentRoot" MinHeight="{ThemeResource AppBarThemeMinHeight}">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="*" />
<ColumnDefinition Width="Auto" />
<ColumnDefinition Width="Auto" />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition Height="Auto" />
</Grid.RowDefinitions>
<Viewbox x:Name="ContentViewbox" AutomationProperties.AccessibilityView="Raw" HorizontalAlignment="Stretch" Height="50" Margin="{ThemeResource AppBarButtonContentViewboxCollapsedMargin}">
<ContentPresenter x:Name="Content" Content="{TemplateBinding Icon}" Foreground="{TemplateBinding Foreground}" Height="20" />
</Viewbox>
<TextBlock x:Name="TextLabel" AutomationProperties.AccessibilityView="Raw" FontFamily="{TemplateBinding FontFamily}" Foreground="{TemplateBinding Foreground}" FontSize="12" Margin="2,0,2,6" Grid.Row="1" Text="{TemplateBinding Label}" TextWrapping="Wrap" TextAlignment="Center" />
<TextBlock x:Name="OverflowTextLabel" AutomationProperties.AccessibilityView="Raw" FontFamily="{TemplateBinding FontFamily}" Foreground="{TemplateBinding Foreground}" HorizontalAlignment="Stretch" Margin="12,0,12,0" Padding="{StaticResource AppBarButtonOverflowTextLabelPadding}" Text="{TemplateBinding Label}" TextTrimming="Clip" TextWrapping="NoWrap" TextAlignment="Left" VerticalAlignment="Center" Visibility="Collapsed" />
<TextBlock x:Name="KeyboardAcceleratorTextLabel" AutomationProperties.AccessibilityView="Raw" Grid.Column="1" Foreground="{ThemeResource AppBarButtonKeyboardAcceleratorTextForeground}" HorizontalAlignment="Right" MinWidth="{Binding TemplateSettings.KeyboardAcceleratorTextMinWidth, RelativeSource={RelativeSource Mode=TemplatedParent}}" Margin="24,0,12,0" Style="{ThemeResource CaptionTextBlockStyle}" Text="{TemplateBinding KeyboardAcceleratorTextOverride}" VerticalAlignment="Center" Visibility="Collapsed" />
<FontIcon x:Name="SubItemChevron" AutomationProperties.AccessibilityView="Raw" Grid.Column="2" FontFamily="{ThemeResource SymbolThemeFontFamily}" Foreground="{ThemeResource MenuFlyoutSubItemChevron}" FontSize="12" Glyph="" MirroredWhenRightToLeft="True" Margin="12,0,12,0" Visibility="Collapsed" />
</Grid>
</Grid>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style><CommandBar>
<AppBarButton Style="{StaticResource AppBarButtonStyle}" Label="add" Icon="Save">
</AppBarButton>
</CommandBar>
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/55433039
复制相关文章
相似问题
腾讯云开发者
Copyright © 2013 - 2026 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有
深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059
粤公网安备44030502008569号
腾讯云计算（北京）有限责任公司 京ICP证150476号 | 京ICP备11018762号
