没有为IdentityServer4 4的引用令牌的客户端配置共享机密

Question

我使用IdentityServer4和IdentityServer4.AccessTokenValidation来处理引用令牌。

这就是我在Startup.cs中所做的

public void ConfigureServices(IServiceCollection services)
{
     // Add identity server 4.
    services.AddIdentityServer()
        .AddProfileService<IdentityServerProfileService>()
        .AddInMemoryClients(LoadInMemoryIdentityServerClients())
        .AddInMemoryApiResources(LoadInMemoryApiResources())
        .AddInMemoryIdentityResources(LoadInMemoryIdentityResource())
        .AddProfileService<IdentityServerProfileService>()
        .AddResourceOwnerValidator<ResourceOwnerPasswordValidator>()
        .AddDeveloperSigningCredential();

    // Add jwt validation.
    services.AddAuthentication(options =>
        {
            options.DefaultAuthenticateScheme = JwtBearerDefaults.AuthenticationScheme;
            options.DefaultChallengeScheme = JwtBearerDefaults.AuthenticationScheme;
        })
        .AddIdentityServerAuthentication(options =>
        {
            // base-address of your identityserver
            options.Authority = "https://localhost:44386";

            options.ClaimsIssuer = "https://localhost:44386";

            // name of the API resource
            options.ApiName = "api1";
            options.ApiSecret = "web-api-secret";

            options.RequireHttpsMetadata = false;

        });
}

protected static IEnumerable<Client> LoadInMemoryIdentityServerClients()
{
    var clients = new List<Client>();

    var client = new Client();
    client.ClientId = "web-api-client";
    client.AllowedGrantTypes = GrantTypes.ResourceOwnerPassword;
    client.ClientSecrets = new[] {new Secret("web-api-secret".Sha256())};
    client.AccessTokenType = AccessTokenType.Reference;
    client.AllowedScopes = new[]
    {
        IdentityServerConstants.StandardScopes.OpenId,
        IdentityServerConstants.StandardScopes.Profile,
        IdentityServerConstants.StandardScopes.Email,
        IdentityServerConstants.StandardScopes.Address,
        "api1"
    };
    clients.Add(client);

    return clients;
}

protected static IEnumerable<IdentityResource> LoadInMemoryIdentityResource()
{
    //var profileIdentityResource = new IdentityResource("repository-read", "repository-read", new List<string> { "claim-01", "age" });
    return new List<IdentityResource>
    {
        new IdentityResources.OpenId(),
        new IdentityResources.Profile()
        //profileIdentityResource
    };
}

protected static IEnumerable<ApiResource> LoadInMemoryApiResources()
{
    var apiResources = new List<ApiResource>();
    var apiResource = new ApiResource("api1", "My API");
    apiResource.UserClaims = new[]
    {
        "age"
    };
    apiResources.Add(apiResource);
    return apiResources;
}

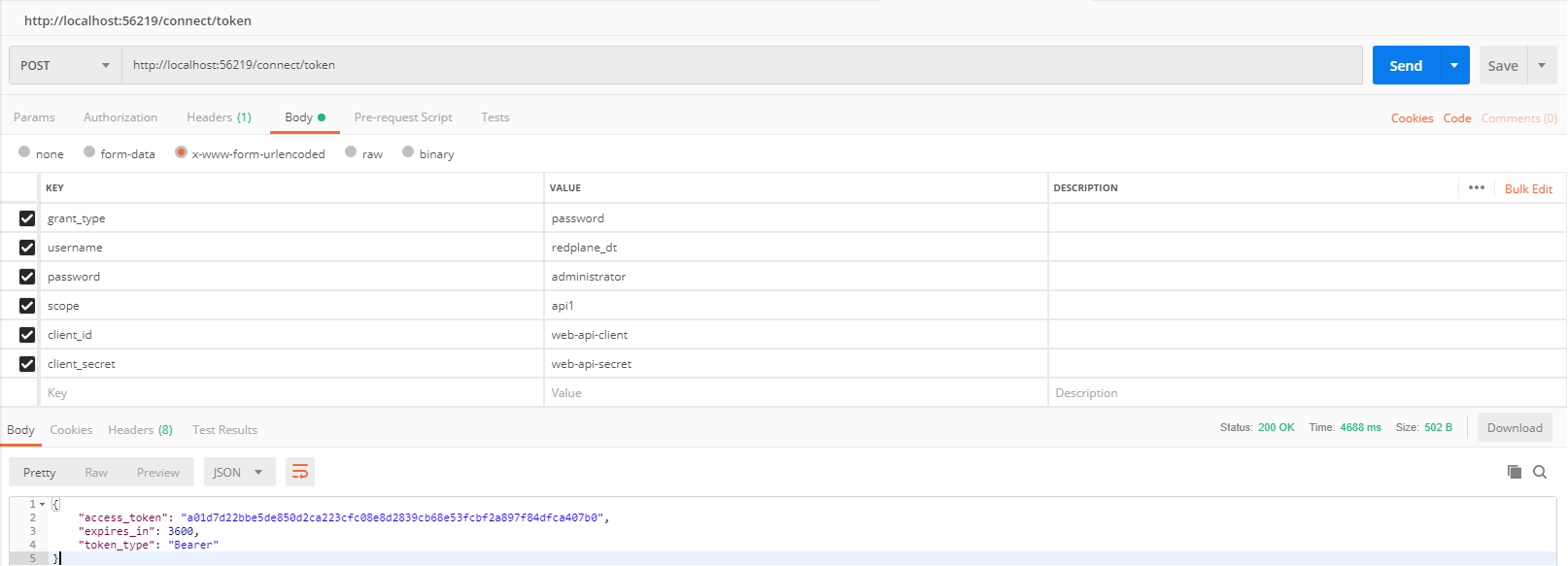

当我提出一个结构如下图所示的请求时：

​

​

我收到了一个信物。在使用接收到的令牌向受保护的api资源api/user/search发出请求之后。它给了我401的状态代码。

在视听演播室输出。这就是我看到的：

Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request starting HTTP/1.1 POST http://localhost:56219/api/user/search application/json 5
Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request finished in 10.9132ms 307
Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request starting HTTP/1.1 POST https://localhost:44386/api/user/search application/json 5
Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request starting HTTP/1.1 POST https://localhost:44386/connect/introspect application/x-www-form-urlencoded 143
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Debug: AuthenticationScheme: Bearer was not authenticated.
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Debug: AuthenticationScheme: Bearer was not authenticated.
IdentityServer4.Hosting.EndpointRouter:Debug: Request path /connect/introspect matched to endpoint type Introspection
IdentityServer4.Hosting.EndpointRouter:Debug: Endpoint enabled: Introspection, successfully created handler: IdentityServer4.Endpoints.IntrospectionEndpoint
IdentityServer4.Hosting.IdentityServerMiddleware:Information: Invoking IdentityServer endpoint: IdentityServer4.Endpoints.IntrospectionEndpoint for /connect/introspect
IdentityServer4.Endpoints.IntrospectionEndpoint:Debug: Starting introspection request.
IdentityServer4.Validation.BasicAuthenticationSecretParser:Debug: Start parsing Basic Authentication secret
IdentityServer4.Validation.PostBodySecretParser:Debug: Start parsing for secret in post body
IdentityServer4.Validation.SecretParser:Debug: Parser found secret: PostBodySecretParser
IdentityServer4.Validation.SecretParser:Debug: Secret id found: api1
IdentityServer4.Validation.HashedSharedSecretValidator:Debug: No shared secret configured for client.
IdentityServer4.Validation.SecretValidator:Debug: Secret validators could not validate secret
IdentityServer4.Validation.ApiSecretValidator:Error: API validation failed.
IdentityServer4.Endpoints.IntrospectionEndpoint:Error: API unauthorized to call introspection endpoint. aborting.
Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request finished in 57.8551ms 401
IdentityModel.AspNetCore.OAuth2Introspection.OAuth2IntrospectionHandler:Error: Error returned from introspection endpoint: Unauthorized
IdentityModel.AspNetCore.OAuth2Introspection.OAuth2IntrospectionHandler:Information: BearerIdentityServerAuthenticationIntrospection was not authenticated. Failure message: Error returned from introspection endpoint: Unauthorized
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Information: Bearer was not authenticated. Failure message: Error returned from introspection endpoint: Unauthorized
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Information: Bearer was not authenticated. Failure message: Error returned from introspection endpoint: Unauthorized
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Information: Bearer was not authenticated. Failure message: Error returned from introspection endpoint: Unauthorized
Microsoft.AspNetCore.Routing.EndpointMiddleware:Information: Executing endpoint 'QrApi.Controllers.UserController.SearchUsersAsync (QrApi)'
Microsoft.AspNetCore.Mvc.Internal.ControllerActionInvoker:Information: Route matched with {action = "SearchUsersAsync", controller = "User"}. Executing action QrApi.Controllers.UserController.SearchUsersAsync (QrApi)
Microsoft.AspNetCore.Authorization.DefaultAuthorizationService:Information: Authorization failed.
Microsoft.AspNetCore.Mvc.Internal.ControllerActionInvoker:Information: Authorization failed for the request at filter 'Microsoft.AspNetCore.Mvc.Authorization.AuthorizeFilter'.
Microsoft.AspNetCore.Mvc.ChallengeResult:Information: Executing ChallengeResult with authentication schemes ().
IdentityModel.AspNetCore.OAuth2Introspection.OAuth2IntrospectionHandler:Information: AuthenticationScheme: BearerIdentityServerAuthenticationIntrospection was challenged.
IdentityServer4.AccessTokenValidation.IdentityServerAuthenticationHandler:Information: AuthenticationScheme: Bearer was challenged.
Microsoft.AspNetCore.Mvc.Internal.ControllerActionInvoker:Information: Executed action QrApi.Controllers.UserController.SearchUsersAsync (QrApi) in 10.8603ms
Microsoft.AspNetCore.Routing.EndpointMiddleware:Information: Executed endpoint 'QrApi.Controllers.UserController.SearchUsersAsync (QrApi)'
Microsoft.AspNetCore.Hosting.Internal.WebHost:Information: Request finished in 135.7991ms 401

我已经找到了关于引用令牌的教程，但是它们都没有帮助我解决这个问题。

我错过了什么？

谢谢,

Answer 1

似乎我的配置对API Resource无效。

这是我最初的API Resources设置

protected static IEnumerable<ApiResource> LoadInMemoryApiResources()
{
    var apiResources = new List<ApiResource>();
    var apiResource = new ApiResource("api1", "My API");
    apiResource.UserClaims = new[]
    {
        "age"
    };
    apiResources.Add(apiResource);
    return apiResources;
}

在将client.ClientSecrets = new[] {new Secret("web-api-secret".Sha256())};中定义的共享密钥添加到apiResource之后

protected static IEnumerable<ApiResource> LoadInMemoryApiResources()
{
    //...
    var apiResource = new ApiResource("api1", "My API");
    api1Resource.ApiSecrets.Add(new Secret("web-api-secret".Sha256()));
    //...
}

我可以成功地向受保护的资源提出请求。

希望这能帮助像我这样正在与IdentityServer4做斗争的人。

Answer 2

我的解决方案是在实例化API资源时添加秘密。

protected static IEnumerable<ApiResource> LoadInMemoryApiResources()
{
    var apiResources = new List<ApiResource>();
    var apiResource = new ApiResource("api1", "My API"){
        ApiSecrets = new List<Secret>{
                        new Secret("web-api-secret".Sha256())
                  },
        Scopes = {
                  new Scope("openid")
                 }
    };
    apiResources.Add(apiResource);
    return apiResources;
}

Answer 3

看起来问题可能是您没有配置API秘密。在您的配置文件中，更改API资源以匹配下面的配置。我相信要与内省端点通信，api秘密是必需的。

return new List<ApiResource>
{
  new ApiResource("api1", "My API")
  {
    ApiSecrets = new List<Secret>
    {
      new Secret("secret".Sha256())
    }
  }
};
