社区首页 >问答首页 >如何在QScrollBar中为QScrollArea设置样式表？

问如何在QScrollBar中为QScrollArea设置样式表？
EN

Stack Overflow用户
提问于 2019-02-08 15:49:28
回答 2查看 10.5K关注 0票数 2

我不知道如何设置样式表来修改QScrollBar中的QScrollArea。

我第一次尝试：

代码语言：javascript
复制
scrollarea = QScrollArea()
scrollarea.verticalScrollBar().setStyleSheet("""
    QScrollBar:horizontal {
        min-width: 240px;
        height: 13px;
    }

    QScrollBar:vertical {
        min-height: 240px;
        width: 13px;
    }

    QScrollBar::groove {
        background: gray;
        border-radius: 5px;
    }

    QScrollBar::handle {
        background: blue;
        border-radius: 5px;
    }

    QScrollBar::handle:horizontal {
        width: 25px;
    }

    QScrollBar::handle:vertical {
        height: 25px;
    }"""
# same for horizontalScrollBar

然后，我尝试将完全相同的样式表直接应用于QScrollArea实例，但没有成功。

然后我尝试自己定义滚动条：

代码语言：javascript
复制
scrollArea = QScrollArea(self)
verticalScrollBar = QScrollBar(qt.Qt.Vertical, scrollArea)
verticalScrollBar.setStyleSheet(my_stylesheet)
scrollArea.setVerticalScrollBar(verticalScrollBar)

但是，完全相同的样式表适用于QSlider (通过用QSlider替换QScrollBar )。

pyqt
qtstylesheets
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2019-02-08 16:52:09

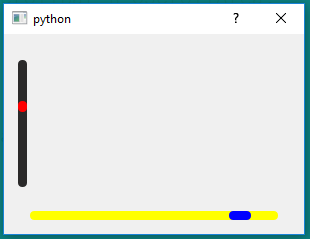

试一试：

代码语言：javascript
复制
import sys
from PyQt5.QtWidgets import QScrollBar, QDialog, QVBoxLayout, QApplication
from PyQt5.QtCore import Qt

class MainWindow(QDialog):
    def __init__(self):
        super().__init__()
        self.createWidgets()

    def createWidgets(self):
        self.layout = QVBoxLayout(self)

        self.scrollbar1 = QScrollBar(Qt.Vertical, self)
        self.scrollbar2 = QScrollBar(Qt.Horizontal, self)

        for widget in [self.scrollbar1, self.scrollbar2]:
            widget.valueChanged.connect(self.test)
            self.layout.addWidget(widget)

    def test(self, event):
        print(self.sender().value())


stylesheet = """
    /* --------------------------------------- QScrollBar  -----------------------------------*/
    QScrollBar:horizontal
    {
        height: 15px;
        margin: 3px 15px 3px 15px;
        border: 1px transparent #2A2929;
        border-radius: 4px;
        background-color: yellow;    /* #2A2929; */
    }

    QScrollBar::handle:horizontal
    {
        background-color: blue;      /* #605F5F; */
        min-width: 5px;
        border-radius: 4px;
    }

    QScrollBar::add-line:horizontal
    {
        margin: 0px 3px 0px 3px;
        border-image: url(:/qss_icons/rc/right_arrow_disabled.png);
        width: 10px;
        height: 10px;
        subcontrol-position: right;
        subcontrol-origin: margin;
    }

    QScrollBar::sub-line:horizontal
    {
        margin: 0px 3px 0px 3px;
        border-image: url(:/qss_icons/rc/left_arrow_disabled.png);
        height: 10px;
        width: 10px;
        subcontrol-position: left;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:horizontal:hover,QScrollBar::add-line:horizontal:on
    {
        border-image: url(:/qss_icons/rc/right_arrow.png);
        height: 10px;
        width: 10px;
        subcontrol-position: right;
        subcontrol-origin: margin;
    }


    QScrollBar::sub-line:horizontal:hover, QScrollBar::sub-line:horizontal:on
    {
        border-image: url(:/qss_icons/rc/left_arrow.png);
        height: 10px;
        width: 10px;
        subcontrol-position: left;
        subcontrol-origin: margin;
    }

    QScrollBar::up-arrow:horizontal, QScrollBar::down-arrow:horizontal
    {
        background: none;
    }


    QScrollBar::add-page:horizontal, QScrollBar::sub-page:horizontal
    {
        background: none;
    }

    QScrollBar:vertical
    {
        background-color: #2A2929;
        width: 15px;
        margin: 15px 3px 15px 3px;
        border: 1px transparent #2A2929;
        border-radius: 4px;
    }

    QScrollBar::handle:vertical
    {
        background-color: red;         /* #605F5F; */
        min-height: 5px;
        border-radius: 4px;
    }

    QScrollBar::sub-line:vertical
    {
        margin: 3px 0px 3px 0px;
        border-image: url(:/qss_icons/rc/up_arrow_disabled.png);
        height: 10px;
        width: 10px;
        subcontrol-position: top;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:vertical
    {
        margin: 3px 0px 3px 0px;
        border-image: url(:/qss_icons/rc/down_arrow_disabled.png);
        height: 10px;
        width: 10px;
        subcontrol-position: bottom;
        subcontrol-origin: margin;
    }

    QScrollBar::sub-line:vertical:hover,QScrollBar::sub-line:vertical:on
    {
        border-image: url(:/qss_icons/rc/up_arrow.png);
        height: 10px;
        width: 10px;
        subcontrol-position: top;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:vertical:hover, QScrollBar::add-line:vertical:on
    {
        border-image: url(:/qss_icons/rc/down_arrow.png);
        height: 10px;
        width: 10px;
        subcontrol-position: bottom;
        subcontrol-origin: margin;
    }

    QScrollBar::up-arrow:vertical, QScrollBar::down-arrow:vertical
    {
        background: none;
    }

    QScrollBar::add-page:vertical, QScrollBar::sub-page:vertical
    {
        background: none;
    }
"""

if __name__ == '__main__':
    app = QApplication(sys.argv)
    app.setStyleSheet(stylesheet)       # <----
    GUI = MainWindow()
    GUI.resize(300, 200)
    GUI.show()
    sys.exit(app.exec_())

​

​

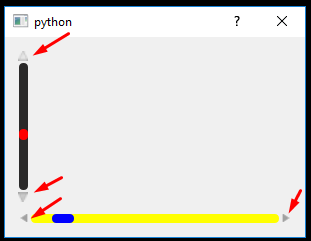

更新

从资源文件上传图像。这种方法是通过导入直接加载的res.qrc文件将res_rc.py文件中的pyrcc5文件转换为pyrcc5文件。

例如，在一个目录中，images放置了图像：right_arrow.png, ...

创建了像stylesheet.qrc这样的文件

代码语言：javascript
复制
 <RCC>
 <qresource prefix="/">
     <file>images/down_arrow.png</file>
     <file>images/down_arrow_disabled.png</file>
     <file>images/up_arrow.png</file>
     <file>images/up_arrow_disabled.png</file>
     <file>images/left_arrow.png</file>
     <file>images/left_arrow_disabled.png</file>
     <file>images/right_arrow.png</file>
     <file>images/right_arrow_disabled.png</file>
 </qresource>
 </RCC>

将stylesheet.qrc转换为stylesheet_rc.py pyrcc5 stylesheet.qrc -o stylesheet_rc.py

粘贴到main.py - import stylesheet_rc中

将模块main.py和stylesheet_rc.py传输到其他目录并运行main.py

main.py

代码语言：javascript
复制
import sys
from PyQt5.QtWidgets import QScrollBar, QDialog, QVBoxLayout, QApplication
from PyQt5.QtCore import Qt

import stylesheet_rc                                       # <--------

class MainWindow(QDialog):
    def __init__(self):
        super().__init__()
        self.createWidgets()

    def createWidgets(self):
        self.layout = QVBoxLayout(self)

        self.scrollbar1 = QScrollBar(Qt.Vertical, self)
        self.scrollbar2 = QScrollBar(Qt.Horizontal, self)

        for widget in [self.scrollbar1, self.scrollbar2]:
            widget.valueChanged.connect(self.test)
            self.layout.addWidget(widget)

    def test(self, event):
        print(self.sender().value())


stylesheet = """
    /* --------------------------------------- QScrollBar  -----------------------------------*/
    QScrollBar:horizontal
    {
        height: 15px;
        margin: 3px 15px 3px 15px;
        border: 1px transparent #2A2929;
        border-radius: 4px;
        background-color: yellow;    /* #2A2929; */
    }

    QScrollBar::handle:horizontal
    {
        background-color: blue;      /* #605F5F; */
        min-width: 5px;
        border-radius: 4px;
    }

    QScrollBar::add-line:horizontal
    {
        margin: 0px 3px 0px 3px;
        border-image: url(:/images/right_arrow_disabled.png);       /* # <-------- */
        width: 10px;
        height: 10px;
        subcontrol-position: right;
        subcontrol-origin: margin;
    }

    QScrollBar::sub-line:horizontal
    {
        margin: 0px 3px 0px 3px;
        border-image: url(:/images/left_arrow_disabled.png);        /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: left;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:horizontal:hover,QScrollBar::add-line:horizontal:on
    {
        border-image: url(:/images/right_arrow.png);               /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: right;
        subcontrol-origin: margin;
    }


    QScrollBar::sub-line:horizontal:hover, QScrollBar::sub-line:horizontal:on
    {
        border-image: url(:/images/left_arrow.png);               /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: left;
        subcontrol-origin: margin;
    }

    QScrollBar::up-arrow:horizontal, QScrollBar::down-arrow:horizontal
    {
        background: none;
    }


    QScrollBar::add-page:horizontal, QScrollBar::sub-page:horizontal
    {
        background: none;
    }

    QScrollBar:vertical
    {
        background-color: #2A2929;
        width: 15px;
        margin: 15px 3px 15px 3px;
        border: 1px transparent #2A2929;
        border-radius: 4px;
    }

    QScrollBar::handle:vertical
    {
        background-color: red;         /* #605F5F; */
        min-height: 5px;
        border-radius: 4px;
    }

    QScrollBar::sub-line:vertical
    {
        margin: 3px 0px 3px 0px;
        border-image: url(:/images/up_arrow_disabled.png);        /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: top;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:vertical
    {
        margin: 3px 0px 3px 0px;
        border-image: url(:/images/down_arrow_disabled.png);       /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: bottom;
        subcontrol-origin: margin;
    }

    QScrollBar::sub-line:vertical:hover,QScrollBar::sub-line:vertical:on
    {
        border-image: url(:/images/up_arrow.png);                  /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: top;
        subcontrol-origin: margin;
    }

    QScrollBar::add-line:vertical:hover, QScrollBar::add-line:vertical:on
    {
        border-image: url(:/images/down_arrow.png);                /* # <-------- */
        height: 10px;
        width: 10px;
        subcontrol-position: bottom;
        subcontrol-origin: margin;
    }

    QScrollBar::up-arrow:vertical, QScrollBar::down-arrow:vertical
    {
        background: none;
    }

    QScrollBar::add-page:vertical, QScrollBar::sub-page:vertical
    {
        background: none;
    }
"""

if __name__ == '__main__':
    app = QApplication(sys.argv)
    app.setStyleSheet(stylesheet)       # <----
    GUI = MainWindow()
    GUI.resize(300, 200)
    GUI.show()
    sys.exit(app.exec_())

​

​

票数 6
EN

Stack Overflow用户

发布于 2019-02-18 13:43:07

我的问题是，QSlider和QScrollBar的样式表有不同的语法。

我的最终解决方案是(根据所需的范围，将其设置为QScrollArea样式表或QApplication样式表)：

代码语言：javascript
复制
stylesheet = """
    QScrollArea {
        border: none;
    }

    QScrollBar {
        background: gray;
        border-radius: 5px;
    }

    QScrollBar:horizontal {
        height: 13px;
    }

    QScrollBar:vertical {
        width: 13px;
    }

    QScrollBar::handle {
        background: green;
        border-radius: 5px;
    }

    QScrollBar::handle:horizontal {
        height: 25px;
        min-width: 10px;
    }

    QScrollBar::handle:vertical {
        width: 25px;
        min-height: 10px;
    }

    QScrollBar::add-line {
        border: none;
        background: none;
    }

    QScrollBar::sub-line {
        border: none;
        background: none;
    }
    """
票数 2
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/54595957
