网格SharedSizeGroup不能在整个视图中工作。

Question

我有一个简单的应用程序，我希望视图中的所有按钮都是相同大小的。这个代码的问题是，Grid Row 0中的所有按钮都是相同宽度的，但是Grid Row 2中的按钮并不相同。请帮帮忙。

我希望Grid 2中的按钮与Grid Row 0的宽度相同。(用这样的网格可以做到吗？)请不要告诉我一个统一的网格。我知道它适用于UniformGrid，我也不想绑定ElementName=so，所以，Path=ActualWidth)

<Grid Grid.IsSharedSizeScope="True">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid Grid.Row="0" Grid.IsSharedSizeScope="True" x:Name="InstrumentOperationsPanel" >
            <Grid.ColumnDefinitions>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
            </Grid.ColumnDefinitions>
            <Button x:Name="PrimeButton" Grid.Column="0" Content="ABCD"/>
            <Button x:Name="FlushButton" Grid.Column="1" Content="ABCDEFGHIJKL"/>
            <Button Content="ABCD" Grid.Column="2"/>
            <Button x:Name="PrimeFlush3TimesButton" Grid.Column="3" Content="ABCD"/>

        </Grid>
        <Separator Grid.Row="1" HorizontalAlignment="Stretch" VerticalAlignment="Stretch">
        </Separator>

        <Grid Grid.IsSharedSizeScope="True" x:Name="BuiltInUserActionPanelForQX200" Grid.Row="2" VerticalAlignment="Top">

            <Grid.ColumnDefinitions>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
            </Grid.ColumnDefinitions>

            <Button x:Name="DRDiagnosticsButton" Grid.Column="0"
                Content="ABCD"></Button>
            <Button x:Name="QXFieldAgentButton" Grid.Column="1"
                Content="ABCD"></Button>
            <Button x:Name="QX200MTSButton" Grid.Column="2"
                Content="ABCD"></Button>
            <Button x:Name="QX200MTSDetectorButton" Grid.Column="3"
                Content="ABCD"></Button>
        </Grid>
    </Grid>

Answer 1

你需要几个改变。

( a)在你的主网格中，

<Grid Grid.IsSharedSizeScope="True">

( b)在InstrumentOperationsPanel中，网格，删除Grid.IsSharedSizeScope

<Grid Grid.Row="0"  x:Name="InstrumentOperationsPanel">

( c)在BuiltInUserActionPanelForQX200网格中，删除Grid.IsSharedSizeScope

<Grid  x:Name="BuiltInUserActionPanelForQX200" Grid.Row="2" VerticalAlignment="Top">

你的整个Xaml看起来不像

<Grid Grid.IsSharedSizeScope="True">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid Grid.Row="0"  x:Name="InstrumentOperationsPanel">
            <Grid.ColumnDefinitions>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
            </Grid.ColumnDefinitions>
            <Button x:Name="PrimeButton" Grid.Column="0" Content="ABCD"/>
            <Button x:Name="FlushButton" Grid.Column="1" Content="ABCDEFGHIJKL"/>
            <Button Content="ABCD" Grid.Column="2"/>
            <Button x:Name="PrimeFlush3TimesButton" Grid.Column="3" Content="ABCD"/>

        </Grid>
        <Separator Grid.Row="1" HorizontalAlignment="Stretch" VerticalAlignment="Stretch">
        </Separator>

        <Grid  x:Name="BuiltInUserActionPanelForQX200" Grid.Row="2" VerticalAlignment="Top">

            <Grid.ColumnDefinitions>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
                <ColumnDefinition SharedSizeGroup="A"></ColumnDefinition>
            </Grid.ColumnDefinitions>

            <Button x:Name="DRDiagnosticsButton" Grid.Column="0"
                Content="ABCD"></Button>
            <Button x:Name="QXFieldAgentButton" Grid.Column="1"
                Content="ABCD"></Button>
            <Button x:Name="QX200MTSButton" Grid.Column="2"
                Content="ABCD"></Button>
            <Button x:Name="QX200MTSDetectorButton" Grid.Column="3"
                Content="ABCD"></Button>
        </Grid>
    </Grid>

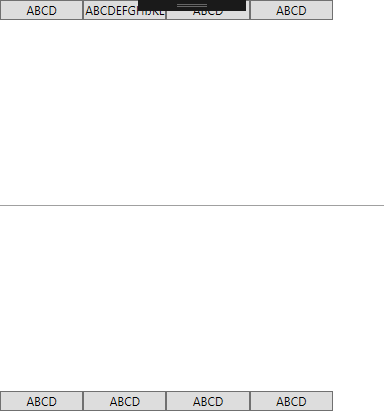

输出

​

​

Answer 2

您应该只在最外层的网格上设置ISSharedSizeScope=True。

从内部网格中删除Grid.IsSharedSizeScope="True“(InstrumentOperationsPanel和BuiltInUserActionPanelForQX200)
