使用逻辑和剪辑

Question

我修改了一些CLIPS/CLIPSpy代码，以查找CSV中的变量列是单词Oil时以及该列的持续时间超过600或更长的时候。根据我正在使用的CSV，规则应该发射两次：

​

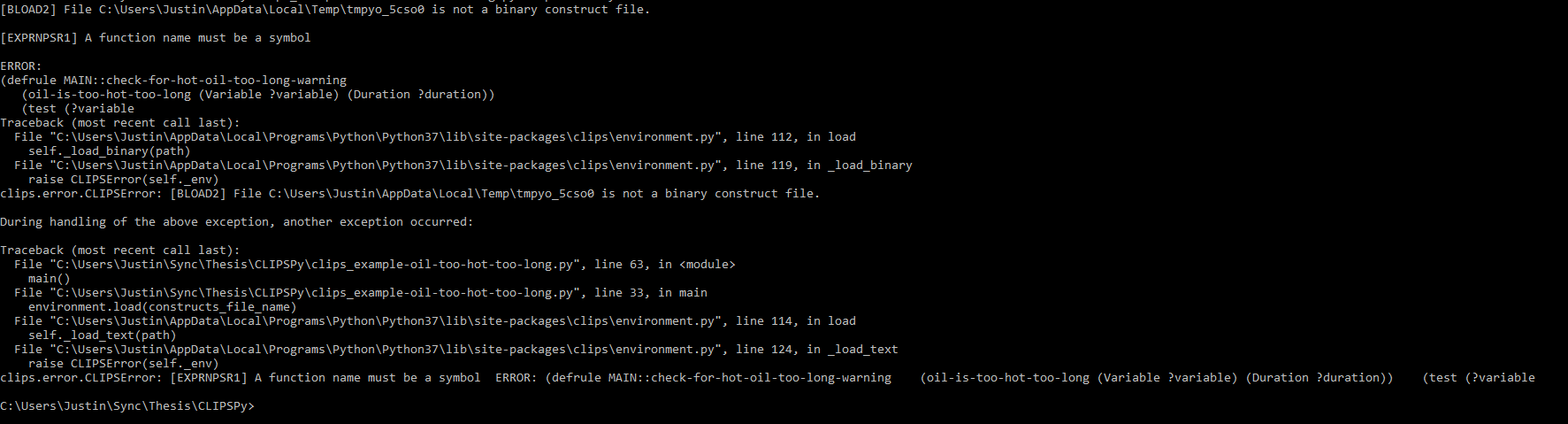

我收到了以下错误。

​

这是我目前的代码。我认为它在变量检查或逻辑检查上失败了。

import sys
from tempfile import mkstemp
import os
import clips


CLIPS_CONSTRUCTS = """
(defglobal ?*oil-too-hot-times* = 0)

(deftemplate oil-is-too-hot-too-long
  (slot Variable (type STRING))
  (slot Duration (type INTEGER)))

(defrule check-for-hot-oil-too-long-warning
  (oil-is-too-hot-too-long (Variable ?variable) (Duration ?duration))
  (test (?variable Oil Temp))
  (and (>= ?duration 600))
  =>
  (printout t "Warning! Check engine light on!" tab ?*oil-too-hot-times* crlf))

"""


def main():
    environment = clips.Environment()

    # use environment.load() to load constructs from a file
    constructs_file, constructs_file_name = mkstemp()
    file = open(constructs_file, 'wb')
    file.write(CLIPS_CONSTRUCTS.encode())
    file.close()

    environment.load(constructs_file_name)
    os.remove(constructs_file_name)

    # enable fact duplication as data has duplicates
    environment.eval("(set-fact-duplication TRUE)")


    # Template facts can be built from their deftemplate
    oil_too_hot_too_long_template = environment.find_template("oil-is-too-hot-too-long")

    for variable, duration in get_data_frames(sys.argv[1]):
        new_fact = oil_too_hot_too_long_template.new_fact()

        # Template facts are represented as dictionaries
        new_fact["Variable"] = variable
        new_fact["Duration"] = int(duration)

        # Add the fact into the environment Knowledge Base
        new_fact.assertit()

    # Fire all the rules which got activated
    environment.run()

def get_data_frames(file_path):
    """Parse a CSV file returning the dataframes."""
    with open(file_path) as data_file:
        return [l.strip().split(",") for i, l in enumerate(data_file) if i > 1]


if __name__ == "__main__":
    main()

Answer 1

CLIPS采用波兰/前缀表示法。因此，您的规则应该如下所写。

(defrule check-for-hot-oil-too-long-warning
  (oil-is-too-hot-too-long (Variable ?variable) (Duration ?duration))
  (test (and (eq ?variable "Oil Temp")
             (>= ?duration 600)))
  =>
  (printout t "Warning! Check engine light on!" tab ?*oil-too-hot-times* crlf))

还请注意STRING类型如何需要双引号"。

然而，我建议您利用引擎的alpha网络匹配，这是更简洁和高效的。

(defrule check-for-hot-oil-too-long-warning
  (oil-is-too-hot-too-long (Variable "Oil Temp") (Duration ?duration))
  (test (>= ?duration 600))
  =>
  (printout t "Warning! Check engine light on!" tab ?*oil-too-hot-times* crlf))

引擎可以立即看到您的Variable插槽是一个常量，并可以相应地优化匹配逻辑。我不确定它能否在联合试验中作出同样的假设。
