不支持协议'https‘

Question

我正在使用IIS中托管的WCF服务，但是当我尝试导航到端点时，我收到错误“，协议'https‘不支持”。它托管在IIS 10中，本地运行Windows 10。

该服务将wsHttpBinding与TransportWithMessageCredential结合使用。

此错误是否与SSL证书或IIS有关？

我已经在本地机器>个人证书存储中拥有一个有效的本地主机证书。

我到目前为止尝试过的

1. 将httpsGetUrl属性设置为.svc端点。
2. 选中的IIS设置和默认协议被设置为" http“，这意味着启用了http和https协议。
3. 检查应用程序池是否使用.NET Framework4.0
4. 重新启动应用程序池

如果有人能帮我我很感激。

下面是当前的配置：

    <?xml version="1.0"?>
    <configuration>
    <system.web>
    <compilation debug="true" targetFramework="4.0" />
    </system.web>

    <system.serviceModel>
    <services>
        <service name="XXX.Zoo.WebServices.ZooServices_3_0"
      behaviorConfiguration="ZooServices_3_0_Behavior">
            <endpoint
                address="https://localhost/Zootest_3_0/ZooServices_3_0.svc"
                binding="wsHttpBinding"
                bindingConfiguration="ZooServices_3_0_Binding"
                contract="XXX.Zoo.WebServices.IZooServices_3_0" />
            <endpoint

          address="https://localhost/Zootest_3_0/ZooServices_3_0.svc/mex"
                binding="mexHttpsBinding"
                contract="IMetadataExchange" />
        </service>
        </services>
       <bindings>
        <wsHttpBinding>
            <binding name="ZooServices_3_0_Binding"
                maxReceivedMessageSize="2147483647"
                maxBufferPoolSize="2147483647" >
                <readerQuotas
                    maxDepth="2147483647"
                    maxStringContentLength="2147483646"
                    maxArrayLength="2147483647"
                    maxBytesPerRead="2147483647"
                    maxNameTableCharCount="2147483647"/>
                <security mode="TransportWithMessageCredential">
                    <transport clientCredentialType="None"
                     proxyCredentialType="None" realm="" />
                    <message clientCredentialType="Certificate"
              negotiateServiceCredential="true" algorithmSuite="Default"
              establishSecurityContext="true" />
                </security>
            </binding>
        </wsHttpBinding>
      </bindings>
        <behaviors>
        <serviceBehaviors>
            <behavior name="ZooServices_3_0_Behavior">
                <serviceMetadata httpsGetEnabled="true"
           httpsGetUrl="https://localhost/Zootest_3_0/ZooServices_3_0.svc" />
                <serviceDebug includeExceptionDetailInFaults="False" />
                <!--The serviceCredentials behavior defines a service
                  certificate which is used by the service to authenticate
              itself to  its clients and to provide message protection. -->
                <serviceCredentials>
                    <serviceCertificate
                        findValue="localhost"
                        storeLocation="LocalMachine"
                        storeName="My"
                        x509FindType="FindBySubjectName" />
                    <clientCertificate>
                        <authentication
                      certificateValidationMode="ChainTrust"/>
                    </clientCertificate>
                </serviceCredentials>
            </behavior>
                 </serviceBehaviors>
            </behaviors>
          </system.serviceModel>
       </configuration>

Answer 1

通过从配置中删除httpsGetUrl属性解决了此特定错误：

httpsGetUrl="https://localhost/Zootest_3_0/ZooServices_3_0.svc

最终结果如下：

<serviceMetadata httpsGetEnabled="true"/>

Answer 2

如果要启用https协议支持，则应该向服务中添加使用传输传输模式的https端点。然后，我们应该在IIS站点绑定模块中设置https协议站点绑定。

我做了一个演示，希望它对你有用。

服务器端.

   [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        string GetData(int value);
        }
    public class Service1 : IService1
    {

        public string GetData(int value)
        {
            return string.Format("You entered: {0}", value);
        }
    }

Web.config

<system.serviceModel>
    <services>
      <service name="WcfService1.Service1" behaviorConfiguration="mybehavior">
        <endpoint address="" binding="basicHttpBinding" contract="WcfService1.IService1" bindingConfiguration="https"></endpoint>
        <endpoint address="" binding="basicHttpBinding" contract="WcfService1.IService1" bindingConfiguration="http"></endpoint>
        <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange"></endpoint>
      </service>
    </services>
    <bindings>
      <basicHttpBinding>
        <binding name="https">
          <security mode="TransportWithMessageCredential">
            <transport clientCredentialType="None"></transport>
          </security>
        </binding>
        <binding name="http">
          <security mode="None">
          </security>
        </binding>
      </basicHttpBinding>
    </bindings>
    <behaviors>
      <serviceBehaviors>
        <behavior name="mybehavior">
          <serviceMetadata httpGetEnabled="true" httpsGetEnabled="true"/>
          <serviceDebug includeExceptionDetailInFaults="true"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <protocolMapping>
        <add binding="basicHttpsBinding" scheme="https" />
    </protocolMapping>
    <serviceHostingEnvironment aspNetCompatibilityEnabled="true" multipleSiteBindingsEnabled="true" />
  </system.serviceModel>

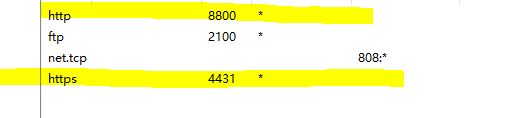

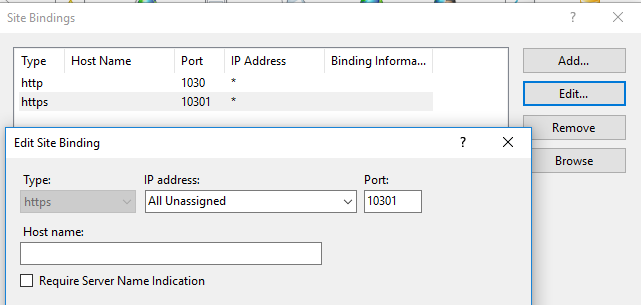

IIS。

这里有一些链接，希望它对你有用。

WCF Service not hitting from postman over https

https://social.msdn.microsoft.com/Forums/vstudio/en-US/d42fc165-052d-476a-9580-1240b3d0293d/specify-endpoint-in-wcf-webconfig?forum=wcf

如果有什么需要我帮忙的，请随时通知我。
