在Tomcat/server重新启动之后，spring + oauth2 /api/oauth/token是“不授权的”

Question

我正在使用spring-security-5，spring-boot 2.0.5和oauth2。我已经通过在线参考资料进行了检查和测试。

比如：

保护REST端点的Spring安全性和OAuth2

Spring 2应用程序和OAuth 2

我的项目一切都很好。

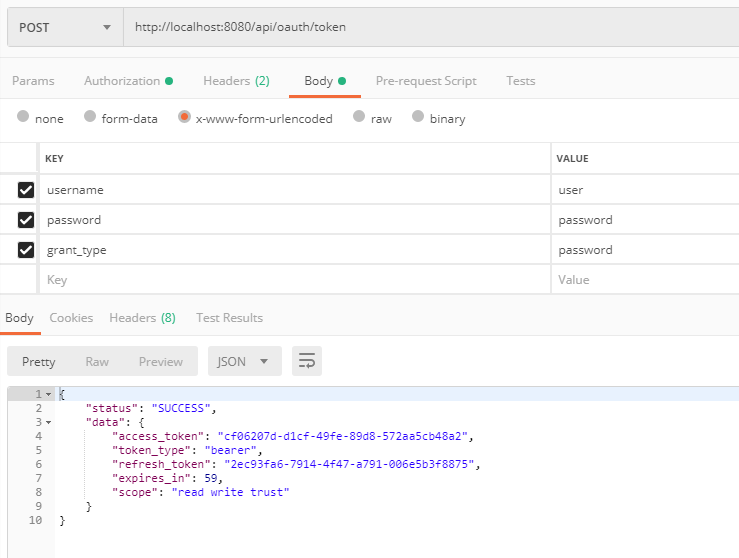

当我请求这个URL，http://localhost:8080/api/oauth/token时，我得到的响应是

​

​

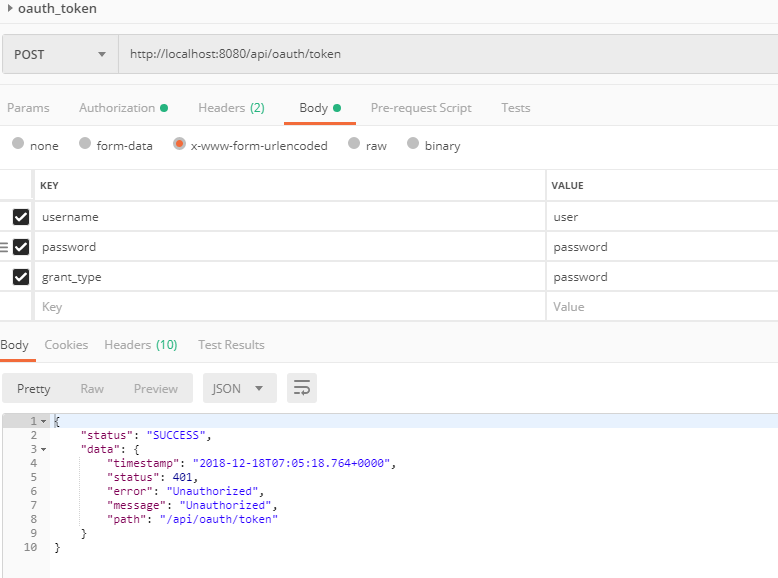

和我重新启动服务器(Tomcat)，我再次请求该URL，我得到响应作为

​

所以我的问题是，在Tomcat或spring-boot应用程序是重新启动之后，客户端应用程序如何才能再次获得。

针对这种情况，如果我删除数据库中OAUTH_CLIENT_DETAILS表的记录，可以再次请求。我也再次得到了access_token。

更新

请不要错过理解响应json格式，我按自定义对象包装的每个响应如下所示。

{
    "status": "SUCCESS", <-- here my custom
    "data": {
        "timestamp": "2018-12-18T07:17:00.776+0000", <-- actual response from oauth2
        "status": 401,  <-- actual response from oauth2
        "error": "Unauthorized", <-- actual response from oauth2
        "message": "Unauthorized", <-- actual response from oauth2
        "path": "/api/oauth/token" <-- actual response from oauth2
    }
}

更新2

我使用JDBCTokenStore，所有oauth信息都保存在数据库中。

package com.mutu.spring.rest.oauth2;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;

@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {

    static final String CLIEN_ID = "zto-api-client";
//  static final String CLIENT_SECRET = "zto-api-client";
    static final String CLIENT_SECRET = "$2a$04$HvD/aIuuta3B5DjXXzL08OSIcYEoFsAYK9Ys4fKpMNHTODZm.mzsq";
    static final String GRANT_TYPE_PASSWORD = "password";
    static final String AUTHORIZATION_CODE = "authorization_code";
    static final String REFRESH_TOKEN = "refresh_token";
    static final String IMPLICIT = "implicit";
    static final String SCOPE_READ = "read";
    static final String SCOPE_WRITE = "write";
    static final String TRUST = "trust";
    static final int ACCESS_TOKEN_VALIDITY_SECONDS = 1*60;
    static final int FREFRESH_TOKEN_VALIDITY_SECONDS = 2*60;

    @Autowired
    private AuthenticationManager authenticationManager;

    @Bean
    public BCryptPasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Autowired
    private DataSource dataSource;

    @Bean
    public TokenStore tokenStore() {
        return new JdbcTokenStore(dataSource);
    }

    @Override
    public void configure(AuthorizationServerSecurityConfigurer oauthServer) throws Exception {
        oauthServer.tokenKeyAccess("permitAll()")
                   .checkTokenAccess("isAuthenticated()");
    }


    @Override
    public void configure(ClientDetailsServiceConfigurer configurer) throws Exception {

        configurer
                .jdbc(dataSource)
                .withClient(CLIEN_ID)
                .secret("{bcrypt}" + CLIENT_SECRET)
                .authorizedGrantTypes(GRANT_TYPE_PASSWORD, AUTHORIZATION_CODE, REFRESH_TOKEN, IMPLICIT )
//              .authorities("ROLE_CLIENT", "ROLE_TRUSTED_CLIENT")
                .scopes(SCOPE_READ, SCOPE_WRITE, TRUST)
                .accessTokenValiditySeconds(ACCESS_TOKEN_VALIDITY_SECONDS)
                .refreshTokenValiditySeconds(FREFRESH_TOKEN_VALIDITY_SECONDS);
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints.tokenStore(tokenStore())
                .authenticationManager(authenticationManager);
    }
}

Answer 1

您需要将tokenStore设置为与InMemory不同的内容。

我倾向于使用redis，因为它扩展得很好，速度非常快，一旦它在那里，您就可以使用它作为缓存：

@Configuration
@EnableAuthorizationServer
class AuthorizationServerConfig : AuthorizationServerConfigurerAdapter() {

    @Bean
    fun tokenStore(): TokenStore = RedisTokenStore(redisConnectionFactory).apply {
        setAuthenticationKeyGenerator(authenticationKeyGenerator)
    }
}

Application.yaml：

spring:
    redis:
        host: 0.0.0.0
        password:
        port: 6380
        database: 0

如果和码头人在一起的话：

version: '3'
services:

  cache:
    image: redis:latest
    ports:
      - "6380:6379"

  db:
    image: postgres:latest
    ports:
      - "5454:5432"
    environment:
      - POSTGRES_DB=mydb

JWTTokenStore将使您可以不使用第三方软件，也可以进行良好的扩展，但会使撤销令牌变得更加困难。

对于较小的应用程序，可以将令牌存储在数据库中(请参见JdbcTokenStore)。

Answer 2

在我的问题中，即使我使用JdbcTokenStore，它在重新启动服务器后仍然得到Unauthorized响应。

现在，我为我的问题找到了一个解决方案，就是使用JwtTokenStore。是stateless。我只需要修改我的AuthorizationServerConfig类如下所示。我现在不需要数据库中任何与oauth相关的表。

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;

@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfig extends AuthorizationServerConfigurerAdapter {

    static final String CLIEN_ID = "zto-api-client";
//  static final String CLIENT_SECRET = "zto-api-client";
    static final String CLIENT_SECRET = "$2a$04$HvD/aIuuta3B5DjXXzL08OSIcYEoFsAYK9Ys4fKpMNHTODZm.mzsq";
    static final String GRANT_TYPE_PASSWORD = "password";
    static final String AUTHORIZATION_CODE = "authorization_code";
    static final String REFRESH_TOKEN = "refresh_token";
    static final String IMPLICIT = "implicit";
    static final String SCOPE_READ = "read";
    static final String SCOPE_WRITE = "write";
    static final String TRUST = "trust";
    static final int ACCESS_TOKEN_VALIDITY_SECONDS = 5*60;
    static final int FREFRESH_TOKEN_VALIDITY_SECONDS = 5*60;

    @Autowired
    private AuthenticationManager authenticationManager;

    @Bean
    public BCryptPasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }


    // replace
    @Bean
    public JwtAccessTokenConverter accessTokenConverter() {
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey("as-you-like-your-key");
        return converter;
    }

    @Bean
    public TokenStore tokenStore() {
        return new JwtTokenStore(accessTokenConverter()); // replace
    }

    @Override
    public void configure(AuthorizationServerSecurityConfigurer oauthServer) throws Exception {
        oauthServer.tokenKeyAccess("permitAll()")
                   .checkTokenAccess("isAuthenticated()");
    }


    @Override
    public void configure(ClientDetailsServiceConfigurer configurer) throws Exception {

        configurer
                .inMemory() // replace
                .withClient(CLIEN_ID)
                .secret("{bcrypt}" + CLIENT_SECRET)
                .authorizedGrantTypes(GRANT_TYPE_PASSWORD, AUTHORIZATION_CODE, REFRESH_TOKEN, IMPLICIT )
                .scopes(SCOPE_READ, SCOPE_WRITE, TRUST)
                .accessTokenValiditySeconds(ACCESS_TOKEN_VALIDITY_SECONDS)
                .refreshTokenValiditySeconds(FREFRESH_TOKEN_VALIDITY_SECONDS);
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints.tokenStore(tokenStore())
                .authenticationManager(authenticationManager)
                .accessTokenConverter(accessTokenConverter());// replace
    }
}
