启动具有角7前端的Spring应用程序时未能加载资源错误(缺少资源)

Question

我想要构建一个具有角度前端的Spring应用程序。因此，我使用来构建一个项目，并为/greet/world添加了一个/greet/world。然后，我在我的src/main-folder中通过执行ng new ui (包括routing和css)创建了一个新的角项目。

我将angular.json中的angular.json更新为：

"outputPath": "../resources/static"

然后，我在我的Http-Get中添加了-Request，并运行了以下命令来构建jar

• 来自src/main/ui的ng build --prod
• cd %back_to_project_root%
• mvn clean package
• cd target
• java -jar Jar-file

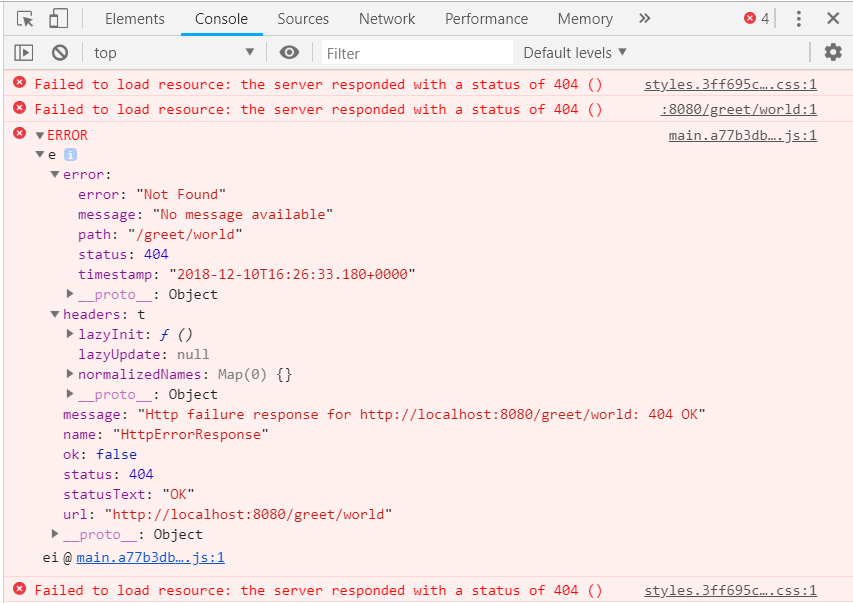

打开http://localhost:8080时，我会看到通常的角启动页和下面的控制台日志：

​

​

当我把我的前端放进后端的时候，我做错了什么？从我的ng serve上运行src/main/ui非常好。

我的app.component.ts**:**

import { Component, OnInit } from '@angular/core';
import { HttpClient } from '@angular/common/http';

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit {
  title = 'ui';

  constructor(private http: HttpClient) {  }

  ngOnInit() {
    this.http.get('http://localhost:8080/greet/world').subscribe( (data) => {
    console.log('DATA', data);
      this.title = 'try';
    });
  }

}

HelloWorldController.java package com.demo.example.controller；

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/hello")
public class HelloWorldController {

    @RequestMapping(value="/world")
    public String greetWorld() {
        return "Hello world";
    }

}

My pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.hud</groupId>
    <artifactId>HelloWorld</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>
    <name>HelloWorld</name>
    <description></description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-rest</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.restdocs</groupId>
            <artifactId>spring-restdocs-mockmvc</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>test</phase>
                        <goals>
                            <goal>exec</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <executable>ng</executable>
                    <workingDirectory>src/main/ui</workingDirectory>
                    <argument>
                        <argument>build</argument>
                    </argument>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

编辑1

我将输出路径更改为../../../target/static，然后运行mvn clean package和ng build --prod。

然而，这并不能真正节省时间，因为在运行jar-file时没有在mvn clean package中提供这些信息，但它暂时解决了这个问题。

编辑2

我按照建议重新编写了我的代码，得到了以下内容：

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.test</groupId>
    <artifactId>HelloWorld</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>
    <name>HelloWorld</name>
    <description></description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-rest</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.restdocs</groupId>
            <artifactId>spring-restdocs-mockmvc</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>com.github.eirslett</groupId>
                <artifactId>frontend-maven-plugin</artifactId>
                <version>1.6</version>
                <executions>
                    <execution>
                        <id>npm install</id>
                        <goals>
                            <goal>npm</goal>
                        </goals>
                        <configuration>
                            <arguments>install</arguments>
                        </configuration>
                    </execution>
                    <execution>
                        <id>npm build</id>
                        <goals>
                            <goal>npm</goal>
                        </goals>
                        <configuration>
                            <arguments>run build</arguments>
                        </configuration>
                    </execution>

                </executions>
                <configuration>
                        <nodeVersion>v10.14.1</nodeVersion>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <executions>
                    <execution>
                        <id>default-copy-resources</id>
                        <phase>process-resources</phase>
                        <goals>
                            <goal>copy-resources</goal>
                        </goals>
                        <configuration>
                            <overwrite>true</overwrite>
                            <!-- It must match the resulting war-file name -->
                            <outputDirectory>${project.build.directory}/${project.artifactId}-${project.version}/</outputDirectory>
                            <resources>
                                <resource>
                                    <directory>${project.basedir}/dist</directory>
                                </resource>
                            </resources>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

当从项目根执行mvn clean install时，我得到以下错误：

[ERROR] Failed to execute goal com.github.eirslett:frontend-maven-plugin:1.6:npm (npm install) on project HelloWorld: Failed to run task: 'npm install' failed.
java.io.IOException: Cannot run program "c:\Dev\wsp_test\HelloWorld\node\node.exe" (in directory "c:\Dev\wsp_test\HelloWorld"): CreateProcess error=2, System cannot find the file (<- this is translated, so might be different wording)-> [Help 1]

Answer 1

• 打开angular.json文件，将"outputPath"设置为../../../dist
• 在您的package.json中，您应该有一个build脚本，例如：

"scripts": {
   [..]
   "build": "ng build --prod",
}

• 编辑您的pom.xml以添加frontend-maven-plugin插件以使用maven构建angular，并通过maven-resources-plugin复制它们(How to setup angular 4 inside a maven based java war project)：

​

<build>
    <plugins>
        <plugin>
            <groupId>com.github.eirslett</groupId>
            <artifactId>frontend-maven-plugin</artifactId>
            <version>1.6</version>
            <executions>
                <execution>
                    <id>install node and npm</id>
                    <goals>
                        <goal>install-node-and-npm</goal>
                    </goals>
                    <phase>generate-resources</phase>
                </execution>
                <execution>
                    <id>npm install</id>
                    <goals>
                        <goal>npm</goal>
                    </goals>
                    <configuration>
                        <arguments>install</arguments>
                    </configuration>
                </execution>
                <execution>
                    <id>npm build</id>
                    <goals>
                        <goal>npm</goal>
                    </goals>
                    <configuration>
                        <arguments>run build</arguments>
                    </configuration>
                </execution>
                <configuration>
                    <nodeVersion>v8.9.0</nodeVersion>
                </configuration>
            </executions>
        </plugin>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-resources-plugin</artifactId>
            <version>2.4.2</version>
            <executions>
                <execution>
                    <id>default-copy-resources</id>
                    <phase>process-resources</phase>
                    <goals>
                        <goal>copy-resources</goal>
                    </goals>
                    <configuration>
                        <overwrite>true</overwrite>
                        <!-- It must match the resulting war-file name -->
                        <outputDirectory>${project.build.directory}/${project.artifactId}-${project.version}/</outputDirectory>
                        <resources>
                            <resource>
                                <directory>${project.basedir}/dist</directory>
                            </resource>
                        </resources>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>
