直方图不对齐/对应于g-图/r中的x-轴。

Question

我有一个直方图，说明x轴上的特定细胞计数(1 =1细胞计数，2=2细胞计数等)，以及有多少病人被诊断为y轴上的特定细胞计数。

然而，直方图的“基”与x轴上的特定值不对齐。最好，我希望x轴细胞计数在直方图的底部居中.

我附上了一张ATM机外观的照片：

​

我的数据

p <– structure(list(WHO.Grade = c(1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 3L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 2L), ki67pro = c(4L, 3L, 4L, 4L, 7L, 6L, 4L, 1L, 4L, 12L, 4L, 3L, 1L, 2L, 20L, 10L, 3L, 3L, 3L, 5L, 3L, 3L, 4L, 5L, 2L, 4L, 5L, 3L, 15L, 4L, 4L, 4L, 4L, 2L, 4L, 2L, 2L, 3L, 7L, 5L, 4L, 2L, 4L, 6L, 4L, 3L, 5L, 4L, 2L, 3L, 3L, 5L, 8L, 0L, 3L, 2L, 20L, 4L, 4L, 4L, 3L, 5L, 5L, 12L, 3L, 2L, 2L, 3L, 3L, NA, 4L, 3L, 3L, 12L, 4L, 1L, 3L, 8L, 7L, 4L, 5L, 3L, 3L, 3L, 3L, 1L, 4L, 5L, 2L, 3L, 3L, 5L, 7L, NA, 2L, 12L, 4L, 0L, 4L, 3L, 10L, 5L, 4L, 3L, 20L, 10L, 10L, 3L, 2L, 10L, 4L, 5L, 3L, 2L, 4L, 2L, 5L, 2L, 4L, 25L, 3L, 5L, 3L, 4L, 7L, 0L, 5L, 7L, 1L, 1L, 1L, 4L, 4L, 6L, 5L, 7L, 3L, 3L, NA, 3L, 4L, 3L, 5L, 10L, 1L, 2L, 3L, 2L, 4L, 5L, 4L, 3L, 4L, 3L, 3L, 7L, 3L, 4L, 3L, 4L, 5L, 6L, 3L, 2L, 3L, 4L, 5L, 3L, 4L, 2L, 4L, 5L, 5L, 12L, 12L, 7L)), .Names = c("WHO.Grade", "ki67pro"), class = "data.frame", row.names = c(NA, -176L))

p1 <- subset(p, p$WHO.Grade==1)
p2 <- subset(p, p$WHO.Grade==2)
p3 <- subset(p, p$WHO.Grade==3)

我使用了以下脚本：

q <-      ggplot()  + theme_grey() +
  scale_x_continuous(name="The Ki-67/MIB-1 LI percetage", limits=c(-1, 26), seq(-1,26,by=1)) +
  scale_y_continuous(name="Patients diagnosed", limits=c(0, 44), seq(0,44,by=2)) +

  geom_histogram(aes(x=p1$ki67pro), colour="#222a37", fill="#222a37", bins=40, alpha=0.30)  +
  geom_histogram(aes(x=p2$ki67pro), colour="dodgerblue2", fill="dodgerblue2", bins=40, alpha=0.35) +
  geom_histogram(aes(x=p3$ki67pro), colour="darkred", fill="darkred", bins=40, alpha=0.35) +

  geom_density(aes(x=p$ki67pro, y=..count..), colour="orange", fill="white", alpha=0)  +
  geom_hline(yintercept=0, colour="white", size=0.9)

q

谢谢你，C.

Answer 1

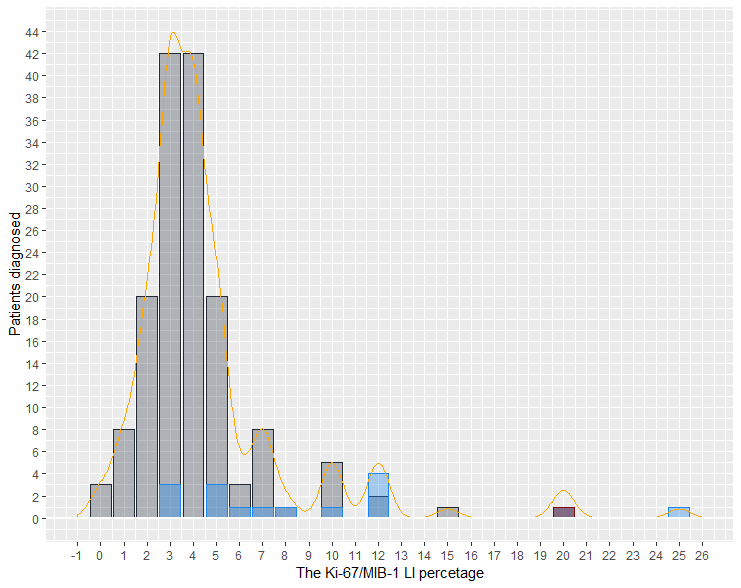

离开我的注释，将geom_hist替换为geom_bar并删除bin参数将得到如下结果：

​

​
