gitlab-runner，将作业卡在创建模式中(500个内部服务器错误)

Question

我有一个我无法独自解决的问题。我花了一天的时间，在创造这张票之前，我试着自己找到一个解决方案。

上下文：

• 我使用最新版本的Gitlab建议：sameersbn / gitlab: 11.5.1
• 我让一个跑步者进入了一个码头容器：gitlab / gitlab-runner: alpine
• 我使用特雷菲克

所有的一切都要归功于码头编剧。

步骤：

1. 我把所有的集装箱都装上了
2. 我记录了一个跑步者(下面可见的命令)

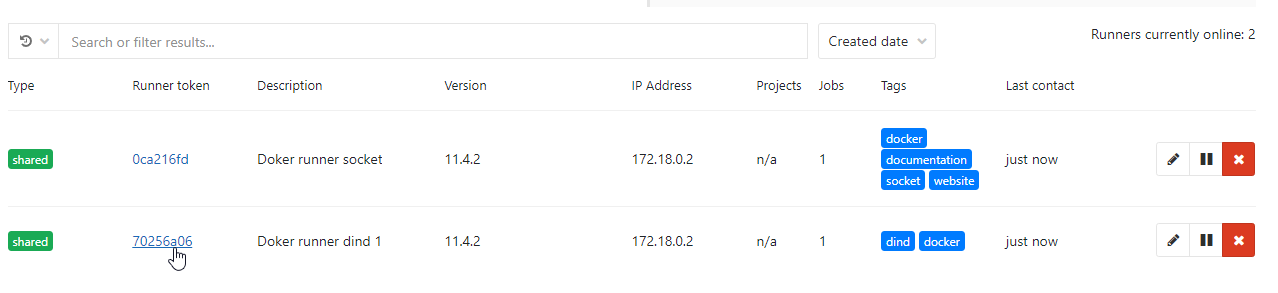

3. 我在管理员中注意到，我的跑步者在gitlab：/ admin / runners中有很好的记录

​

​

1. 我运行一个管道，作业被阻塞:/

​

​

​

​

我尝试了一切:更新gitlab -更新运行程序并使用以前的版本-将运行程序从gitlab网络中移除-.

详细信息：

我的Traefik docker-compose.yml

version: '2'

services:
  proxy:
    image: traefik:alpine
    container_name: traefik
    networks:
      - traefik
    ports:
      - "80:80"
      - "8080:8080"
      - "443:443"
    volumes:
      - /data/traefik/traefik.toml:/etc/traefik/traefik.toml
      - /data/traefik/acme:/etc/traefik/acme
      - /var/run/docker.sock:/var/run/docker.sock
    restart: unless-stopped
    labels:
      - "traefik.frontend.rule=Host:traefik.mydomain.com"
      - "traefik.port=8080"
      - "traefik.backend=traefik"
      - "traefik.frontend.entryPoints=http,https"

  portainer:
    image: portainer/portainer
    container_name: portainer
    networks:
      - traefik
    labels:
      - "traefik.frontend.rule=Host:portainer.mydomain.com"
      - "traefik.port=9000"
      - "traefik.backend=portainer"
      - "traefik.frontend.entryPoints=http,https"
    volumes:
        - /var/run/docker.sock:/var/run/docker.sock
    restart: unless-stopped

networks:
  traefik:
    external:
      name: traefik

我的Gitlab码头-Compose.yml：

version: '2'

services:
  redis:
    restart: always
    image: sameersbn/redis:4.0.9-1
    container_name: gitlab-redis
    command:
      - --loglevel warning
    networks:
      - gitlab
    volumes:
      - /data/gitlab/redis:/var/lib/redis:Z
    labels:
      - "traefik.enable=false"

  postgresql:
    restart: always
    image: sameersbn/postgresql:10
    container_name: gitlab-postgresql
    networks:
      - gitlab
    volumes:
      - /data/gitlab/postgresql:/var/lib/postgresql:Z
    environment:
      - DB_USER=gitlab
      - DB_PASS=password
      - DB_NAME=gitlabhq_production
      - DB_EXTENSION=pg_trgm
    labels:
      - "traefik.enable=false"

  registry:
    image: registry:2
    container_name: gitlab-registry
    restart: always
    expose:
        - "5000"
    ports:
        - "5000:5000"
    networks:
      - gitlab
      - traefik
    volumes:
        - /data/gitlab/registry:/registry
        - /data/gitlab/certs:/certs
    labels:
      - traefik.port=5000
      - traefik.frontend.rule=Host:registry.mydomain.com
      - traefik.frontend.auth.basic=mydomain:fd9ef338f7de0f196c5409a668102b9a
    environment:
        - REGISTRY_LOG_LEVEL=error
        - REGISTRY_STORAGE_FILESYSTEM_ROOTDIRECTORY=/registry
        - REGISTRY_AUTH_TOKEN_REALM=https://gitlab.mydomain.com/jwt/auth
        - REGISTRY_AUTH_TOKEN_SERVICE=container_registry
        - REGISTRY_AUTH_TOKEN_ISSUER=gitlab-issuer
        - REGISTRY_AUTH_TOKEN_ROOTCERTBUNDLE=/certs/registry.crt
        - REGISTRY_STORAGE_DELETE_ENABLED=true

  gitlab-runner:
    image: gitlab/gitlab-runner:alpine
    container_name: gitlab-runner
    restart: always
    depends_on:
      - gitlab
    networks:
      - gitlab
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /data/gitlab-runner:/etc/gitlab-runner:Z
    environment:
      - CI_SERVER_URL=https://gitlab.mydomain.com/
      - REGISTRATION_TOKEN=FzZtgyN1cAMzoYne89ts
    labels:
      - "traefik.enable=false"

  gitlab:
    restart: always
    image: sameersbn/gitlab:11.5.1
    container_name: gitlab-ce
    depends_on:
      - redis
      - postgresql
      - registry
    ports:
      - "10080:80"
      - "10022:22"
    networks:
      - gitlab
      - traefik
    volumes:
      - /data/gitlab/gitlab:/home/git/data:Z
      - /data/gitlab/certs:/certs
    environment:
      - DEBUG=false

      - DB_ADAPTER=postgresql
      - DB_HOST=postgresql
      - DB_PORT=5432
      - DB_USER=gitlab
      - DB_PASS=password
      - DB_NAME=gitlabhq_production

      - REDIS_HOST=redis
      - REDIS_PORT=6379

      - TZ=Europe/Paris
      - GITLAB_TIMEZONE=Paris

      - GITLAB_HTTPS=true
      - SSL_SELF_SIGNED=false

      - GITLAB_HOST=gitlab.mydomain.com
      - GITLAB_PORT=
      - GITLAB_SSH_PORT=10022
      - GITLAB_RELATIVE_URL_ROOT=
      - GITLAB_SECRETS_DB_KEY_BASE=w58HODDUerP7YOuAbt9heD9j6s80P5A8POUdsd4wHeh7tLU8wdSG0noq2LsRnvqsff9btHJDovejeTMWflg78tvKqT7y9omqVTvh
      - GITLAB_SECRETS_SECRET_KEY_BASE=w58HODDUerP7YOuAbt9heD9j6s80P5A8POUdsd4wHeh7tLU8wdSG0noq2LsRnvqsff9btHJDovejeTMWflg78tvKqT7y9omqVTvh
      - GITLAB_SECRETS_OTP_KEY_BASE=w58HODDUerP7YOuAbt9heD9j6s80P5A8POUdsd4wHeh7tLU8wdSG0noq2LsRnvqsff9btHJDovejeTMWflg78tvKqT7y9omqVTvh

      - GITLAB_ROOT_PASSWORD=
      - GITLAB_ROOT_EMAIL=

      - GITLAB_NOTIFY_ON_BROKEN_BUILDS=true
      - GITLAB_NOTIFY_PUSHER=false

      - GITLAB_EMAIL=notifications@example.com
      - GITLAB_EMAIL_REPLY_TO=noreply@example.com
      - GITLAB_INCOMING_EMAIL_ADDRESS=reply@example.com

      - GITLAB_BACKUP_SCHEDULE=daily
      - GITLAB_BACKUP_TIME=01:00

      - SMTP_ENABLED=false
      - SMTP_DOMAIN=www.example.com
      - SMTP_HOST=smtp.gmail.com
      - SMTP_PORT=587
      - SMTP_USER=mailer@example.com
      - SMTP_PASS=password
      - SMTP_STARTTLS=true
      - SMTP_AUTHENTICATION=login

      - IMAP_ENABLED=false
      - IMAP_HOST=imap.gmail.com
      - IMAP_PORT=993
      - IMAP_USER=mailer@example.com
      - IMAP_PASS=password
      - IMAP_SSL=true
      - IMAP_STARTTLS=false

      - OAUTH_ENABLED=false
      - OAUTH_AUTO_SIGN_IN_WITH_PROVIDER=
      - OAUTH_ALLOW_SSO=
      - OAUTH_BLOCK_AUTO_CREATED_USERS=true
      - OAUTH_AUTO_LINK_LDAP_USER=false
      - OAUTH_AUTO_LINK_SAML_USER=false
      - OAUTH_EXTERNAL_PROVIDERS=

      - OAUTH_CAS3_LABEL=cas3
      - OAUTH_CAS3_SERVER=
      - OAUTH_CAS3_DISABLE_SSL_VERIFICATION=false
      - OAUTH_CAS3_LOGIN_URL=/cas/login
      - OAUTH_CAS3_VALIDATE_URL=/cas/p3/serviceValidate
      - OAUTH_CAS3_LOGOUT_URL=/cas/logout

      - OAUTH_GOOGLE_API_KEY=
      - OAUTH_GOOGLE_APP_SECRET=
      - OAUTH_GOOGLE_RESTRICT_DOMAIN=

      - OAUTH_FACEBOOK_API_KEY=
      - OAUTH_FACEBOOK_APP_SECRET=

      - OAUTH_TWITTER_API_KEY=
      - OAUTH_TWITTER_APP_SECRET=

      - OAUTH_GITHUB_API_KEY=
      - OAUTH_GITHUB_APP_SECRET=
      - OAUTH_GITHUB_URL=
      - OAUTH_GITHUB_VERIFY_SSL=

      - OAUTH_GITLAB_API_KEY=
      - OAUTH_GITLAB_APP_SECRET=

      - OAUTH_BITBUCKET_API_KEY=
      - OAUTH_BITBUCKET_APP_SECRET=

      - OAUTH_SAML_ASSERTION_CONSUMER_SERVICE_URL=
      - OAUTH_SAML_IDP_CERT_FINGERPRINT=
      - OAUTH_SAML_IDP_SSO_TARGET_URL=
      - OAUTH_SAML_ISSUER=
      - OAUTH_SAML_LABEL="Our SAML Provider"
      - OAUTH_SAML_NAME_IDENTIFIER_FORMAT=urn:oasis:names:tc:SAML:2.0:nameid-format:transient
      - OAUTH_SAML_GROUPS_ATTRIBUTE=
      - OAUTH_SAML_EXTERNAL_GROUPS=
      - OAUTH_SAML_ATTRIBUTE_STATEMENTS_EMAIL=
      - OAUTH_SAML_ATTRIBUTE_STATEMENTS_NAME=
      - OAUTH_SAML_ATTRIBUTE_STATEMENTS_FIRST_NAME=
      - OAUTH_SAML_ATTRIBUTE_STATEMENTS_LAST_NAME=

      - OAUTH_CROWD_SERVER_URL=
      - OAUTH_CROWD_APP_NAME=
      - OAUTH_CROWD_APP_PASSWORD=

      - OAUTH_AUTH0_CLIENT_ID=
      - OAUTH_AUTH0_CLIENT_SECRET=
      - OAUTH_AUTH0_DOMAIN=

      - OAUTH_AZURE_API_KEY=
      - OAUTH_AZURE_API_SECRET=
      - OAUTH_AZURE_TENANT_ID=

      - GITLAB_REGISTRY_ENABLED=true
      - GITLAB_REGISTRY_HOST=registry.mydomain.com
      - GITLAB_REGISTRY_API_URL=http://localhost:5000
      - GITLAB_REGISTRY_KEY_PATH=/certs/registry.key
      - GITLAB_REGISTRY_ISSUER=gitlab-issuer
    labels:
      - "traefik.frontend.rule=Host:gitlab.mydomain.com"
      - "traefik.port=80"
      - "traefik.backend=gitlab"
      - "traefik.frontend.entryPoints=http,https"
      - "traefik.docker.network=traefik"

networks:
  gitlab:
    driver: bridge
  traefik:
    external:
      name: traefik

命令注册我的跑步者：

docker exec -it gitlab-runner gitlab-runner register \
  --non-interactive \
  --name "Doker runner dind 1" \
  --url "https://gitlab.mydomain.com/" \
  --registration-token "FzZtgyN1cAMzoYne89ts" \
  --env "COMPOSER_CACHE_DIR=/cache" \
  --env "GIT_SSL_NO_VERIFY=true" \
  --env "DOCKER_DRIVER=overlay2" \
  --executor "docker" \
  --docker-image docker:stable-dind \
  --docker-privileged="true" \
  --docker-volumes /var/run/docker.sock:/var/run/docker.sock \
  --docker-volumes /cache \
  --tag-list "docker,dind" \
  --run-untagged \
  --locked="false"

Answer 1

根据我的笔记，500出现在Gitlab-Runner中并不能说明什么。它只是重复了从workhorse接收到的错误，它破坏了真正的消息，这是4XX从gitaly或linguist到500的一些变体。第一个要检查的日志是production.log日志，但这似乎只记录了workhorse发出的500错误，因此您必须得到一个更深的级别并扫描您的workhorse.log。

吉塔利

检查workhorse.log是否存在gitaly和workhorse之间的版本不匹配。我记得这两个应用程序都有相似的版本号是很关键的，有一个表可以检查，因为这说明了他们理解哪些协议。

语言学家

这是我遇到的一个非常模糊的问题。基本上，用于运行Gitaly的Ruby版本和Gitaly用于运行gitaly-ruby的Ruby版本(它在内部产生的子进程)是不同的。这显然是由神秘的信息所指示的。

time="2017-12-04T18:11:34+02:00" level=fatal msg="load config" config_path=/etc/gitaly/config.toml error="load linguist colors: exit status 1; stderr: \"/usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/definition.rb:179:in `rescue in specs': Your bundle is locked to rake (12.1.0), but that version could not be found in any of the sources listed in your Gemfile. If you haven't changed sources, that means the author of rake (12.1.0) has removed it. You'll need to update your bundle to a different version of rake (12.1.0) that hasn't been removed in order to install. (Bundler::GemNotFound)\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/definition.rb:173:in `specs'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/definition.rb:233:in `specs_for'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/definition.rb:222:in `requested_specs'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/runtime.rb:118:in `block in definition_method'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/runtime.rb:19:in `setup'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler.rb:99:in `setup'\\n\\tfrom /usr/lib64/ruby/gems/2.3.0/gems/bundler-1.13.7/lib/bundler/setup.rb:20:in `<top (required)>'\\n\\tfrom /usr/lib64/ruby/site_ruby/2.3.0/rubygems/core_ext/kernel_require.rb:55:in `require'\\n\\tfrom /usr/lib64/ruby/site_ruby/2.3.0/rubygems/core_ext/kernel_require.rb:55:in `require'\\n\""
time="2017-12-04T18:17:54+02:00" level=info msg="Starting Gitaly" version="Gitaly, version 0.52.0, built 20171204.135804"

注意：

请记住，我的笔记是针对Gentoo的，Gentoo是一种不同版本的GitlabHQ ，因此可能也可能不适用于您的情况。请在您发现更多信息时更新您的问题，因为我的笔记中可能有与您的问题相关的更多信息。
