我的数学看起来很好，但是我的画线看起来很奇怪。[六角网格]

Question

我想我只是需要一双全新的眼睛来看这个。或者是因为我的数字不够具体。我是编程初学者，我唯一的预感是递归。

​

​

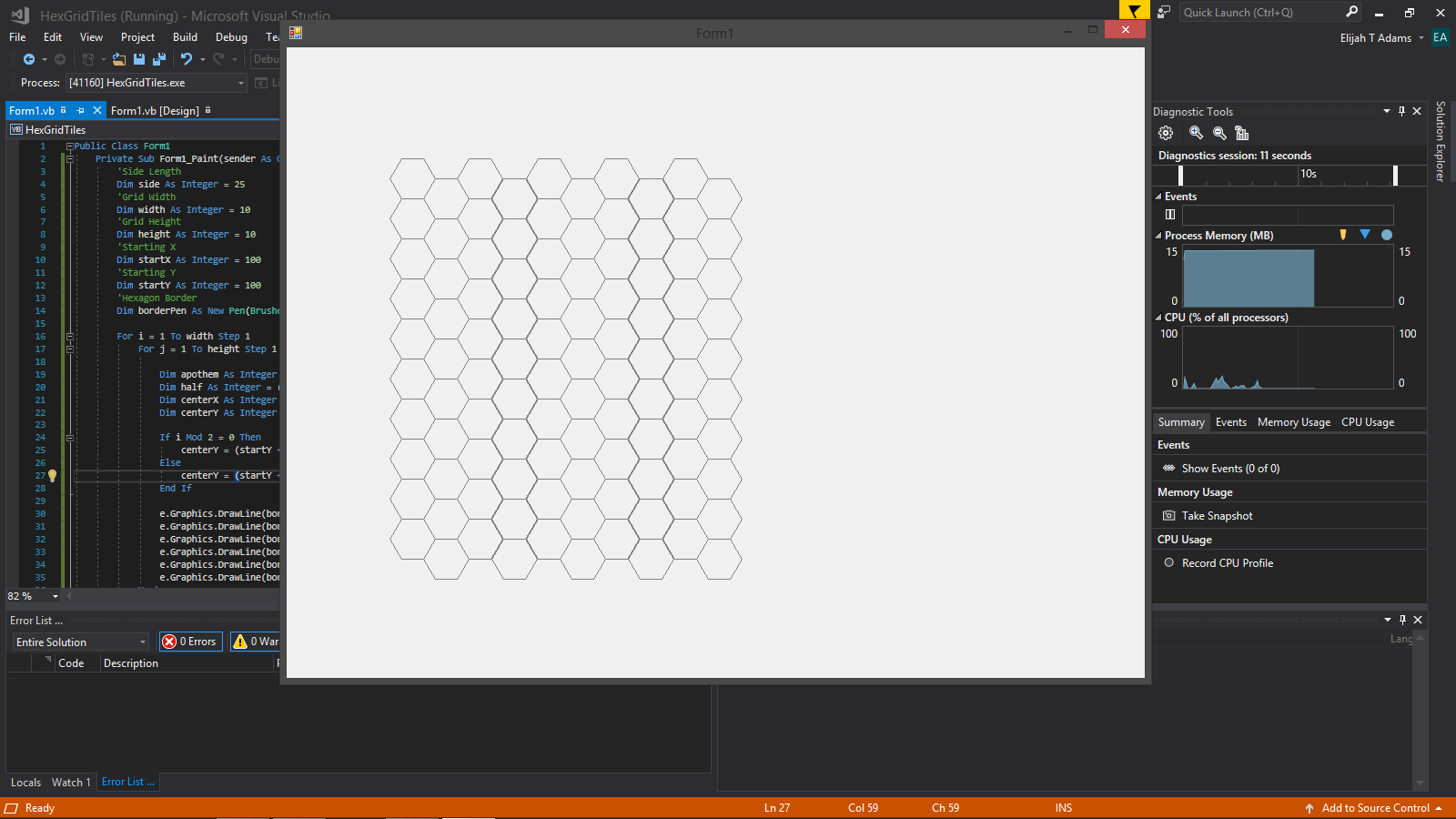

本质上，我的六边形在某些行中的位置不正确，但其他行不正确，我希望它们都是光滑的。

Public Class Form1
    Private Sub Form1_Paint(sender As Object, e As PaintEventArgs) Handles Me.Paint
        'Side Length
        Dim side As Integer = 25
        'Grid Width
        Dim width As Integer = 10
        'Grid Height
        Dim height As Integer = 10
        'Starting X
        Dim startX As Integer = 100
        'Starting Y
        Dim startY As Integer = 100
        'Hexagon Border
        Dim borderPen As New Pen(Brushes.Gray, 1)

        For i = 1 To width Step 1
            For j = 1 To height Step 1

                Dim apothem As Integer = (Math.Sqrt(3) * side / 2)
                Dim half As Integer = (side / 2)
                Dim centerX As Integer = (startX + (side * i * 1.5))
                Dim centerY As Integer = (startY + (apothem * j * 2))

                If i Mod 2 = 0 Then
                    centerY += apothem
                End If

                e.Graphics.DrawLine(borderPen, (centerX - half), (centerY + apothem), (centerX + half), (centerY + apothem))
                e.Graphics.DrawLine(borderPen, (centerX + half), (centerY + apothem), (centerX + side), (centerY))
                e.Graphics.DrawLine(borderPen, (centerX + side), (centerY), (centerX + half), (centerY - apothem))
                e.Graphics.DrawLine(borderPen, (centerX + half), (centerY - apothem), (centerX - half), (centerY - apothem))
                e.Graphics.DrawLine(borderPen, (centerX - half), (centerY - apothem), (centerX - side), (centerY))
                e.Graphics.DrawLine(borderPen, (centerX - side), (centerY), (centerX - half), (centerY + apothem))
            Next
        Next
    End Sub
End Class

Answer 1

我已经修改了你们的建议，并修正了我的错误。我没有使用正确的数据类型。此外，我使用e.Graphics.Drawlines和StockObject提示笔和处理它们。再次谢谢！

https://imgur.com/B37MDwB

如果我可以对我的代码进行任何其他改进，请随意评论它们。

Option Strict On
Imports System.Drawing.Drawing2D

Public Class Form1
    Private Sub Form1_Paint(sender As Object, e As PaintEventArgs) Handles
Me.Paint
        'Side Length
        Dim side As Single = 30
        'Grid Width
        Dim width As Single = 10
        'Grid Height
        Dim height As Single = 5
        'Starting X
        Dim startX As Single = 0
        'Starting Y
        Dim startY As Single = 0

        e.Graphics.SmoothingMode = SmoothingMode.AntiAlias
        e.Graphics.PixelOffsetMode = PixelOffsetMode.Half

        Dim apothem As Single = CSng(Math.Sqrt(3) * side / 2.0F)
        Dim half As Single = (side / 2)

        For i = 1 To width Step 1
            For j = 1 To height Step 1
                Dim centerX As Single = (startX + (side * i * 1.5F))
                Dim centerY As Single = (startY + (apothem * j * 2))

                If i Mod 2 = 0 Then
                    centerY += apothem
                End If

                Dim points As New List(Of PointF)

                points.Add(New PointF((centerX - half), (centerY + apothem)))
                points.Add(New PointF((centerX + half), (centerY + apothem)))
                points.Add(New PointF((centerX + side), (centerY)))
                points.Add(New PointF((centerX + half), (centerY - apothem)))
                points.Add(New PointF((centerX - half), (centerY - apothem)))
                points.Add(New PointF((centerX - side), (centerY)))
                points.Add(New PointF((centerX - half), (centerY + apothem)))

                e.Graphics.DrawLines(Pens.Gray, points.ToArray())
            Next
        Next
    End Sub
End Class
