定制化igraph

Question

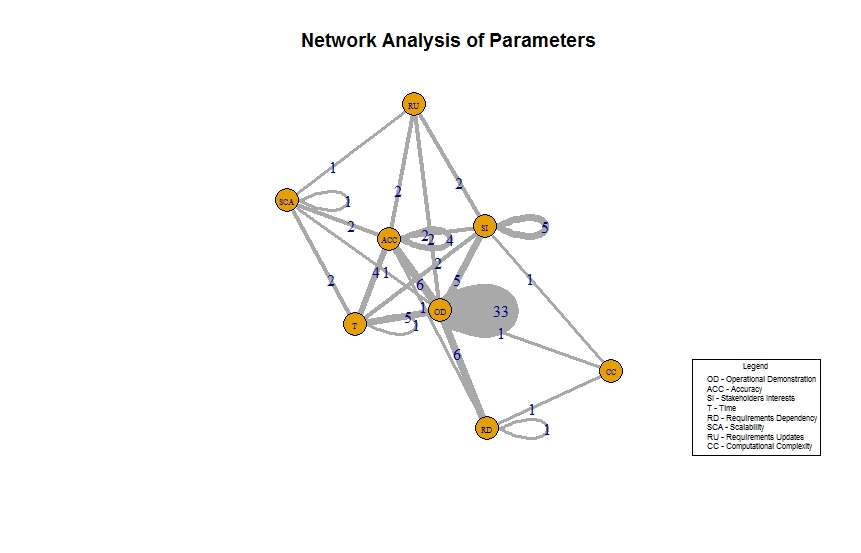

我生成了一个无向加权网络图，如下所示：

​

​

然而，它看上去并不整洁，节点是否可以以圆形的方式排列，以使它看起来更整洁和清晰？还有什么方法可以增加图例的大小并使其出现在中间的底部？

这方面的R代码如下：

library(igraph)
setwd('C:/Users/malsa876/Desktop/RTest')
    a <-c(33,6,5,5,6,1,2,1,0,4,2,4,1,2,2,0,0,0,5,0,0,0,2,1,0,0,2,1,0,2,0,0,0,0,0,0,1,0,0,1,0,1,0,1,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0)
    class(a)
    dim(a) <- c(8,8)
    #l <-layout.reingold.tilford(g)
    a
    # create igraph object.
    g <- graph.adjacency(a, mode="undirected", weighted=TRUE)
    V(g)$label.cex <- 0.5
    V(g)$name<-c("OD", "ACC", "SI", "T", "RD","SCA", "RU", "CC")
    plot(g,main = 'Network Analysis of Interlinked Dimensions',edge.label=round(E(g)$weight, 3),vertex.label = V(g)$name)
    legend("bottomright", c("OD - Operational Demonstration", "ACC - Accuracy", "SI - Stakeholders Interests",  "T - Time", "RD - Requirements Dependency","SCA - Scalability","RU - Requirements Updates","CC - Computational Complexity"),cex=0.5,title = 'Legend')
    V(g)$label.cex <- 0.5
    V(g)$name<-c("OD", "ACC", "SI", "T", "RD","SCA", "RU", "CC")
    d<-V(g)$label
    E(g)$width <- E(g)$weight + min(E(g)$weight) + 1 # offset=1
    plot(g,main = 'Network Analysis of Parameters',edge.label=round(E(g)$weight, 3),vertex.label = V(g)$name)
    legend("bottomright", c("OD - Operational Demonstration", "ACC - Accuracy", "SI - Stakeholders Interests",  "T - Time", "RD - Requirements Dependency","SCA - Scalability","RU - Requirements Updates","CC - Computational Complexity"),cex=0.5,title = 'Legend')

Answer 1

您可以通过构建自己的布局来实现这一点。

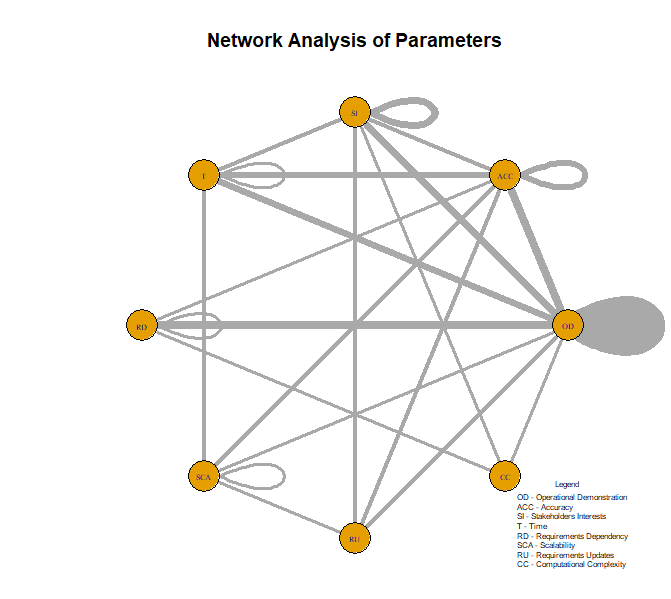

首先，要获得一个纯粹的循环布局，您可以使用：

LO1 = matrix(c(cos((0:7)*2*pi/8), sin((0:7)*2*pi/8)),ncol=2)
plot(g,main = 'Network Analysis of Parameters', layout=LO1)
    edge.label=round(E(g)$weight, 3),vertex.label = V(g)$name)
legend("bottomright", c("OD - Operational Demonstration",
    "ACC - Accuracy", "SI - Stakeholders Interests",
    "T - Time", "RD - Requirements Dependency",
    "SCA - Scalability","RU - Requirements Updates",
    "CC - Computational Complexity"),cex=0.5,title = 'Legend',
    bty="n")

​

​

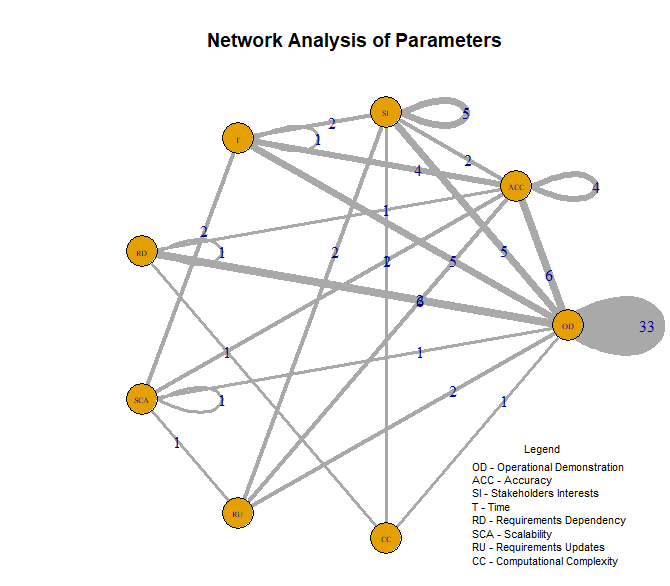

请注意，我使用bty="n"为传奇腾出了一点额外空间。但这只给传奇留下了一点空间。另一种方法是在右下角的图例布局中留出一些额外的空间。然后你可以把字体做大一点。

LO2 = matrix(c(cos((0:7)*2*pi/9), sin((0:7)*2*pi/9)),ncol=2)
plot(g,main = 'Network Analysis of Parameters', layout=LO2,
    edge.label=round(E(g)$weight, 3),vertex.label = V(g)$name)
legend("bottomright", c("OD - Operational Demonstration",
    "ACC - Accuracy", "SI - Stakeholders Interests",
    "T - Time", "RD - Requirements Dependency",
    "SCA - Scalability","RU - Requirements Updates",
    "CC - Computational Complexity"),cex=0.7,title = 'Legend',
    bty="n")

​

​
