CALayer自动布局

Question

我正在尝试创建两个层叠在一起的层，它们都在一个自定义视图类中。

图层的绘图工作得很好，但我无法让它们根据视图的位置来调整它们的位置，该视图是使用自动布局设置的，视图是在代码中创建的(无IB)。

我尝试过通过调用layoutSubviews来更改层的框架，这里是try的代码。

import UIKit

class ProgressView: UIView {

    let displayLayer:  CAShapeLayer = {
        let display = CAShapeLayer()
        display.strokeColor = UIColor.red.cgColor
        display.lineWidth = 8.0
        display.lineCap = CAShapeLayerLineCap.round
        display.fillColor = UIColor.clear.cgColor
        display.strokeEnd = 0.5

        return display
    }()

    let trackLayer: CAShapeLayer = {
        let track = CAShapeLayer()

        track.strokeColor = UIColor.lightGray.cgColor
        track.lineWidth = 6.0
        track.lineCap = CAShapeLayerLineCap.round
        track.fillColor = UIColor.clear.cgColor

        return track
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)

        let progressCircle = UIBezierPath(arcCenter: .zero, radius: 50, startAngle: 0, endAngle: CGFloat.pi * 2, clockwise: true)

        displayLayer.path = progressCircle.cgPath
        trackLayer.path = progressCircle.cgPath

        layer.addSublayer(trackLayer)
        layer.addSublayer(displayLayer)
    }

    required init?(coder aDecoder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    override func layoutSubviews() {
        super.layoutSubviews()

        displayLayer.frame = bounds
        trackLayer.frame = bounds
    }
}

经过一些研究之后，我还尝试了KVO方法，并使用了以下代码：

import UIKit

class ProgressView: UIView {
    let displayLayer:  CAShapeLayer = {
        let display = CAShapeLayer()

        display.strokeColor = UIColor.red.cgColor
        display.lineWidth = 8.0
        display.lineCap = CAShapeLayerLineCap.round
        display.fillColor = UIColor.clear.cgColor
        display.strokeEnd = 0.5

        return display
    }()

    let trackLayer: CAShapeLayer = {
        let track = CAShapeLayer()

        track.strokeColor = UIColor.lightGray.cgColor
        track.lineWidth = 6.0
        track.lineCap = CAShapeLayerLineCap.round
        track.fillColor = UIColor.clear.cgColor

        return track
    }()

    override init(frame: CGRect) {
        super.init(frame: frame)

        let progressCircle = UIBezierPath(arcCenter: .zero, radius: 50, startAngle: 0, endAngle: CGFloat.pi * 2, clockwise: true)

        displayLayer.path = progressCircle.cgPath
        trackLayer.path = progressCircle.cgPath

        layer.addSublayer(trackLayer)
        layer.addSublayer(displayLayer)

        self.addObserver(self, forKeyPath: #keyPath(ProgressView.bounds), options: .new, context: nil)
    }

    required init?(coder aDecoder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    override func observeValue(forKeyPath keyPath: String?, of object: Any?, change: [NSKeyValueChangeKey : Any]?, context: UnsafeMutableRawPointer?) {
        if keyPath == #keyPath(ProgressView.bounds) {
            displayLayer.frame = self.bounds
            trackLayer.frame = self.bounds
        }
    }
}

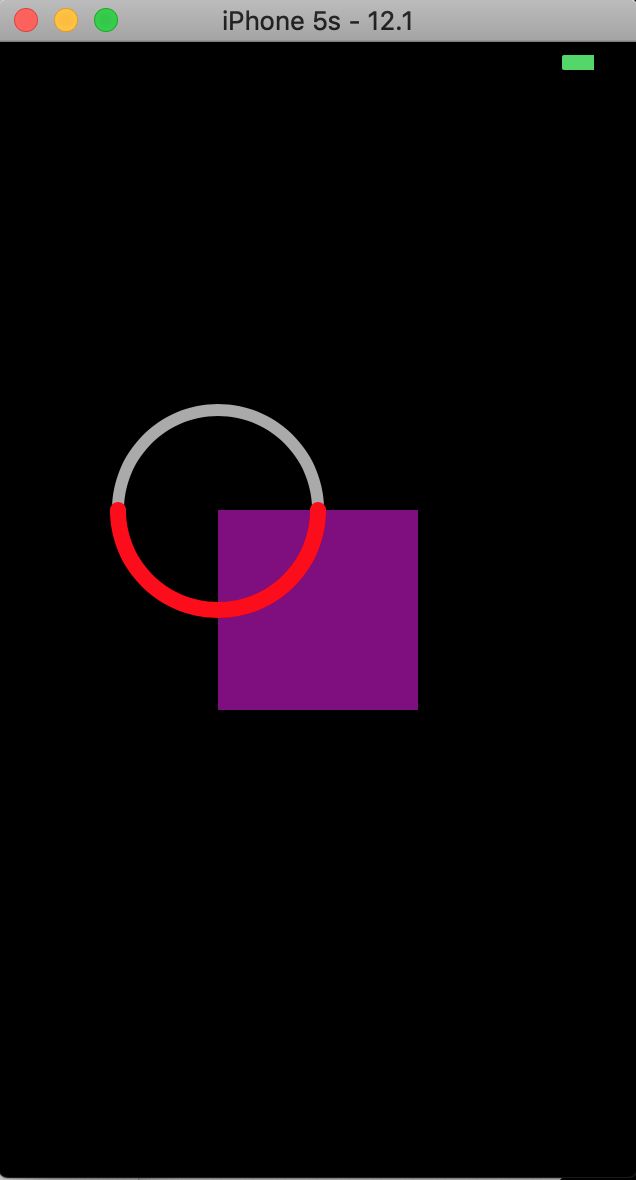

对于每个示例，我都会得到相同的结果，如下所示。请注意，紫色的盒子是ProgressView，在那里，我期望两个层在里面。

我一直在看这个，认为有一些简单的东西，我错过或做错了，我只是看不见它。

我在observeValue和layoutSubviews中都放置了print语句，以确保它们被调用了，并且这是有效的。

以下是我所看到的：

​

提前谢谢。

Answer 1

您需要如下所示提供正确的arcCenter，而不需要为shapLayer设置一个frame。

override func layoutSubviews() {
    super.layoutSubviews()

    let center = CGPoint(x: bounds.midX, y: bounds.midY)
    let progressCircle = UIBezierPath(arcCenter: center, radius: 50, startAngle: 0, endAngle: CGFloat.pi * 2, clockwise: true)

    displayLayer.path = progressCircle.cgPath
    trackLayer.path = progressCircle.cgPath
}

结果

​

​

注意：我使用了第一个没有KVO的ProgressView类。
