使用GraphicsPath正确绘制文本

Question

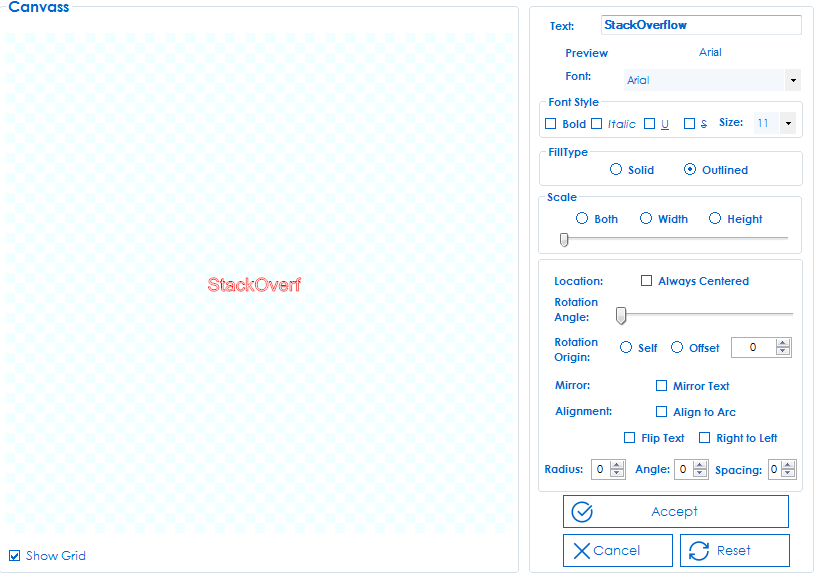

正如您在下面的图片中所看到的，PictureBox上的文本与TextBox中的文本不同。如果我使用Graphics.DrawString()，它可以正常工作，但是当我使用Graphics路径时，它会截断，并且不会显示整个文本。你认为我的代码有什么不对？

​

​

这是我的代码：

public LayerClass DrawString(LayerClass.Type _text, string text, RectangleF rect, Font _fontStyle, PaintEventArgs e)
{
    using (StringFormat string_format = new StringFormat())
    {
        rect.Size = e.Graphics.MeasureString(text, _fontStyle);
        rect.Location = new PointF(Shape.center.X - (rect.Width / 2), Shape.center.Y - (rect.Height / 2));
        if(isOutlinedOrSolid)
        {
            using (GraphicsPath path = new GraphicsPath())
            {
                path.AddString(text, _fontStyle.FontFamily, (int)_fontStyle.Style, rect.Size.Height, rect, string_format);
                e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
                e.Graphics.CompositingQuality = CompositingQuality.HighQuality;
                e.Graphics.CompositingMode = CompositingMode.SourceOver;
                e.Graphics.DrawPath(new Pen(Color.Red, 1), path);
            }
        }
        else
        {
            e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
            e.Graphics.CompositingQuality = CompositingQuality.HighQuality;
            e.Graphics.CompositingMode = CompositingMode.SourceOver;
            e.Graphics.DrawString(text,_fontStyle,Brushes.Red, rect.Location);
        }
    }

    this._Text = text;
    this._TextRect = rect;
    return new LayerClass(_text, this, text, rect);
}

Answer 1

似乎你是提供错误的字体大小在第一位，然后添加额外的厚度到刷子。试一试：

using (GraphicsPath path = new GraphicsPath())
{
    path.AddString(
        text,
        _fontStyle.FontFamily,
        (int)_fontStyle.Style,
        e.Graphics.DpiY * fontSize / 72f,       // em size
        new Point(0, 0),                       // location where to draw text
        string_format);

    e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
    e.Graphics.CompositingQuality = CompositingQuality.HighQuality;
    e.Graphics.CompositingMode = CompositingMode.SourceOver;
    e.Graphics.DrawPath(new Pen(Color.Red), path);
}

Answer 2

GraphicsPath类以不同的方式计算文本对象的大小(正如注释中已经指出的那样)。文本大小使用Ems边界矩形大小计算。

Em是一个独立于目标设备上下文的排版度量。

它指的是由字体最宽的字母占据的矩形，通常是字母"M“(发音为em)。

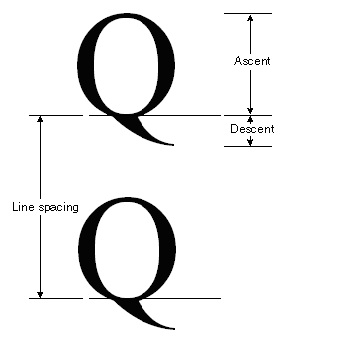

目标Em大小可以通过两种不同的方式计算:一种包括Font descent，另一种不包括它。

float EMSize = (Font.SizeInPoints * [FontFamily].GetCellAscent([FontStyle])
                                  / [FontFamily].GetEmHeight([FontStyle])

或

float EMSize = (Font.SizeInPoints *
               ([FontFamily].GetCellAscent([FontStyle] +
                [FontFamily.GetCellDescent([FontStyle])) /
                [FontFamily].GetEmHeight([FontStyle])

请参阅“文件”：

FontFamily.GetEmHeight、FontFamily.GetCellAscent和FontFamily.GetCellDescent

我在这里插入你可以在文档中找到的数字。

​

​

请参阅此处所载的一般资料：

使用字体和文本(MSDN)

本文件报告了如何翻译点、像素和Ems的具体内容：

如何:获取字体度量(MSDN)

我假设您已经有一个类对象，它包含/引用来自UI控件的字体设置和所需的调整。

我在这里添加一个属性，其中包含与问题相关的这些设置的子集。

此类根据用户选择的字体大小执行某些计算。

字体大小通常以点为单位引用。然后，使用当前屏幕DPI分辨率(或转换为像素维度的点)，以像素形式转换此度量值。每个度量都是在Ems中转换的，如果您必须使用GraphicsPath来绘制文本，这是很方便的。

计算Ems大小时考虑到字体的Ascent和Descent。

GraphicsPath类在这个度量中运行得更好，因为混合文本可以同时包含两个部分，如果没有，那么这个部分就是= 0。

若要计算使用特定字体和字体大小绘制的文本的容器框，请使用GraphicsPath.GetBounds()方法：

([Canvas]是提供Paint事件的e.Graphics对象的控件)

using (var path = new GraphicsPath())
using (var format = new StringFormat(StringFormatFlags.NoClip | StringFormatFlags.NoWrap))
{
    format.Alignment = [StringAlignment.Center/Near/Far]; //As selected
    format.LineAlignment = [StringAlignment.Center/Near/Far]; //As selected
    //Add the Text to the GraphicsPath
    path.AddString(fontObject.Text, fontObject.FontFamily,
                   (int)fontObject.FontStyle, fontObject.SizeInEms,
                   [Canvas].ClientRectangle, format);
    //Ems size (bounding rectangle)
    RectangleF textBounds = path.GetBounds(null, fontObject.Outline);
    //Location of the Text
    fontObject.Location = textBounds.Location;
}

在[Canvas]设备上下文中绘制文本：

private void Canvas_Paint(object sender, PaintEventArgs e)
{
    using (var path = new GraphicsPath())
    using (var format = new StringFormat(StringFormatFlags.NoClip | StringFormatFlags.NoWrap))
    {
        format.Alignment = [StringAlignment.Center/Near/Far]; //As selected
        format.LineAlignment = [StringAlignment.Center/Near/Far]; //As selected

        path.AddString(fontObject.Text, fontObject.FontFamily, (int)fontObject.FontStyle, fontObject.SizeInEms, Canvas.ClientRectangle, format);

        e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
        // When text is rendered directly
        e.Graphics.TextRenderingHint = TextRenderingHint.ClearTypeGridFit;
        // The composition properties are useful when drawing on a composited surface
        // It has no effect when drawing on a Control's plain surface
        e.Graphics.CompositingMode = CompositingMode.SourceOver;
        e.Graphics.CompositingQuality = CompositingQuality.HighQuality;

        if (fontObject.Outlined) {
            e.Graphics.DrawPath(fontObject.Outline, path);
        }
        using(var brush = new SolidBrush(fontObject.FillColor)) {
            e.Graphics.FillPath(brush, path);
        }
    }
}

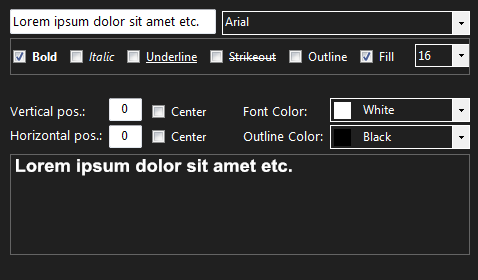

使用此类和相关方法的视觉效果：

​

​

类对象，用作引用：

public class FontObject
{
    private float currentScreenDPI = 0.0F;
    private float m_SizeInPoints = 0.0F;
    private float m_SizeInPixels = 0.0F;
    public FontObject()
        : this(string.Empty, FontFamily.GenericSansSerif, FontStyle.Regular, 18F) { }
    public FontObject(string text, Font font)
        : this(text, font.FontFamily, font.Style, font.SizeInPoints) { }
    public FontObject(string text, FontFamily fontFamily, FontStyle fontStyle, float FontSize)
    {
        if (FontSize < 3) FontSize = 3;
        using (Graphics g = Graphics.FromHwndInternal(IntPtr.Zero)) {
            currentScreenDPI = g.DpiY;
        }
        Text = text;
        FontFamily = fontFamily;
        SizeInPoints = FontSize;
        FillColor = Color.Black;
        Outline = new Pen(Color.Black, 1);
        Outlined = false;
    }

    public string Text { get; set; }
    public FontStyle FontStyle { get; set; }
    public FontFamily FontFamily { get; set; }
    public Color FillColor { get; set; }
    public Pen Outline { get; set; }
    public bool Outlined { get; set; }
    public float SizeInPoints {
        get => m_SizeInPoints;
        set {  m_SizeInPoints = value;
               m_SizeInPixels = (value * 72F) / currentScreenDPI;
               SizeInEms = GetEmSize();
        }
    }
    public float SizeInPixels {
        get => m_SizeInPixels;
        set {  m_SizeInPixels = value;
               m_SizeInPoints = (value * currentScreenDPI) / 72F;
               SizeInEms = GetEmSize();
        }
    }

    public float SizeInEms { get; private set; }
    public PointF Location { get; set; }
    public RectangleF DrawingBox { get; set; }

    private float GetEmSize()
    {
        return (m_SizeInPoints *
               (FontFamily.GetCellAscent(FontStyle) +
                FontFamily.GetCellDescent(FontStyle))) /
                FontFamily.GetEmHeight(FontStyle);
    }
}

ComboBox与字体家族

创建自定义ComboBox并设置其DrawMode = OwnerDrawVariable

string[] fontList = FontFamily.Families.Where(f => f.IsStyleAvailable(FontStyle.Regular)).Select(f => f.Name).ToArray();

cboFontFamily.DrawMode = DrawMode.OwnerDrawVariable;
cboFontFamily.AutoCompleteMode = AutoCompleteMode.SuggestAppend;
cboFontFamily.AutoCompleteSource = AutoCompleteSource.CustomSource;
cboFontFamily.AutoCompleteCustomSource.AddRange(fontList);
cboFontFamily.DisplayMember = "Name";
cboFontFamily.Items.AddRange(fontList);
cboFontFamily.Text = "Arial";

事件处理程序：

private void cboFontFamily_DrawItem(object sender, DrawItemEventArgs e)
{
    if ((cboFontFamily.Items.Count == 0) || e.Index < 0) return;
    e.DrawBackground();

    var flags = TextFormatFlags.Left | TextFormatFlags.VerticalCenter;
    using (var family = new FontFamily(cboFontFamily.GetItemText(cboFontFamily.Items[e.Index])))
    using (var font = new Font(family, 10F, FontStyle.Regular, GraphicsUnit.Point)) {
        TextRenderer.DrawText(e.Graphics, family.Name, font, e.Bounds, cboFontFamily.ForeColor, flags);
    }
    e.DrawFocusRectangle();
}

private void cboFontFamily_MeasureItem(object sender, MeasureItemEventArgs e)
{
    e.ItemHeight = (int)this.Font.Height + 4;
}

private void cboFontFamily_SelectionChangeCommitted(object sender, EventArgs e)
{
    fontObject.FontFamily = new FontFamily(cboFontFamily.GetItemText(cboFontFamily.SelectedItem));
    Canvas.Invalidate();
}
