基于geom_boxplot和facet_grid的Tukey测试结果

Question

我想把代表图基的HSD的结果的字母放在我用ggplot制作的盒子图上。我知道其他的帖子(Tukeys post-hoc on ggplot boxplot，Tukey's results on boxplot in R)，但在我的例子中，我与facet_grid一起工作，我不知道如何继续。由于我正在创建很多的盒子情节，我希望有一些自动化的东西。任何帮助我开始工作的建议都将不胜感激。非常感谢

library(multcompView)
library(ggplot2)
#sample dataframe
df <- data.frame(var_facet=c('facet1', 'facet1', 'facet1', 'facet1', 'facet1',
                             'facet1', 'facet1', 'facet1', 'facet1', 'facet1',
                             'facet2', 'facet2', 'facet2', 'facet2', 'facet2',
                             'facet2', 'facet2', 'facet2', 'facet2', 'facet2'),
                 class_x=c("Q1", "Q1", "Q1", "Q2", "Q2", "Q2", "Q3", "Q3", "Q3", "Q3",
                              "Q1", "Q1", "Q1", "Q2", "Q2", "Q2", "Q3", "Q3", "Q3", "Q3"),
                 value_y=c(12, 21, 35, 42, 56, 1, 4, 3, 4, 5, 2, 2, 2,
                           2, 2, 4, 4, 4, 4, 4))

#function
generate_label_df <- function(TUKEY, variable){

  # Extract labels and factor levels from Tukey post-hoc
  Tukey.levels <- variable[,4]
  Tukey.labels <- data.frame(multcompLetters(Tukey.levels)['Letters'])

  #I need to put the labels in the same order as in the boxplot :
  Tukey.labels$treatment=rownames(Tukey.labels)
  Tukey.labels=Tukey.labels[order(Tukey.labels$treatment) , ]
  return(Tukey.labels)
}

model=lm(value_y~class_x, data=df)
ANOVA=aov(model)
TUKEY <- TukeyHSD(ANOVA)
plot(TUKEY , las=1 , col="brown" )

labels <- generate_label_df(TUKEY , TUKEY$`class_x`)#generate labels using function

names(labels) <- c('Letters','class_x')#rename columns for merging

yvalue <- aggregate(.~class_x, data=df, mean)# obtain letter position for y axis using means

final <- merge(labels,yvalue) #merge dataframes

#ggplot with facet_grid
p <- ggplot(data=df, aes(class_x , value_y, fill=class_x))+
  geom_boxplot(outlier.shape = NA) +
  facet_grid(~var_facet)
p <- p +  scale_y_continuous(limits = quantile(df$value_y, c(0.1, 0.9), na.rm=T))
p <- p + theme_minimal()
p <- p + scale_fill_brewer(palette="Greens")
p <- p + theme(legend.position="none")
p <- p + theme(axis.text.x=element_text(angle=45, hjust=1))
p <- p + geom_text(data = final,
                   aes(x = class_x, y = value_y, label = Letters),
                   vjust=-3.5,hjust=-.5)
p

Answer 1

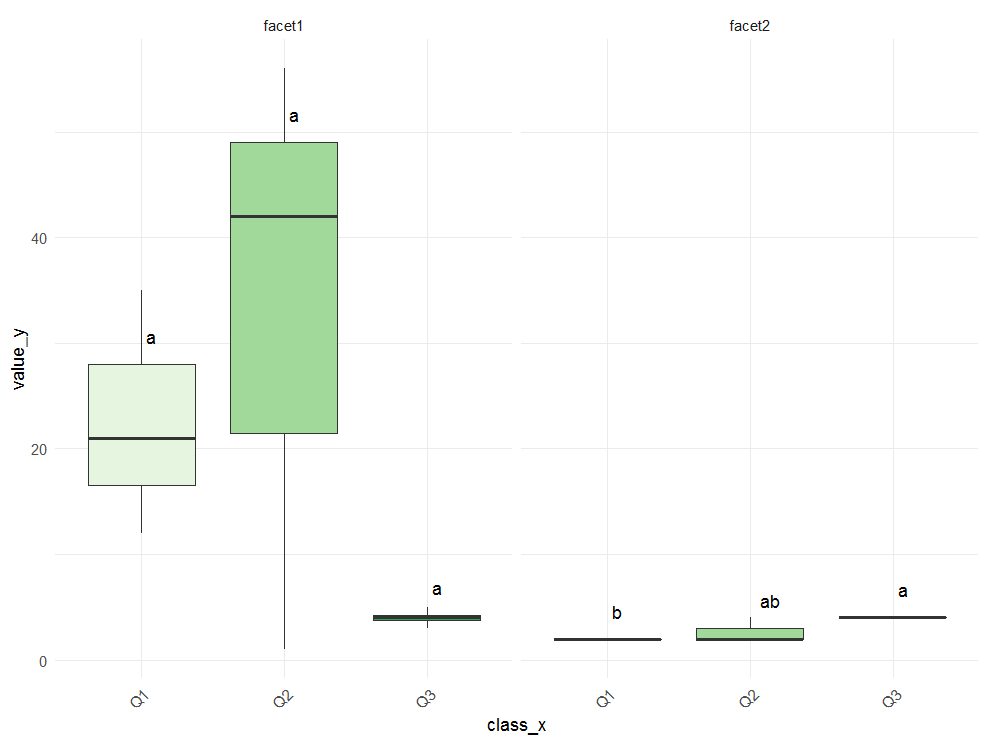

也许这就是你要找的。

p <- ggplot(data=df, aes(x=class_x , y=value_y, fill=class_x)) +
     geom_boxplot(outlier.shape=NA) +
     facet_grid(~var_facet) +
     scale_fill_brewer(palette="Greens") +
     theme_minimal() +
     theme(legend.position="none") +
     theme(axis.text.x=element_text(angle=45, hjust=1))

for (facetk in as.character(unique(df$var_facet))) {
  subdf <- subset(df, var_facet==facetk)
  model=lm(value_y ~ class_x, data=subdf)
  ANOVA=aov(model)
  TUKEY <- TukeyHSD(ANOVA)

  labels <- generate_label_df(TUKEY , TUKEY$`class_x`)
  names(labels) <- c('Letters','class_x')
  yvalue <- aggregate(.~class_x, data=subdf, quantile, probs=.75)
  final <- merge(labels, yvalue)
  final$var_facet <-  facetk

  p <- p + geom_text(data = final,  aes(x=class_x, y=value_y, label=Letters),
                   vjust=-1.5, hjust=-.5)
}
p

​

​
