quantmod::chart_Series()如何简化x轴标签？

Question

删除chart_Series()的x轴标签底部部分的正确方法是什么？

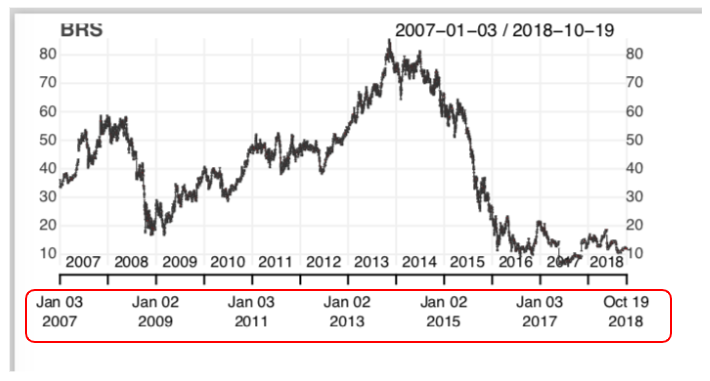

例如：我想删除“2007年1月3日.2018年10月19日”，但离开x轴以上的年份。

github链接：https://github.com/joshuaulrich/quantmod/issues/262

library(quantmod)
getSymbols("BRS")
pdf("foo.pdf")
par(mfrow = c( 4, 2 ) )
chart_Series(BRS)
dev.off()

​

​

其他一些注意事项：

1. 图表的顶部被稍微切断了。
2. 这条数据线横过x轴标签，因此2017年很难读懂。
3. 我想把右上角的标签格式化为“。”而不是“-”

Answer 1

这是我对它的看法。首先，右上角的文本是硬编码的，因此您需要修改函数才能修复这个问题。在您的控制台上键入：

plotquant <- fix("chart_Series")

在编辑器中更改以下内容(~第118行)：

 text.exp <- c(expression(text(1 - 1/3, 0.5, name, font = 2,
    col = "#444444", offset = 0, cex = 1.1, pos = 4)), expression(text(NROW(xdata[xsubset]),
    #the line you need to change is below
    0.5, paste(start(xdata[xsubset]), end(xdata[xsubset]),
      sep = " / "), col = 1, adj = c(0, 0), pos = 2)))

转入：

 text.exp <- c(expression(text(1 - 1/3, 0.5, name, font = 2,
    col = "#444444", offset = 0, cex = 1.1, pos = 4)), expression(text(NROW(xdata[xsubset]),
    0.5, paste(format(start(xdata[xsubset]), format = '%Y.%m.%d'),
               format(end(xdata[xsubset]), format = '%Y.%m.%d'),
      sep = " / "), col = 1, adj = c(0, 0), pos = 2)))

然后将函数设置为正确的命名空间(因此它通常在quantmod内工作)，并删除github链接中提到的图表元素的标签：

environment(plotquant) <- asNamespace("quantmod")
ct <- chart_theme()
ct$format.labels <- ' '

然后你就准备好策划：

plotquant(BRS, theme = ct)

​

​

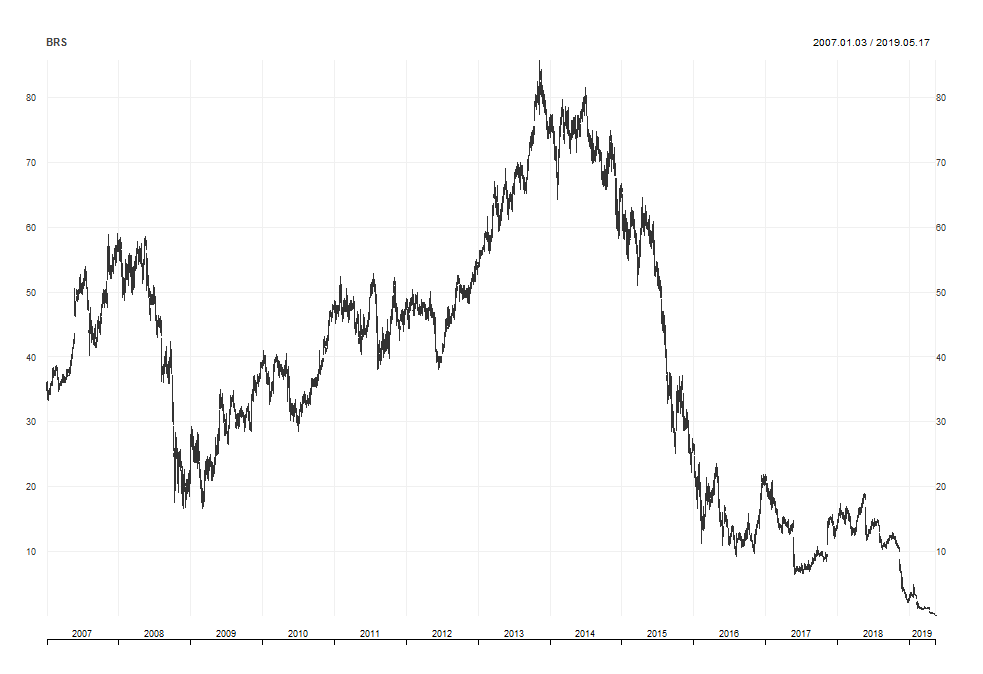

至于你的第1点和第2点，我认为这是因为你使用par(mfrow...来改变情节的边距(使它们都是相同的大小)。在我的照片中，你可以看到它看起来很棒。您可以使用layout而不是par(mfrow...来设置您自己的大小。检查?layout。

一些信贷：

从这个答案中得到了很多帮助：

Changes in plotting an XTS object

更新

整个过程可以在任何地方复制。我们只创建函数plotquant一次。(实际上，这里我们不编辑文件，我们只是基于一个已经存在的函数，即chart_Series创建了一个新函数)。然后，一旦我们有了plotquant，我们就可以创建一个包含所有内容的脚本了。

在控制台上键入plotquant，将显示源代码。复制粘贴到脚本中，您已经定义了您的函数。其余的通常如下：

plotquant <- function (x, name = deparse(substitute(x)), type = "candlesticks",
  subset = "", TA = "", pars = chart_pars(), theme = chart_theme(),
  clev = 0, ...)
{
  cs <- new.replot()
  line.col <- theme$col$line.col
  up.col <- theme$col$up.col
  dn.col <- theme$col$dn.col
  up.border <- theme$col$up.border
  dn.border <- theme$col$dn.border
  format.labels <- theme$format.labels
  if (is.null(theme$grid.ticks.on)) {
    xs <- x[subset]
    major.grid <- c(years = nyears(xs), months = nmonths(xs),
      days = ndays(xs))
    grid.ticks.on <- names(major.grid)[rev(which(major.grid <
      30))[1]]
  }
  else grid.ticks.on <- theme$grid.ticks.on
  label.bg <- theme$col$label.bg
  cs$subset <- function(x) {
    if (FALSE) {
      set_ylim <- get_ylim <- set_xlim <- Env <- function() {
      }
    }
    if (missing(x)) {
      x <- ""
    }
    Env$xsubset <<- x
    set_xlim(c(1, NROW(Env$xdata[Env$xsubset])))
    ylim <- get_ylim()
    for (y in seq(2, length(ylim), by = 2)) {
      if (!attr(ylim[[y]], "fixed"))
        ylim[[y]] <- structure(c(Inf, -Inf), fixed = FALSE)
    }
    lapply(Env$actions, function(x) {
      frame <- abs(attr(x, "frame"))
      fixed <- attr(ylim[[frame]], "fixed")
      if (frame%%2 == 0 && !fixed) {
        lenv <- attr(x, "env")
        if (is.list(lenv))
          lenv <- lenv[[1]]
        min.tmp <- min(ylim[[frame]][1], range(na.omit(lenv$xdata[Env$xsubset]))[1],
          na.rm = TRUE)
        max.tmp <- max(ylim[[frame]][2], range(na.omit(lenv$xdata[Env$xsubset]))[2],
          na.rm = TRUE)
        ylim[[frame]] <<- structure(c(min.tmp, max.tmp),
          fixed = fixed)
      }
    })
    set_ylim(ylim)
  }
  environment(cs$subset) <- environment(cs$get_asp)
  if (is.character(x))
    stop("'x' must be a time-series object")
  if (is.OHLC(x)) {
    cs$Env$xdata <- OHLC(x)
    if (has.Vo(x))
      cs$Env$vo <- Vo(x)
  }
  else cs$Env$xdata <- x
  cs$Env$xsubset <- subset
  cs$Env$cex <- pars$cex
  cs$Env$mar <- pars$mar
  cs$set_asp(3)
  cs$set_xlim(c(1, NROW(cs$Env$xdata[subset])))
  cs$set_ylim(list(structure(range(na.omit(cs$Env$xdata[subset])),
    fixed = FALSE)))
  cs$set_frame(1, FALSE)
  cs$Env$clev = min(clev + 0.01, 1)
  cs$Env$theme$bbands <- theme$bbands
  cs$Env$theme$shading <- theme$shading
  cs$Env$theme$line.col <- theme$col$line.col
  cs$Env$theme$up.col <- up.col
  cs$Env$theme$dn.col <- dn.col
  cs$Env$theme$up.border <- up.border
  cs$Env$theme$dn.border <- dn.border
  cs$Env$theme$rylab <- theme$rylab
  cs$Env$theme$lylab <- theme$lylab
  cs$Env$theme$bg <- theme$col$bg
  cs$Env$theme$grid <- theme$col$grid
  cs$Env$theme$grid2 <- theme$col$grid2
  cs$Env$theme$labels <- "#333333"
  cs$Env$theme$label.bg <- label.bg
  cs$Env$format.labels <- format.labels
  cs$Env$ticks.on <- grid.ticks.on
  cs$Env$grid.ticks.lwd <- theme$grid.ticks.lwd
  cs$Env$type <- type
  cs$Env$axis_ticks <- function(xdata, xsubset) {
    ticks <- diff(axTicksByTime2(xdata[xsubset], labels = FALSE))/2 +
      last(axTicksByTime2(xdata[xsubset], labels = TRUE),
        -1)
    if (!theme$coarse.time || length(ticks) == 1)
      return(unname(ticks))
    if (min(diff(ticks)) < max(strwidth(names(ticks)))) {
      ticks <- unname(ticks)
    }
    ticks
  }
  cs$add(expression(atbt <- axTicksByTime2(xdata[xsubset]),
    segments(atbt, get_ylim()[[2]][1], atbt, get_ylim()[[2]][2],
      col = theme$grid, lwd = grid.ticks.lwd), axt <- axis_ticks(xdata,
      xsubset), text(as.numeric(axt), par("usr")[3] -
      0.2 * min(strheight(axt)), names(axt), xpd = TRUE,
      cex = 0.9, pos = 3)), clip = FALSE, expr = TRUE)
  cs$set_frame(-1)
  cs$add_frame(0, ylim = c(0, 1), asp = 0.2)
  cs$set_frame(1)
  cs$add(expression(if (NROW(xdata[xsubset]) < 400) {
    axis(1, at = 1:NROW(xdata[xsubset]), labels = FALSE,
      col = theme$grid2, tcl = 0.3)
  }), expr = TRUE)
  cs$add(expression(axt <- axTicksByTime(xdata[xsubset], format.labels = format.labels),
    axis(1, at = axt, labels = names(axt), las = 1, lwd.ticks = 1,
      mgp = c(3, 1.5, 0), tcl = -0.4, cex.axis = 0.9)),
    expr = TRUE)
  cs$Env$name <- name
  text.exp <- c(expression(text(1 - 1/3, 0.5, name, font = 2,
    col = "#444444", offset = 0, cex = 1.1, pos = 4)), expression(text(NROW(xdata[xsubset]),
    0.5, paste(format(start(xdata[xsubset]), format = '%Y.%m.%d'),
               format(end(xdata[xsubset]), format = '%Y.%m.%d'),
      sep = " / "), col = 1, adj = c(0, 0), pos = 2)))
  cs$add(text.exp, env = cs$Env, expr = TRUE)
  cs$set_frame(2)
  cs$Env$axis_labels <- function(xdata, xsubset, scale = 5) {
    axTicksByValue(na.omit(xdata[xsubset]))
  }
  cs$Env$make_pretty_labels <- function(ylim) {
    p <- pretty(ylim, 10)
    p[p > ylim[1] & p < ylim[2]]
  }
  cs$add(expression(assign("alabels", make_pretty_labels(get_ylim(get_frame())[[2]]))),
    expr = TRUE)
  cs$set_frame(-2)
  cs$add(expression(if (diff(range(xdata[xsubset], na.rm = TRUE)) <
    50) segments(1, seq(min(xdata[xsubset]%/%1, na.rm = TRUE),
    max(xdata[xsubset]%/%1, na.rm = TRUE), 1), length(xsubset),
    seq(min(xdata[xsubset]%/%1, na.rm = TRUE), max(xdata[xsubset]%/%1,
      na.rm = TRUE), 1), col = theme$grid2, lty = "dotted")),
    expr = TRUE)
  cs$set_frame(2)
  cs$add(expression(segments(1, alabels, NROW(xdata[xsubset]),
    alabels, col = theme$grid)), expr = TRUE)
  if (theme$lylab) {
    cs$add(expression(text(1 - 1/3 - max(strwidth(alabels)),
      alabels, noquote(format(alabels, justify = "right")),
      col = theme$labels, offset = 0, cex = 0.9, pos = 4,
      xpd = TRUE)), expr = TRUE)
  }
  if (theme$rylab) {
    cs$add(expression(text(NROW(xdata[xsubset]) + 1/3, alabels,
      noquote(format(alabels, justify = "right")), col = theme$labels,
      offset = 0, cex = 0.9, pos = 4, xpd = TRUE)), expr = TRUE)
  }
  cs$set_frame(2)
  cs$add(expression(range.bars(xdata[xsubset], type, 1, fade(theme$line.col,
    clev), fade(theme$up.col, clev), fade(theme$dn.col,
    clev), fade(theme$up.border, clev), fade(theme$dn.border,
    clev))), expr = TRUE)
  assign(".chob", cs, .plotEnv)
  if (!is.null(TA) && nchar(TA) > 0) {
    TA <- parse(text = TA, srcfile = NULL)
    for (ta in seq_along(TA)) {
      cs <- eval(TA[ta], envir = parent.frame())
    }
  }
  assign(".chob", cs, .plotEnv)
  cs
}

environment(plotquant) <- asNamespace("quantmod")
ct <- chart_theme()
ct$format.labels <- ' '
plotquant(BRS, theme = ct)
