向nds项目makefile添加p线程.h

Question

我在makefile中搜索并尝试链接了一个与nds平台的ARM项目，我仍然无法正确地链接它.

#-------------------------------------------------------------------------------
.SUFFIXES:
#-------------------------------------------------------------------------------

ifeq ($(strip $(DEVKITARM)),)
$(error "Please set DEVKITARM in your environment. export DEVKITARM=<path to>devkitARM")
endif

ifeq ($(strip $(DEVKITPRO)),)
$(error "Please set DEVKITPRO in your environment. export DEVKITPRO=<path to>devkitPRO")
endif

ifeq ($(strip $(DESMUME)),)
$(error "Please set DESMUME in your environment. export DESMUME=<path to>DeSmuME")
endif

include $(DEVKITARM)/base_rules

#-------------------------------------------------------------------------------
# TARGET is the name of the output
# BUILD is the directory where object files & intermediate files will be placed
# SOURCES is a list of directories containing source code
# INCLUDES is a list of directories containing extra header files
# DATA contains .bin files with extra data for the project (e.g. graphic tiles)
# NITRODATA contains the "virtual" file system accessed through filesystem lib
#-------------------------------------------------------------------------------
TARGET      :=  $(shell basename $(CURDIR))
BUILD       :=  build
SOURCES     :=  source
INCLUDES    :=  include
DATA        :=  data
NITRODATA   :=  nitrofiles

#-------------------------------------------------------------------------------
# options for code generation
#-------------------------------------------------------------------------------
ARCH    :=  -march=armv5te -mlittle-endian

CFLAGS  :=  -Wall -g -O2 \
            $(ARCH) -mtune=arm946e-s -fomit-frame-pointer -ffast-math
                # -Wall                     : enable all warnings
                # -g                        : enable debug info generation
                # -O2                       : code optimization level 2
                # $(ARCH) -mtune=arm946e-s  : tune code generation for specific machine
                # -fomit-frame-pointer      : avoid to use a 'frame-pointer' register in functions that do not need it
                # -ffast-math               : optimize math operations

CFLAGS  +=  $(INCLUDE) -DARM9

ASFLAGS :=  -g $(ARCH)
LDFLAGS =   -specs=ds_arm9.specs $(ARCH)

#-------------------------------------------------------------------------------
# any extra libraries we wish to link with the project (order is important)
#-------------------------------------------------------------------------------
LIBS    :=  -lfilesystem -lfat -lnds9

#-------------------------------------------------------------------------------
# list of directories containing libNDS libraries, this must be the top level
# containing include and lib
#-------------------------------------------------------------------------------
LIBNDS  :=  $(DEVKITPRO)/libnds

#---------------------------------------------------------------------------------
# check if the build directory is not created yet
#---------------------------------------------------------------------------------
ifneq ($(BUILD),$(notdir $(CURDIR)))
#---------------------------------------------------------------------------------

export OUTPUT   :=  $(CURDIR)/$(TARGET)

export VPATH    :=  $(foreach dir,$(SOURCES),$(CURDIR)/$(dir))
export DEPSDIR  :=  $(CURDIR)/$(BUILD)

CFILES      :=  $(foreach dir,$(SOURCES),$(notdir $(wildcard $(dir)/*.c)))
AFILES      :=  $(foreach dir,$(SOURCES),$(notdir $(wildcard $(dir)/*.s)))
BINFILES    :=  $(foreach dir,$(DATA),$(notdir $(wildcard $(dir)/*.bin)))

export OFILES   :=  $(BINFILES:.bin=.o) $(CFILES:.c=.o)
export SFILES   :=  $(AFILES:.s=.o)

# GARLIC_API is the directory where the API's include and source code lives
#           (assume a relative structure of the GARLIC project directories)
export GARLICAPI    :=  $(CURDIR)/../GARLIC_API

export INCLUDE  :=  $(foreach dir,$(INCLUDES),-I$(CURDIR)/$(dir)) \
                    $(foreach dir,$(LIBNDS),-I$(dir)/include) \
                    -I$(GARLICAPI)

export LIBPATHS :=  $(foreach dir,$(LIBNDS),-L$(dir)/lib)


#---------------------------------------------------------------------------------
# use CC for linking standard C projects
#---------------------------------------------------------------------------------
export LD   :=  $(CC)


export _ADDFILES    :=  -d $(CURDIR)/$(NITRODATA)


.PHONY: $(BUILD) clean

#---------------------------------------------------------------------------------
$(BUILD):
    @[ -d $@ ] || mkdir -p $@
    @make --no-print-directory -C $(BUILD) -f $(CURDIR)/Makefile

#---------------------------------------------------------------------------------
clean:
    @echo "Removing ALL intermediate files... "
    @echo "Por favor, recuerda que habitualmente NO es necesario hacer un 'clean' antes de un 'make'"
    @sleep 3
    @rm -fr $(BUILD) $(TARGET).elf $(TARGET).nds

#---------------------------------------------------------------------------------
run : $(TARGET).nds
    @echo "runing $(TARGET).nds with DesmuME"
    @$(DESMUME)/DeSmuME.exe $(TARGET).nds &

#---------------------------------------------------------------------------------
debug : $(TARGET).nds $(TARGET).elf
    @echo "testing $(TARGET).nds/.elf with DeSmuME_dev/Insight (gdb) through TCP port=1000"
    @$(DESMUME)/DeSmuME_dev.exe --arm9gdb=1000 $(TARGET).nds &
    @$(DEVKITPRO)/insight/bin/arm-eabi-insight $(TARGET).elf &

#---------------------------------------------------------------------------------
else

DEPENDS :=  $(OFILES:.o=.d) $(SFILES:.o=.d)

#---------------------------------------------------------------------------------
# main targets
#---------------------------------------------------------------------------------
$(OUTPUT).nds   :   $(OUTPUT).elf
$(OUTPUT).elf   :   $(OFILES) $(SFILES)

#---------------------------------------------------------------------------------
%.nds: %.elf
    @ndstool -c $@ -9 $< -b $(GAME_ICON) "$(GAME_TITLE);$(GAME_SUBTITLE1);$(GAME_SUBTITLE2)" $(_ADDFILES)
    @echo built ... $(notdir $@)

#---------------------------------------------------------------------------------
%.elf:
    @echo linking $(notdir $@)
    $(LD)  $(LDFLAGS) $(OFILES) $(LIBPATHS) $(LIBS) $(SFILES) -o $@

#---------------------------------------------------------------------------------
%.bin.o :   %.bin
#---------------------------------------------------------------------------------
    @echo $(notdir $<)
    $(bin2o)

-include $(DEPSDIR)/*.d


#---------------------------------------------------------------------------------------
endif
#---------------------------------------------------------------------------------------

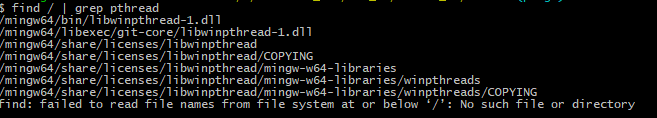

由于我不是在Windows环境中工作，所以我发现的当前线程库如下：

​

最后，我怀疑..。我真的不知道如何链接这个项目中线程的C库，在我的makefile中.甚至我都试图在代码中声明库..。就像这样：

#include <pthread.h>

然而，pthread_t型未被识别。

这与makefile中的链接有关吗？那样的话，我还能补充什么呢？

Answer 1

windows在像任天堂DS这样的嵌入式系统上是没用的。只应使用已为目标平台重新构建的库，而不应使用宿主系统的库。

此外，类似p线程的东西依赖于操作系统来提供线程服务(通常是与POSIX兼容的操作系统)，任天堂DS没有这样的服务:你是在裸金属上运行，而你只有你带来的服务。这并不意味着不可能在DS上执行多线程，但这意味着您必须自己完成，使用计时器中断触发代码，捕获堆栈和程序指针，将它们存储在某个位置，并恢复以前线程的指针。这被称为软件多线程。

希望的是，由于NDS有专门用于视频和音频复用/合成的硬件，以及用于串行设备通信和网络等慢任务的从处理器，因此您的ARM9 CPU通常是免费的，可以不间断地运行游戏逻辑，并且不需要多线程。
