如何生成flowfile属性的散列(其中一些)

Question

我有一个具有3个属性a，b，c的flowfile，我想创建两个新属性a_b_hash，c_hash。

a_b_hash = hash of (value of a + '_' + value of b)
c_hash = hash of c

最后，我需要5个属性a、b、c、a_b_hash、c_hash。a，b，c不变。

我尝试了不同的组合，但无法生成哈希。有些排列工作，但我不知道它是否产生正确的有。

更新

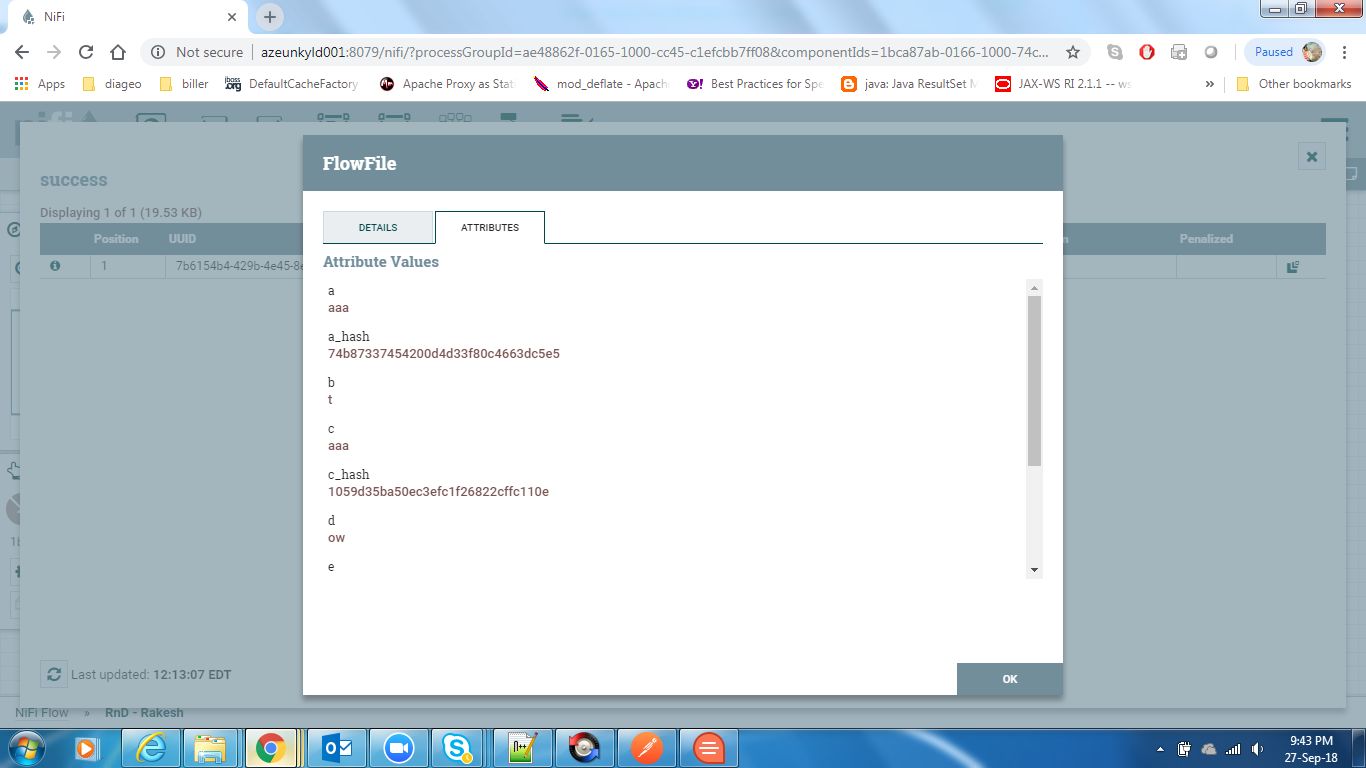

我创建了下面的模板并运行它。我希望a_hash和c_hash具有相同的值，a和c具有相同的值。

<?xml version="1.0" encoding="UTF-8" standalone="yes"?><template encoding-version="1.2"><description></description><groupId>ae48862f-0165-1000-cc45-c1efcbb7ff08</groupId><name>dnu-hash-attribute</name><snippet><connections><id>91ef00b9-6cd0-3fed-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><backPressureDataSizeThreshold>1 GB</backPressureDataSizeThreshold><backPressureObjectThreshold>10000</backPressureObjectThreshold><destination><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>5cf06895-44e9-3f64-0000-000000000000</id><type>PROCESSOR</type></destination><flowFileExpiration>0 sec</flowFileExpiration><labelIndex>1</labelIndex><name></name><selectedRelationships>success</selectedRelationships><source><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>9b4dd5b8-8718-3f54-0000-000000000000</id><type>PROCESSOR</type></source><zIndex>0</zIndex></connections><connections><id>2fbfd09e-72e8-3c46-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><backPressureDataSizeThreshold>1 GB</backPressureDataSizeThreshold><backPressureObjectThreshold>10000</backPressureObjectThreshold><destination><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>ab89e6d1-f08e-32be-0000-000000000000</id><type>PROCESSOR</type></destination><flowFileExpiration>0 sec</flowFileExpiration><labelIndex>1</labelIndex><name></name><selectedRelationships>success</selectedRelationships><source><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>5cf06895-44e9-3f64-0000-000000000000</id><type>PROCESSOR</type></source><zIndex>0</zIndex></connections><connections><id>4e1f1096-d302-35f8-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><backPressureDataSizeThreshold>1 GB</backPressureDataSizeThreshold><backPressureObjectThreshold>10000</backPressureObjectThreshold><destination><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>9b4dd5b8-8718-3f54-0000-000000000000</id><type>PROCESSOR</type></destination><flowFileExpiration>0 sec</flowFileExpiration><labelIndex>1</labelIndex><name></name><selectedRelationships>success</selectedRelationships><source><groupId>5842a0b1-f01b-3160-0000-000000000000</groupId><id>509810d8-4798-30e5-0000-000000000000</id><type>PROCESSOR</type></source><zIndex>0</zIndex></connections><processors><id>9b4dd5b8-8718-3f54-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><position><x>89.14968895009349</x><y>271.1685572155761</y></position><bundle><artifact>nifi-standard-nar</artifact><group>org.apache.nifi</group><version>1.6.0</version></bundle><config><bulletinLevel>WARN</bulletinLevel><comments></comments><concurrentlySchedulableTaskCount>1</concurrentlySchedulableTaskCount><descriptors><entry><key>Hash Value Attribute Key</key><value><name>Hash Value Attribute Key</name></value></entry><entry><key>a</key><value><name>a</name></value></entry></descriptors><executionNode>ALL</executionNode><lossTolerant>false</lossTolerant><penaltyDuration>30 sec</penaltyDuration><properties><entry><key>Hash Value Attribute Key</key><value>a_hash</value></entry><entry><key>a</key><value>(?s)(^.*$)</value></entry></properties><runDurationMillis>0</runDurationMillis><schedulingPeriod>0 sec</schedulingPeriod><schedulingStrategy>TIMER_DRIVEN</schedulingStrategy><yieldDuration>1 sec</yieldDuration></config><name>HashAttribute</name><relationships><autoTerminate>true</autoTerminate><name>failure</name></relationships><relationships><autoTerminate>false</autoTerminate><name>success</name></relationships><state>STOPPED</state><style/><type>org.apache.nifi.processors.standard.HashAttribute</type></processors><processors><id>ab89e6d1-f08e-32be-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><position><x>634.6037608433834</x><y>574.9859619140625</y></position><bundle><artifact>nifi-standard-nar</artifact><group>org.apache.nifi</group><version>1.6.0</version></bundle><config><bulletinLevel>WARN</bulletinLevel><comments></comments><concurrentlySchedulableTaskCount>1</concurrentlySchedulableTaskCount><descriptors><entry><key>Log Level</key><value><name>Log Level</name></value></entry><entry><key>Log Payload</key><value><name>Log Payload</name></value></entry><entry><key>Attributes to Log</key><value><name>Attributes to Log</name></value></entry><entry><key>attributes-to-log-regex</key><value><name>attributes-to-log-regex</name></value></entry><entry><key>Attributes to Ignore</key><value><name>Attributes to Ignore</name></value></entry><entry><key>attributes-to-ignore-regex</key><value><name>attributes-to-ignore-regex</name></value></entry><entry><key>Log prefix</key><value><name>Log prefix</name></value></entry><entry><key>character-set</key><value><name>character-set</name></value></entry></descriptors><executionNode>ALL</executionNode><lossTolerant>false</lossTolerant><penaltyDuration>30 sec</penaltyDuration><properties><entry><key>Log Level</key><value>info</value></entry><entry><key>Log Payload</key><value>false</value></entry><entry><key>Attributes to Log</key></entry><entry><key>attributes-to-log-regex</key><value>.*</value></entry><entry><key>Attributes to Ignore</key></entry><entry><key>attributes-to-ignore-regex</key></entry><entry><key>Log prefix</key></entry><entry><key>character-set</key><value>UTF-8</value></entry></properties><runDurationMillis>0</runDurationMillis><schedulingPeriod>0 sec</schedulingPeriod><schedulingStrategy>TIMER_DRIVEN</schedulingStrategy><yieldDuration>1 sec</yieldDuration></config><name>LogAttribute</name><relationships><autoTerminate>true</autoTerminate><name>success</name></relationships><state>DISABLED</state><style/><type>org.apache.nifi.processors.standard.LogAttribute</type></processors><processors><id>509810d8-4798-30e5-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><position><x>492.20976365100057</x><y>0.0</y></position><bundle><artifact>nifi-standard-nar</artifact><group>org.apache.nifi</group><version>1.6.0</version></bundle><config><bulletinLevel>WARN</bulletinLevel><comments></comments><concurrentlySchedulableTaskCount>1</concurrentlySchedulableTaskCount><descriptors><entry><key>File Size</key><value><name>File Size</name></value></entry><entry><key>Batch Size</key><value><name>Batch Size</name></value></entry><entry><key>Data Format</key><value><name>Data Format</name></value></entry><entry><key>Unique FlowFiles</key><value><name>Unique FlowFiles</name></value></entry><entry><key>generate-ff-custom-text</key><value><name>generate-ff-custom-text</name></value></entry><entry><key>character-set</key><value><name>character-set</name></value></entry><entry><key>a</key><value><name>a</name></value></entry><entry><key>b</key><value><name>b</name></value></entry><entry><key>c</key><value><name>c</name></value></entry><entry><key>d</key><value><name>d</name></value></entry><entry><key>e</key><value><name>e</name></value></entry></descriptors><executionNode>ALL</executionNode><lossTolerant>false</lossTolerant><penaltyDuration>30 sec</penaltyDuration><properties><entry><key>File Size</key><value>20000B</value></entry><entry><key>Batch Size</key><value>1</value></entry><entry><key>Data Format</key><value>Text</value></entry><entry><key>Unique FlowFiles</key><value>false</value></entry><entry><key>generate-ff-custom-text</key></entry><entry><key>character-set</key><value>UTF-8</value></entry><entry><key>a</key><value>aaa</value></entry><entry><key>b</key><value>t</value></entry><entry><key>c</key><value>aaa</value></entry><entry><key>d</key><value>ow</value></entry><entry><key>e</key><value>two</value></entry></properties><runDurationMillis>0</runDurationMillis><schedulingPeriod>1 day</schedulingPeriod><schedulingStrategy>TIMER_DRIVEN</schedulingStrategy><yieldDuration>1 sec</yieldDuration></config><name>GenerateFlowFile</name><relationships><autoTerminate>false</autoTerminate><name>success</name></relationships><state>STOPPED</state><style/><type>org.apache.nifi.processors.standard.GenerateFlowFile</type></processors><processors><id>5cf06895-44e9-3f64-0000-000000000000</id><parentGroupId>5842a0b1-f01b-3160-0000-000000000000</parentGroupId><position><x>0.0</x><y>525.5136022177769</y></position><bundle><artifact>nifi-standard-nar</artifact><group>org.apache.nifi</group><version>1.6.0</version></bundle><config><bulletinLevel>WARN</bulletinLevel><comments></comments><concurrentlySchedulableTaskCount>1</concurrentlySchedulableTaskCount><descriptors><entry><key>Hash Value Attribute Key</key><value><name>Hash Value Attribute Key</name></value></entry><entry><key>c</key><value><name>c</name></value></entry></descriptors><executionNode>ALL</executionNode><lossTolerant>false</lossTolerant><penaltyDuration>30 sec</penaltyDuration><properties><entry><key>Hash Value Attribute Key</key><value>c_hash</value></entry><entry><key>c</key><value>(?s)(^.*$)</value></entry></properties><runDurationMillis>0</runDurationMillis><schedulingPeriod>0 sec</schedulingPeriod><schedulingStrategy>TIMER_DRIVEN</schedulingStrategy><yieldDuration>1 sec</yieldDuration></config><name>HashAttribute</name><relationships><autoTerminate>true</autoTerminate><name>failure</name></relationships><relationships><autoTerminate>false</autoTerminate><name>success</name></relationships><state>STOPPED</state><style/><type>org.apache.nifi.processors.standard.HashAttribute</type></processors></snippet><timestamp>09/27/2018 12:16:54 EDT</timestamp></template>

​

​

Answer 1

NiFi附带了一个名为HashAttribute的处理器。它的用法类似于，您可以添加动态属性，其中新属性的名称将是FlowFile的名称，而该值是正则表达式，您可以提供(?s)(^.*$)来捕获整个FlowFile属性值。

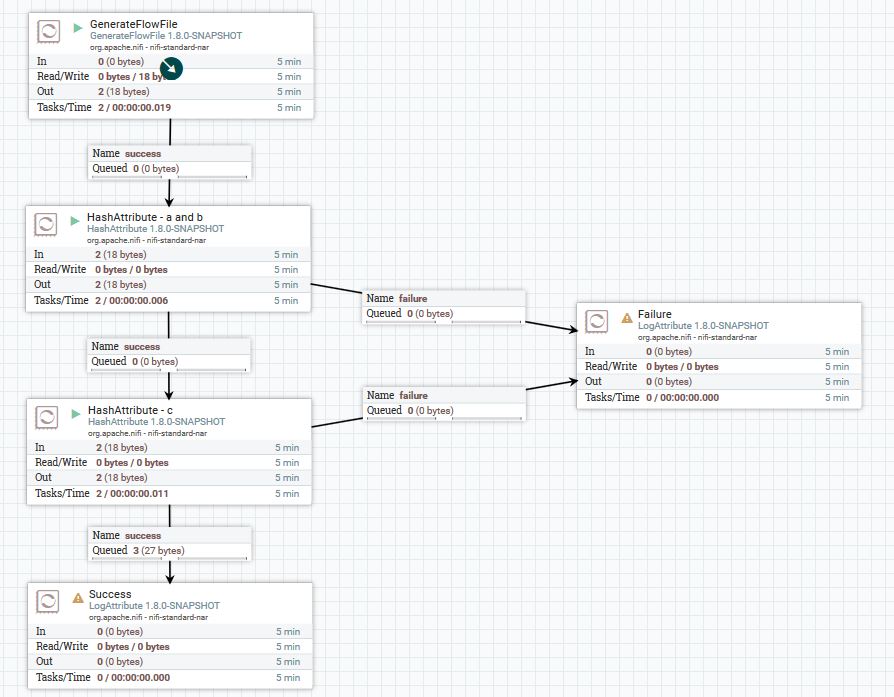

流

​

​

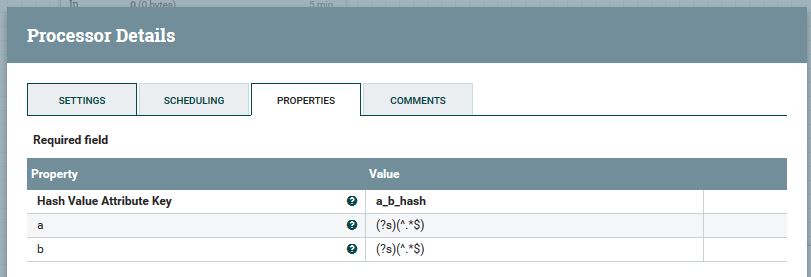

HashAttribute -a和b

​

​

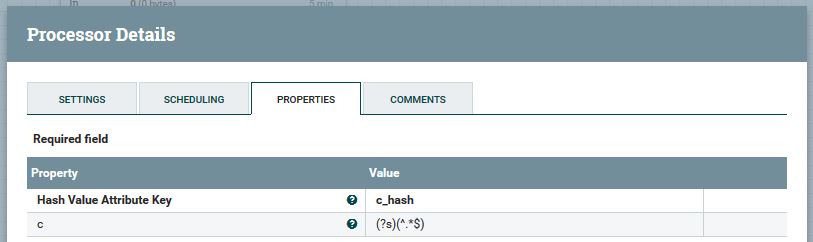

HashAttribute -c

​

​

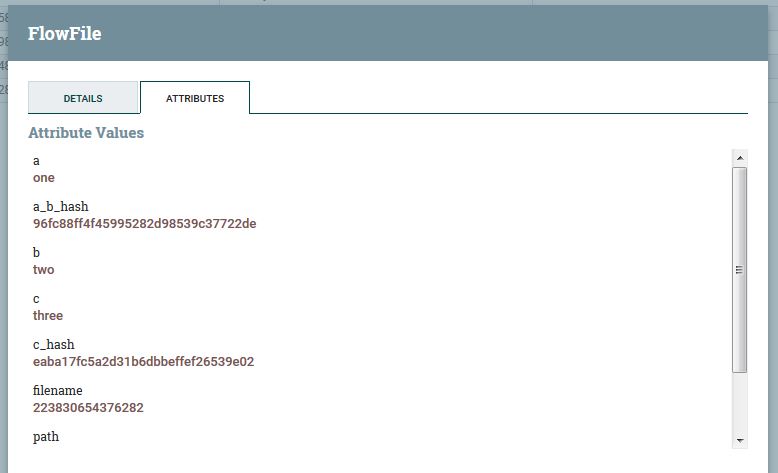

结果FlowFile属性

​

​

Answer 2

您可能希望使用Apache1.8.0中现在可用的CryptographicHashAttribute (1.8.0尚未发布)。我希望放弃HashAttribute，并在NIFI-5582发布时提供1.8.0中描述的新功能(我已经完成了一个分支，但最近一直在处理其他一些优先事项)。

现在，该行为不允许任意字符串连接，因此您必须使用UpdateAttribute处理器使用表达式语言表达式${a}_${b}填充属性a_b以执行连接，然后使用设置为Individual的属性匹配策略填充HashAttribute a_b_hash -> a_b。不需要任何额外的处理器就可以完成c_hash -> c。
