QChartView和QScatterSeries夸大了QPointF的标签

Question

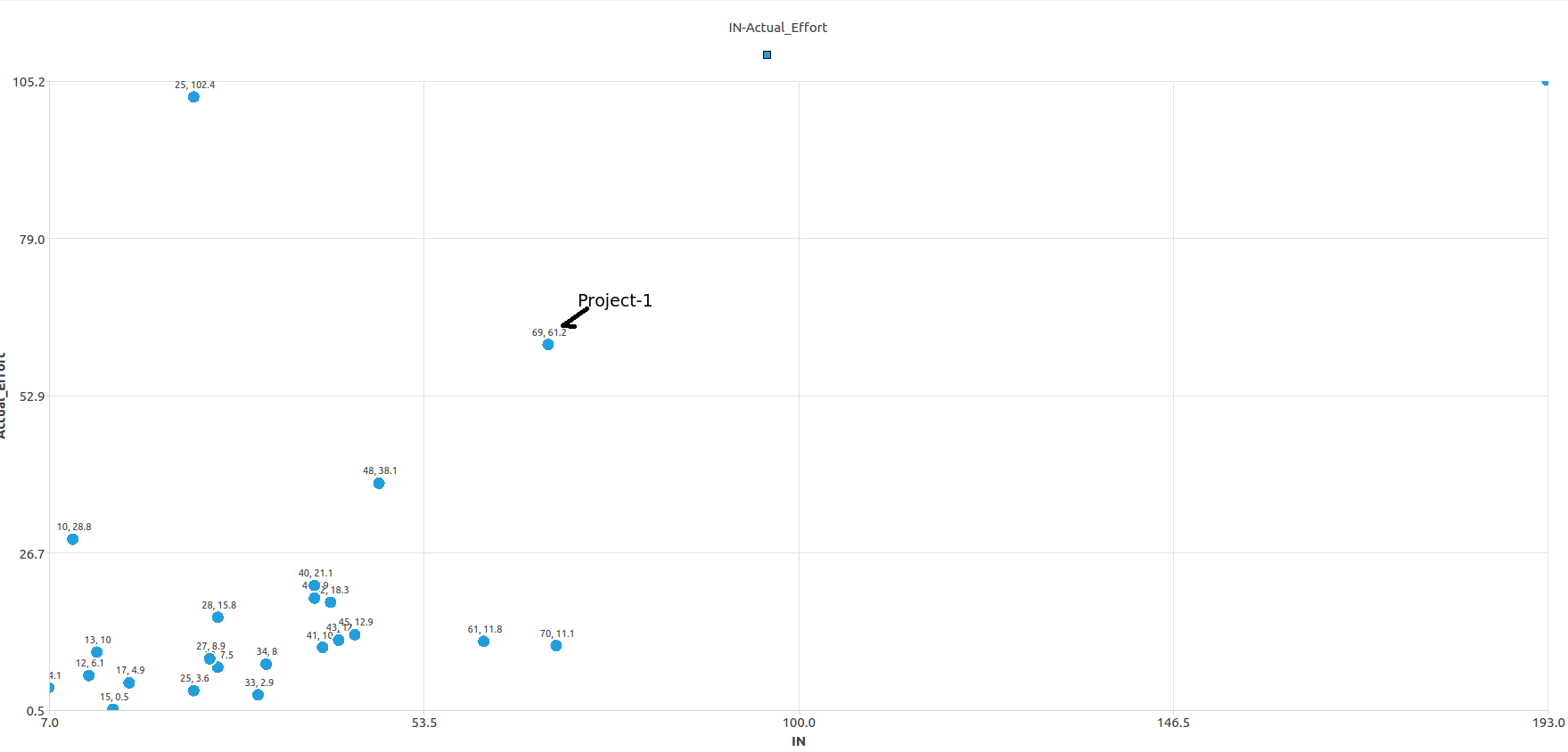

我有一个QChartView，它显示一些2D点，它们代表每个特定的项目，我想用项目名称来标记每个点，而不是用它的x，y坐标作为默认行为

​

是否有任何方法实现覆盖创建或呈现标签的功能？

Answer 1

为什么如果不更改Qt源代码就很难做到这一点

1. QXYSeries系列：：setPointLabelsFormat对你没有多大帮助。它确实允许您更改标签的格式，但它的唯一可变部分是点的坐标。
2. 所有的绘图都是在Qt类的私有部分完成的。以下是整个故事：

标签在私人部分 of QXYSeries (painter->drawText(position, pointLabel);)中绘制：

void QXYSeriesPrivate::drawSeriesPointLabels(QPainter *painter, const QVector<QPointF> &points,
                                             const int offset)
{
    if (points.size() == 0)
        return;
    static const QString xPointTag(QLatin1String("@xPoint"));
    static const QString yPointTag(QLatin1String("@yPoint"));
    const int labelOffset = offset + 2;
    painter->setFont(m_pointLabelsFont);
    painter->setPen(QPen(m_pointLabelsColor));
    QFontMetrics fm(painter->font());
    // m_points is used for the label here as it has the series point information
    // points variable passed is used for positioning because it has the coordinates
    const int pointCount = qMin(points.size(), m_points.size());
    for (int i(0); i < pointCount; i++) {
        QString pointLabel = m_pointLabelsFormat;
        pointLabel.replace(xPointTag, presenter()->numberToString(m_points.at(i).x()));
        pointLabel.replace(yPointTag, presenter()->numberToString(m_points.at(i).y()));
        // Position text in relation to the point
        int pointLabelWidth = fm.width(pointLabel);
        QPointF position(points.at(i));
        position.setX(position.x() - pointLabelWidth / 2);
        position.setY(position.y() - labelOffset);
        painter->drawText(position, pointLabel);
    }
}

drawSeriesPointLabels是从油漆法 of ScatterChartItem调用的(这个类不包含在正式文档中)：

void ScatterChartItem::paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget)
{
    Q_UNUSED(option)
    Q_UNUSED(widget)
    if (m_series->useOpenGL())
        return;
    QRectF clipRect = QRectF(QPointF(0, 0), domain()->size());
    painter->save();
    painter->setClipRect(clipRect);
    if (m_pointLabelsVisible) {
        if (m_pointLabelsClipping)
            painter->setClipping(true);
        else
            painter->setClipping(false);
        m_series->d_func()->drawSeriesPointLabels(painter, m_points,
                                                  m_series->markerSize() / 2
                                                  + m_series->pen().width());
    }
    painter->restore();
}

反过来，ScatterChartItem是在私人部分 of QScatterSeries中创建的，不能用自定义类替换：

void QScatterSeriesPrivate::initializeGraphics(QGraphicsItem* parent)
{
    Q_Q(QScatterSeries);
    ScatterChartItem *scatter = new ScatterChartItem(q,parent);
    m_item.reset(scatter);
    QAbstractSeriesPrivate::initializeGraphics(parent);
}

你想试试什么

1. 用setPointLabelsVisible(false);隐藏原始标签，标签随后将分开绘制。
2. 子类QChartView并重新实现paintEvent，调用第一个QChartView::paintEvent，然后调用一个自定义函数(比如drawCustomLabels)，这是QXYSeriesPrivate::drawSeriesPointLabels的一个修改版本。通过调用drawCustomLabels pass：

- a local painter drawing on the vieport of _MyChartView_,
- the points as returned by `QXYSeries::points`,
- the desired offset.

​

下面是一个示例，说明了drawCustomLabels的外观：

void MyChartView::drawCustomLabels(QPainter *painter, const QVector<QPointF> &points, const int offset)
{
    if (points.count() == 0)
        return;

    QFontMetrics fm(painter->font());
    const int labelOffset = offset + 2;

    painter->setFont(m_pointLabelsFont); // Use QXYSeries::pointLabelsFont() to access m_pointLabelsFont
    painter->setPen(QPen(m_pointLabelsColor)); // Use QXYSeries::pointLabelsColor() to access m_pointLabelsColor

    for (int n(0); n < points.count(); n++) {
        QString pointLabel = "..."; // Set the desired label for the n-th point of the series
        // Position text in relation to the point
        int pointLabelWidth = fm.width(pointLabel);
        QPointF position(points.at(n));
        position.setX(position.x() - pointLabelWidth / 2);
        position.setY(position.y() - labelOffset);
        painter->drawText(position, pointLabel);
    }
}
