应用pod网络(calico)结束时“无法识别..”“无实物火柴”

Question

我正试图在ubuntu上建立一个裸金属库伯内特斯星系团。

遵循一步一步的指南(https://www.youtube.com/watch?v=UWg3ORRRF60)，我成功地安装了kubernetes主人，并得到了成功的消息：“您的Kubernetes主人已经成功地初始化了！”初始化集群后，使用'kubeadm init --pod=10.0.0.0/16-apiserver-address=10.0.20‘命令。

现在，下一步是部署一个pod网络，因此我使用了calico，运行了以下命令：

kubectl apply -f https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml --validate=false

我得到了输出：

unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ConfigMap" in version "v1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "DaemonSet" in version "extensions/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "Service" in version "v1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "DaemonSet" in version "extensions/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "Deployment" in version "extensions/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ClusterRoleBinding" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ClusterRole" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ServiceAccount" in version "v1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ClusterRoleBinding" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ClusterRole" in version "rbac.authorization.k8s.io/v1beta1"
unable to recognize "https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubeadm/1.7/calico.yaml": no matches for kind "ServiceAccount" in version "v1"

我的kubectl版本输出是：

Client Version: version.Info{Major:"1", Minor:"11", GitVersion:"v1.11.1", GitCommit:"b1b29978270dc22fecc592ac55d903350454310a", GitTreeState:"clean", BuildDate:"2018-07-17T18:53:20Z", GoVersion:"go1.10.3", Compiler:"gc", Platform:"linux/amd64"}
Error from server (NotFound): the server could not find the requested resource

会感谢任何帮助，甚至一些自我调试的建议。谢谢。

Answer 1

如本post。中所述，您必须为您的pod和apiserver广告地址使用单独的范围，请尝试删除群集，并以不同的网络配置重新安装它：

从以下方面开始：

运行此命令可以通过“kubeadm”或“kubeadm”恢复对此主机所做的任何更改。 kubeadm复位

然后再次插入集群(IP地址是一个安全的例子)。

kubeadm init --pod-network-cidr=192.168.0.0/16 --apiserver-advertise-address=10.0.0.20

另外，如果您正在运行该功能，就像教程中在主节点上链接的那样，您可以跳过-apiserver广告地址，因为它使用当前机器的默认网关。

从kubeadm 文档运行标准命令

要使kubectl为非根用户工作，请运行以下命令，这些命令也是kubeadm init输出的一部分：

mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config

或者，如果您是root用户，则可以运行：

export KUBECONFIG=/etc/kubernetes/admin.conf

之后，为卡利科安装网络外接程序：

为了使网络策略正确工作，需要将--pod-network-cidr=192.168.0.0/16传递给kubeadm init。注意，Calico只在amd64上工作。

kubectl apply -f https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/rbac-kdd.yaml kubectl apply -f https://docs.projectcalico.org/v3.1/getting-started/kubernetes/installation/hosted/kubernetes-datastore/calico-networking/1.7/calico.yaml您也可以从头开始使用官方的Kubernetes文件来介绍如何安装kubeadm。

Answer 2

如果kubernete版本高于1.16，请使用下面的链接安装棉布。

kubectl apply -f https://docs.projectcalico.org/v3.9/manifests/calico.yaml

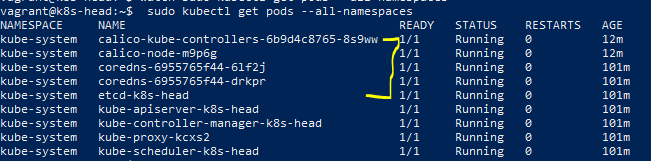

请检查节点状态以确认是否安装成功。

​

核心和棉布应处于运行状态。

​

​
