由于“不合适的UserTokenPolicy”，到OpcUA-服务器的连接失败

Question

我是OpcUA新手，使用Open62541 v3.0-rc2。

我正试图连接到B&R设备上的OpcUA服务器。

当我试图连接到服务器(用户名和密码)时，我会得到这个消息"No suitable UserTokenPolicy found for the possible endpoints"和这个返回值UA_STATUSCODE_BADINTERNALERROR。

UA_StatusCode statusCode = UA_Client_connect_username(client,endpoint,"user","password");

与UAExpert连接到设备的连接正在正常工作。

UAExpert的日志输出以下消息：

安全策略：“http://opcfoundation.org/UA/SecurityPolicy#None”

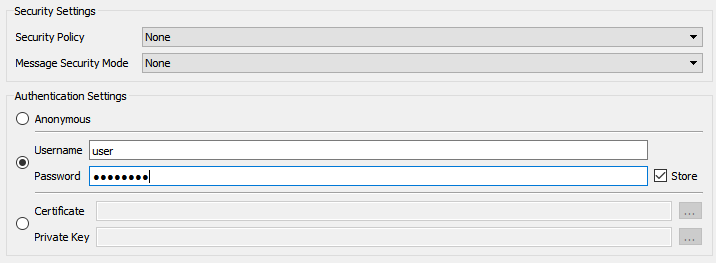

连接-UA中的设置-专家：

​

为什么我不能用下面的代码连接到服务器？

#include "open62541.h"

UA_Logger logger = UA_Log_Stdout;

int main(void) {
    const char* endpoint = "opc.tcp://br-automation:4840";

    UA_ClientConfig config = UA_ClientConfig_default;
    UA_Client *client = UA_Client_new(config);

    UA_StatusCode statusCode = UA_Client_connect_username(client,endpoint,"user","password");

    if(statusCode != UA_STATUSCODE_GOOD){
        UA_LOG_ERROR(logger, UA_LOGCATEGORY_CLIENT, "Not connected. Got StatusCode 0x%X",statusCode);
    }
    else{
        UA_LOG_INFO(logger,UA_LOGCATEGORY_CLIENT,"Connected");
    }

    UA_Client_delete(client);

    return statusCode;
}

UA_Client_getEndpoints()给出了以下结果：

7 endpoints found
URL of endpoint 0 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#None Security-Mode: 1
    UserTokenType 1
    UserTokenType 1
URL of endpoint 1 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic128Rsa15 Security-Mode: 2
    UserTokenType 1
    UserTokenType 1
URL of endpoint 2 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic128Rsa15 Security-Mode: 3
    UserTokenType 1
    UserTokenType 1
URL of endpoint 3 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic256 Security-Mode: 2
    UserTokenType 1
    UserTokenType 1
URL of endpoint 4 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic256 Security-Mode: 3
    UserTokenType 1
    UserTokenType 1
URL of endpoint 5 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic256Sha256 Security-Mode: 2
    UserTokenType 1
    UserTokenType 1
URL of endpoint 6 is opc.tcp://br-automation:4840 Security-Policy: http://opcfoundation.org/UA/SecurityPolicy#Basic256Sha256 Security-Mode: 3
    UserTokenType 1
    UserTokenType 1

Answer 1

请参阅“Open62541 GitHub”杂志：“用给定的用户名和密码连接到选定的服务器”
