Question

我使用display: table布局创建卡片。这是我迄今为止的尝试：

​

.panel-bg {
  background-color: #F8F8F8;
  height: 100%;
  width: 100%;
  margin: 0;
  padding: 24px 0;
}

.panel {
  width: calc(100%-32px);
  height: 100%;
  border-radius: 3px;
  background-color: #fff;
  box-shadow: 0px 3px 6px 0 rgba(0,0,0,0.15);
  font-size: 16px;
  cursor: pointer;
  margin: 0 16px;
}

.panel-title-row {
  display: table-row;
  width: 100%;
  border-collapse: collapse;
  border-bottom: solid 1px #c4c4c4;
}

.panel-title {
  display: table-cell;
  width: 80%;
  text-transform: uppercase;
  font-size: 14px;
  font-weight: 700;
  color: #0099ff;
  padding: 24px;
}

.panel-action {
  text-align: right;
  width: 20%;
  display: table-cell;
}

.panel-action li {
  margin-left: 16px;
}

.panel-action li:last-child {
  margin-left: 32px;
}

.col-1,
.col-2,
.col-3 {
  width: 33.33%;
  display: table-cell;
  padding: 24px;
}

.panel-data {
  margin-top: 16px;
}

.panel-data-label {
  font-weight: 700;
  font-size: 12px;
}

.panel-data-value {
  font-size: 13px;
  margin-top: 8px;
}

.panel-content {
  display: table-row;
  width: 100%;
}

.panel-data-vertical {
  display: table;
  width: 100%;
}

.panel-data-vertical .panel-data-label,
.panel-data-vertical .panel-data-value {
  display: table-cell;
  width: 50%;
}

ul {
  list-style-type: none;
}

ul li {
  display: inline-block;
}

<link rel="stylesheet" href="https://use.fontawesome.com/releases/v5.0.11/css/all.css" integrity="sha384-p2jx59pefphTFIpeqCcISO9MdVfIm4pNnsL08A6v5vaQc4owkQqxMV8kg4Yvhaw/" crossorigin="anonymous">
<link href="https://fonts.googleapis.com/css?family=Open+Sans:400,400i,700,700i" rel="stylesheet">

<div class="panel-bg">

<div class="panel">
  <div class="panel-title-row">
    <div class="panel-title">
      Members
    </div>
    <ul class="panel-action">
      <li><i class="fas fa-pencil-alt"></i></li>
      <li><i class="fas fa-trash"></i></li>
      <li><i class="fas fa-chevron-down"></i></li>
    </ul>
  </div>
  <div class="panel-content">
    <div class="col-1">
      <div class="panel-data panel-data-horizontal">
        <div class="panel-data-label">
          Effective Date
        </div>
        <div class="panel-data-value">
          1 Jan 2018
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Employment Type
        </div>
        <div class="panel-data-value">
          Permanent
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Job Level
        </div>
        <div class="panel-data-value">
          Staff
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Job Title
        </div>
        <div class="panel-data-value">
          All
        </div>
      </div>
    </div>
    <div class="col-2">

    </div>
    <div class="col-3">

    </div>
  </div>
</div>

</div>

​

我的问题是：

1. 我想把border-bottom放到panel-title-row上，但它没有显示出来。我想用填充(大约24 px)在左边和右边设置边框，但是每当我将填充属性或border-bottom放置到行或它的子行时，似乎就不起作用了。
2. 虽然我为每个孩子设置了80%和20%，但panel-title-row的孩子并没有将父母的宽度填充到100%。当我更改百分比时，它会影响不属于行的col-1。
3. 我在panel-title下面创建了另一个panel-title(名为panel-content)，我想将它划分为三个宽度相同的列(命名为col-1、col-2和col-3)，但是width: 33.33%不能工作。

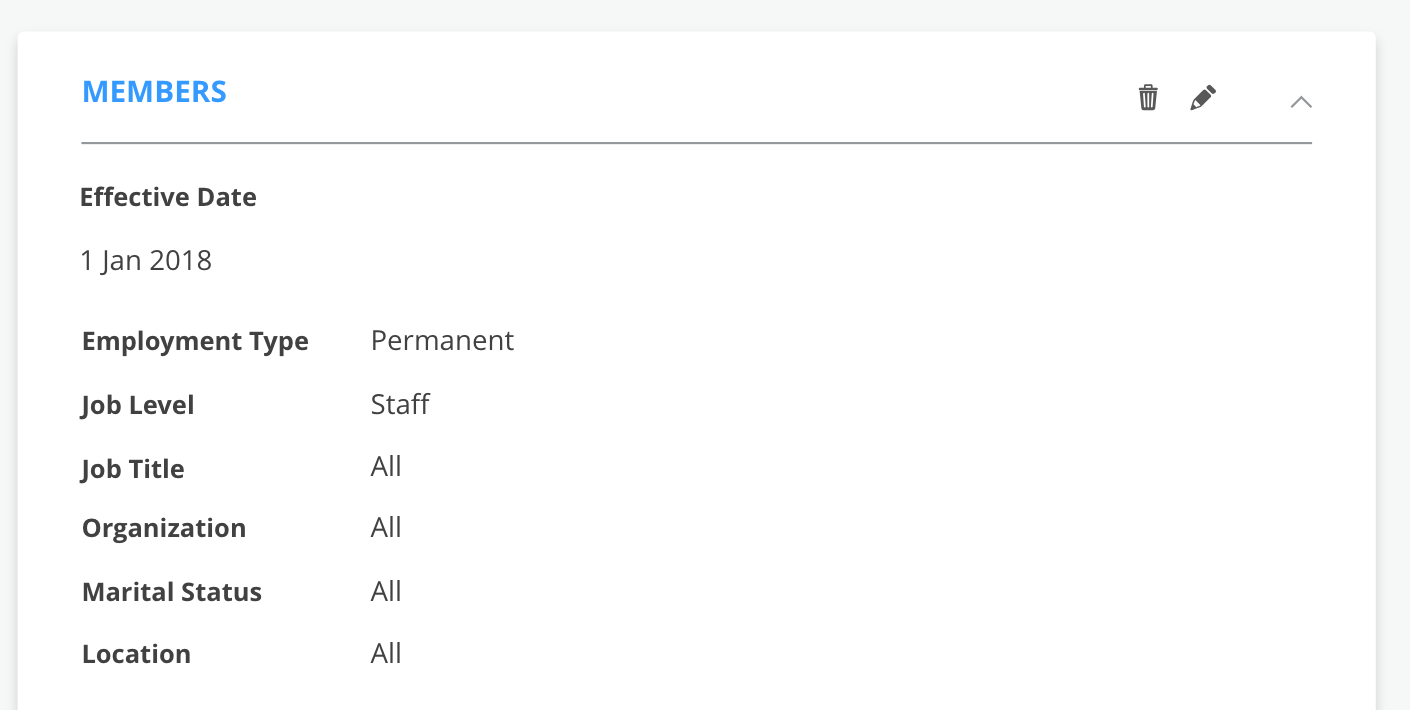

这就是我想要实现的，强调卡与行之间的空间。

​

​

任何帮助都很感激！

Answer 1

希望这能对你有所帮助，你想只用桌子来做吗？

​

.panel-bg {
  background-color: #F8F8F8;
  height: 100%;
  width: 100%;
  margin: 0;
  padding: 24px 0;
}

.panel {
  width: calc(100%-32px);
  height: 100%;
  border-radius: 3px;
  background-color: #fff;
  box-shadow: 0px 3px 6px 0 rgba(0,0,0,0.15);
  font-size: 16px;
  cursor: pointer;
  margin: 0 16px;
padding:25px;
}

.panel-title-row {
  display: block;
  width: 100%;
  border-collapse: collapse;
  border-bottom: solid 1px #c4c4c4;
}

.panel-title {
  display: inline-block;
  width: 78%;
  text-transform: uppercase;
  font-size: 14px;
  font-weight: 700;
  color: #0099ff;
  padding: 0;
}

.panel-action {
  text-align: right;
  width: 20%;
  display: inline-block;
padding:0px 5px 15px 0;
margin:0;
}

.panel-action li {
  margin-left: 10px;
}

.panel-action li:last-child {
  margin-left: 29px;
}

.col-1,
.col-2,
.col-3 {
  width: 33.33%;
  display: table-cell;
  padding: 5px 0px 20px 0px;
}

.panel-data {
  margin-top: 16px;
}

.panel-data-label {
  font-weight: 700;
  font-size: 12px;
}

.panel-data-value {
  font-size: 13px;
  margin-top: 8px;
}

.panel-content {
  display: table-row;
  width: 100%;
}

.panel-data-vertical {
  display: table;
  width: 100%;
}

.panel-data-vertical .panel-data-label,
.panel-data-vertical .panel-data-value {
  display: table-cell;
  width: 50%;
}

ul {
  list-style-type: none;
}

ul li {
  display: inline-block;
}

<link rel="stylesheet" href="https://use.fontawesome.com/releases/v5.0.11/css/all.css" integrity="sha384-p2jx59pefphTFIpeqCcISO9MdVfIm4pNnsL08A6v5vaQc4owkQqxMV8kg4Yvhaw/" crossorigin="anonymous">
<link href="https://fonts.googleapis.com/css?family=Open+Sans:400,400i,700,700i" rel="stylesheet">

<div class="panel-bg">

<div class="panel">
  <div class="panel-title-row">
    <div class="panel-title">
      Members
    </div>
    <ul class="panel-action">
      <li><i class="fas fa-pencil-alt"></i></li>
      <li><i class="fas fa-trash"></i></li>
      <li><i class="fas fa-chevron-down"></i></li>
    </ul>
  </div>
  <div class="panel-content">
    <div class="col-1">
      <div class="panel-data panel-data-horizontal">
        <div class="panel-data-label">
          Effective Date
        </div>
        <div class="panel-data-value">
          1 Jan 2018
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Employment Type
        </div>
        <div class="panel-data-value">
          Permanent
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Job Level
        </div>
        <div class="panel-data-value">
          Staff
        </div>
      </div>
      <div class="panel-data panel-data-vertical">
        <div class="panel-data-label">
          Job Title
        </div>
        <div class="panel-data-value">
          All
        </div>
      </div>
    </div>
    <div class="col-2">

    </div>
    <div class="col-3">

    </div>
  </div>
</div>

</div>

​
