ADC中断不被调用

Question

我希望ADC中断服务例程在每个转换结束后被调用。然而，它并没有被调用。

这是我的密码：

#define RCC_APB2ENR   (*((volatile unsigned long*) 0x40021018))

#define ADC1_CR1      (*((volatile unsigned long*) 0x40012404))
#define ADC1_CR2      (*((volatile unsigned long*) 0x40012408))
#define ADC1_SMPTR2   (*((volatile unsigned long*) 0x40012410))
#define ADC1_SQR1     (*((volatile unsigned long*) 0x4001242C))
#define ADC1_SQR3     (*((volatile unsigned long*) 0x40012434))
#define ADC1_DR       (*((volatile unsigned long*) 0x4001244C))

#define NVIC_SETENA_0 (*((volatile unsigned long*) 0xE000E100))
#define NVIC_CLRENA_0 (*((volatile unsigned long*) 0xE000E180))


volatile short conversionResult = -1;

void ADC_IRQHandler(void)       // ADC Interrupt service routines
{

    if((ADC1_CR2 & 0x00000002) == 0x00000002)       // check if EOC bit set
        conversionResult = ADC1_DR;
    else
        conversionResult = -1;
}


void ADC_Init(short mode)
{
    // enable ADC Interrupts
    NVIC_SETENA_0 |= 0x00040000;

    // enable clock for ADC_1
    RCC_APB2ENR |= 0x0000200;

    ADC1_CR2 &= 0x00000000;             // resetting controll registers
    ADC1_CR1 &= 0x00000000;

    ADC1_CR1 |= 0x00000020;             // EOC interrupt enable

    if(mode == 1)                       // continous mode
        ADC1_CR2 |= 0x00000002;


    ADC1_CR2 |= 0x00000001;         // Waking up from power Down State

    // Perfroming Calibration

    ADC1_CR2 |= 0x00000004;
    while((ADC1_CR2 & 0x00000004) != 0);
}


void ADC_ChannelConfig(short channelNumber, short sampleTime)
{
    //selecting channel
    ADC1_SQR3 |= channelNumber;

    //setting sample time for this channel
    int temp = sampleTime;
    temp = (temp << channelNumber * 3);

    ADC1_SMPTR2 |= temp;
}

void ADC_StartConversion()
{
    ADC1_CR2 |= 0x00000001;         // enable adc again to start conversion
}

int main(void)
{
    ADC_Init(0);
    ADC_ChannelConfig(2, 3);

    ADC_StartConversion();

    while(1)
    {
    }

    return (1);
}

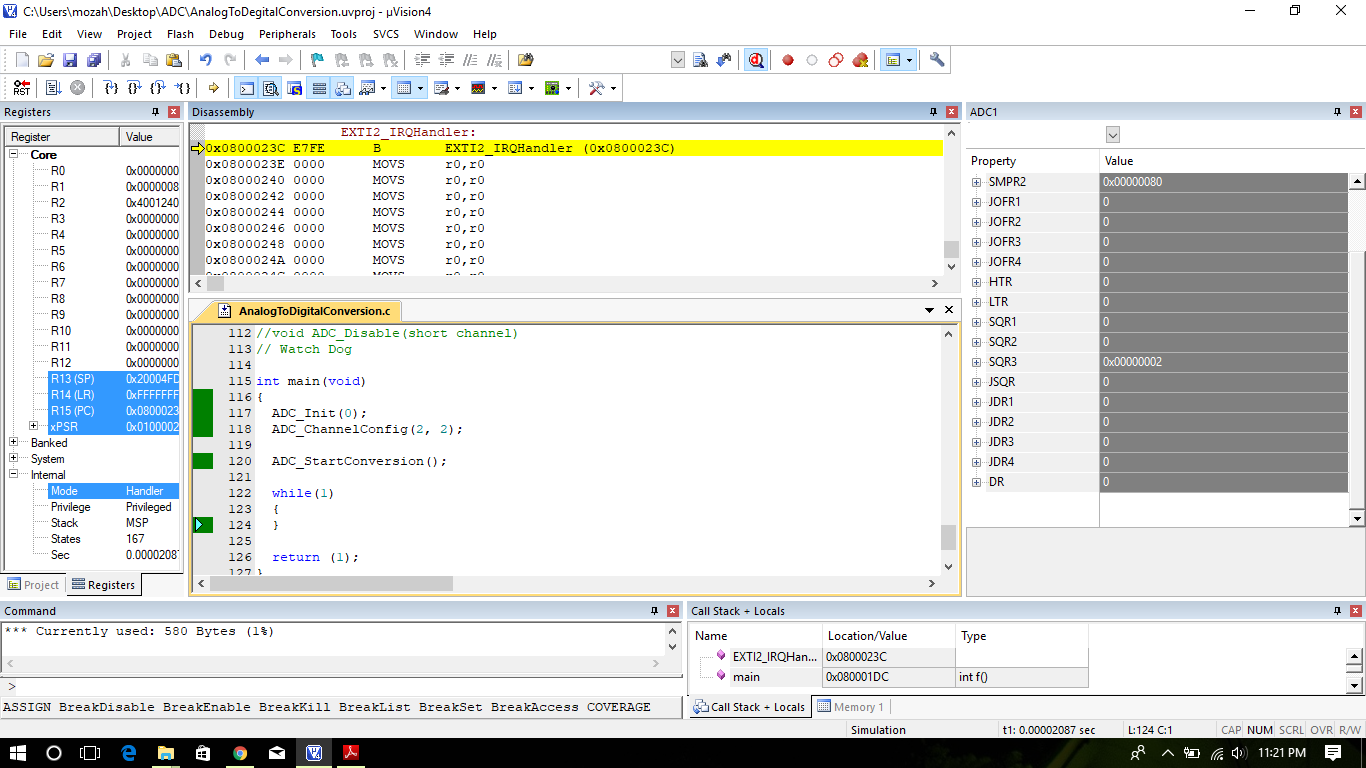

这是中断发生后的拆卸，

​

我试着改变

void ADC_IRQHandler(void)

到，

void ADC1_IRQHandler(void)

但还是没成功。

我使用的微控制器是STM32F103RB.谢谢!

Answer 1

发现问题了。

ADC ISR是，

void ADC1_2_IRQHandler(void)

对ADC 1和ADC 2都需要此ISR。
