ggridges曲线下的阴影面积是多少？

Question

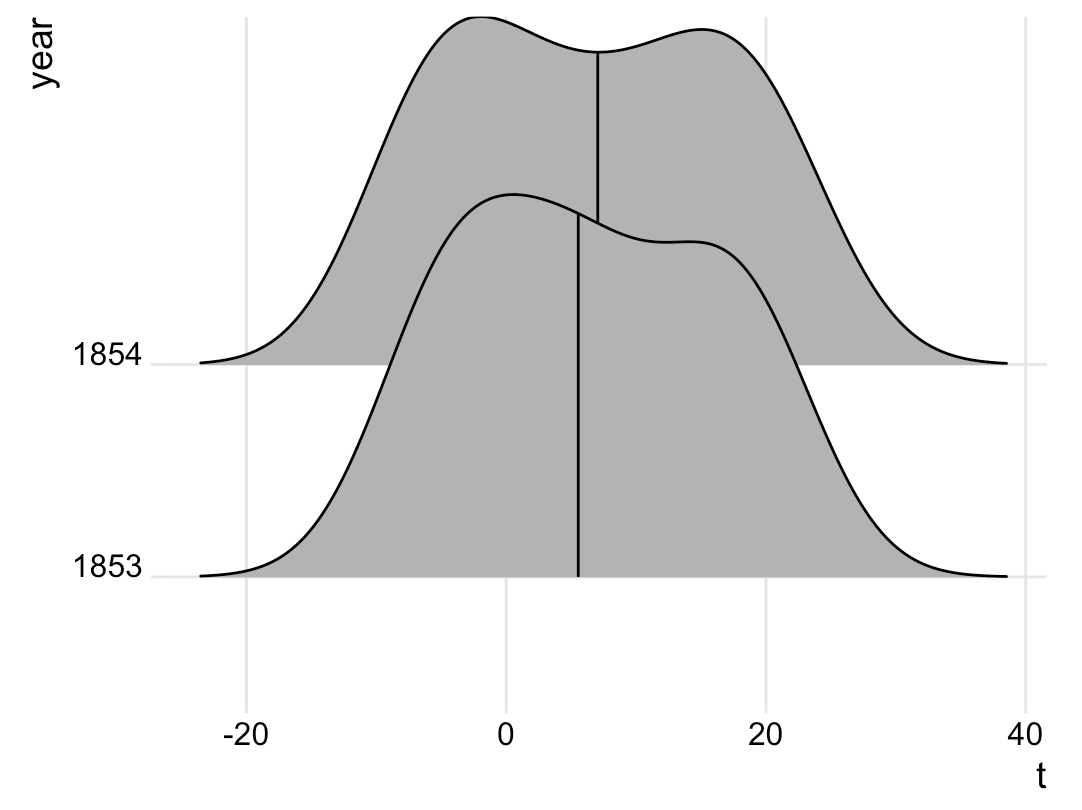

我想用红色突出显示由ggridges创建的多个地块中所有超过20度的温度。

library(tidyverse)
library(ggridges)

ggplot(t2, aes(x = t, y = year)) +
  stat_density_ridges(geom = "density_ridges_gradient", quantile_lines = TRUE, quantiles = 2) +
  theme_ridges()

​

​

输出dput(t2)

structure(list(Date = c("1853-01", "1853-02", "1853-03", "1853-04",
"1853-05", "1853-06", "1853-07", "1853-08", "1853-09", "1853-10",
"1853-11", "1853-12", "1854-01", "1854-02", "1854-03", "1854-04",
"1854-05", "1854-06", "1854-07", "1854-08", "1854-09", "1854-10",
"1854-11", "1854-12"), t = c(-5.6, -5.3, -1.5, 4.9, 9.8, 17.9,
18.5, 19.9, 14.8, 6.2, 3.1, -4.3, -5.9, -7, -1.3, 4.1, 10, 16.8,
22, 20, 16.1, 10.1, 1.8, -5.6), year = c("1853", "1853", "1853",
"1853", "1853", "1853", "1853", "1853", "1853", "1853", "1853",
"1853", "1854", "1854", "1854", "1854", "1854", "1854", "1854",
"1854", "1854", "1854", "1854", "1854")), row.names = c(NA, -24L
), class = c("tbl_df", "tbl", "data.frame"), .Names = c("Date",
"t", "year"))

Answer 1

我们可以做以下工作：

gg <- ggplot(t2, aes(x = t, y = year)) +
    stat_density_ridges(
        geom = "density_ridges_gradient",
        quantile_lines = TRUE,
        quantiles = 2) +
    theme_ridges()

# Build ggplot and extract data
d <- ggplot_build(gg)$data[[1]]

# Add geom_ribbon for shaded area
gg +
    geom_ribbon(
        data = transform(subset(d, x >= 20), year = group),
        aes(x, ymin = ymin, ymax = ymax, group = group),
        fill = "red",
        alpha = 0.2);

​

​

这样做的目的是从ggplot构建中提取地块数据；然后我们为x >= 20添加一个geom_ribbon来对所有密度脊中的区域>=20进行阴影处理。

如果没有transform(..., year = group))，就会出现一个错误object 'year' not found；我不知道这是为什么，但是添加transform(..., year = group)是有效的。

Answer 2

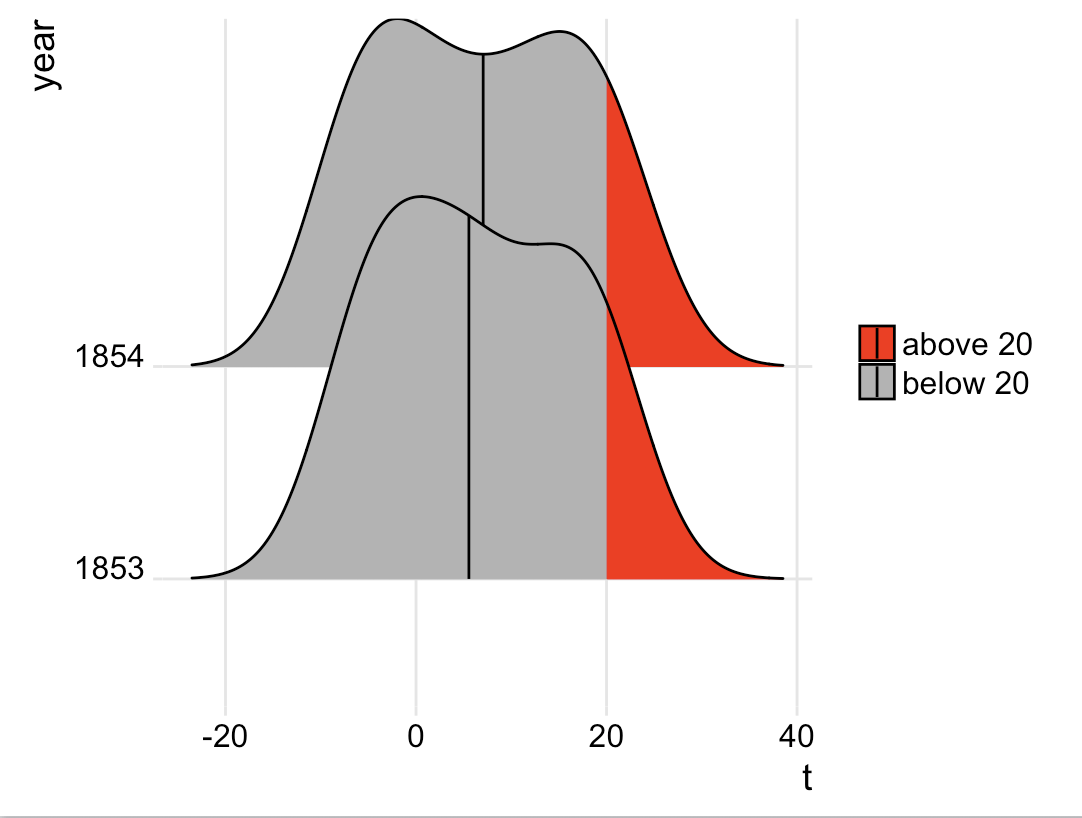

使用巧妙的fill美学是可以做到这一点的：

ggplot(t2, aes(x = t, y = year, fill = ifelse(..x..>20, "above 20", "below 20"))) +
  stat_density_ridges(geom = "density_ridges_gradient", quantile_lines = TRUE, quantiles = 2) +
  theme_ridges() +
  scale_fill_manual(values = c("red", "gray70"), name = NULL)

​

​

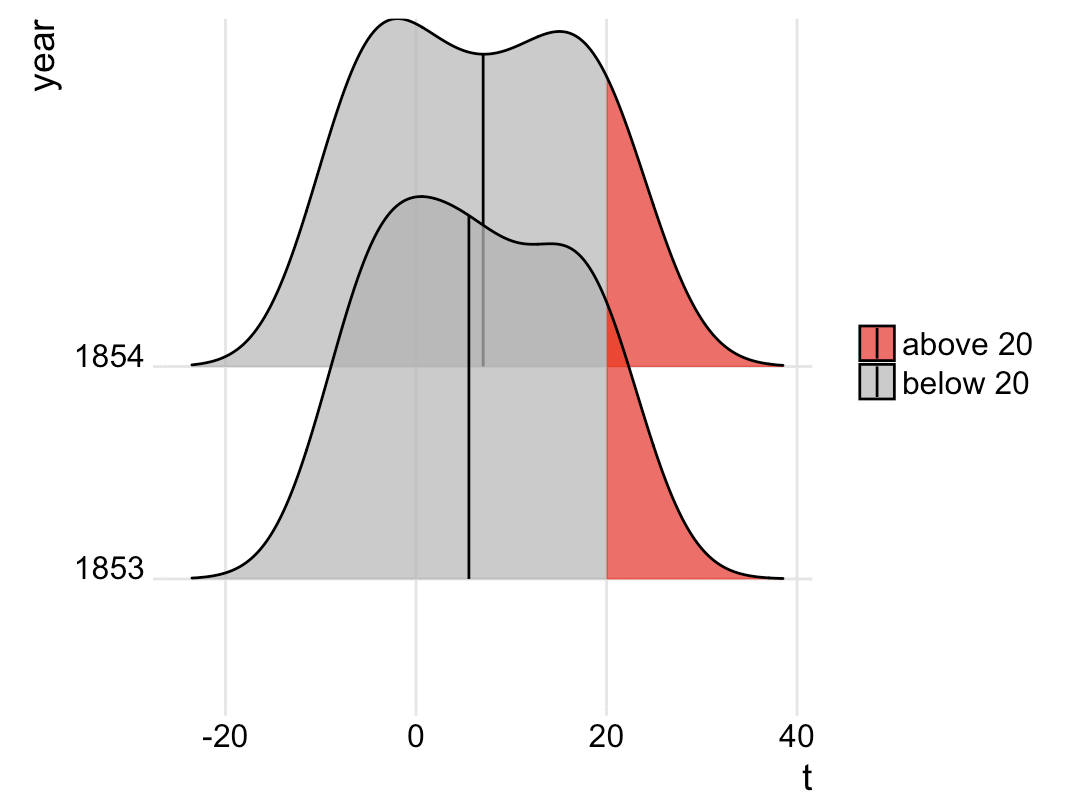

而且，如果希望填充的区域部分透明，可以使用RGBA颜色(因为geom_density_ridges_gradient()不支持alpha)：

ggplot(t2, aes(x = t, y = year, fill = ifelse(..x..>20, "above 20", "below 20"))) +
  stat_density_ridges(geom = "density_ridges_gradient", quantile_lines = TRUE, quantiles = 2) +
  theme_ridges() +
  scale_fill_manual(values = c("#FF0000B3", "#B3B3B3B3"), name = NULL)

​

​

Answer 3

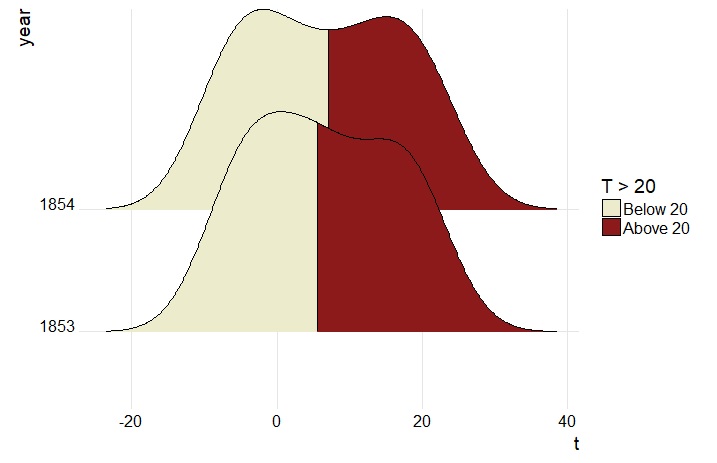

根据你的数据，我不知道你到底在找什么，但也许这会给你提供线索：

> ggplot(t2, aes(x = t, y = year, fill=factor(..quantile..))) +
     stat_density_ridges(geom = "density_ridges_gradient", calc_ecdf=TRUE, quantile_lines=TRUE, quantiles=2) +
     scale_fill_manual(name = "T > 20", values = c("#ececcc", "#8b1a1a"), labels = c("Below 20", "Above 20")) +
     theme_ridges()

​

​
