用于ArangoDB pyArango的图图API

Question

我使用的是ArangoDB社区版，我可以在AQL中查询创建的图形，并在ArangoDB web接口工具上以图形化的方式获得结果。

AQL查询

FOR v,e,p IN 1..3 OUTBOUND 'germanCity/Hamburg' GRAPH 'routeplanner'
OPTIONS{bfs :true}
RETURN p

JSON输出

[
  {
    "edges": [
      {
        "_key": "6392826",
        "_id": "germanHighway/6392826",
        "_from": "germanCity/Hamburg",
        "_to": "germanCity/Cologne",
        "_rev": "_WmZ77pW--D",
        "distance": 500
      }
    ],
    "vertices": [
      {
        "_key": "Hamburg",
        "_id": "germanCity/Hamburg",
        "_rev": "_WmZ77Z---_",
        "population": 1000000,
        "isCapital": false,
        "loc": [
          53.5653,
          10.0014
        ]
      },
      {
        "_key": "Cologne",
        "_id": "germanCity/Cologne",
        "_rev": "_WmZ77Y6--B",
        "population": 1000000,
        "isCapital": false,
        "loc": [
          50.9364,
          6.9528
        ]
      }
    ]
  },
  {
    "edges": [
      {
        "_key": "6392840",
        "_id": "internationalHighway/6392840",
        "_from": "germanCity/Hamburg",
        "_to": "frenchCity/Paris",
        "_rev": "_WmZ77pa--_",
        "distance": 900
      }
    ],
    "vertices": [
      {
        "_key": "Hamburg",
        "_id": "germanCity/Hamburg",
        "_rev": "_WmZ77Z---_",
        "population": 1000000,
        "isCapital": false,
        "loc": [
          53.5653,
          10.0014
        ]
      },
      {
        "_key": "Paris",
        "_id": "frenchCity/Paris",
        "_rev": "_WmZ77Z---D",
        "population": 4000000,
        "isCapital": true,
        "loc": [
          48.8567,
          2.3508
        ]
      }
    ]
  },
  {
    "edges": [
      {
        "_key": "6392843",
        "_id": "internationalHighway/6392843",
        "_from": "germanCity/Hamburg",
        "_to": "frenchCity/Lyon",
        "_rev": "_WmZ77pa--B",
        "distance": 1300
      }
    ],
    "vertices": [
      {
        "_key": "Hamburg",
        "_id": "germanCity/Hamburg",
        "_rev": "_WmZ77Z---_",
        "population": 1000000,
        "isCapital": false,
        "loc": [
          53.5653,
          10.0014
        ]
      },
      {
        "_key": "Lyon",
        "_id": "frenchCity/Lyon",
        "_rev": "_WmZ77Z---B",
        "population": 80000,
        "isCapital": false,
        "loc": [
          45.76,
          4.84
        ]
      }
    ]
  }
]

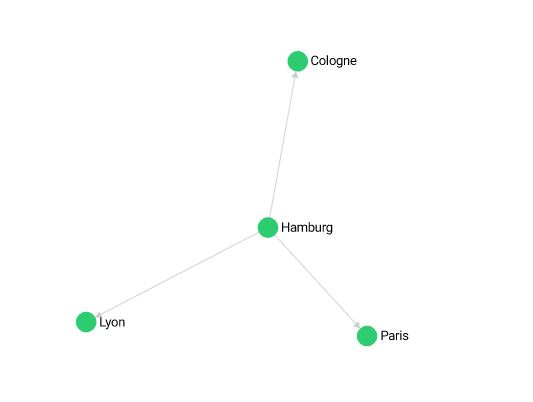

等价图

​

​

由于我们可以在web接口中获得可视化的图形输出，所以我想在语言<->ArangoDB中显示相同的图形。这里的语言可以支持驱动语言: Python、Java、C#等。

我使用pyArango与ArangoDB进行接口

我找不到JPG或matlibplot图形可视化的ArangoDB API。

除了使用以下两个选项之外，还有其他方法吗？

1. 使用networkx.draw(networkx.graph)
2. matplotlib.pyplot

Answer 1

如果您需要图形可视化，那么墨维兹库就适合您了。如果Python没有问题，那么您只需要一个Python绑定库图文 (利用点语言 )。

将图形JSON从Arango提供给graphviz进行渲染是非常容易的。

您可以自定义它到您的样式，添加标签，颜色，重塑节点等。

下面是示例JSON的一个简单示例：

from graphviz import Digraph

arango_graph = [
    {
        "edges": [
            {
                "_key": "6392826",
                "_id": "germanHighway/6392826",
                "_from": "germanCity/Hamburg",
                "_to": "germanCity/Cologne",
                "_rev": "_WmZ77pW--D",
                "distance": 500
            }
        ],
        "vertices": [
            {
                "_key": "Hamburg",
                "_id": "germanCity/Hamburg",
                "_rev": "_WmZ77Z---_",
                "population": 1000000,
                "isCapital": False,
                "loc": [
                    53.5653,
                    10.0014
                ]
            },
            {
                "_key": "Cologne",
                "_id": "germanCity/Cologne",
                "_rev": "_WmZ77Y6--B",
                "population": 1000000,
                "isCapital": False,
                "loc": [
                    50.9364,
                    6.9528
                ]
            }
        ]
    },
    {
        "edges": [
            {
                "_key": "6392840",
                "_id": "internationalHighway/6392840",
                "_from": "germanCity/Hamburg",
                "_to": "frenchCity/Paris",
                "_rev": "_WmZ77pa--_",
                "distance": 900
            }
        ],
        "vertices": [
            {
                "_key": "Hamburg",
                "_id": "germanCity/Hamburg",
                "_rev": "_WmZ77Z---_",
                "population": 1000000,
                "isCapital": False,
                "loc": [
                    53.5653,
                    10.0014
                ]
            },
            {
                "_key": "Paris",
                "_id": "frenchCity/Paris",
                "_rev": "_WmZ77Z---D",
                "population": 4000000,
                "isCapital": True,
                "loc": [
                    48.8567,
                    2.3508
                ]
            }
        ]
    },
    {
        "edges": [
            {
                "_key": "6392843",
                "_id": "internationalHighway/6392843",
                "_from": "germanCity/Hamburg",
                "_to": "frenchCity/Lyon",
                "_rev": "_WmZ77pa--B",
                "distance": 1300
            }
        ],
        "vertices": [
            {
                "_key": "Hamburg",
                "_id": "germanCity/Hamburg",
                "_rev": "_WmZ77Z---_",
                "population": 1000000,
                "isCapital": False,
                "loc": [
                    53.5653,
                    10.0014
                ]
            },
            {
                "_key": "Lyon",
                "_id": "frenchCity/Lyon",
                "_rev": "_WmZ77Z---B",
                "population": 80000,
                "isCapital": False,
                "loc": [
                    45.76,
                    4.84
                ]
            }
        ]
    }
]

graph_name = 'amazing'

g = Digraph(graph_name, filename=graph_name, format='jpeg', engine='neato')
g.attr(scale='2', label='Look at my graph my graph is amazing!', fontsize='18')
g.attr('node', shape='circle', fixedsize='true', width='1')

for item in arango_graph:
    for vertex in item['vertices']:
        g.node(vertex['_id'], label=vertex['_key'])
    for edge in item['edges']:
        g.edge(edge['_from'], edge['_to'], label=str(edge['distance']))

# Render to file into some directory
g.render(directory='/tmp/', filename=graph_name)
# Or just show rendered file using system default program
g.view()

只有3行用于定制的代码行，还有5行代码为图形可视化呈现程序提供信息。请注意，Arango并不呈现同一对节点之间的所有边缘，而graphviz则是这样做的，您可以使用不同的样式。

您将需要安装graphviz库和Python绑定。

步骤1:安装库

假设您的机器是Ubuntu：

sudo apt install graphviz

步骤2:获取Python绑定

pipenv install graphviz

如果您还没有使用https://pipenv.kennethreitz.org/，可以使用好的旧Pip(:_ )进行安装。

pip install graphviz

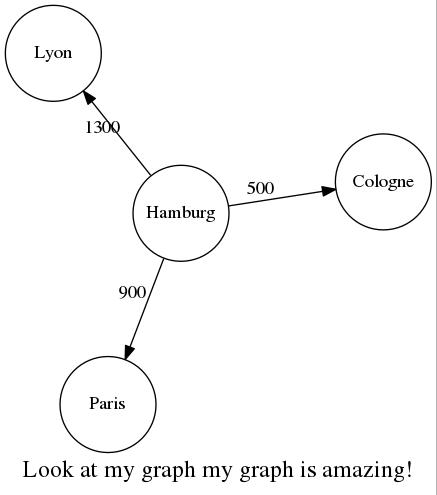

步骤3:运行示例并享受

​

​
