在UIStoryboardSegue中添加子视图

Question

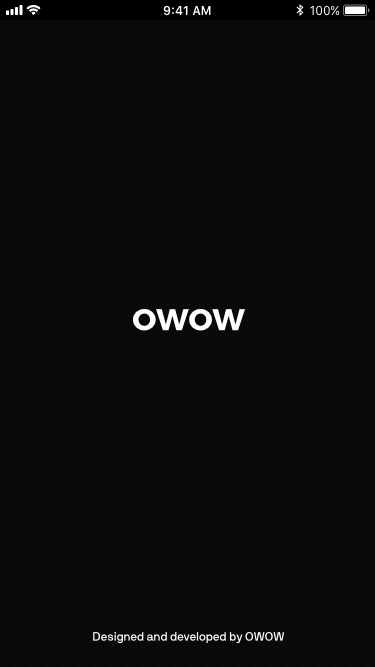

我正在编写一个应用程序，我需要使用一个相当“复杂”的UIStoryboardSegue。设计师给了我以下内容：

​

​

现在，segue背后的基本思想是简单的，向上滑动source.view，然后再滑动一个视图，然后最终滑动destination.view。不过，我的问题如下：

如何在source.view和destination.view之间插入来自UIStoryboardSegue子类的第二个视图？显然，我不能只做addSubview，因为没有可以添加的视图。是否还有其他地方可以在UIStoryboardSegue中添加视图，以便我仍然可以创建这个segue？

谢谢。

Answer 1

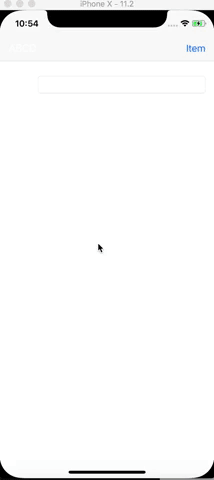

如果这是你想要的

​

​

你可以很容易地实现它，

步骤1:

创建UIStoryboardSegue的子类并重写perform

import UIKit

class SpecialEffectSegue: UIStoryboardSegue {
    override func perform() {

        let firstVCView = self.source.view as UIView!
        let secondVCView = self.destination.view as UIView!
        let intermediateView = UIView()
        intermediateView.backgroundColor = UIColor.red

        // Get the screen width and height.
        let screenWidth = UIScreen.main.bounds.size.width
        let screenHeight = UIScreen.main.bounds.size.height

        // Specify the initial position of the destination view.
        secondVCView?.frame = CGRect(x: 0.0, y: screenHeight, width: screenWidth, height: screenHeight)
        intermediateView.frame = CGRect(x: 0.0, y: screenHeight, width: screenWidth, height: screenHeight)

        // Access the app's key window and insert the destination view above the current (source) one.
        let window = UIApplication.shared.keyWindow
        window?.insertSubview(intermediateView, aboveSubview: firstVCView!)
        window?.insertSubview(secondVCView!, aboveSubview: secondVCView!)

        UIView.animate(withDuration: 0.4, animations: { () -> Void in
            firstVCView?.frame = ((firstVCView?.frame)?.offsetBy(dx: 0.0, dy: -screenHeight))!
            intermediateView.frame = (intermediateView.frame.offsetBy(dx: 0.0, dy: -screenHeight))
        }) { (Finished) -> Void in
            UIView.animate(withDuration: 0.4, animations: { () -> Void in
                secondVCView?.frame = (secondVCView?.frame.offsetBy(dx: 0.0, dy: -screenHeight))!
            }) { (Finished) -> Void in
                self.source.present(self.destination, animated: false, completion: {
                    intermediateView.removeFromSuperview()
                })
            }
        }
    }
}

虽然代码看起来庞大而复杂，但在代码中发生的事情非常简单。

使用以下方法获取source和destination viewController's视图

    let firstVCView = self.source.view as UIView!
    let secondVCView = self.destination.view as UIView!

因为您需要一个中间视图，这里的颜色是红色，所以您需要再创建一个视图。

    let intermediateView = UIView()
    intermediateView.backgroundColor = UIColor.red

现在获取UIScreen的宽度和高度，以便您可以配置这些视图帧，使其看起来符合您的需要。

    let screenWidth = UIScreen.main.bounds.size.width
    let screenHeight = UIScreen.main.bounds.size.height

    // Specify the initial position of the destination view.
    secondVCView?.frame = CGRect(x: 0.0, y: screenHeight, width: screenWidth, height: screenHeight)
    intermediateView.frame = CGRect(x: 0.0, y: screenHeight, width: screenWidth, height: screenHeight)

请注意，我设置了SecondVC和intermediateView的框架，使它们处于屏幕边界以下，并使它们在UIView.animate块中显示出来。

很明显，因为动画发生在应用程序的键窗口上，所以访问键窗口。

let window = UIApplication.shared.keyWindow

现在根据您的需要将子视图插入到窗口。

    window?.insertSubview(intermediateView, aboveSubview: firstVCView!)
    window?.insertSubview(secondVCView!, aboveSubview: secondVCView!)

在此之后，我的视图被堆成了FirstVCView -> IntermediateView -> SecondVCView。

现在我们已经有了我们所需要的，不是吗？现在使用UIView.animate动画

   UIView.animate(withDuration: 0.4, animations: { () -> Void in
        firstVCView?.frame = ((firstVCView?.frame)?.offsetBy(dx: 0.0, dy: -screenHeight))!
        intermediateView.frame = (intermediateView.frame.offsetBy(dx: 0.0, dy: -screenHeight))
    }) { (Finished) -> Void in
        UIView.animate(withDuration: 0.4, animations: { () -> Void in
            secondVCView?.frame = (secondVCView?.frame.offsetBy(dx: 0.0, dy: -screenHeight))!
        }) { (Finished) -> Void in
            self.source.present(self.destination, animated: false, completion: {
                intermediateView.removeFromSuperview()
            })
        }
    }

重要的是要注意的是intermediateView.removeFromSuperview()在完成块。

现在，我决定使用self.source.present(来显示目的地，如果您需要用时髦的动画推送目的地VC，请说。

self.source.navigationController?.pushViewController(destination, animated: false)

(就这些:)

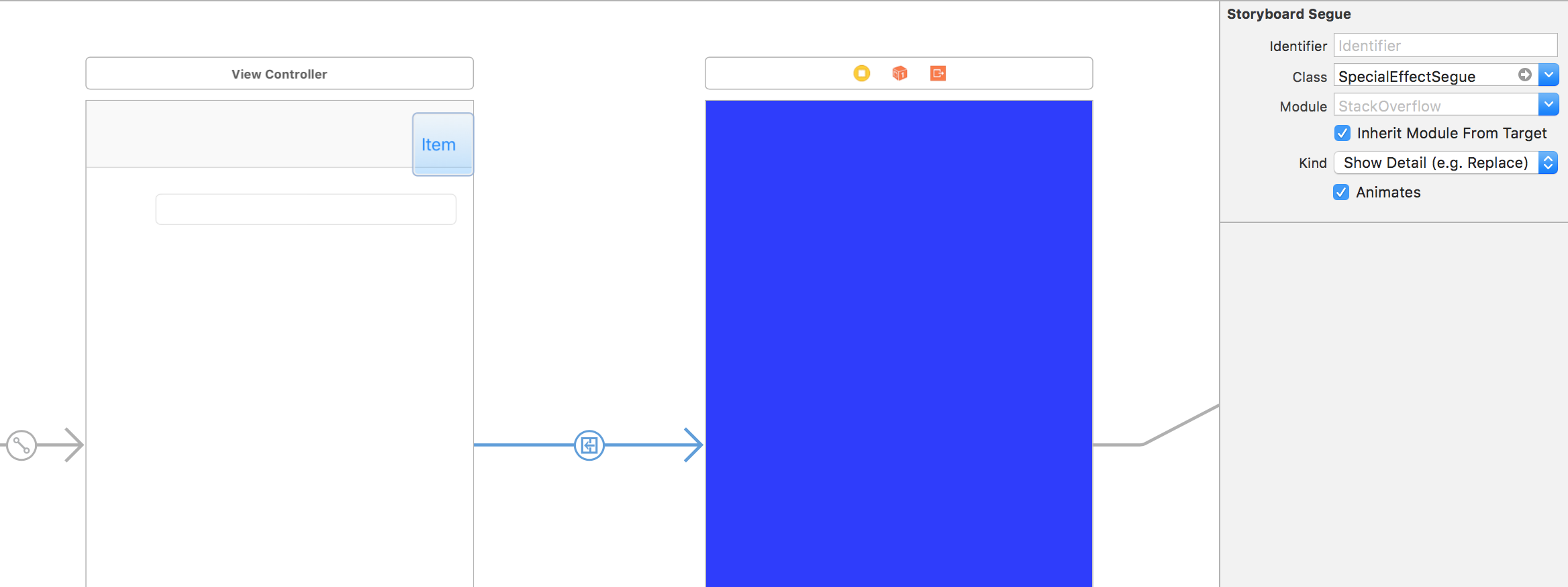

现在打开您的故事板，将一个segue从您的FirstVC拖到SecondVC，并选择segue类，就像现在它喜欢的SpecialEffectSegue一样。

​

​

希望它有帮助:)
